Price: 25.00 $ - 1,685.00 $

NOTICE OF FREE UPDATE TO THE NEW VERSION RELEASED ON 18/10/2024 FOR MOTOSCAN PHONE 2.8
- MOTOSCAN PHONE is used to determine faults and repair electronic & electrical systems for most motorbikes and scooters with electronic control systems for starting, fuel injection, ignition, ABS, Smartkey, ODO, ECU…
- The product is designed compactly and integrates all functions “all in one”. It connects with vehicle via Bluetooth communication and is used for diagnosing faults, repairing faults for Engine & ABS system; automatically programming smart key system; automatic testing ECU inside, automatic engine technical analyzing, intelligent diagnosing without OBD fault code, ODO value correction, ECU signal simulating, programming and upgrading standard software of manufacturer inside ECM, SCU…
Click here to watch ordering instruction >>>

  • Product code:
  • Made by:
  • Net Weight:
  • Weight:
Buy Now
News
MOTOSCAN PHONE 2.8 WHAT'S NEW?icon

● Updated date: 18/10/2024
● App software (software): V2.8 | Firmware in hardware (firmware): V2.8 | Hardware: V2.8

WHAT IS THE NEW CONTENT IN MOTOSCAN PHONE 2.8?

1. SPECIAL FUNCTIONS AND UTILITIES
- Support engine oil quality testing function for motorbikes and cars.
- Support a basic assessment function for vehicle emissions pollution levels: HC, NOx, CO, CO2, O2... (Euro 4 for motorcycles) through engine analysis algorithms, providing a preliminary, quick assessment for post-repair vehicles to undergo Euro 4 emissions testing
- Specially supports hands-free voice control of MOTOSCAN TAB (AI voice technology)

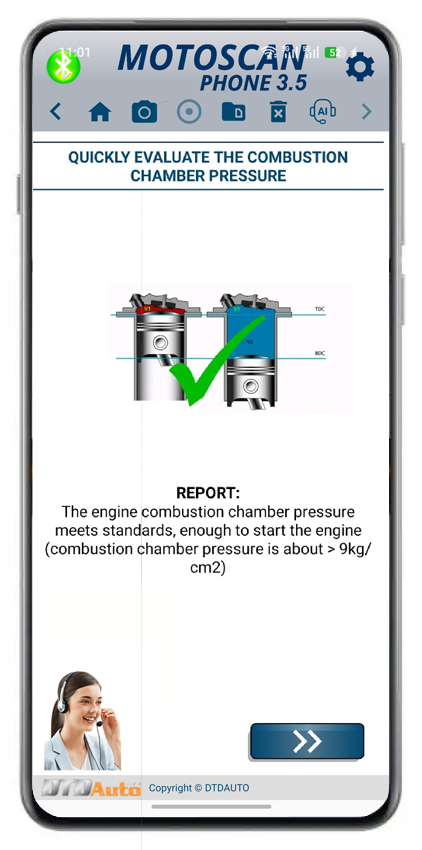

- Added a function to check the combustion chamber pressure for PCX, VARIO, and CLICK vehicles in the ASIA market until 2024.
- Optimizes the program to run smoother, faster, and more stable.

2. ENGINE/ABS FUNCTIONS
- Updated 34 new vehicles HONDA, YAMAHA, SYM (CAN BUS (OBD-II) and K-LINE communication standards) with full functionality for the ASIA vehicle market until 2024 (especially supporting vehicles in the Philippines, Indonesia, Malaysia, Thailand markets)
      + HONDA: DIO 50 (2016-2021), DIO 110 (2021-2024), SUPER CUB 110 (2021-2024), FORZA 350 (OBD-II) (2021-2024), ADV 350 (OBD-II) (2021-2024), AIR BLADE 160 (2021-2024), PCX (2008-2024), VARIO (2013-2024), CLICK (2013-2024)
      + YAMAHA: MIO i125, FAZZIO (2022-2024), FAZZIO SMART KEY (2022-2024), MIO GEAR, MIO GRAVIS, MT-03 (2020-2021), MT-03 (2022-2024), MT-07 (2018-2020), MT-07 (2021-2024), T-MAX (2017-2019), WR155R, SEROW, PG-1, MT-09 (2018-2020), SNIPER (2015-2018), SNIPER (2019-2020), SNIPER (2021-2024)
      + SYM: SYMPHONY, SYMPHONY ST, FIDDLE 125, SYMPHONY SR 125, ORBIT III 125, MASK 125, MIO 50, FNX 125, JOYRIDE S 125/200, X'PRO 125, JET 4 RX 125, SYMPHONY CARGO 125
- Fully supports data in the Datalink utility, providing great convenience and intelligent, quick technical information lookup directly on the wiring diagram in the OBD code reading section.
- Optimizes and updates the ISCV reset function for the latest generation of YAMAHA vehicles..

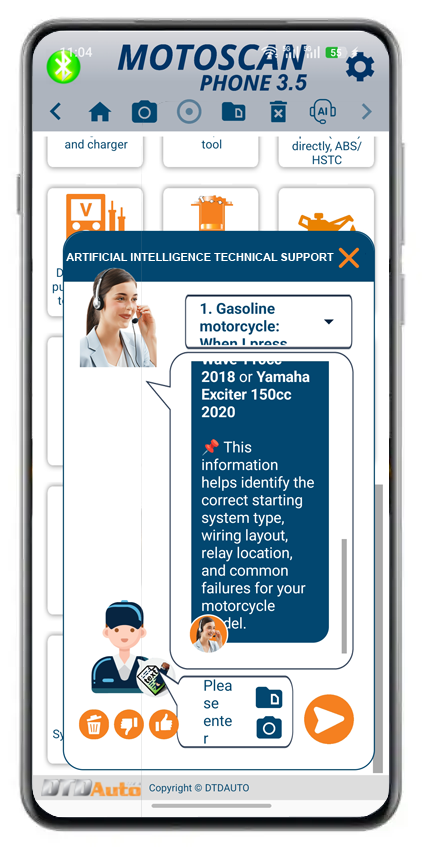

3. ADVANCED DIAGNOSTICS WITH ARTIFICIAL INTELLIGENCE (AI)
Added an (AI) library, updates information collected from a large number of users, includes corresponding images, optimizes algorithms and (AI) data for the error analysis function using artificial intelligence, and supports many new vehicles until 2024, including those with K-Line and CAN Bus (OBD-II) standards.

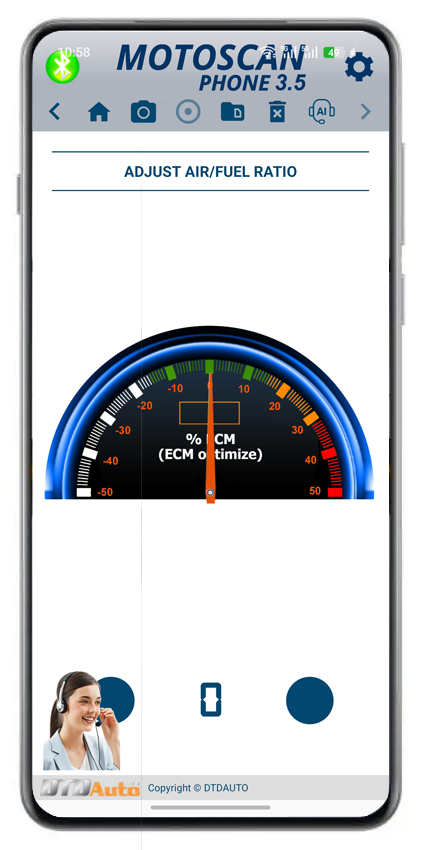

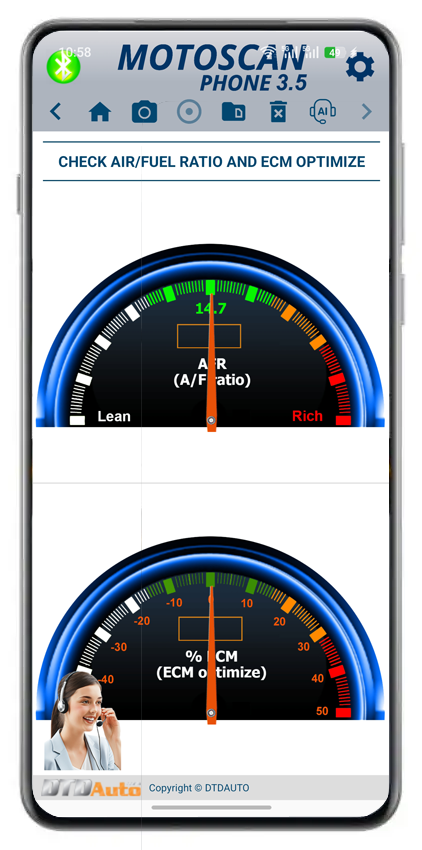

4. ECU TUNER FUNCTION (TUNING A/F RATIO, ON/OFF SMART KEY FOR ECM)
Added rescue, reload original software, OFF Smart key for ECM for Thailand PCX

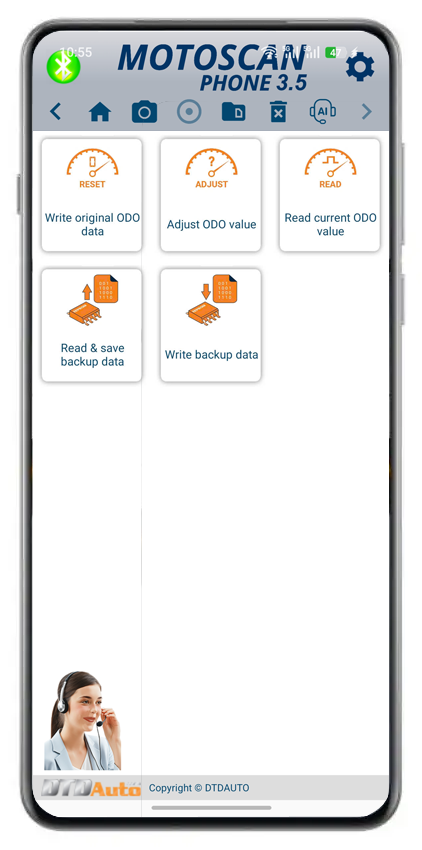

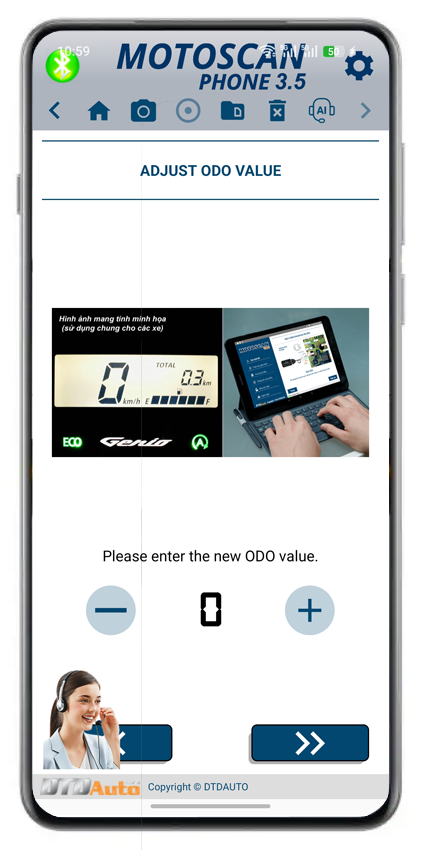

5. ODO FUNCTION
Support calibration and loading of original ODO data for HONDA: SUPER CUB 110 (2021-2024), SH 300i (2016-2019), CB150 VERZA (2021-2024), REBEL 500 (2019-2020), CRF 150 (2021-2024)

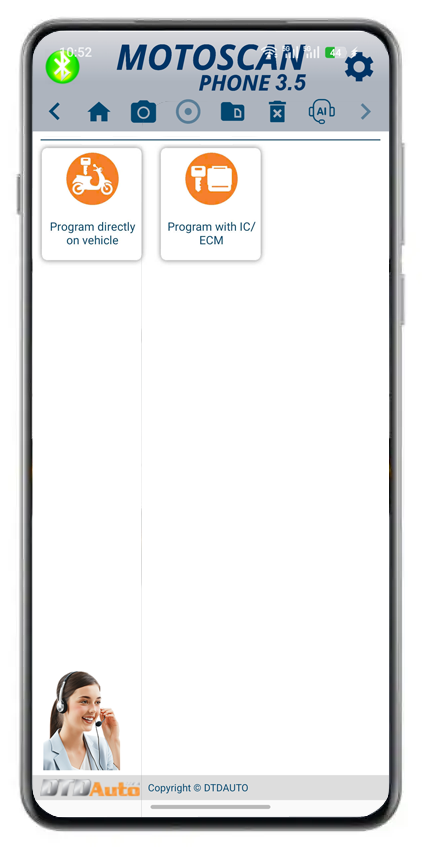

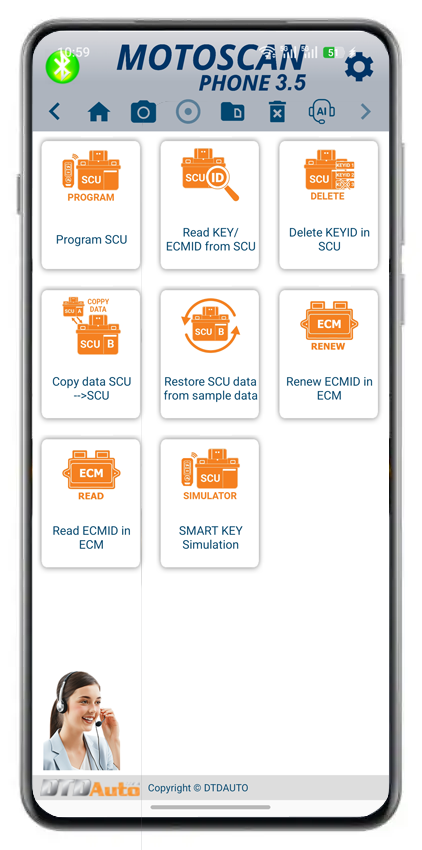

6. IMMO/ SMART KEY FUNCTION
- Suppor and further optimizes the function of reading ECMID inside the HONDA ECM (Keihin & Shindengen) for most motorcycle models.
- Support the ON/OFF IMMOBILIZER function of the ECU MIUG3 for Piaggio and Vespa
- Support software conversion within the SCU according to personal preferences for the following SCU codes: K01, K0R, K0G, K29, K35, K77, K97.

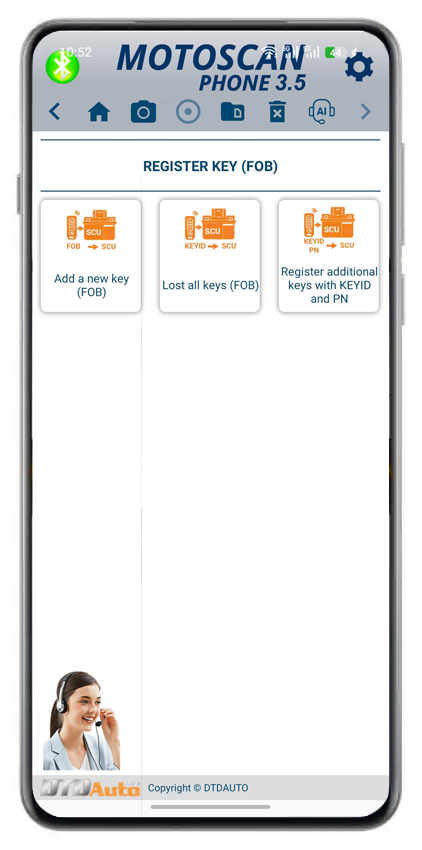

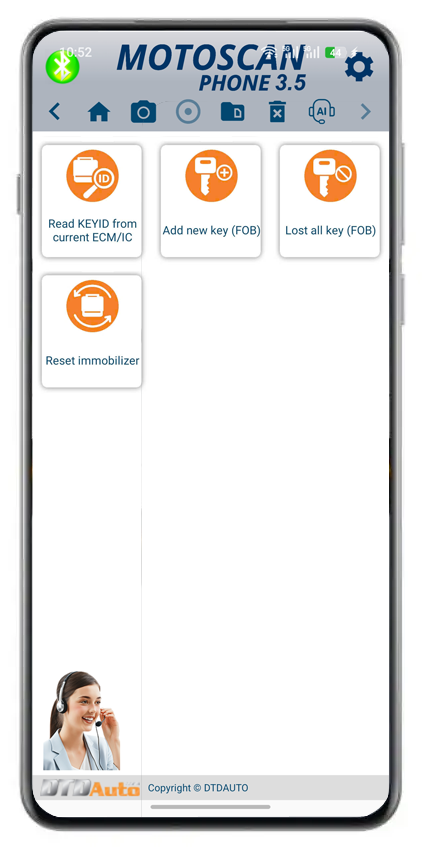

- Support the KEYID reading function and key programming for HONDA SCU K1N (33 pins).

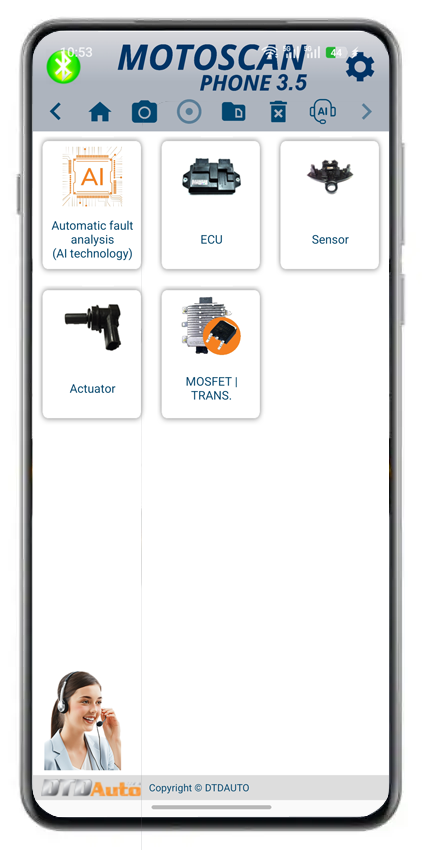

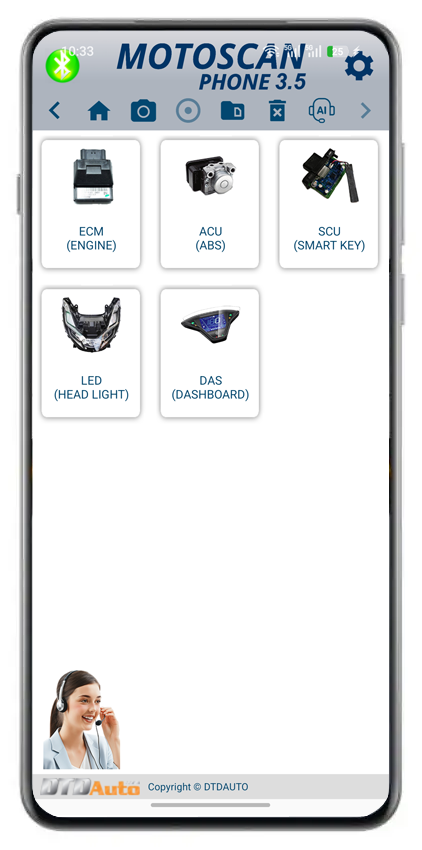

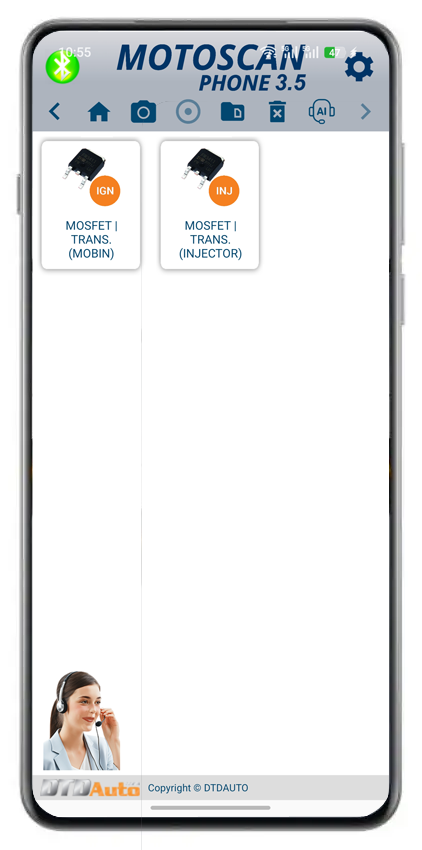

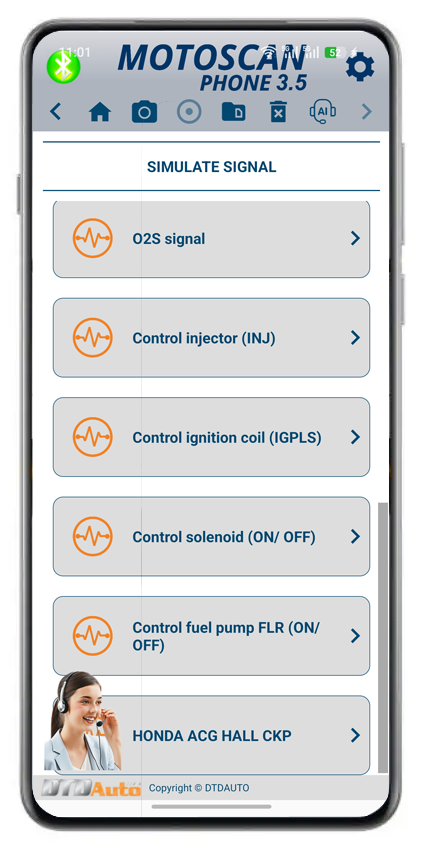

7. TESTER FUNCTIONS: ECU, SENSOR, ACTUATOR
- Added hardware and software quality check of ECM PCX (K97F–T11–TH01)
- Added power supply check for CKP sensor of ACG ECUs
- Detect software-faulty ECMs when using other diagnostic machines on the market to load and calibrate ECM software

8. LOOKUP FUNCTION, AUTOMATIC CALCULATION, INTERFACE, OTHER FUNCTIONS
- Added welding point guide diagrams for ODO correction of HONDA: CRF 150 (2021-2024), ADV 160 (2022), FORZA (2018-2020), SUPER CUP 110 (2021)
- Added ACU, SCU, ECM connector pin lookup for HONDA, YAMAHA:
     + HONDA: BEAT 2012, BEAT 2016, CLICK 125 (2023-2024), CLICK 160 (2023-2024), ADV 160 (2023-2024), SUPER CUP 110 (2018), SUPER CUP 110 (2021-2024)
     + YAMAHA: MIO AEROX, SNIPER 155
- Added fault location on motorcycle and electrical system diagram for HONDA, YAMAHA:
     + HONDA: BEAT 110 2012, BEAT 110 2016, CLICK 125 (2023-2024), CLICK 160 (2023-2024), ADV 160 (2023-2024), SUPER CUP 110 (2018), SUPER CUP 110 (2021-2024)
     + YAMAHA: NMAX
- Added repair data for HONDA, YAMAHA:
     + YAMAHA: MIO AEROX, NMAX, XMAX
     + SYM: MAXSYM 400i / 400i ABS / 600i ABS, GTS 250i, RV 250i, GTS 300i, JOYMAX 300i
- Added diagram of auxiliary systems for HONDA: AIR BLADE 2008, AIR BLADE 2011, AIR BLADE 2015, AIR BLADE 2018, AIR BLADE 2020, CLICK 110 trước 2018, CLICK 125 2013, CLICK 125 2015, CLICK 125 2018, CLICK 125 SMK (2023-2024), CLICK 160 CBS (2023-2024), CLICK 160 SMK & ABS (2023-2024), FUTURE NEO Fi, FUTURE X 125
- New design, beautiful interface, easy to use, faster operation for users

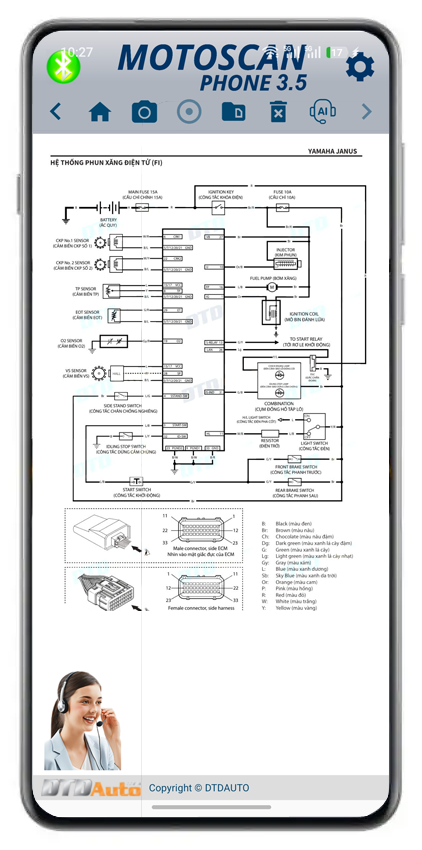

- Support to look up many new vehicles in the electrical circuit diagram lookup section, technical repair data for new vehicles: HONDA, YAMAHA, PIAGGIO, VESPA until 2024
- Support faster database connection, new super stable solution
- Full support of data in the convenient and smart Datalink function directly on the electrical circuit diagram.
Price list
MOTOSCAN PHONE PRICE
(the use value is 10 years)
SELECTION SELECTION 1
STANDARD PACKAGE
(for workshop)		 SELECTION 3
LOCKSMITH PACKAGE
(for locksmith)		 SELECTION 4
SPECIAL PACKAGE
(for workshop)
PRODUCT CODE MT009A MT009K MT009S
PRICE $900.00 $1,115.00 $1,685.00

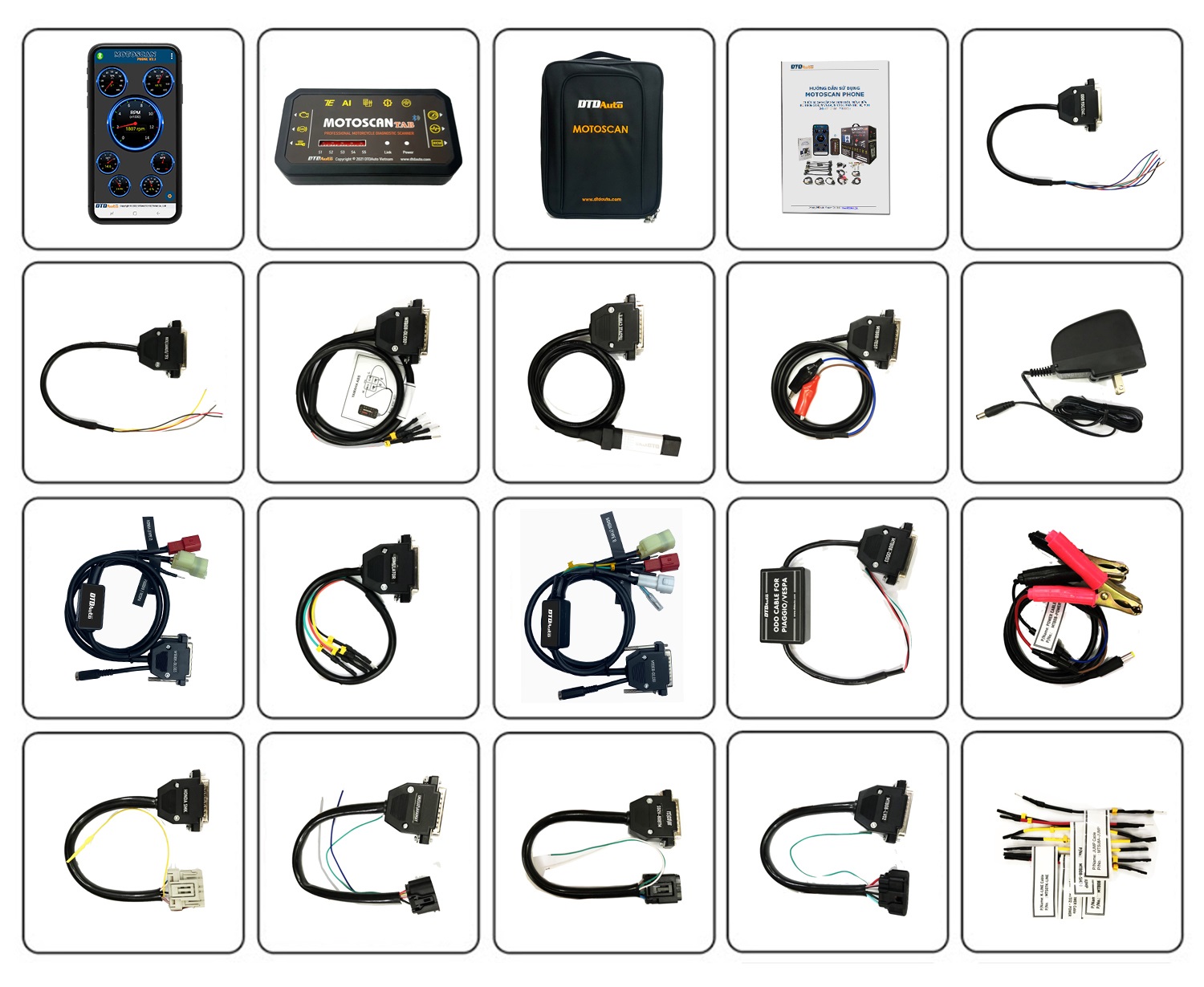

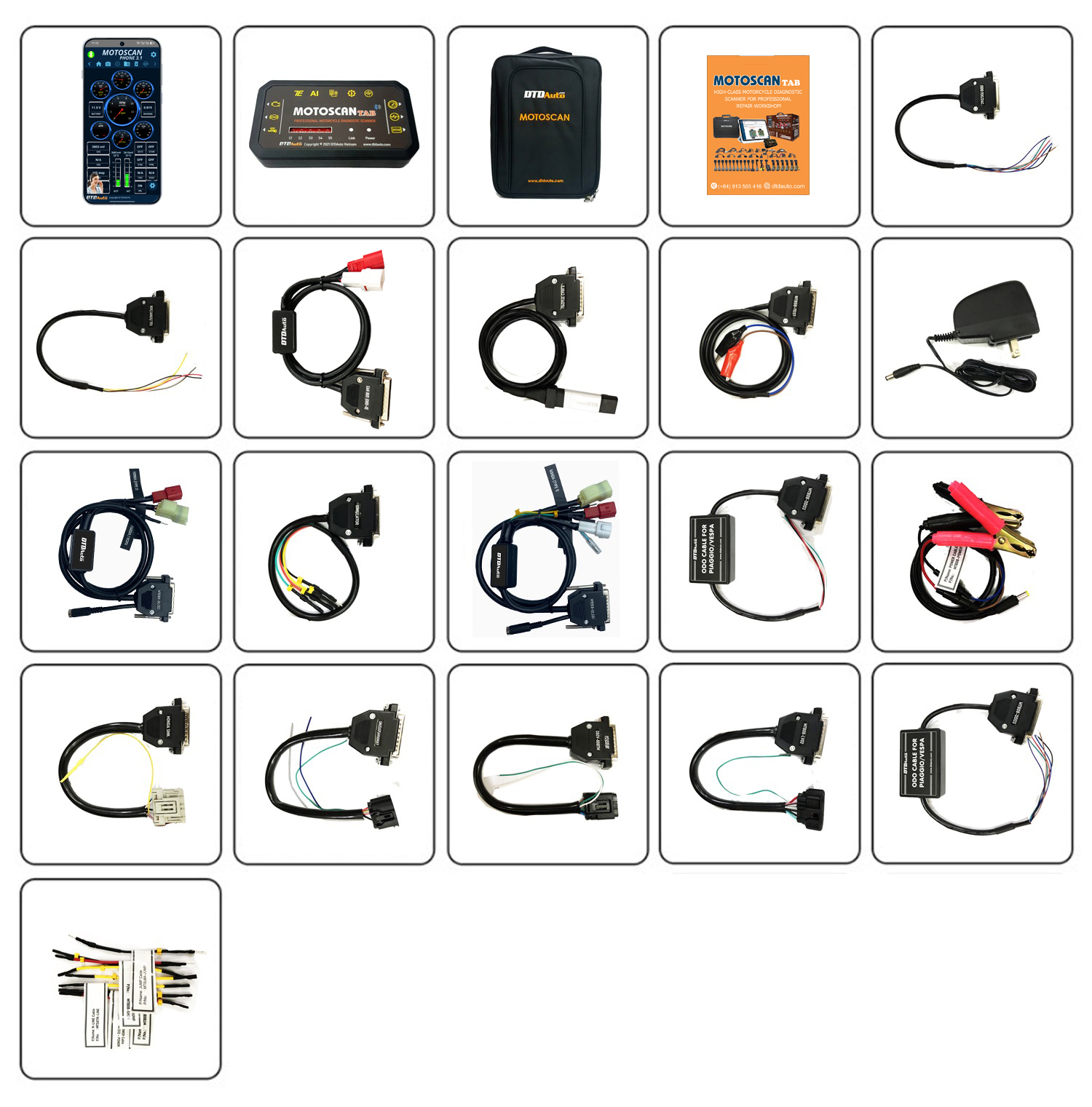

STANDARD PACKING LIST
MOTOSCAN TAB hardware
MOTOSCAN TAB software
Standard cables
 MOTODATA software gift for 1 year
MOTOSCAN TAB hardware
MOTOSCAN TAB software
Standard cables
 MOTODATA software  gift for 1 year
MOTOSCAN TAB hardware
MOTOSCAN TAB software
Standard cables
 MOTODATA software gift for 1 year
ADVANCED PACKING LIST

(CABLE OPTION FOR SCU TEST FUNCTION)
PACK 14 - SCU TESTER
PACK 14 - SCU TESTER
PACK 14 - SCU TESTER
ADVANCED PACKING LIST

(FUNCTION OPTION TO RENEW ECMID FOR SMARTKEY HONDA MOTORBIKES)
PACK 18 - RENEW ECMID
PACK 18 - RENEW ECMID
PACK 18 - RENEW ECMID
ADVANCED PACKING LIST

(CABLE OPTION FOR HONDA KEIHIN ECM TEST FUNCTION)
PACK 1 - HONDA LD09-SCR
PACK 1 - HONDA LD09-SCR
PACK 1 - HONDA LD09-SCR
PACK 2 - HONDA LD12-AB08
PACK 2 - HONDA LD12-AB08
PACK 2 - HONDA LD12-AB08
PACK 3 - HONDA AB11-VS11
PACK 3 - HONDA AB11-VS11
PACK 3 - HONDA AB11-VS11
PACK 4 - HONDA F125-WA10
PACK 4 - HONDA F125-WA10
PACK 4 - HONDA F125-WA10
PACK 5 - HONDA WAVE-AT
PACK 5 - HONDA WAVE-AT
PACK 5 - HONDA WAVE-AT
PACK 6 - HONDA FUX-NEO
PACK 6 - HONDA FUX-NEO
PACK 6 - HONDA FUX-NEO
PACK 12 - HONDA SH150i-PS
PACK 12 - HONDA SH150i-PS
PACK 12 - HONDA SH150i-PS
ADVANCED PACKING LIST

(CABLE OPTION FOR HONDA ACG ECM TEST FUNCTION)
PACK 13 - HONDA ACG ECM TESTER
PACK 13 - HONDA ACG ECM TESTER
PACK 13 - HONDA ACG ECM TESTER
ADVANCED PACKING LIST

(CABLE OPTION FOR YAMAHA ECM TEST FUNCTION)
PACK 7 - YAMAHA NOV-SI16
PACK 7 - YAMAHA NOV-SI16
PACK 7 - YAMAHA NOV-SI16
PACK 8 - YAMAHA EXCITER-18
PACK 8 - YAMAHA EXCITER-18
PACK 8 - YAMAHA EXCITER 2018
PACK 9 - YAMAHA JUPITER-16
PACK 9 - YAMAHA JUPITER-16
PACK 9 - YAMAHA JUPITER-16
PACK 10 - YAMAHA EXCITER-19
PACK 10 - YAMAHA EXCITER-19
PACK 10 - YAMAHA EXCITER-19
ADVANCED PACKING LIST

(CABLE OPTIONS FOR SENSOR & ACTUATOR TEST FUNCTION
PACK 11 - CKP & IACV
PACK 11 - CKP & IACV
PACK 11 - CKP & IACV
PACK 15 - VSS & HALL
PACK 15 - VSS & HALL
PACK 15 - VSS & HALL
ADVANCED PACKING LIST

(CABLE OPTION FOR LED LIGHTING & DASHBOARD SYSTEM TEST FUNCTION)
PACK 16 - LED & DAS
PACK 16 - LED & DAS
PACK 16 - LED & DAS
ADVANCED PACKING LIST

(CABLE OPTION FOR QUICK CHECK OF MOTORCYCLE COMBUSTION CHAMBER PRESSURE)
PACK 17 - P TEST
PACK 17 - P TEST
PACK 17 - P TEST
ADVANCED PACKING LIST

(CABLE OPTION FOR ENGINE OIL TESTING)
PACK 19 - OIL TEST
PACK 19 - OIL TEST
PACK 19 - OIL TEST

*MINIMUM CONFIGURATION REQUIREMENT OF MOBILE PHONE:
1. MOBILE PHONE USING ANDROID
- Mobile phone of manufacturers: Samsung, Lenovo, Huawei, Xiaomi, Nokia, Coolpad, Masstel, Oppo, Vivo, Bphone vv...
- Operating system: Android 10.0 and up
- Screen size: 6.0 inch and up
- Screen resolution: 1280 x 800 Pixels (HD standard)
Note: If you buy low-quality mobile phones, the price is too cheap, small size, too low resolution, and speed will not work with MOTOSCAN PHONE and there is no way to fix it.

2. MOBILE PHONE USING iOS
Configuration requirements: use iOS 11.0 or higher operating system

*MOTOSCAN PHONE APPLICATION INSTALLATION PROCESS FOR THE SECOND DEVICE AND NEXT:
1. Get the verification code from DTDAuto sent via Email, Skype, Messenger, or WhatsApp...
2. Download App# software and install MOTOSCAN TAB App# from Google Play (for Android) or AppStore (for iOS)
3. Enter the verification code to confirm
4. Register your information
5. Contact DTDAuto to activate the usage license for the first time

PRICE FOR ADVANCED OPTION PACKAGES
CABLE OPTION FOR HONDA KEIHIN ECM TEST FUNCTION
OPTIONS DESCRIPTION PRICE (USD)
PACK 1 - HONDA
LD09-SCR
- Used for HONDA: LEAD 2009–2011, SCR 110
- List of compatible ECM codes: 38770-GGE-901, 38770-GGE-902, 38770-GFM-902, 38770-GFM-961
$45.00
PACK 2 - HONDA
LD12-AB08
- Used for HONDA: LEAD 2012, AIR BLADE 2008 – 2010, WINNER 2015-2018, SCOOPY (2010-2016)
- List of compatible ECM codes: 38770-GGE-941, 38770-KVG-V21, 38770-KVG-A31, 38770-KVG-A21, 38770-KVG-A42, 38770-K56-V01, 38770-K25-901
$45.00
PACK 3 - HONDA
AB11-VS11
- Used for HONDA: AIR BLADE (2011 - 2012), VISION (2011-2012), SPACY 110 (2011-2016)
- List of compatible ECM codes: 38770-KVG-V41, 38770-KVB-S53, 38770-KVG-V42, 38770-KZL-E71, 38770-KZL-E13, 38770-KZL-E12, 38770-KZL-933, 38770-KZL-C31
$45.00
PACK 4 - HONDA
F125-WA10
- Used for HONDA: FUTURE 125, WAVE RSX, WAVE 110, WAVE 125
- List of compatible ECM codes: 38770-KYZ-V21, 38770-KYZ-G01, 38770-K73-V02, 38770-K73-V81, 38770-K73-V42, 38770-KYZ-V71, 38770-KYZ-T03, 38770-KYZ-V21, 38770-K58-T81, 38770-G90-V02, 38770-K58-TC2, 38770-K90-V03, 38770-K90-V03, 38770-K03-M01, 38770-K03-H01, 38770-K73-T32, 38770-K73-TC1
$45.00
PACK 5 - HONDA
WAVE-AT
- Used for HONDA: WAVE 110 RSX AT, WAVE 110 AT
- List of compatible ECM codes: 38770-KWZ-841
$45.00
PACK 6 - HONDA
FUX-NEO
- Used for HONDA: FUTURE NEO, FUTURE X
- List of compatible ECM codes: 38770-KVL-932
$45.00
PACK 12 - HONDA
SH150i-PS
- Used for HONDA: SH 125i/150i (2008-2012), PS (2008-2012)
- List of compatible ECM codes: 16400-KTF-642, 16400-KTF-641, 16400-KTF-921, 16400-KTF-922, 16400-KTF-981, 16400-KTF-982, 16400-KTG-921, 16400-KTG-922, 16400-KTG-981, 16400-KTG-982, 16400-KTG-642
$45.00
CABLE OPTION FOR HONDA ACG ECM TEST FUNCTION
PACK 13 - HONDA ACG ECM TESTER
- Used for HONDA: AIR BLADE 2013-2014, AIR BLADE 2015-2017, AIR BLADE 2018-2019, SH MODE 2013-2014, LEAD 2013-2014, LEAD 2015-2017, LEAD 2018-2019, SH MODE 2015-2017, SH MODE 2018-2019, SH 2015-2016, SH 2017-2019, PCX 2015-2017, PCX 2018-2020, VARIO125/150 2014-2017, VISION 2013-2015, VISION 2016-2017, VISION 2018-2020
- List of compatible ECM codes: K27A-V01-V01, K27G-V51-V01, K66G-VE1-V01, K66A-V01-VN01, K66G-VG1-V01, K29F-903-V01, K29F-913-V01, K12A-901-V01, K12A-902, K12A-912, K12H-931-V01, K12K-V11-V01, K12M-V91-V01, K12K-V01-V01, K12M-V81-V01, K29K-961-V01, K29M-V81-V01, K01J-611-V01, K02K-701-V01, K78A-V11-V01, K77A-V01-V11, K77A-V11-V01, K78A-V01-V01, K35A-V01-V01, K35A-T01-ED01, K50A-T02-TH01, K36J-N11-IN01, K35A-J01, K35K-K2A, K35K-V21, K36S-T31-TH01, K96A-V01-V01, K97G-N02, K97A-V01-V01, K97G-N31-IN01, K96A-T01-TU01 K35K-K21-K0 01, K97A-U01-TH01, K36F-T01-TH01, K97G-N01-IN01, K35A-T01-ED01, K59F-A01-IN01, K59K-T11-TH01, K59A-A11-IN01, K59J-A71-IN01, K59R-C01-CA01, K59F-A01-IN01, KZRG-771-TH01, K60K-B31-IN01, K60R-B61-IN01, K60R-B71-IN01, K60K-B21-IN01, K60F-T01-TH01, K44F-V01-V01, K44P-V91-V01, K44P-V81-V01, 30400-K93-N01, 30400-K93-N11, 30400-K93-T21
$220.00
CABLE OPTION FOR SCU TEST FUNCTION
PACK 14 - SCU TESTER
Support to test SCU operation of manufacturers HONDA, YAMAHA, SUZUKI:
1. HONDA:
- SCU with 1 connector (33 pins): K01, K35, K29, K53, K77, K96, K97, K0R, K1N, MKH…
- SCU with 2 connectors (12 pins and 8 pins): K12, K44, K66, K59, K1F…
- SCU with 1 connector (21 pins): K2C, K2J, K2V, K1Z, K2Z, K0R, K1N…
2. YAMAHA
3. SUZUKI
$190.00
CABLE OPTION FOR SCU TEST FUNCTION
(for customers who purchased package 13 - HONDA ACG ECM TESTER)
MTB08-S33P CABLE
Used to test for HONDA SCU types with 1 connector (33 pins): K01, K35, K29, K53, K77, K96, K97, K0R, K1N, MKH…
$45.00
MTB08-S12P CABLE
Used to test for HONDA SCU types with 2 connectors (12 pins and 8 pins): K12, K44, K66, K59, K1F
$45.00
MTB08-S21P CABLE
Used to test for HONDA SCU types with 1 connector (21 pins): K2C, K2J, K2V, K1Z, K2Z, K0R, K1N…
$45.00
MTB08-YASU CABLE
Used to test for SCU types of YAMAHA and SUZUKI (does not support SCU TMAX)
$45.00
CABLE OPTION FOR YAMAHA ECM TEST FUNCTION
PACK 7 - YAMAHA
NOV-SI16
- Used for YAMAHA: NOUVO SX, SIRIUS 2016
- List of compatible ECM codes: 1DB-H591A-00, 2XC-H591A-00, 1FC-H591A-11
$45.00
PACK 8 - YAMAHA
EXCITER-18
- Used for YAMAHA EXCITER 2018
- List of compatible ECM codes: 2ND-H591A-00
$45.00
PACK 9 - YAMAHA
JUPITER-16
- Used for YAMAHA JUPITER FI
- List of compatible ECM codes: 2VP-H591A-00)
$45.00
PACK 10 - YAMAHA
EXCITER-19
- Used for YAMAHA EXCITER 2019
- List of compatible ECM codes: 2ND-H591A-20
$45.00

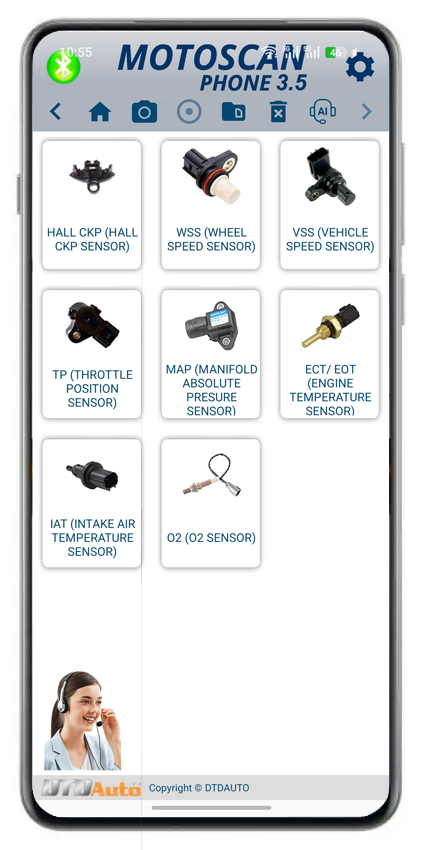

CABLE OPTION FOR SENSOR & ACTUATOR TEST FUNCTION
PACK 11 - CKP & IACV
Used to check Hall CKP sensor and IACV/ ISCV for all HONDA, YAMAHA, PIAGGIO/ VESPA
$55.00
PACK 15 - VSS & HALL
Used to check vehicle speed sensor (VSS) for HONDA, YAMAHA
$40.00

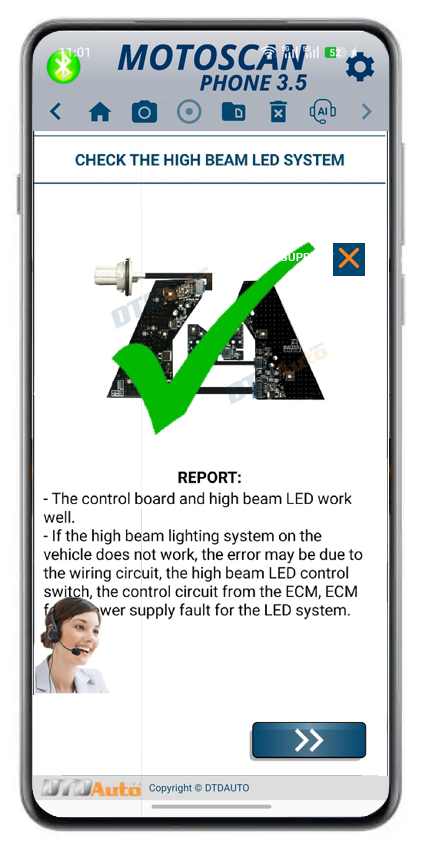

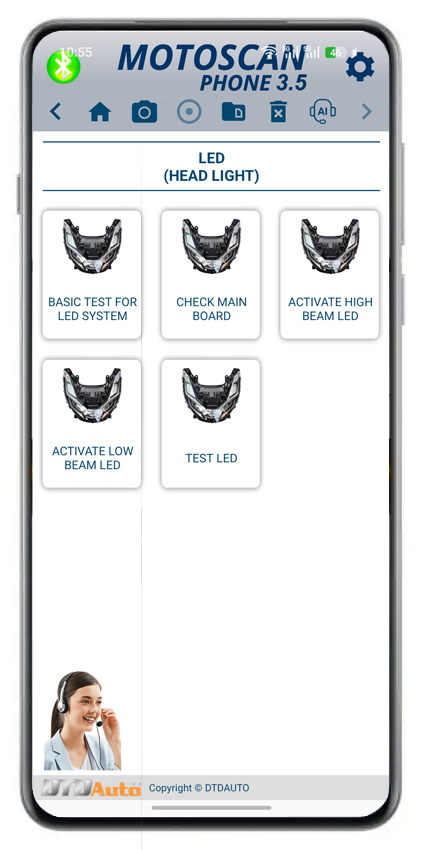

CABLE OPTION FOR LED LIGHTING & DASHBOARD SYSTEM TEST FUNCTION
PACK 16 - LED & DAS
Used to test LED lighting system and dashboard system for HONDA, YAMAHA:
- HONDA: AIR BLADE (2013-2014), AIR BLADE (2015-2017), AIR BLADE (2018-2019), AIR BLADE 2020, AIR BLADE 2021, SH 125/150 (2017-2019), VARIO (2018-2020), VARIO 2021, VARIO 150 (2022-2024), VARIO 160 (2022-2024), CLICK (2018-2020), CLICK SMK (2018-2020), CLICK 2021, CLICK (2022-2024), WINNER X (2019-2021), WINNER X (2022-2024)
-YAMAHA: AEROX STD (2017-2020), AEROX SMK (2017-2020), NOUVO LX (2008-2011), NVX 155 STD (2018-2020), NVX 155 SMK (2018-2020)
$40.00
CABLE OPTION FOR QUICK CHECK OF MOTORCYCLE COMBUSTION CHAMBER PRESSURE
PACK 17 - P TEST
Used for motorbikes using ACG starting system of HONDA, YAMAHA, PIAGGIO...
$25.00
FUNCTION OPTION TO RENEW ECMID FOR SMARTKEY HONDA MOTORBIKES
(Includes adapter and functional software)
PACK 18 - RENEW ECMID
Used for Smartkey HONDA motorbikes 2016-2021
$25.00
FUNCTION OPTION TO TEST ENGINE OIL QUALITY
PACK 19 - OIL TEST
Used for testing engine oil quality
$30.00
FULL ADVANCED TEST CABLES AND ADAPTER
PACK MTB08- FULL CABLE TESTER
Includes full functionality of the 19 packages above
$896.00
NOTES: when buying the goods, customers can choose to follow the options and make a total for payment.
Example 1: MOTOSCAN PHONE (product code: MT009A) = $900.00 = total of payment
Example 2: MOTOSCAN PHONE (product code: MT009A) + 03 add-in cables = $900.00 + ($45.00 X 3) = totals of payment
Functions

MOTOSCAN PHONE FUNCTION LIST

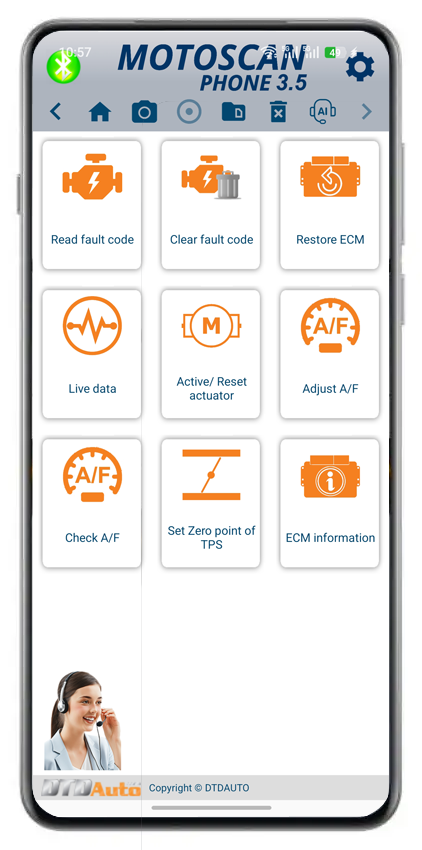

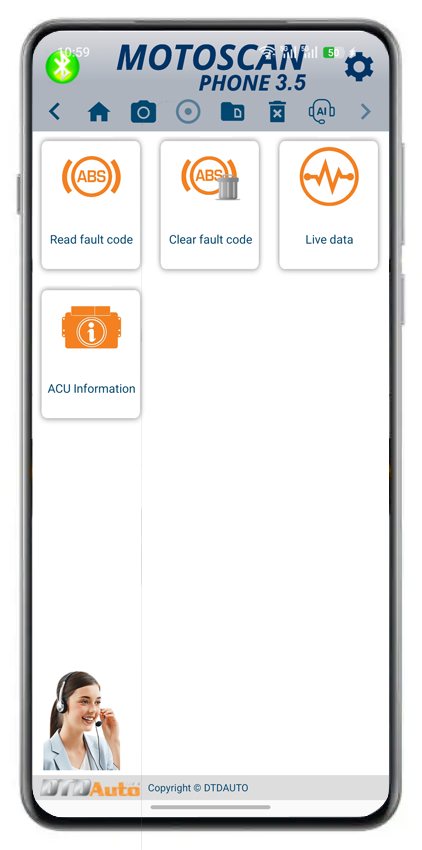

ENGINE/ ABS SYSTEM
NO. DESCRIPTION COMMON FUNCTIONS
(basic diagnostic tools on the market have)		 IN-DEPTH FUNCTIONS
(some normal diagnostic tools on the market may have)		 SPECIAL FUNCTIONS DEVELOPED BY DTDAUTO
(normal diagnostic tools on the market does not have)
1
Read fault codes stored in ECM

2
Advanced display of fault code information (on one screen) including fault code content, component location, fault code principle electrical diagram, the overall principle diagram

3
Delete fault codes stored in ECM

4
Reset ECM

5
Display live data

6
View modes: List | Analog | Graphic | Waveform

7
Activate the actuators: Injector, Ignition coil, Fuel Pump, Solenoid valve, Stepper motor, Indicator and Headlight...

8
Setting: TPS, Reset IACV, Altitude

9
ECM information

10
Check depth A/F ratio

11
Adjust A/F ratio

12
A/F ratio tuning by remap for ECM

13
Upgrade original ECM & Upload tuning ECM firmware by sample remap files

14
Upload user-edited remap files for ECM based on the machine

15
Upload free user remap files for ECM from another source out of the machine (various selection of modes)

16
Rescue ECM

17
Advanced diagnostics with fault codes (analyze to find exact details, fault location) out of range faults

18
Advanced diagnostics without showing OBD fault codes (analyze by AI technology, find the exact cause, fault location) in of-range faults

19
In-depth testing for sensors (MAP, TP, ECT, IAT, O2, CKP) both faults out of range and in of range

20
Check the actuator's operation and quality (IACV, ISC…)

21
Check the operation, and quality components of hardware and software (specify show the position of components, the position of the cut holes) of Engine ECUs for some HONDA, YAMAHA…

22
Simulate Input signal types and communication signals to check and diagnose engine system faults (CKP, MAP, TP, IAT, ECT, O2, VSS)

23
Simulate Output signal types to check and diagnose engine system faults (INJ, IGPLS, RELAY, SOLENOID…)

ODO SYSTEM
24
Read the current ODO value
25
Correct and edit ODO value for ODO repair or replacement

26
Reload the original ODO software to repair or replace ODO

27
Look up location, connection diagram, and function pins to check on the same screen, convenient for manipulation, correction, and repair

28
Simulate normal Vss, K-line Vss signals to check and repair ODO

SMART KEY SYSTEM
29
Check the operation of electronic components and the hardware (specify the position of components, the position of the cut holes) of SCU for HONDA, YAMAHA, SUZUKI…

30
SCU programming - register more keys (FOB)

31
SCU programming - register a new key (FOB) when all keys are lost

32
SCU programming – inactive use FOB when lost

33
SCU programming – reactivate use of FOB (after canceling use)

34
SCU programming – ECMID synchronization between SCU and ECM

35
Check results of synch FOB and SCU

36
Check the declared value of KEYID

37
Read KEYID directly from SCU

38
Delete KEYID inside SCU

39
Copy SCU data (from SCU A to SCU B) when repairing

40
Reload SCU sample data when repairing

IMMOBILISER SYSTEM
41
Register more keys

42
Register a new key when all keys are lost

43
Read KEYID directly from ECM/IC

44
Check the key, and read the current KEYID through the antenna (for Medley with ECM code: PGQ16)

45
Reset Immobiliser

46
Replace ECM

OTHER MEASURE FUNCTIONS
47
Quick connection operation of functions without sequential operation (save connection history and quickly select the function from history)

48
Quickly evaluate motorcycle combustion chamber pressure using electronic technology

49
Check the operating quality of the LED lighting system and dashboard system

50
Check the quality and capacity of the battery

51
Check the charging status, operation, and quality of the charging system

52
High-precision measurement of DC voltage from 0V - 20V

53
Test engine oil quality for motorcycles and cars

54
Basic assessment of exhaust pollution for motorbikes (Euro 4 standard)

LOOK UP TECHNICAL DOCUMENTS
54
Support automatic calculation feature for motorcycle electronics repairmen: calculate the resistance value according to the color rim and according to the symbol on the SMD resistor; calculate the resistance for the LED circuit; calculate the correction resistance of the regulator, and rectifier; calculate sensor calibration auxiliary resistance…

55
Integrate lookup data and documents, repair data, electrical diagrams of all kinds, and electrical and mechanical specifications in one application

56
Look up principle diagrams and assembled circuit diagrams for vehicle systems

57
Look up electrical specifications

58
Look up engine mechanical specifications and disassembly instructions

59
Look up the function pin position of ECU, ABS, SCU...

60
Supports DATALINK function on electrical diagrams

61
Look up acronyms, wire colors, fault code information, SCU, FOB...

62
Repair workshop management function: warehouse management, service, personnel, customers, maintenance...


DETAILED FUNCTION TABLE


READ/DELETE
FAULT CODES		 RESTORE ECM VIEW LIVE DATA ACTIVE, RESET
TEST ACTUATOR		 ADVANCED DIAGNOSTIC A
REMAP, TUNING ECM
A
A  		 CHECK A/F CHECK SENSOR, ACTUATOR     CHECK
ECU, SCU		 TEST
LED SYSTEM		 TEST
DASHBOARD SYSTEM		 QUICKLY EVALUATE COMBUSITION CHAMBER PRESSURE CHECK BATTERY
LIFE/CAPACITY		 CHECK GENERATOR PROGRAM SMARTKEY CORRECT ODO VALUE SIMULATE ECU SIGNALS ECM INFORMATION
                ECM CODE
A		            ON/OFF
A		 A/F RATIO
A
ADV 150 (2019-2020) ECM code: K0WG-B01-BR11
ECM code: K0WF-T01
ADV 150 (2021-2022)
ADV 160 (2021-2023)   ECM code: 30400-K0WL-NB1
ADV 350 (OBD-II) (2021-2024)
AIR BLADE (08-10) ECM code: 38770–KVG–V21
ECM code: 38770–KVG–A31		 IACV
IACV		 ECU
AIR BLADE (11-12) ECM code: 38770–KVG–V42
ECM code: 38770–KVG–V41
AIR BLADE (13-14) ECM code: K66A–V01–VN01
ECM code: K27A-V01-V01
ECM code: K27G-V51-V01 		  ECU
AIR BLADE (15-17)   ECM code: K66A–V01–VN01
ECM code: K27A-V01-V01
ECM code: K27G-V51-V01 		  ECU
AIR BLADE (18-19) ECM code: K66G–VG1–V01
ECM code: K66G–VE1–NO SMK
ECM code: K1FA–V01–V11
ECM code: K1GA–V01–V11
ECM code: K2ZA-V01-V11
ECM code: K3AA-V01-V11 		EVAPO, SMARTKEY
EVAPO
EVAPO
EVAPO
SMARTKEY
SMARTKEY		 ECU, SCU
AIR BLADE (20-21) ECM code: K66G–VG1–V01
ECM code: K66G–VE1–NO SMK
ECM code: K1FA–V01–V11
ECM code: K1GA–V01–V11
ECM code: K2ZA-V01-V11
ECM code: K3AA-V01-V11 		EVAPO, SMARTKEY
EVAPO
EVAPO
EVAPO
SMARTKEY
SMARTKEY		 ECU, SCU
AIR BLADE (22-24)   ECM code: K66G–VG1–V01
ECM code: K66G–VE1–NO SMK
ECM code: K1FA–V01–V11
ECM code: K1GA–V01–V11
ECM code: K2ZA-V01-V11
ECM code: K3AA-V01-V11 		EVAPO, SMARTKEY
EVAPO
EVAPO
EVAPO
SMARTKEY
SMARTKEY		 ECU, SCU
BEAT 110 (2013-2014)   ECM code: 38770-K25-901
ECM code: 38770-K46-N01
BEAT (2017-2020)
BEAT (2021-2024)
BEAT STREET 2024
BENLY 50cc
CB 150 VERZA (2021-2024)
CB 150X (2022-2024)
CB150R (2013-2014)
CB150R (2017-2019)

CB300R (2017-2019)

CB500F (2019-2021)
CB500X (2019-2021)
CB650R (2019-2021)
CB650F (2019-2021)
CBR 150 STREETFIRE (2021-2024)
CBR150R (2014)
CBR150R (2015-2018)
CBR150R (2019-2021)
CBR250
CBR 250RR (2021-2024)
CBR650 (2021-2024)
CBR650R (2019-2021)
CBR650F (2019-2021)
CB500X (2019-2021)
CBR500R (2019-2021)
CBR50RR (2019-2021)
CBR150R (2019-2021)
CBR650 (2021-2023)
CBR100R (2021-2023)
CBR 1000 (2021-2024)
CRF300L (2021-2023)
CLICK 2008-2010
CLICK 2011-2012
CLICK 2013-2014
CLICK 2015-2017
CLICK 2018-2020 ECM code: K60S–T71–TH01
ECM code: K59R–C01–CA01
ECM code: K60F-T01-TH01		 SMARTKEY
SMARTKEY		 ECU, SCU
CLICK SMK (2018-2020)     SCU
CLICK 2021       SCU
CLICK 150/160 (2022-2024)
CRF 150L (2021-2024)
CRF 250 Rally (2021-2024)
CRF300L (2021-2024)
CT125 (2021-2024)
DIO 50 (2016-2021)
DIO 110 (2021-2024)
DYLAN
DREAM 110i   ECM code: 38770–K76–T62
ECM code: 38770– KZV–A61
DUNK (2019-2023)
FORZA (2017-2022)       SCU
FORZA 350 (OBD-II) (2021-2024)
FUTURE (2019-2020)
FUTURE NEO FI         ECU
FUTURE X (2019) ECM code: 38770–K03–M01
ECM code: 38770–G90–V02
ECM code: 38770–KYZ–G01 		  ECU
FUTURE 125 FI ECM code: 38770–K03–M01
ECM code: 38770–G90–V02
ECM code: 38770–KYZ–G01 		  ECU
GENIO (2019-2021)
GENIO (2022-2024)
GIORNO 50CC       SCU
GTR 150 (2021-2024)         SCU
GTR 150 V1 (2017-2018)
MEGAPRO 150 (2009-2015)
MONKEY 125i   ECM code: 38770–K0F–T01
MONKEY (2021-2024)
MSX (14-16)   ECM code: 38770–K26–901
ECM code: 3877–K26–911		   SCU
MSX (17-19)   ECM code: 38770–K26–901
ECM code: 38770–K26–B13
ECM code: 38770–K26–C31		 SCU
MSX 2020-2024   ECM code: 38770–K0F–T01   SCU
LEAD 110 ECM code: 38770–GGE–901
ECM code: 38770–GGE–941		 IACV
IACV		 ECU, SCU
LEAD 125 (13-14) ECM code: K12A-901-V01
ECM code: K12H–931–V01
ECM code: K12K–V11–V01
ECM code: K12M-V81-V01
ECM code: K12M–V91–V01
ECM code: K12K–V01–V01–SMK
ECM code: K2TA-V11-V11		 EVAPO
EVAPO
EVAPO
EVAPO, SMARTKEY
EVAPO		 SCU
LEAD 125 (15-17)   ECM code: K12A-901-V01
ECM code: K12H–931–V01
ECM code: K12K–V11–V01
ECM code: K12M-V81-V01
ECM code: K12M–V91–V01
ECM code: K12K–V01–V01–SMK
ECM code: K2TA-V11-V11		 EVAPO
EVAPO
EVAPO
EVAPO, SMARTKEY
EVAPO		 SCU
LEAD 125 (18-24)   ECM code: K12A-901-V01
ECM code: K12H–931–V01
ECM code: K12K–V11–V01
ECM code: K12M-V81-V01
ECM code: K12M–V91–V01
ECM code: K12K–V01–V01–SMK
ECM code: K2TA-V11-V11 		EVAPO
EVAPO
EVAPO
EVAPO, SMARTKEY
EVAPO		 SCU
PCX (2008-2014)       ECU, SCU
PCX (2015-2020) ECM code: K36S–T31–TH01
ECM code: K96A-T01-TU01
ECM code: K36S-T11-TH01		 SMARTKEY SCU
PCX 150 (2021-2022) ECM code: K96A-V01-V01
ECM code: K97A-V01-V01
ECM code: K96A-T01-TU01 		SMARTKEY
SMARTKEY		 ECU, SCU
PCX 160 (2021-2024)   SCU
PCX 160 (OBD-II) (2022-2024)   SCU
PCX HYBRID (2019-2024) SCU
PS (2008-2010) ECM code: 16400–KTF–982
ECM code: 16400–KTF–641
ECM code: 16400–KTG–641
ECM code: 16400–KTG–982
ECM code: 16400–KTG–921		 IACV, O2
IACV, O2
IACV, O2
IACV, O2
IACV, O2		 ECU
REBEL (2018-2021)
REVO 110 (2017)
REVO (2021-2024)
RS 150R (2017-2019)
SCOOPY (2010-2016)
SCOOPY (2017-2021)   ECM code: 38770–KYT–901 SCU
SCOOPY (2022-2024)   SCU
SCR 110 ECM code: 38770–GFM–902 IACV ECU
SH 125/150i (Italia) ECM code: 16400–KTF–982
ECM code: 16400–KTF–641
ECM code: 16400–KTG–641
ECM code: 16400–KTG–982
ECM code: 16400–KTG–921 		IACV, O2
IACV, O2
IACV, O2
IACV, O2
IACV, O2		 ECU
SH 125/150 ESP (2013-2014)
SH 125/150 ESP
(2015-2016)		 ECM code: K77A–V01–V11
ECM code: K77A–V11–V01
ECM code: K78A–V01–V01
ECM code: K78A–V11–V01
ECM code: K01J–611–V01
ECM code: K02K–701–V01
ECM code: K0SA-V01-V01
ECM code: K0SA-V12-V01
ECM code: K0RA-V12-V01 		SMARTKEY
SMARTKEY
SMARTKEY
SMARTKEY
SMARTKEY
SMARTKEY
SMARTKEY
SMARTKEY
SMARTKEY		 ECU, SCU
SH 125/150 ESP
(2017-2019)		   ECM code: K77A–V01–V11
ECM code: K77A–V11–V01
ECM code: K78A–V01–V01
ECM code: K78A–V11–V01
ECM code: K01J–611–V01
ECM code: K02K–701–V01
ECM code: K0SA-V01-V01
ECM code: K0SA-V12-V01
ECM code: K0RA-V12-V01 		SMARTKEY
SMARTKEY
SMARTKEY
SMARTKEY
SMARTKEY
SMARTKEY
SMARTKEY
SMARTKEY
SMARTKEY		 ECU, SCU
SH 125/150 ESP
(2015-2024)		   ECM code: K77A–V01–V11
ECM code: K77A–V11–V01
ECM code: K78A–V01–V01
ECM code: K78A–V11–V01
ECM code: K01J–611–V01
ECM code: K02K–701–V01
ECM code: K0SA-V01-V01
ECM code: K0SA-V12-V01
ECM code: K0RA-V12-V01 		SMARTKEY
SMARTKEY
SMARTKEY
SMARTKEY
SMARTKEY
SMARTKEY
SMARTKEY
SMARTKEY
SMARTKEY		 ECU, SCU
SH 300i (2008-2015) ECM code: 16400–KTW–B02 IACV, O2
SH 300i (2016-2019) ECM code: 16400–KTW–B02 IACV, O2 SCU
SH 300i (2020)
SH 350i (2021-2024)
SH MODE (2013-2014)
SH MODE (2015-2020)       SCU
SH MODE (2021) ECM code: K29K–961–V01
ECM code: K29M–V81–V01
ECM code: K1NA-V01-V11		 EVAPO, SMARTKEY
EVAPO, SMARTKEY
SMARTKEY		 ECU
SH MODE (2022-2024)       SCU
SONIC (2015-2017) ECM code: 38770–K56–N01
SONIC 150R (2018-2024)
SPACY 110 (2011-2016)
SUPER CUB 110 (2021-2024)
SUPER CUB 50 (2019)   ECM code: 38770–GBJ–M53
SUPER CUB C125 (2016-2019)     SCU
SUPRA
(before 2024)		   ECM code: 38770–KYZ–713   SCU
SUPRA GTR 150
(2014-2018)
SUPRA GTR 150
(2019-2024)
SUPRA X 125 (2021-2024)
SUPRA X/ GTR 150
VARIO 110 (2014)
VARIO 125/150 (2015-2017)   ECM code: K59F-A01-IN01 SMARTKEY
VARIO 125/150 (2018-2020)   ECM code: K59A-A11-IN01
ECM code: K59J-A71-IN01
ECM code: K60K-B31-IN01
ECM code: K60R-B61-IN01
ECM code: K60K-B21-IN01
ECM code: K60F-T01-TH01		 SMARTKEY
SMARTKEY
SMARTKEY
SMARTKEY		 SCU
VARIO 125/150 (2021)   SCU
VARIO 150(2022-2024)   SCU
VARIO 160 (2022-2024)   ECM code: K2SA-N02 SCU
VISION ESP (2013-2017)   ECM code: K44F-V01-V01
VISION ESP (2018-2020)   ECM code: K44P-V81-V01
ECM code: K44P-V91-V01		 SMARTKEY SCU
VISION ESP (2021-2024)   ECM code: K2CA-V11-V01
ECM code: K2CA-V31-V01
ECM code: K2CF-VA1-V01
ECM code: K2CA-V01-V011		 SMARTKEY
SMARTKEY		 SCU
WAVE 110 AT
WAVE RSX FI ECM code: 38770–K90–V02
ECM code: 38770–G90–V02
ECM code: 38770–KYZ–G01		   ECU
WAVE RSX FI AT       ECU
WINNER (2015-2018)   ECM code: 38770-K56-V01
WINNER X (2019-2021)
WINNER X (2022-2024)       SCU
WAVE 110 AT
WAVE 110i (2010-2020)   ECM code: 38770-KWW-601
ECM code: 38770-KWW-642
ECM code: 38770-KWW-643
WAVE 110i (2021)
WAVE 125 (2003-2005)
WAVE 125 (2017-2019)
WAVE-i (2008-2009)
WAVE-i (2011)
WAVE 125
(Thailand)		 ECM code: 38770–KYZ–V71
ECM code: 38770–KYZ–T03		     ECU
WAVE 125i ECM code: 38770–KYZ–V71
ECM code: 38770–KYZ–T03		   ECU
X-ADV (2017-2020)
X-ADV (2021-2022)
ZOOMER X (2017)
ZOOMER-X (2018-2020)
Other FI HONDA
HONDA
mechanical carburetor


READ FAULT CODE DELETE FAULT CODES
RESTORE ECM		 VIEW LIVE DATA ACTIVE, RESET
ACTUATOR		 ADVANCED DIAGNOSTIC ADJUST A/F CHECK A/F CHECK SENSOR & ACTUATOR CHECK ECU, SCU TEST
LED SYSTEM		 TEST
DASHBOARD SYSTEM		 CHECK BATTERY
LIFE/CAPACITY		 CHECK GENERATOR PROGRAM
SMARTKEY
 CORRECT ODO VALUE SIMULATE ECM SIGNALS ECM INFORMATION
ACRUZO
AEROX (2021-2023) SCU
Smartkey
AEROX 155 STANDARD (2017-2020)
AEROX 155 ABS (2017-2020)   SCU
Smartkey
AEROX 155 (OBD-II) (2021-2023)   SCU
Smartkey
CUXI
EXCITER (2015-2018) ECU
EXCITER (2019-2020)   ECU
EXCITER 155 VVA (2021-2023)   SCU
Smartkey
FAZZIO (2022-2024)   SCU
Smartkey
FINN
FREEGO   SCU
Smartkey
FREEGO 125 (2022-2023)   SCU
Smartkey
FZ 150
GEAR 125 (2022-2023)
GRANDE (2015-2018)
GRANDE  (2019-2020)   SCU
Smartkey
GRAND FILANO (2019-2023)    SCU
Smartkey
GT 125
PG-1
SEROW
SNIPER (2015-2018) ECU
SNIPER (2019-2020)   ECU
SNIPER (2021-2023)   SCU
Smartkey
JANUS STANDARD
JANUS SMART KEY   SCU
Smartkey
JUPITER FI ECU
JUPITER Z1 (2022-2023) ECU
LATTE 125   SCU
Smartkey
LEXI S SCU
Smartkey
LEXI 125 (2022-2023)   SCU
Smartkey
LUVIAS FI
M-SLAZ 150 (2016-2019)
MIO i125
MIO AEROX (2021-2023) SCU
Smartkey
MIO GEAR
MIO GRAVIS   SCU
Smartkey
MIO 125
MIO M3 125 (2022-2023)
MT-03 (2015-2019)
MT-03 (2020-2021)
MT-03 (2022-2024)
MT-07 (2018-2020)
MT-07 (2018-2020)
MT-07 (2021-2024)
MT-09 (2018-2020)
MT-15 (2016-2021)   SCU
Smartkey
MT-25 (2015-2019)
MT-25 (2022-2023)
MX King 150 (2022-2023) SCU
Smartkey
NM-X (2015-2022) SCU
Smartkey
NM-X (2023)   SCU
Smartkey
NMAX (2015-2022) SCU
Smartkey
NMAX (2023)
NOZZA
NOUVO LX
NOUVO SX ECU
NOZZA
NVX 155 STANDARD (2018-2020)
NVX 155 SMART KEY (2018-2020)   SCU
Smartkey
NVX (OBD-II) (2021-2023)   SCU
Smartkey
QBIX SCU
Smartkey
R15 (2022-2023)
R25 (2022-2023)
XMAX
XSR
NVX 155 ABS   SCU
Smartkey
M-SLAZ (2016-2018)
MT-03 (2015-2019)
MT-15 (2016-2021)
MT-25 (2015-2019)
WR155R
YZF R15
SIRIUS FI (2015-2023) ECU
SMAX (2015-2020) SCU
Smartkey
FZ-S
TMAX (2001-2011)
TMAX (2015-2024)
Smartkey
T-MAX 500 (2008-2011)
T-MAX 500 (2013-2015)
TFX (2016-2019)
VEGA FORCE (2022-2023)
X-MAX 250 (2021-2023)   SCU
Smartkey
X-Max 300 (2017-2022)   SCU
Smartkey
X-MAX C (2023)   SCU
Smartkey
XMAX (OBD-II) (2023)   SCU
Smartkey
X-RIDE 125 (2022-2023)
XSR 155 (2022-2023)
XSR 155 (OBD-II) (2022-2023)   SCU
Smartkey
QBIX SCU
Smartkey
YBR
YZF-R15 (2016-2020)
YZF-R25 (2014-2018)
YZF-R3 (2014-2018)
Other FI YAMAHA
YAMAHA
mechanical carburetor


READ/DELETE
FAULT CODES		 RESTORE ECM VIEW LIVE DATA ACTIVE, RESET
ACTUATOR		 CHECK A/F
SET TPS ZERO POINT		 TEST
DASHBOARD SYSTEM		 CHECK BATTERY
LIFE/CAPACITY		 CHECK GENERATOR PROGRAM
MCU/EEPROM		 PROGRAM
IMMOBILISER
 CORRECT ODO VALUE SIMULATE ECM SIGNALS ECM INFORMATION
BEVERLY125 MIUG1/ MIUG2/ MIUG3
BEVERLY 300 MIUG1/ MIUG2/ MIUG3
BEVERLY 350 MIUG1/ MIUG2/ MIUG3
FLY 125 MIUG1/ MIUG2/ MIUG3
FLY 150 MIUG1/ MIUG2/ MIUG3
FLY 125 3V MIUG1/ MIUG2/ MIUG3
FLY 150 3V MIUG1/ MIUG2/ MIUG3
FLY 125 AC19I/20I
FLY 150 AC 19I/20I
FLY 125 AC 191/201
FLY 150 AC 191/201
FLY AC II/AC2I/
AC5I/AC8I
LIBERTY 125/150 3V PGN04/ PGR04
LIBERTY 125/150 3V PGS02
LIBERTY 125/150 3V PGS06
LIBERTY 125/150 PGS05
LIBERTY 125/150 3V PGT01
LIBERTY 150 3V MIUG1/ MIUG2/ MIUG3
LIBERTY 150 3V PGS02
LIBERTY 150 3V PGN04/ PGR04/ PGS05/ PGS06/ PGT01
LIBERTY 125/150 AC19I/20I
LIBERTY 125/150 AC191/201
LIBERTYAC II/
AC2I/AC5I/AC8I
LIBERTY 125/150 PGU09/PGT10
LIBERTY ABS PGS06
MEDLEY 125 ABS
MEDLEY 150 ABS
MEDLEY 125 PGQ16   updating....
MEDLEY 150 PGQ16   updating....
X10 125 MIUG1/ MIUG2/ MIUG3
X10 350 MIUG1/ MIUG2/ MIUG3
Other FI PIAGGIO
PIAGGIO
mechanical carburetor


READ/DELETE
FAULT CODES		 RESTORE ECM VIEW LIVE DATA ACTIVE, RESET
ACTUATOR		 CHECK A/F
SET TPS ZERO POINT		 TEST
DASHBOARD SYSTEM		 CHECK BATTERY
LIFE/CAPACITY		 CHECK GENERATOR PROGRAM
MCU/EEPROM		 PROGRAM
SMARTKEY
 CORRECT ODO VALUE SIMULATE ECM SIGNALS THÔNG TIN ECM
VESPA 946 125
3V MIUG1/ MIUG2/ MIUG3
VESPA 946 150 3V MIUG1/ MIUG2/ MIUG3
GTS 125/150 MIUG1/ MIUG2
GTS 125/150 MIUG3
GTS 125 ABS MIUG1/MIUG2
GTS 125 ABS MIUG3
GTS 300 MIUG3
GTS 300 ABS MIUG1/ MIUG2
GTS 300 ABS MIUG3
LXV 125 3V MIUG1/MIUG2/ MIUG3
LT125 3V MIUG1/ MIUG2/ MIUG3
LT150 3V MIUG1/ MIUG2/ MIUG3
LX125 MIUG1/ MIUG2/ MIUG3
LX 125 AC19I/AC20I
LX 125 AC191/AC201
LX 125 ACII/AC2I/
AC5I/AC8I
LX 150 MIUG1/ MIUG2/ MIUG3
LX 125 3V MIUG1/ MIUG2/ MIUG3
LX 150 3V MIUG1/ MIUG2/ MIUG3
LX 150 AC19I/AC20I
LX 150 AC191/AC201
LX 150 ACII/AC2I/
AC5I/AC8I
LX 125 3V PGN04/ PGS02/ PGR04/ PGS05/ PGS06/ PGT01

LX 150 3V PGN04/ PGS02/ PGR04/ PGS05/ PGS06/ PGT01

LXV 125 2V MIUG1/ MIUG2/ MIUG3
LXV 125 3V MIUG1/ MIUG2/ MIUG3
LXV 150 3V MIUG1/ MIUG2/ MIUG3
PRIMAVE 125 MIUG1/ MIUG2/ MIUG3
PRIMAVE 150 MIUG1/ MIUG2/ MIUG3
PRIMAVE 125 PGN04/ PGS02/ PGR04/ PGS05/ PGS06/ PGT01

PRIMAVE 150 PGN04

PRIMAVE 150 PGS02

PRIMAVE 150 PGR04
PRIMAVE 150 PGS05

PRIMAVE 150 PGS06

PRIMAVE 150 PGT01

PRIMAVERA 125/50 (PGU09/PGT10)
PRIMAVERA ABS
S125 MIUG1/ MIUG2 MIUG3
S150 MIUG1/ MIUG2/ MIUG3
S125 3V MIUG1/ MIUG2/ MIUG3
S150 3V MIUG1/ MIUG2/ MIUG3
SPRINT 125/150 3V PGN04

SPRINT 125/150 3V PGR04

SPRINT 125/150 3V PGS02

SPRINT 125/150 3V PGS05

SPRINT 125/150 3V PGS06

SPRINT 125/150 3V PGT01

SPRINT 125/150 (PGU09/PGT10)
SPRINT ABS
Other VESPA FI
VESPA
mechanical carburetor


READ/DELETE
FAULT CODES		 DELETE FAULT CODES
RESTORE ECM		 VIEW LIVE DATA ACTIVE, RESET
TEST ACTUATOR		 ADJUST A/F CHECK A/F ADVANCED DIAGNOSTIC CHECK BATTERY
LIFE/CAPACITY		 CHECK GENERATOR PROGRAM
MCU/EEPROM		 PROGRAM
SMARTKEY
 CORRECT ODO VALUE SIMULATE ECU SIGNALS ECM INFORMATION
ATTILA-V SMART IDLE
MASK 125
MIO 50
ELIZABETH SMART IDLE
ELIZABETH 110
ELIZABETH 2014
ELIZABETH 20 năm
ELIZABETH SMART
FANCY
FIDDLE 125
FNX 125
JOYRIDE
JOYRIDE S 125/200
JET 4 RX 125
ORBIT III 125
SHARK 125
SHARK 125 CBS
SHARK MINI 125 EFI
SHARK MINI 125 SPORT
STAR
SYM PHONY
SYM PHONY ST
SYM PHONY SR 125
SYM PHONY CARGO 125
X'PRO 125
PASSING EFI
POWER EFI
VENUS EFI
VENUS 125 EFI
VENUS 125 CBS
VENUS 125 SMART IDLE
Other FI SYM FI
SYM
mechanical carburetor


READ/DELETE
FAULT CODES		 DELETE FAULT CODES
RESTORE ECM		 VIEW LIVE DATA ACTIVE, RESET
TEST ACTUATOR		 CHECK A/F ADVANCED DIAGNOSTIC CHECK BATTERY
LIFE/CAPACITY		 CHECK GENERATOR PROGRAM
MCU/EEPROM		 PROGRAM
SMARTKEY
 CORRECT ODO VALUE SIMULATE ECU SIGNALS ECM INFORMATION
ADDRESS 110cc
EN150-A
GSX R150
GZ150-A
HAYATE 125 SS
IMPLUSE
RAIDER (2006-2016)
RAIDER (2017-2021)
SATRIA (2017-2021)
THUNDER 150/150S
UA 125-T
VIVA 115
STAR RS 125 EFI
STAR SR 170 ABS
Other FI SUZUKI FI
SUZUKI
mechanical carburetor


READ FAULT CODE DELETE FAULT CODES
RESTORE ECM		 VIEW LIVE DATA ACTIVE, RESET
TEST ACTUATOR		 ADJUST A/F CHECK A/F ADVANCED DIAGNOSTIC CHECK BATTERY
LIFE/CAPACITY		 CHECK GENERATOR PROGRAM
MCU/EEPROM		 PROGRAM KEY
SMARTKEY
 CORRECT ODO VALUE SIMULATE ECU SIGNALS ECM INFORMATION
PEOPLE S FI
PEOPLE 16 FI
MANY MACAROL FI
MANY FI
LIKE FI
JOCKEY FI
Other KYMCO FI
KYMCO
mechanical carburetor
Image & Video

Package List
STANDARD MOTOSCAN PHONE PACKAGE
(included in package)
NO. PART NUMBER DESCRIPTION IMAGE
1
MOTOSCAN PHONE hardware
2
MOTOSCAN PHONE software installed on customer's mobile phone
3 MTB08-DLC01
Data cable used to determine fault, view live data active actuators, and calibrate parameters for vehicles, kinds of diagnostic connectors:
- HONDA 4-pin DLC
- HONDA 6-pin DLC
- YAMAHA 1-pin DLC
- YAMAHA 3-pin DLC
- PIAGGIO, SYM, KYMCO, SUZUKI: K-line single-pin
4 MTB08-DLC02
Data cable for HONDA, YAMAHA (CAN BUS communication protocol)
Use to determine fault of Engine & ABS system
5 MTB08-DLC03
ECM software programming cable for vehicles, kinds of diagnostic connectors:
- HONDA 4-pin DLC
- HONDA 6-pin DLC
- PIAGGIO K-Line single-pin
6 MTB08-SIM
ECM simulation cable
7 MTB08-SP02
HONDA Smart key cable
Used for HONDA: SH, PCX, X-ADV…
8 MTB08-VS02
HONDA Smart key cable
Used for HONDA VISION 2021
9 MTB08-LV02
HONDA Smart key cable
Used for HONDA: AIR BLADE, LEAD, VISION, VARIO, CLICK
10 MTB08-YS02
YAMAHA/SUZUKI Smart key cable
11 MTB08-TMAX
YAMAHA TMAX Smart key cable
12 MTB08-ODO1
ODO cable for a meter that EEPROM is 93CXX and 24CXX
13 MTB08-ODO2
ODO cable for YAMAHA: NVX, JANUS, TFX
14 MTB08-ODO3
ODO cable for PIAGGIO/ VESPA
15 MTB08-TEST
Data cable used for checking battery and generator
16 MTB08-UPD
Update cable
Use to update and upgrade software
17 MTB08-POWER
12V/ DC power cable
18
220V/AC to 12V/ DC power converter
19
Jump cables for:
- K-line cable
- Power cable
- YAMAHA cable
- SH2020 cable
20
Spare fuse
21
MOTODATA software on PC or mobile
Free 01 using year, need to pay fee to renew for the next year
22
Guide book
23
Handbag
24
Box
Note: We are a manufacturer and all product information has been detailed, and accurate for each function, and each type of vehicle on the website. Customers need to read very carefully and take the responsibility yourself when buying online products. The Goods will be delivered to the customer as all information we have posted. The refund is not accepted unless the goods are incorrect in the description.


● EXTRA PACKAGE

ADVANCED CABLE OPTION FOR ECU, SENSOR & ACTUATOR TEST FUNCTION
(not included in the price of the standard MOTOSCAN TAB package)
OPTIONS DESCRIPTION IMAGE
CABLE OPTIONS FOR HONDA KEIHIN ECM TEST FUNCTION
PACK 1 - HONDA
LD09-SCR
- Used for HONDA: LEAD 2009–2011, SCR 110
- List of compatible ECM codes: 38770-GGE-901, 38770-GGE-902, 38770-GFM-902, 38770-GFM-961
PACK 2 - HONDA
LD12-AB08
- Used for HONDA: LEAD 2012, AIR BLADE 2008 – 2010, WINNER 2015-2018, SCOOPY (2010-2016)
- List of compatible ECM codes: 38770-GGE-941, 38770-KVG-V21, 38770-KVG-A31, 38770-KVG-A21, 38770-KVG-A42, 38770-K56-V01, 38770-K25-901
PACK 3 - HONDA
AB11-VS11
- Used for HONDA: AIR BLADE (2011 - 2012), VISION (2011-2012), SPACY 110 (2011-2016)
- List of compatible ECM codes: 38770-KVG-V41, 38770-KVB-S53, 38770-KVG-V42, 38770-KZL-E71, 38770-KZL-E13, 38770-KZL-E12, 38770-KZL-933, 38770-KZL-C31
PACK 4 - HONDA
F125-WA10
- Used for HONDA: FUTURE 125, WAVE RSX, WAVE 110, WAVE 125
- List of compatible ECM codes: 38770-KYZ-V21, 38770-KYZ-G01, 38770-K73-V02, 38770-K73-V81, 38770-K73-V42, 38770-KYZ-V71, 38770-KYZ-T03, 38770-KYZ-V21, 38770-K58-T81, 38770-G90-V02, 38770-K58-TC2, 38770-K90-V03, 38770-K90-V03, 38770-K03-M01, 38770-K03-H01, 38770-K73-T32, 38770-K73-TC1
PACK 5 - HONDA
WAVE-AT
- Used for HONDA: WAVE 110 RSX AT, WAVE 110 AT
- List of compatible ECM codes: 38770-KWZ-841
PACK 6 - HONDA
FUX-NEO
- Used for HONDA: FUTURE NEO, FUTURE X
- List of compatible ECM codes: 38770-KVL-932
PACK 12 - HONDA
SH150i-PS
- Used for HONDA: SH 125i/150i (2008-2012), PS (2008-2012)
- List of compatible ECM codes: 16400-KTF-642, 16400-KTF-641, 16400-KTF-921, 16400-KTF-922, 16400-KTF-981, 16400-KTF-982, 16400-KTG-921, 16400-KTG-922, 16400-KTG-981, 16400-KTG-982, 16400-KTG-642
CABLE OPTIONS FOR HONDA ACG ECM TEST FUNCTION
PACK 13 - HONDA ACG ECM TESTER
Signal adapter
Used to simulate signal of HALL CKP sensor
(cable number: HALL CKP SIM)
Used to check ACG ECU for HONDA AIR BLADE 2015-2017
(cable number: AB15-17)
Used to check ACG ECU for HONDA SH MODE 2013-2014
(cable number: SM13-14)
Used to check ACG ECU for HONDA: LEAD 2013-2014, LEAD 2015-2017
(cable number: LD13-14)
Used to check ACG ECU for HONDA: LEAD 2018-2019, SH MODE 2015-2017, SH MODE 2018-2019, AIR BLADE 2013-2014, AIR BLADE 2018-2019, VARIO125/150 2014-2017
(cable number: AB13-LD19)
Used to check ACG ECU for HONDA: VISION 2013-2015, VISION 2016-2017, VISION 2018-2020
(cable number: VS13-19)
Used to check ACG ECU for HONDA SH 2015-2016
(cable number: SH15-16)
Used to check ACG ECU for HONDA: SH 2017-2019, PCX 2015-2017, PCX 2018-2020
(cable number: SH17-PX18)
Cap to suppress noise from the ignition coil for the CKP Hall sensor (used when simulating the CKP HALL signal)
CABLE OPTIONS FOR SCU TEST FUNCTION
PACK 14 - SCU TESTER
Support to test SCU operation of manufacturers HONDA, YAMAHA, SUZUKI:
1. HONDA:
- SCU with 1 connector (33 pins): K01, K35, K29, K53, K77, K96, K97, K0R, K1N, MKH…
- SCU with 2 connectors (12 pins and 8 pins): K12, K44, K66, K59, K1F…
- SCU with 1 connector (21 pins): K2C, K2J, K2V, K1Z, K2Z, K0R, K1N…
2. YAMAHA
3. SUZUKI
CABLE OPTIONS FOR SCU TEST FUNCTION
(for customers who purchased package 13 - HONDA ACG ECM TESTER)
MTB08-S33P CABLE
Used to test for HONDA SCU types with 1 connector (33 pins): K01, K35, K29, K53, K77, K96, K97, K0R, K1N, MKH…
MTB08-S12P CABLE
Used to test for HONDA SCU types with 2 connectors (12 pins and 8 pins): K12, K44, K66, K59, K1F
MTB08-S21P CABLE
Used to test for HONDA SCU types with 1 connector (21 pins): K2C, K2J, K2V, K1Z, K2Z, K0R, K1N…
MTB08-YASU CABLE
Used to test for SCU types of YAMAHA and SUZUKI (does not support SCU TMAX)
CABLE OPTIONS FOR YAMAHA ECM TEST FUNCTION
PACK 7 - YAMAHA
NOV-SI16
- Used for YAMAHA: NOUVO SX, SIRIUS 2016
- List of compatible ECM codes: 1DB-H591A-00, 2XC-H591A-00, 1FC-H591A-11
PACK 8 - YAMAHA
EXCITER-18
- Used for YAMAHA EXCITER 2018
- List of compatible ECM codes: 2ND-H591A-00
PACK 9 - YAMAHA
JUPITER-16
- Used for YAMAHA JUPITER FI
- List of compatible ECM codes: 2VP-H591A-00)
PACK 10 - YAMAHA
EXCITER-19
- Used for YAMAHA EXCITER 2019
- List of compatible ECM codes: 2ND-H591A-20
CABLE OPTIONS FOR SENSOR & ACTUATOR TEST FUNCTION
PACK 11 - CKP & IACV
Used to check Hall CKP sensor and IACV/ ISCV for all HONDA, YAMAHA, PIAGGIO/ VESPA
PACK 15 - VSS & HALL
Used to check vehicle speed sensor (VSS) for HONDA, YAMAHA
CABLE OPTION FOR LED LIGHTING & DASHBOARD SYSTEM TEST FUNCTION
PACK 16 - LED & DAS
Used to test LED lighting system and dashboard system for HONDA, YAMAHA:
- HONDA: AIR BLADE (2013-2014), AIR BLADE (2015-2017), AIR BLADE (2018-2019), AIR BLADE 2020, AIR BLADE 2021, SH 125/150 (2017-2019), VARIO (2018-2020), VARIO 2021, VARIO 150 (2022-2024), VARIO 160 (2022-2024), CLICK (2018-2020), CLICK SMK (2018-2020), CLICK 2021, CLICK (2022-2024), WINNER X (2019-2021), WINNER X (2022-2024)
-YAMAHA: AEROX STD (2017-2020), AEROX SMK (2017-2020), NOUVO LX (2008-2011), NVX 155 STD (2018-2020), NVX 155 SMK (2018-2020)
CABLE OPTION FOR QUICK CHECK OF MOTORCYCLE COMBUSITION CHAMBER PRESSURE
PACK 17 - P TEST
Used for motorbikes using ACG starting system of HONDA, YAMAHA, PIAGGIO...
FUNCTION OPTION TO RENEW ECMID FOR SMARTKEY HONDA MOTORBIKES
PACK 18 - RENEW ECMID
Used for Smartkey HONDA motorbikes 2016-2021
FUNCTION OPTION TO TEST ENGINE OIL QUALITY
PACK 19 - OIL TEST
Used for testing engine oil quality
Download
● DOWNLOAD AND INSTALL SOFTWARE

1. MOBILE PHONE USING ANDROID



MINIMUM CONFIGURATION REQUIREMENTS:
- Mobile phone of manufacturers: Samsung, Lenovo, Huawei, Xiaomi, Nokia, Coolpad, Masstel, Oppo, Vivo, Bphone vv...
- Operating system: Android 10.0 and up
- Screen size: 6.0 inch and up
- Screen resolution: 1280 x 800 Pixels (HD standard)
Note: If you buy low-quality mobile phones, the price is too cheap, small size, too low resolution, and speed will not work with MOTOSCAN PHONE and there is no way to fix it.

2. MOBILE PHONE USING iOS


Configuration requirements: use iOS 11.0 or higher operating system

● RELATED DOCUMENTS

Product introduction
 Download
Download guide book
 Download
Description
- MOTOSCAN PHONE was researched and manufactured by DTDAuto Vietnam. It is used to determine fault and repair electronic & electrical systems for most motorbikes and scooters in the Asia market and some other markets with electronic control systems for starting, fuel injection, ignition, ABS, Smart key, ODO, ECU…
The product is designed compactly and integrates all functions “all in one”. It connects with the vehicle via Bluetooth communication and is used for diagnosing faults, repairing faults for the Engine & ABS system; automatically programming the smart key system; automatic testing ECU inside, automatic engine technical analyzing, intelligent diagnosing without OBD fault code, ODO value correction, ECU signal simulating, programming and upgrading standard software of manufacturer inside ECM, SCU… and many special measurement functions, full-featured for professional motorbike repair workshop. The device is suitable for repairers who like Multi-Media technology, good quality graphics display, abundant lookup, and multimedia connectivity.

- Support multi-language: English, French, Thai, Khmer, Korean, Portuguese, Indonesian, Malaysian and Vietnamese
- Lookup repair data fast, convenient, smart, and object-oriented for most motorcycles of HONDA, YAMAHA, SUZUKI, SYM, KYMCO, PIAGGIO/ VESPA manufacturers.
- A gift MOTODATA software used to look up motorbike repair data on a computer or mobile for 01 year when buying MOTOSCAN PHONE.



● ADDRESS & APPLICATION RANGE


- The device is suitable for repairmen who like technology, but do not like traditional, monotonous, classic, and boring hand tools
- People like Muti-Media technology, Big data, IoT ... good graphics, impressive and multimedia connection
- A safety test device for motorcycle and private motorcycle clubs

● ADVANTAGE

- In-depth features, application range compatible with most small motorbikes and scooters in the Asia market
- A safe and convenient solution support CAN bus and K-Line protocol
- Simple operation with keypad direct on handhelds (without a computer)
- Equipment has integrated compact, designed beautiful, professional, high-strength mechanics
- Effective, fast, accurate, reliable, detailed
- Lookup more detailed information for repairs by the MOTODATA
- Technical support consultant directly from the manufacturer by SMS through Skype, Yahoo, WhatsApp, Zalo, Email, Teamviewer
- Update via the Internet
- 12 months warranty and maintenance as required
- Low price

Recommended products

MOTOSCAN CE- SCANNER FOR PGM-FI/FI MOTORCYCLES & SCOOTERS
MOTOSCAN CE- SCANNER FOR PGM-FI/FI MOTORCYCLES & SCOOTERS
230.00 $ - 365.00 $
AFO4 SCAN 2.0 - FAULT DIAGNOSTIC SCANNER & ADVANCED ACCESSORY FOR PGM-FI MOTORCYCLE USERS
AFO4 SCAN 2.0 - FAULT DIAGNOSTIC SCANNER & ADVANCED ACCESSORY FOR PGM-FI MOTORCYCLE USERS
15.00 $ - 85.00 $
EASYKEY – MOTORBIKE SMART KEY & IMMOBILIZER PROGRAMMER
EASYKEY – MOTORBIKE SMART KEY & IMMOBILIZER PROGRAMMER
25.00 $ - 675.00 $
