EASYKEY – MOTORBIKE SMART KEY PROGRAMMER

EASYKEY – MOTORBIKE SMART KEY PROGRAMMER

Price:

EASYKEY is the easy tool for electronic key programming. It will save time and money when you solve problems relate to lost key situations and adding new key.

  • Product code:
  • Made by:
  • Net Weight:
  • Weight:
Product description

WHAT IS NEW IN EASYKEY 4.1icon?
• Add more 2020 new models
• Reload SCU original data for all HONDA models
• Copy the source SCU data to destination SCU of all models
• Quick sync SCU & ECM (without FOB)
• Support programming automatic smart key, fast for YAMAHA TMAX, SMAX, XMAX

● INTRODUCTION
- EASYKEY is the easy tool for electronic key programming. It has manufactured by DTDAuto Technology Center, Institute of Physics, Vietnam Academy of Science and Technology since 2019. It will save time and money when you solve problems relate to lost key situations and adding new key.
- EASYKEY is a useful product for:
       + Customers are electronic key locksmith
       + Customers are repairer with low financial level
       + Support many automatic features for normal smart key repairer

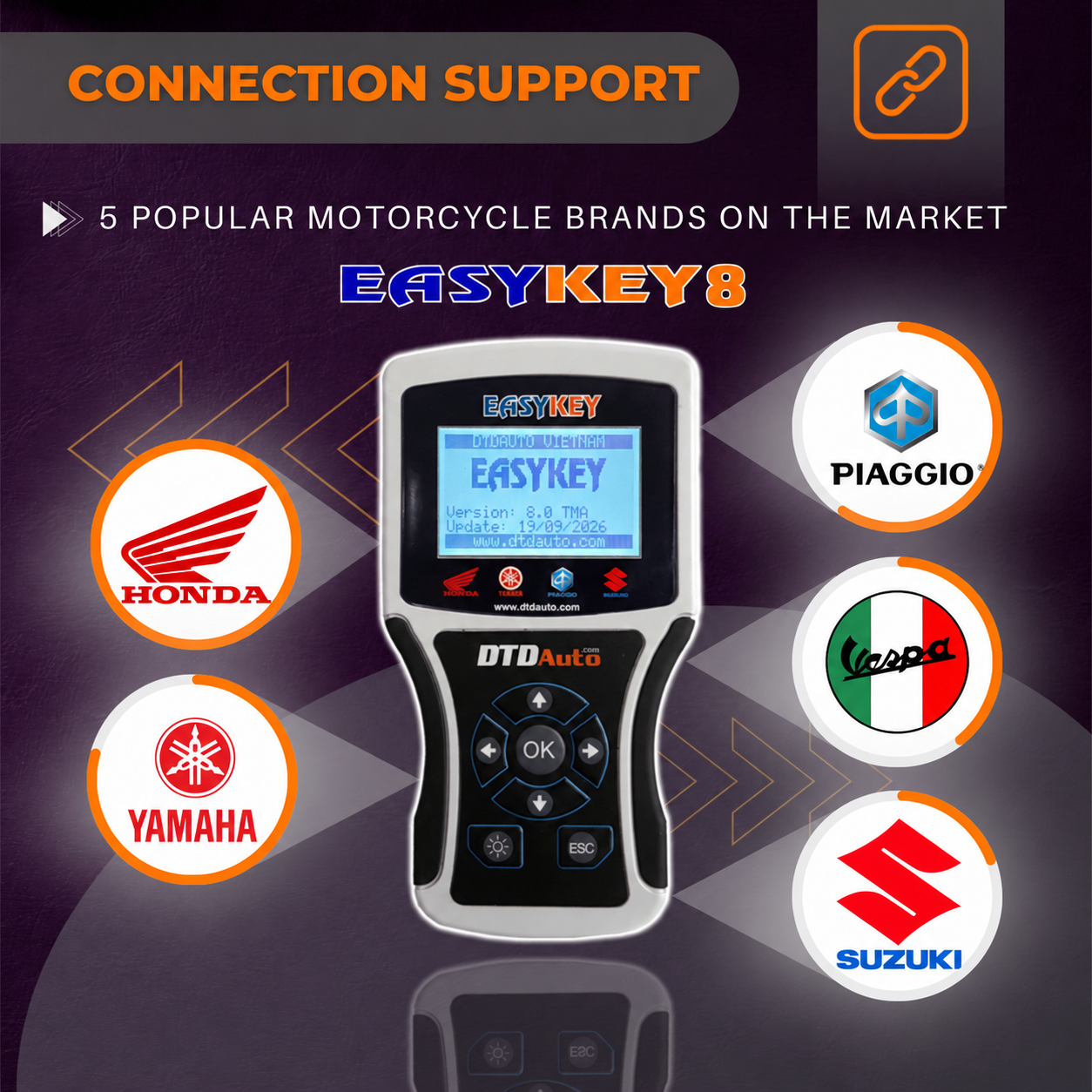

- Used for vehicles that equipped smart key system of HONDA, YAMAHA, PIAGGIO, VESPA, SUZUKI brands.



HONDA: AIR BLADE 125, CLICK-i 125, LEAD 125, PCX 2015-2019, PCX Hybrid, FORZA, SH MODE, SH 125/150 ESP, SH 300i ABS, SCOOPY-i ESP, VARIO 150, VARIO ESP, X-ADV, SUPER CUB...
YAMAHA: TMAX, XMAX, NMAX, SMAX, AEROX, LEXI, FREEGO S, LATTE, GRAND Hybrid, JANUS Limited, JANUS Premium, NVX 155 ABS, NVX Deluxe, NVX Doxou, QBIX...
PIAGGIO: BEVERLY 125/300/350 MIUG3, FLY 125/150 MIUG3, FLY 125/150 3V MIUG3, LIBERTY 125/150 MIUG3, LIBERTY 125/150 3V MIUG3, LIBERTY 125/150 3V PGN04, LIBERTY 125/150 3V PGT01, LIBERTY 125/150 3V PGS01, LYBERTY ABS PGS06, LIBERTY 125/150 AC19I/20I, LIBERTY 125/150 AC191/201, X10 125/350 MIUG3, MEDLEY 125/150 PGQ16*, FLY 125/150 AC19I/20I…
VESPA: 946 125/150 3V MIUG3, GTS 125/150/300 MIUG3, LT 125/150 3V MIUG3, LX 125/150 MIUG3, LX 125/150 3V MIUG3, SPRINT 125/150 3V PGS02, LX 125/150 AC19I/AC20I, LX 125/150 AC19I/AC20I, S 125/150 3V MIUG3, SPRINT 125/150 3V PGN04, SPRINT 125/150 3V PGT01, PRIMAVERA 125/150 MIUG3, PRIMAVERA 125/150 PGN04, S125/150 MIUG3, GTS 125/150 MIUG2...
Note: The advanced functions with an asterisk (*) will appear on the next version
SUZUKI: GSX-R150



● OPTIONS & FUNCTION

OPTIONS FUNCTION IMAGE
EASYKEY 4.1
STD

(standard version)
(265 USD)

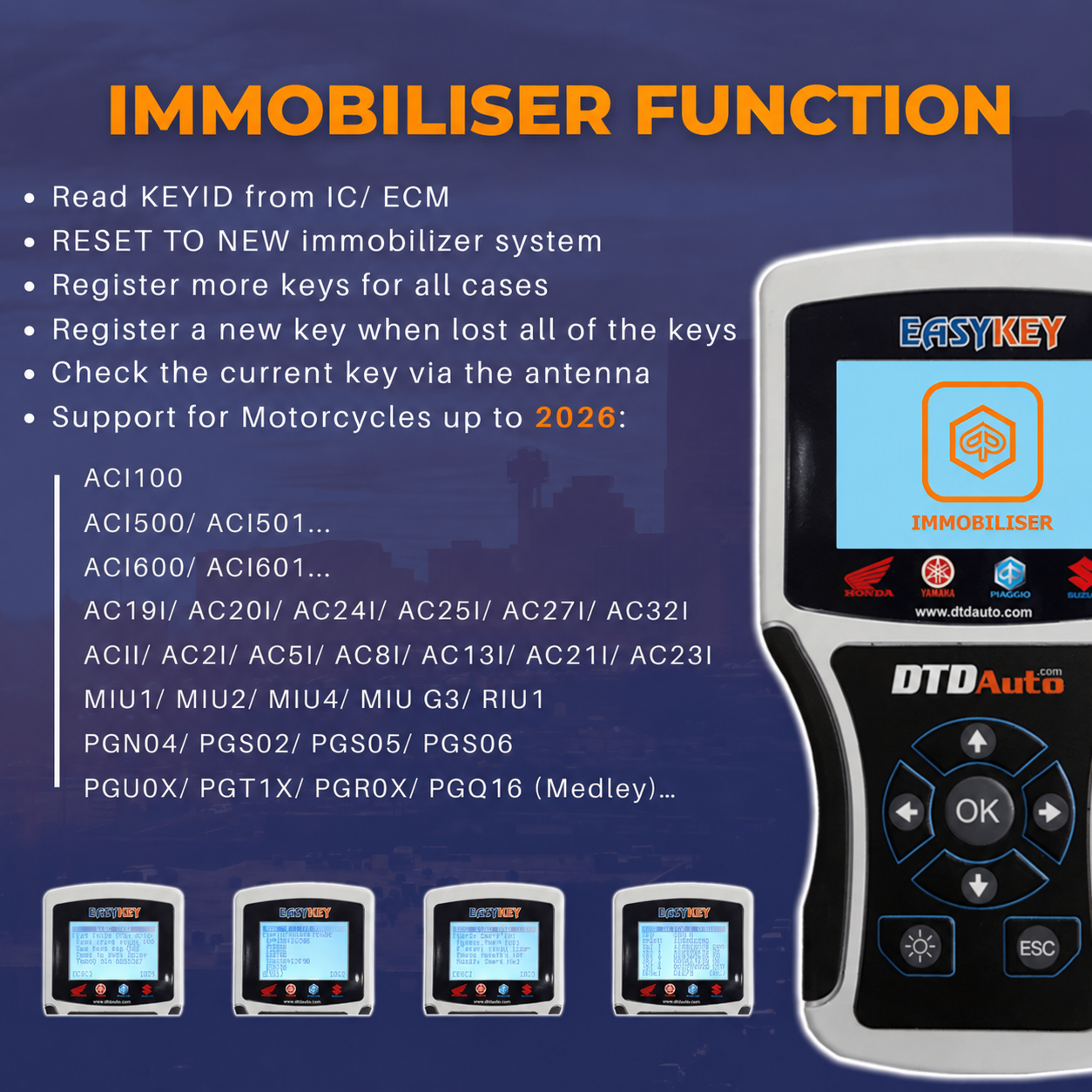

- Read all KEYID# and ECMID from vehicle SCU
- Program all of case about Smart Key System: ON VEHICLE, ON SIMULATOR & Fast automatic programming direct to SCU & ECM (without vehicles) as following:
     + Register more FOB# for all of cases
     + Register FOB# when lost all of the FOB#
     + Delete KEYID in SCU memory
     + Synchronize SCU & ECM for all of cases
     + Inactivate FOB# code in SCU when lost FOB#
     + Check FOB# & SCU
     + Display status of KEY (ON/OFF)
     + Display SCU information
- Restore SCU data from sample data for HONDA (this function used to repair software inside SCU when SCU data is fault)
- Copy data from source SCU to destination SCU for all motorbikes that have Smart key system: HONDA, YAMAHA, SUZUKI (This function used to repair, swap SCU when have SCU hardware/software fault)
- Quick sync SCU & ECM (without FOB) for HONDA: SH, PCX, X-ADV... and equivalent vehicles
- A gift MOTODATA software used to lookup motorbikes repair data on computer or mobile for 01 year (Note: If you want to continue using for the next time then pay renewal fee. Renewal fee is 50 $US for next year)
EASYKEY 4.1
TMA

(YAMAHA TMAX version)

(415 USD)
- Include all functions of 4.1 STD unit
- Add key programming for YAMAHA TMAX
     + Register more FOB
     + Register FOB# when lost all of the FOB#
     + Inactivate/Activate FOB# in SCU
     + Read KEYID# in SCU
     + Delete KEYID# in SCU memory
     + Copy SCU data
     + Check KEYID
     + Check FOB & SCU
Note: 4.1 STD version is not supported YAMAHA TMAX, If you want to use this function then you upgrade from 4.1 STD version with additional fee
- A gift MOTODATA software used to lookup motorbikes repair data on computer or mobile for 01 year (Note: If you want to continue using for the next time then pay renewal fee. Renewal fee is 50 $US for next year)


EXTENSION ACCESSORY
(324 USD)

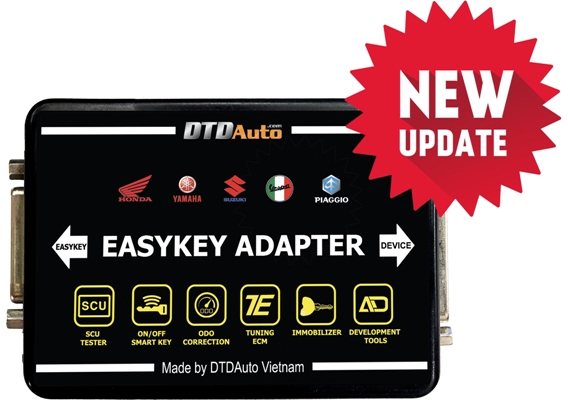

MOTOBOX
(Optional)
Support extender function as following:
- Simulate INPUT/ OUTPUT signals of ECUs for testing, diagnostic and repairing ECU & ODO hardware

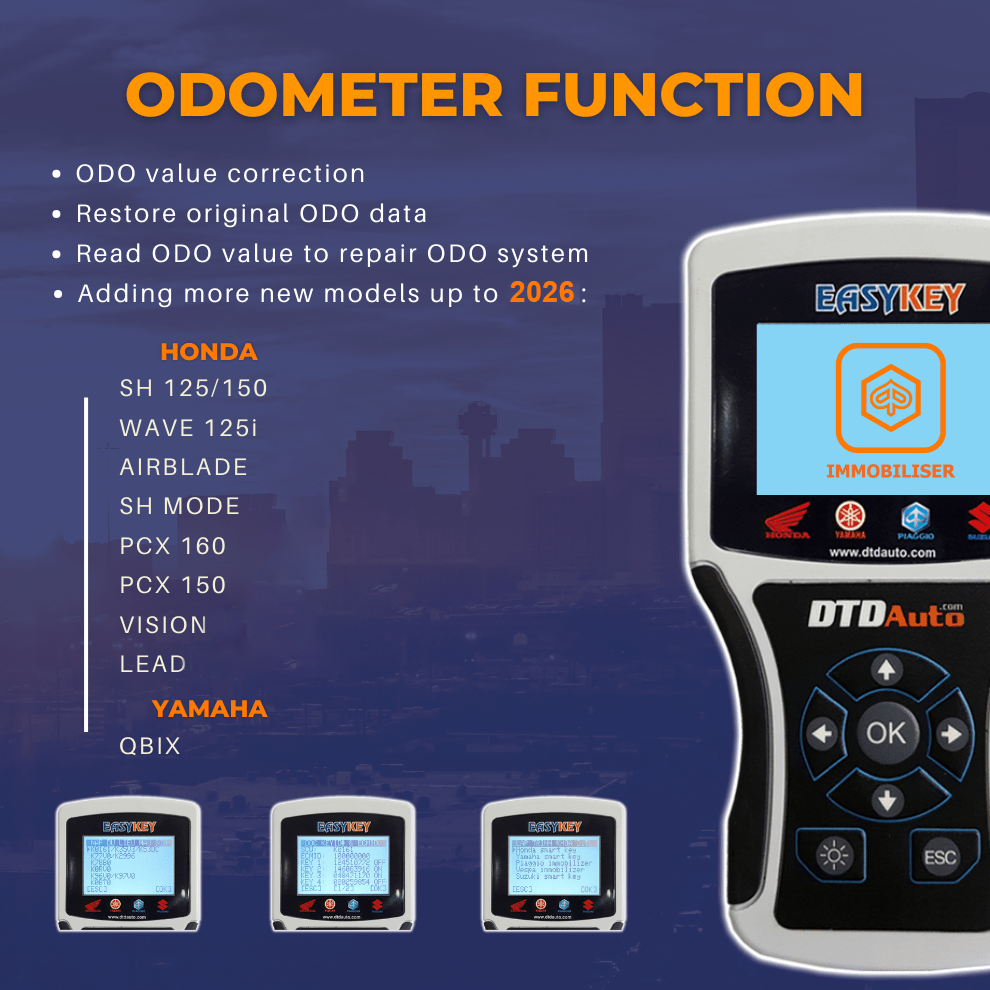

- ODO value correction with new solutions for most common motorcycles (click here follow function list on website)
- Reprogramming & upgrade ECM's firmware for HONDA, PIAGGIO/VESPA vehicles
- Support for all HONDA, YAMAHA, PIAGGIO/VESPA (it also support GILERA, APRILIA, DERBI, PEUGEOT, which use similar ECMs), SYM, SUZUKI, KYMCO PGM-FI/FI motorbikes

● RELATED IMAGES

Interface for initial screen
Interface for function selection
Interface for list of motorbikes
Interface for list motorbikes
Interface for function selection
Interface for function selection
Interface for function selection
Read KEYID/ECMID
Interface for inactivating key
Interface for registration key
Interface for ECU signal simulation
Interface for adjusting ODO




Clip for EASYKEY

Clip for making a new key when lost all of keys


Clip for automatic synchronization SCU with ECM


Clip for overview about EASYKEY


Clip for functions of EASYKEY


Clip for reading KeyID


Clip for registration key of HONDA


Clip for registration key of YAMAHA

Clip for registration key when lost all of keys of YAMAHA


Clip for inactivation/activation FOB


Clip for adjusting ODO value

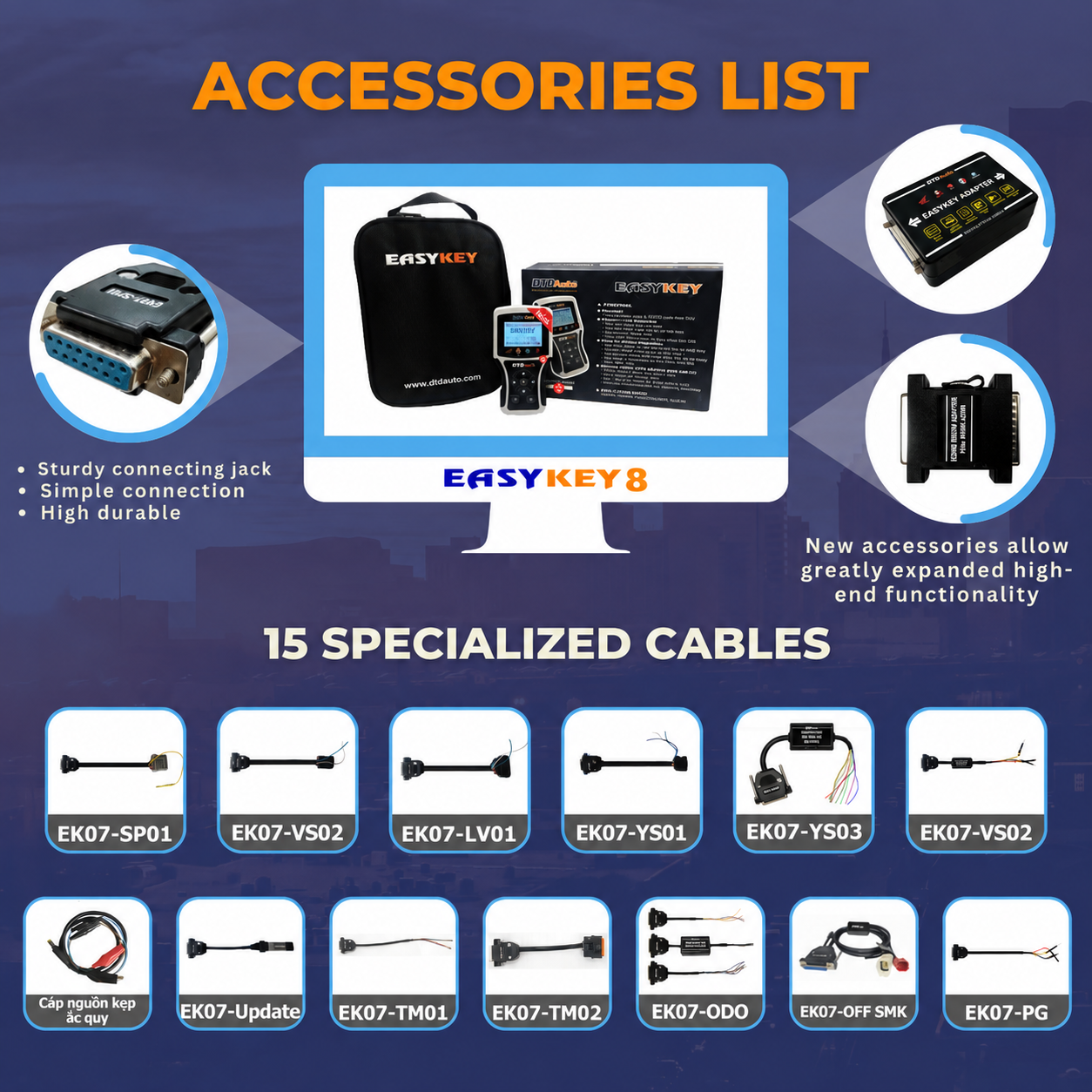

● COMPONENT

EASYKEY 4.1 UNIT
NO. ITEM IMAGE
1

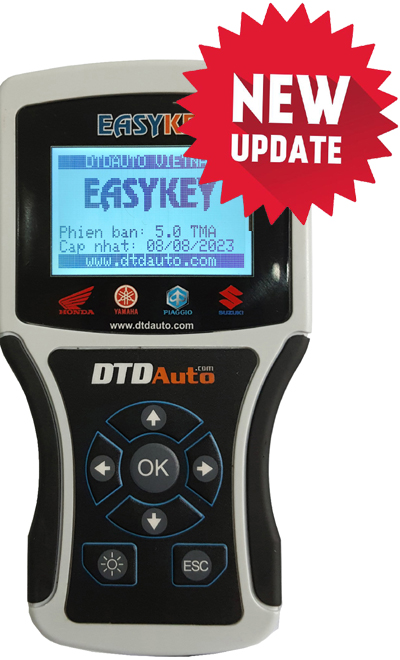

Hand held

2

EK07-SP01 cable used to read KEYID/ ECMID for HONDA

3

EK07-SP02 cable used to program smart key for HONDA SH

4

EK07-LV01 cable used to read KEYID/ ECMID for HONDA

5

EK07-LV02 cable used to program smart key for HONDA LV

6

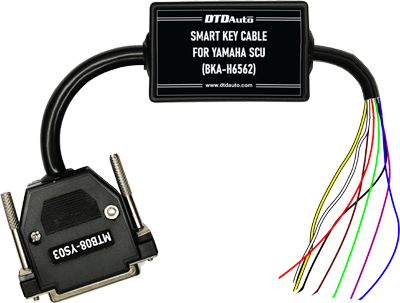

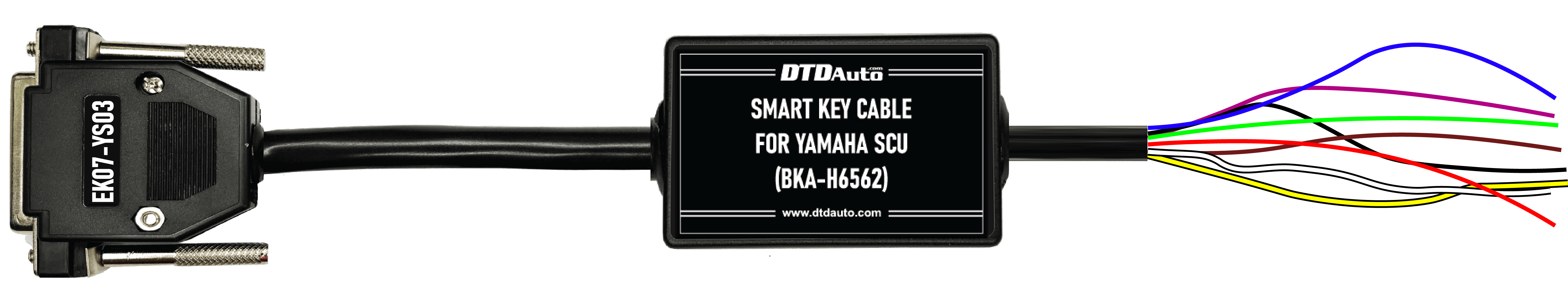

EK07-YS01 cable used to read KEYID/ ECMID for YAMAHA, SUZUKI

7

EK07-YS02 cable used to program smart key for YAMAHA, SUZUKI

8

EK07-TMAX cable used to program smart key for YAMAHA TMAX
(Smart key programming function for YAMAHA TMAX only used for 4.1 TMA version, 4.1 STD version is not supported. If you want to use this function then upgrade from 4.1 STD version with additional fee)

9

EK07-ACT cable used to program smart key for HONDA

10

EK07-PG cable used to program smart key for PIAGGIO

11

EK07-ACI cable used to program smart key for PIAGGIO

12

220V/AC to 12V/DC power converter

13

EK07-Update cable

14

Quick guide

15

Hand bag

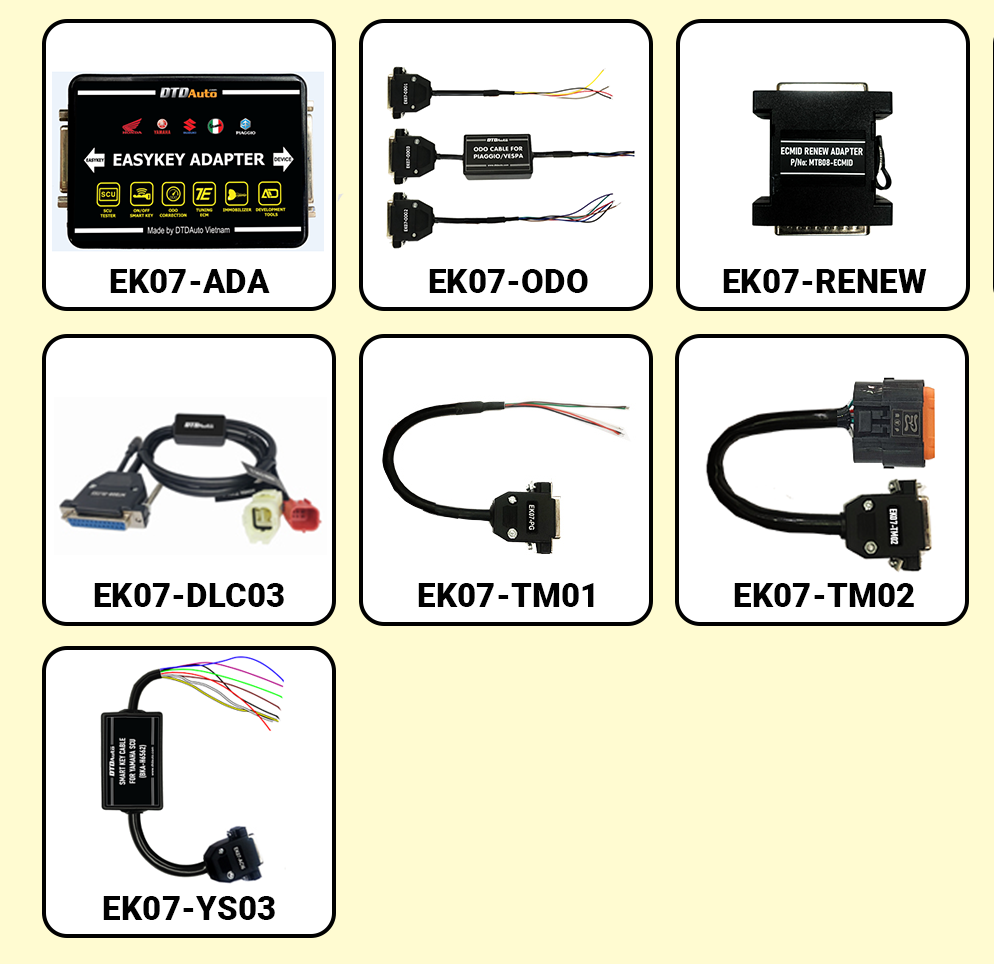

EXTENSION ACCESSORY
MOTOBOX
NO. ITERM IMAGE
1

Main machine

2

Data cable to connect EASYKEY with MOTOBOX

3

Data cable for YAMAHA (CAN bus communication protocol)

4

Quick Guide

5

Case


● FEEDBACK FROM USERS

- Products designed for the majority of users who are normal locksmiths.
- The product is compact, but must integrate smart, few accessories, convenient, can be put into a pocket to move around as a convenient key, the easiest to use for users who meet the needs of the majority Locksmith brothers and regular motorbike mechanic.
- The product needs to be very stable, any key presses cannot be hung, mechanically durable, durable over time, accurate, reliable, not allowed to make SCU data errors when working, functional enough for users who no need to know how to use a computer, no need to know how to use the internet, no need to know about the motorcycle, no need to know about computer software, electronics, no need to handle and care about the The problem is too complicated about microelectronics, annoying users. EASYKEY is only "Plug" and "Play"
- Must be extremely easy to use, even women, children, can do it, no need to go to school, no need to read documentation. What can be done automatically, the machine has done automatically without requiring users to understand the nature, principles, structure, operation of the Smart key system. EASYKEY machine is like a small robot, "whispering" talking to the person who controlled it, instructing the user carefully each operation until the end is complete. Users regardless of who, just need to be literate, do not need high education, just "step by step," follow the machine, the device says why do it, follow without having to understand why until the finished the work according to a programmed process is very delicate, detailed inside the machine. So we named this robot EASYKEY with two English words "EASY" and "KEY" with the meaning of "EASY TO MAKE KEY".
