MOTOSCAN CE - SCANNER FOR PGM-FI/FI MOTORCYCLES & SCOOTERS
LAST VERSION UPDATE: 30/09/2021
WHAT IS NEW IN VERSION UPDATE 30/09/2021?
• Update many new SCU codes for Honda Smart Key 2021
• Add new big motorcycles for Yamaha R15, MT-15
• Update 31 new motorbikes to 2021 with ODO correction and support for all models to read current ODO values
• Optimized tuning for smooth, stable, accurate software
● INTRODUCTION
-
MOTOSCAN CE is designed with the criteria of cost saving, but still effective and suitable for the workers who are still in financial difficulty to have the opportunity to use reputable, quality, and cost-effective equipment, reasonable without conditional use professional products as MOTOSCAN 7 and MOTOSCAN TAB.
- MOTOSCAN CE is used for diagnosing faults, adjusting, testing, repair faults for Engine & ABS systems; programming smart key & immobilizer systems; ODO value correction (ODO function is an option) and lookup repair data for professional motorbike repair workshop.
- Support programming, adjusting and setting parameters in ECU as electronic key programming, zero point programming of TPS, and air/fuel ratio programming, idle speed, and pulse bandwidth adjustment to control fuel injection...
- A gift MOTODATA software for 01 year (you need pay renewal fee for the next years) that is used to lookup motorbike repair data for PIAGGIO, HONDA, YAMAHA, SUZUKI, SYM, KYMCO. MOTODATA supports Android, iOS, and Windows devices as smartphone, Tablet, computers, laptops. In particular, it integrated workshop management function that helps you manage orders, customers, inventory, financial…
- Equipment designed as handheld, good quality, low.

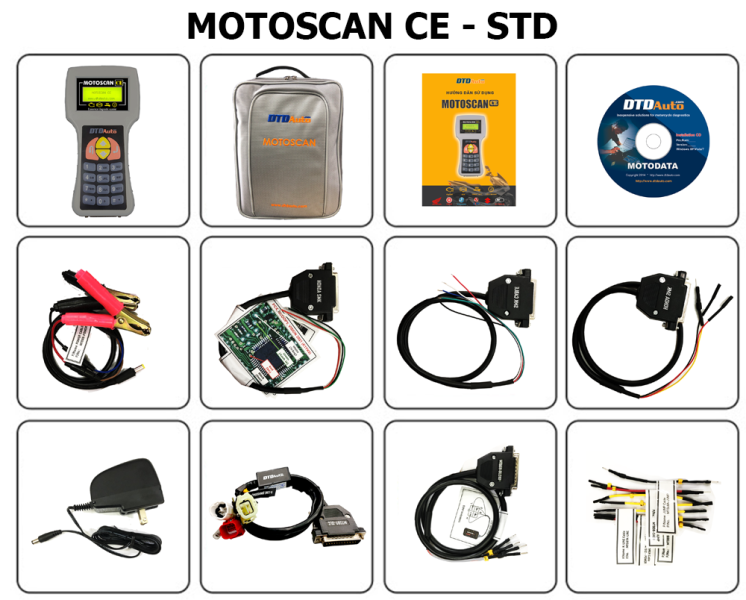

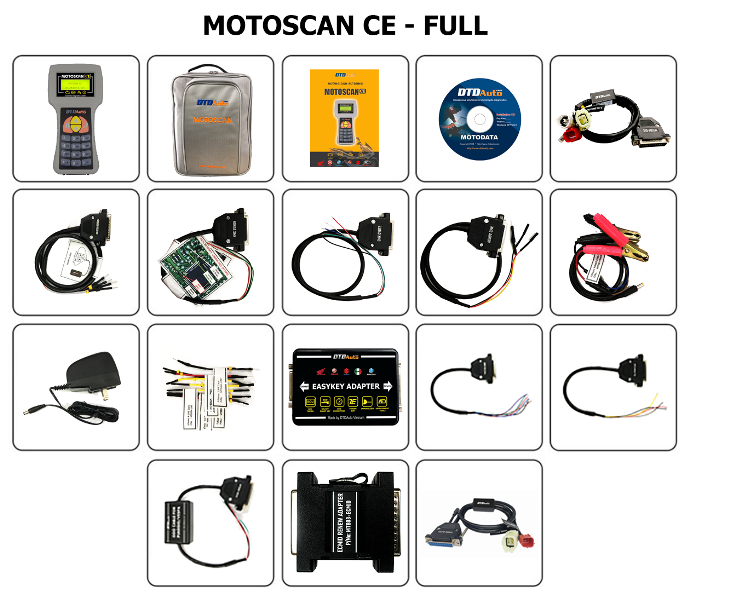

● PRODUCT PACKAGE SELECTION & PRICE
| OPTIONS |
SUPPORT SYSTEMS |
APPLICATION |
PRICE (USD) |
SELECTION WITHOUT ODO FUNCTION
Product code: MT009A |
ENGINE/ ABS/ SMART KEY/ IMMOBILISER |
All HONDA, YAMAHA, PIAGGIO/VESPA
(it also supports GILERA, APRILIA, DERBI, PEUGEOT, which use similar ECMs), SYM, SUZUKI, KYMCO PGM-FI/FI motorbikes
|
$395.00 |
SELECTION WITH ODO FUNCTION
Product code: MT009F |
ENGINE/ ABS/ SMART KEY/ IMMOBILISER/ ODO |
$495.00 |
OPTION
ODO CABLE |
ODO |
You use this option when you bought MOTOSCAN CE version without ODO function (Product code: MT009A) and now you want to add ODO cable for this function.
Used for ODO value correction program, restore original ODO data to repair ODO system for HONDA, YAMAHA, PIAGGIO, VESPA
List of vehicles:
- HONDA: AIR BLADE (2013-2019), AIR BLADE 2020, CB150R (2017-2019), CB300R (2017-2019), CB650R, CBR250, CBR650R, CB650F, CBR650F, CB500X, CBR500R, CB500F, CBR 50RR (2019-2021), CBR150R (2019-2021), FUTURE NEO Fi, FUTURE X Fi, LEAD (2013-2019), LEAD 2020, PCX (2008-2013), PCX (2014-2017), PCX 2018, PCX HYBRID, SH 300i, SH MODE (2013-2019), SH 125/150/125D/150D/SM (2013-2017), SH 125/150/125D/150D/SM (2018-2019), SH 125/150/125D/150D/SM (2020), SCOOPY-I, SCOOPY 2021, SUPER CUP 125 (2021-2021), MSX, GENIO (2019-2021), VISION 2021, VARIO 150, WINNER, WINNER X, X-ADV, DYLAN, ZOOMER X (2013-2017), ZOOMER X (2018-2020), SONIC, WAVE 125 (Thái Lan), CLICK (2012-2014), CLICK (2014-2017) CLICK (2018-2020), VARIO (2014-2017), VARIO (2018-2020)
- YAMAHA: ACRUZO , AEROX, LEXI S, LATTE, FREGO, NVX, NMAX, NMX, M-SLAZ (2016-2019), MT-03 (2015-2019), MT-25 (2015-2019), JANUS, TFX, EXCITER (2014-2018), EXCITER (2019-2020), FZ 150, FZ 150i, GRANDE, NOUVO SX, NOUVO LX, YZF-R3 (2014-2018), YZF-R25 (2014-2018), R15, X-MAX 300 (2017-2018), TMAX
- PIAGGIO: MEDLEY 125, MEDLEY 150, MEDLEY 125 ABS, MEDLEY 150 ABS, LIBERTY ABS, LIBERTY 125 3V PGN04, LIBERTY 150 3V PGN04, LIBERTY 125 3V PGT01, LIBERTY 150 3V PGT01, LIBERTY 125 3V PGS02/PGR04/PGS05/PGS06, LIBERTY 150 3V PGS02/PGR04/PGS05/PGS06, LIBERTY ABS PGS06
- VESPA: PRIMAVE 125 PGN04, PRIMAVE 150 PGN04, SPRINT 125 3V PGN04, SPRINT 150 3V PGN04, SPRINT 125 3V PGT01, SPRINT 150 3V PGT01, SPRINT 125 3V PGS02/PGR04/PGS05/PGS06, SPRINT 150 3V PGS02/PGR04/PGS05/PGS06
- SUZUKI: RAIDER (2017-2021), SATRIA (2017-2021)
|
$100.00 |
● FUNCTION
A. FUNCTION 1: FIND MALFUNCTION
1.1 Read, clear fault codes stored in ECUs of engine system and ABS system
1.2 Diagnose faults by analyzing the engine's live data and activating the actuators
+ Voltage and open angle of throttle position sensor (TPS)
+ Voltage and value of intake air temperature sensor (IAT)
+ Voltage and value of manifold air pressure sensor (MAP)
+ Voltage and value of engine temperature sensor (ECT)
+ Voltage and value of oxygen sensor (O2S)
+ Value of atmospheric pressure sensor
+ Engine speed (CKP/ NE)
+ Vehicle speed (VSS)
+ Front/rear wheel speed (with ABS system)
+ Status of fuel pump
+ Ignition timing advance (ISA)
+ Fuel injection time (Ti)
+ Starter signal (STP)
+ Status signal of side stand switch (SSTAND-SW)
+ Status Hall sensor
+ Evaporative purge cut solenoid valve output signal (PCS)
+ Output signal active starter relay (ON/OFF)
+ Output signal active PCV
+ Output signal active IACV
+ Output signal active MIL
+ SCS input signal status (service check signal)
+ Open state of step motor (IACV)
+ State of heater of O2 sensor
+ State of brake switch
+ State of Start & Stop indication lamp
+ State of Star t& Stop mode button
+ State of start button
+ State of pre-positioning
+ Status of direction sensor
+ Status of oil minimum pressure sensor
+ Engine stop command from DSP
+ Battery voltage (BATT)
+ Battery current
+ Short-term fuel trim in closed loop
+ Environmental revision coefficient in closed loop
+ Fault code and total fault codes
+ And other parameters vv...
-
Activate and reset the actuators: Fuel pump, injector, ignition coil, IACV (ISCV), O2 heater, pump, blower, headlamp, MIL warning lamp, ABS warning lamp, Immobilizer lamp, Start&Stop lamp, engine oil pressure warning lamp, VVA valve, reset pre-positioning of crankshaft ...
B. FUNCTION 2: REPAIR FAULT

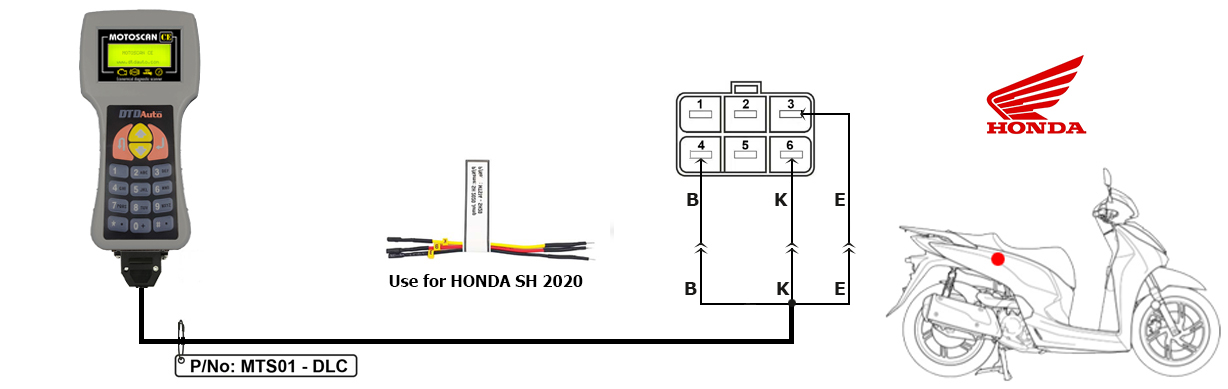

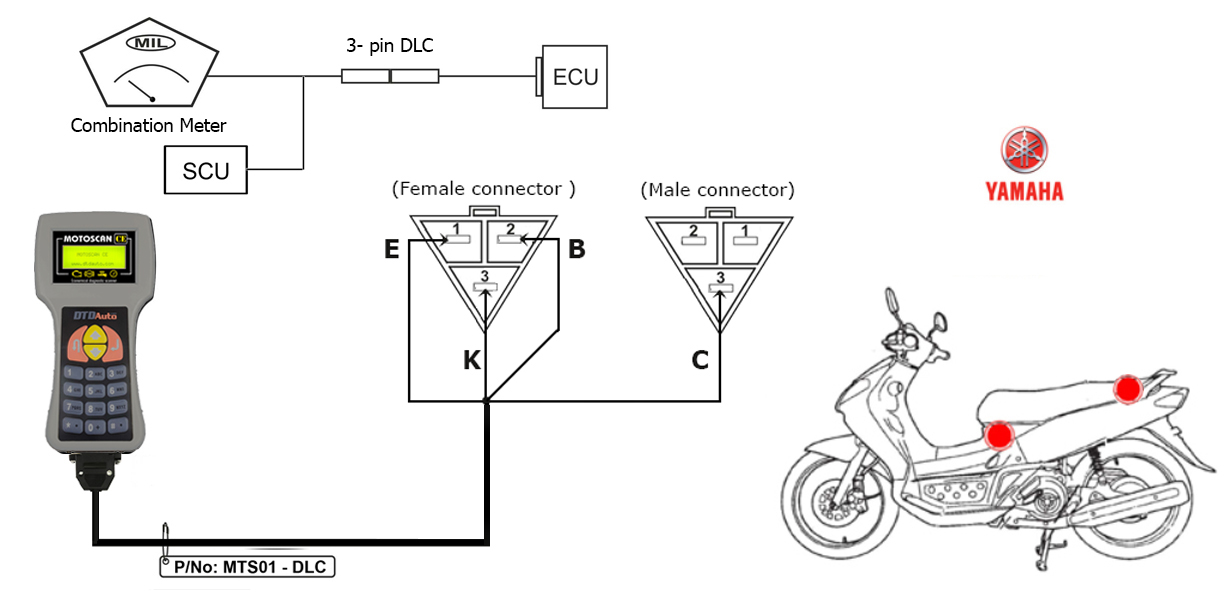

2.1 Smart key system for HONDA, YAMAHA, and SUZUKI manufacturers:
- Read KEYID# and ECMID from SCU to register new key (FOB) when lost all keys and sync SCU with ECM
- Support for looking up the key programming process, synchronizing directly on the vehicle, or programming without a vehicle (SCU does not need to be mounted on the vehicle) on MOTODATA software
List of vehicles as below (include other models which use similar ECMs):
- HONDA: SH 125/150/125D/150D/SM, SH 300i ABS, PCX, SH MODE , LEAD, AIR BLADE, VISION, ADV, X-ADV, FORZA, SUPER CUB, SCOOPY ESP, CLICK, VARIO
- YAMAHA: JANUS 125, EXCITER 155 VVA, GRANDE, NVX 125, NVX 155 Camo, NVX 155 ABS, AEROX, LEXI S, NMX, NMAX, SMAX, XMAX, TMAX, QBIX 125, QBIX 125 S, QBIX 125 ABS
- SUZUKI: GSX R150

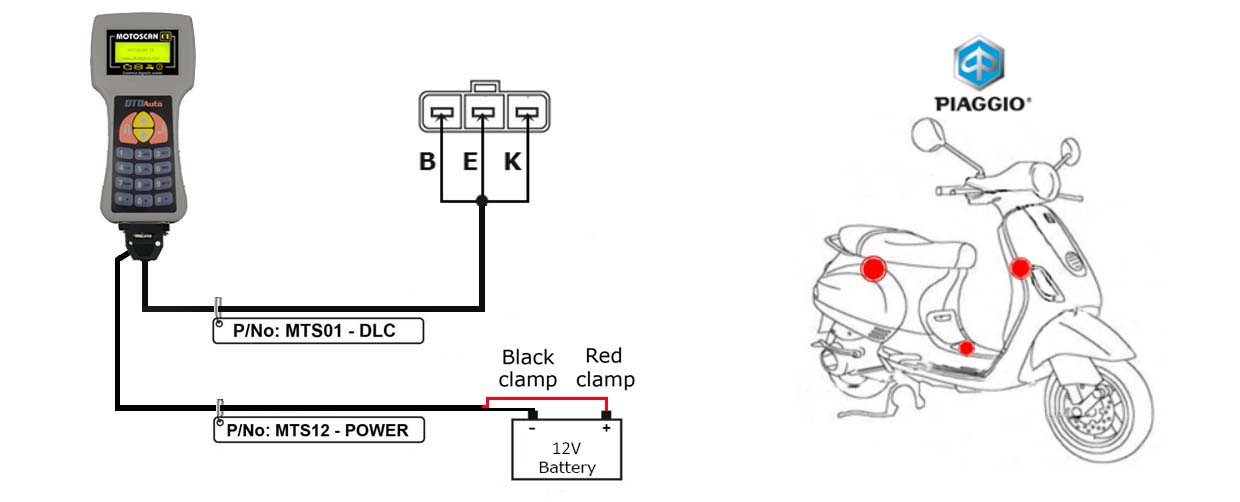

2.2 Immobilizer system for PIAGGIO/ VESPA (it also support GILERA, APRILIA, DERBI, PEUGEOT, which use similar ECMs) , AC8I, ACI600, AC601, ACI602, ACI603, ACI604, ACI605, ACI606, ACII, AC2I, AC5I, AC8I, AC13I đến các thế hệ ECM: MIU1, MIU2, MIU G3/RIU1, MIU4, PGN04/PGS02/PGR04/PGS05/PGS06/PGT01
- Read KEYID# from ECM to register new key when lost of all keys
Reset immobilizer, register new key when lost all of the keys, register additional keys … by many methods (KEY to IMMO. or IMMO. to KEY)
2.3 Correct and adjust the value of the digital odometer, restore original ODO data (use with ODO cable and data cable)
- HONDA: AIR BLADE (2013-2019), AIR BLADE 2020, CB150R (2017-2019), CB300R (2017-2019), CB650R, CBR250, CBR650R, CB650F, CBR650F, CB500X, CBR500R, CB500F, CBR 50RR (2019-2021), CBR150R (2019-2021), FUTURE NEO Fi, FUTURE X Fi, LEAD (2013-2019), LEAD 2020, PCX (2008-2013), PCX (2014-2017), PCX 2018, PCX HYBRID, SH 300i, SH MODE (2013-2019), SH 125/150/125D/150D/SM (2013-2017), SH 125/150/125D/150D/SM (2018-2019), SH 125/150/125D/150D/SM (2020), SCOOPY-I, SCOOPY 2021, SUPER CUP 125 (2021-2021), MSX, GENIO (2019-2021), VISION 2021, VARIO 150, WINNER, WINNER X, X-ADV, DYLAN, ZOOMER X (2013-2017), ZOOMER X (2018-2020), SONIC, WAVE 125 (Thái Lan), CLICK (2012-2014), CLICK (2014-2017) CLICK (2018-2020), VARIO (2014-2017), VARIO (2018-2020)
- YAMAHA: ACRUZO , AEROX, LEXI S, LATTE, FREGO, NVX, NMAX, NMX, M-SLAZ (2016-2019), MT-03 (2015-2019), MT-25 (2015-2019), JANUS, TFX, EXCITER (2014-2018), EXCITER (2019-2020), FZ 150, FZ 150i, GRANDE, NOUVO SX, NOUVO LX, YZF-R3 (2014-2018), YZF-R25 (2014-2018), R15, X-MAX 300 (2017-2018), TMAX
- PIAGGIO: MEDLEY 125, MEDLEY 150, MEDLEY 125 ABS, MEDLEY 150 ABS, LIBERTY ABS, LIBERTY 125 3V PGN04, LIBERTY 150 3V PGN04, LIBERTY 125 3V PGT01, LIBERTY 150 3V PGT01, LIBERTY 125 3V PGS02/PGR04/PGS05/PGS06, LIBERTY 150 3V PGS02/PGR04/PGS05/PGS06, LIBERTY ABS PGS06
- VESPA: PRIMAVE 125 PGN04, PRIMAVE 150 PGN04, SPRINT 125 3V PGN04, SPRINT 150 3V PGN04, SPRINT 125 3V PGT01, SPRINT 150 3V PGT01, SPRINT 125 3V PGS02/PGR04/PGS05/PGS06, SPRINT 150 3V PGS02/PGR04/PGS05/PGS06
- SUZUKI: RAIDER (2017-2021), SATRIA (2017-2021)
Edit, decode data, and convert information automatically in EEPROM
2.4 Calibrate and set control parameters in the ECM:
- Calibrate air/fuel ratio (AFR) for YAMAHA, PIAGGIO/VESPA (it also support GILERA, APRILIA, DERBI, PEUGEOT, which use similar ECMs), SYM
- Reset to manufacturer value of ECM: HONDA, YAMAHA, PIAGGIO/VESPA (it also supports GILERA, APRILIA, DERBI, PEUGEOT, which use similar ECMs)
- Offset zero point value and set range of throttle position sensor for PIAGGIO/VESPA (it also support GILERA, APRILIA, DERBI, PEUGEOT, which use similar ECMs)
- Synch and control IACV for HONDA, YAMAHA, PIAGGIO/VESPA (it also supports GILERA, APRILIA, DERBI, PEUGEOT, which use similar ECMs), KYMCO
- Adjust pulse bandwidth to control fuel injectors (Ti) and idle speed: YAMAHA, SYM
C. FUNCTION 3: SPECIALIZED MEASURE TOOL
3.1 Measure the air/fuel ratio (A/F) to assess the instantaneous fuel consumption
3.2 Measure the optimal coefficient of ECM to assess the performance and quality of the current ECM
D. FUNCTION 4: LOOKUP INFORMATION
4.1 Show the current firmware version of ECM and ACU
4.2 Look up the acronym, and position of signal pins for systems: ECM, SCU, ACU, ODO, IMMO, SMART KEY
4.3 Look up electrical wiring diagram: principle diagram, schematic assembly, and specified conditions
4.4 Look up the installation process, repair, and maintenance
4.5 Manage repair workshop: customer, financial, store, treasury, employees
4.6 Update software and data via the Internet
DETAIL FUNCTION TABLE:
 |
READ/
EARSE
CODE |
RESTORE
ECM |
VIEW
LIVE
DATA |
ACTIVE
RESET
TEST
ACTUA. |
CHECK
A/F |
ADJUST
A/F |
SET
TPS
ZERO
POINT |
REPROG.
MCU/
EEPROM |
PROG.
KEY
(IMMO/
SMARTKEY)
|
CORRECT
ODO
METTER |
ECM
INFO |
| AIR BLADE (08-10) |
 |
|
|
|
|
|
|
|
|
|
|
| AIR BLADE (10-12) |
|
|
|
|
|
|
|
|
|
|
|
| AIR BLADE (13->>) |
|
|
|
|
|
|
|
|
|
|
|
| CBR 250 |
|
|
|
|
|
|
|
|
|
|
|
| CLICK-i |
|
|
|
|
|
|
|
|
|
|
|
| CLICK 125i |
|
|
|
|
|
|
|
|
|
|
|
| DYLAN |
|
|
|
|
|
|
|
|
|
|
|
| LEAD 110 |
|
|
|
|
|
|
|
|
|
|
|
| LEAD 125 |
|
|
|
|
|
|
|
|
Smartkey |
|
|
| FUTURE NEO FI
|
|
|
|
|
|
|
|
|
|
|
|
| FUTURE X FI
|
|
|
|
|
|
|
|
|
|
|
|
| FUTURE 125 FI
|
|
|
|
|
|
|
|
|
|
|
|
| PCX (08-15) |
|
|
|
|
|
|
|
|
|
|
|
| PCX (16-18) |
|
|
|
|
|
|
|
|
Smartkey |
|
|
| PCX HYBRID |
|
|
|
|
|
|
|
|
|
|
|
| XADV |
|
|
|
|
|
|
|
|
Smartkey |
|
|
| PS |
|
|
|
|
|
|
|
|
|
|
|
| VISION |
|
|
|
|
|
|
|
|
|
|
|
| VISION ESP |
|
|
|
|
|
|
|
updating |
|
|
|
| SONIC 150 |
|
|
|
|
|
|
|
|
|
|
|
| SH 125i |
|
|
|
|
|
|
|
|
|
|
|
| SH 150i |
|
|
|
|
|
|
|
|
|
|
|
| SH 125 ESP |
|
|
|
|
|
|
|
|
Smartkey |
|
|
| SH 150 ESP |
|
|
|
|
|
|
|
|
Smartkey |
|
|
| SH 300i |
|
|
|
|
|
|
|
|
|
|
|
| SH 300i ABS |
|
|
|
|
|
|
|
|
Smartkey |
|
|
| SH MODE |
|
|
|
|
|
|
|
|
Smartkey |
|
|
| SCR 110 |
|
|
|
|
|
|
|
|
|
|
|
| SUPER CUP C125 |
|
|
|
|
|
|
|
|
|
|
|
| SUPRA |
|
|
|
|
|
|
|
|
|
|
|
| WAVE RSX FI |
|
|
|
|
|
|
|
|
|
|
|
| WAVE RSX FI AT |
|
|
|
|
|
|
|
|
|
|
|
| WINNER 150 |
|
|
|
|
|
|
|
|
|
|
|
| WINNER X |
|
|
|
|
|
|
|
|
|
|
|
| MSX (14-16) |
|
|
|
|
|
|
|
|
|
|
|
| MSX (17-19) |
|
|
|
|
|
|
|
|
|
|
|
| SCOOPY-i |
|
|
|
|
|
|
|
|
|
|
|
| VARIO 150 |
|
|
|
|
|
|
|
|
|
|
|
| WAVE 110i |
|
|
|
|
|
|
|
|
|
|
|
WAVE 125
(Thailand) |
|
|
|
|
|
|
|
|
|
|
|
| WAVE 125i |
|
|
|
|
|
|
|
|
|
|
|
| ZOOMER-X |
|
|
|
|
|
|
|
|
|
|
|
| Other HONDA FI |
|
|
|
|
|
|
|
|
|
|
|
HONDA
mechanical carburetor |
|
|
|
|
|
|
|
|
|
|
|
 |
READ/
EARSE
CODE |
RESTORE
ECM |
VIEW
LIVE
DATA |
ACTIVE
RESET
TEST
ACTUA. |
CHECK
A/F |
ADJUST
A/F |
SET
TPS
ZERO
POINT |
REPROG.
MCU/
EEPROM |
PROG.
KEY
(IMMO/
SMARTKEY)
|
CORRECT
ODO
METTER |
ECM
INFO |
| BEVERLY125 MIUG3 |
|
|
|
|
|
|
|
|
|
|
|
| BEVERLY 300 MIUG3 |
|
|
|
|
|
|
|
|
|
|
|
| BEVERLY 350 MIUG3 |
|
|
|
|
|
|
|
|
|
|
|
| FLY 125
MIUG3 |
|
|
|
|
|
|
|
|
|
|
|
| FLY 150
MIUG3 |
|
|
|
|
|
|
|
|
|
|
|
| FLY 125
3V MIUG3 |
|
|
|
|
|
|
|
|
|
|
|
| FLY 150
3V MIUG3 |
|
|
|
|
|
|
|
|
|
|
|
| FLY 125
AC19I/20I |
|
|
|
|
|
|
|
|
|
|
|
| FLY 150
AC 19I/20I |
|
|
|
|
|
|
|
|
|
|
|
| FLY 125
AC 191/201 |
|
|
|
|
|
|
|
|
|
|
|
| FLY 150
AC 191/201 |
|
|
|
|
|
|
|
|
|
|
|
| LIBERTY 125 3V PGN04/PGS02/PGR04/ PGS05/PGS06/PGT01 |
|
|
|
|
|
|
|
|
|
|
|
| LIBERTY 150 3V MIUG3 |
|
|
|
|
|
|
|
|
|
|
|
| LIBERTY 150 3V PGN04/PGS02/PGR04/ PGS05/PGS06/PGT01 |
|
|
|
|
|
|
|
|
|
|
|
| LIBERTY 125 AC19I/20I |
|
|
|
|
|
|
|
|
|
|
|
| LIBERTY 150 AC19I/20I |
|
|
|
|
|
|
|
|
|
|
|
| LIBERTY 125 AC191/201 |
|
|
|
|
|
|
|
|
|
|
|
| LIBERTY 150 AC191/201 |
|
|
|
|
|
|
|
|
|
|
|
| LIBERTY ABS PGS06 |
|
|
|
|
|
|
|
|
|
|
|
| MEDLEY 125 PGQ16 |
|
|
|
|
|
|
|
updating |
updating |
|
|
| MEDLEY 150 PGQ16 |
|
|
|
|
|
|
|
updating |
updating |
|
|
| X10 125 MIUG3 |
|
|
|
|
|
|
|
|
|
|
|
| X10 350 MIUG3 |
|
|
|
|
|
|
|
|
|
|
|
| Other PIAGGIO |
|
|
|
|
|
|
|
|
|
|
|
PIAGGIO
mechanical carburetor |
|
|
|
|
|
|
|
|
|
|
|
 |
READ/
EARSE
CODE |
RESTORE
ECM |
VIEW
LIVE
DATA |
ACTIVE
RESET
TEST
ACTUA. |
CHECK
A/F |
ADJUST
A/F |
SET
TPS
ZERO
POINT |
REPROG.
MCU/
EEPROM |
PROG.
KEY
(IMMO/
SMARTKEY)
|
CORRECT
ODO
METTER |
ECM
INFO |
VESPA 946
125
3V MIUG3 |
|
|
|
|
|
|
|
|
|
|
|
| VESPA 946 150 3V MIUG3 |
|
|
|
|
|
|
|
|
|
|
|
| GTS 125 MIUG3 |
|
|
|
|
|
|
|
|
|
|
|
| GTS 150 MIUG3 |
|
|
|
|
|
|
|
|
|
|
|
| LXV 125 3V MIUG3 |
|
|
|
|
|
|
|
|
|
|
|
| GTS 125 ABS MIUG3 |
|
|
|
|
|
|
|
|
|
|
|
| GTS 300 ABS MIUG3 |
|
|
|
|
|
|
|
|
|
|
|
| LT125 3V MIUG3 |
|
|
|
|
|
|
|
|
|
|
|
| LT150 3V MIUG3 |
|
|
|
|
|
|
|
|
|
|
|
| LX125 MIUG3 |
|
|
|
|
|
|
|
|
|
|
|
| LX 125 AC19I/AC20I |
|
|
|
|
|
|
|
|
|
|
|
| LX 125 AC191/AC201 |
|
|
|
|
|
|
|
|
|
|
|
| LX 150 MIUG3 |
|
|
|
|
|
|
|
|
|
|
|
| LX 125 3V MIUG3 |
|
|
|
|
|
|
|
|
|
|
|
| LX 150 3V MIUG3 |
|
|
|
|
|
|
|
|
|
|
|
| LX 150 AC19I/AC20I |
|
|
|
|
|
|
|
|
|
|
|
| LX 150 AC191/AC201 |
|
|
|
|
|
|
|
|
|
|
|
| LX 125 3V PGN04/PGS02/PGR04/ PGS05/PGS06/PGT01 |
|
|
|
|
|
|
|
|
|
|
|
| LX 150 3V PGN04/PGS02/PGR04/ PGS05/PGS06/PGT01 |
|
|
|
|
|
|
|
|
|
|
|
| LXV 125 2V MIUG3 |
|
|
|
|
|
|
|
|
|
|
|
| LXV 125 3V MIUG3 |
|
|
|
|
|
|
|
|
|
|
|
| LXV 150 3V MIUG3 |
|
|
|
|
|
|
|
|
|
|
|
| PRIMAVE 125 MIUG3 |
|
|
|
|
|
|
|
|
|
|
|
| PRIMAVE 150 MIUG3 |
|
|
|
|
|
|
|
|
|
|
|
| PRIMAVE 125 PGN04/PGS02/PGR04/ PGS05/PGS06/PGT01 |
|
|
|
|
|
|
|
|
|
|
|
| PRIMAVE 150 PGN04/PGS02/PGR04/ PGS05/PGS06/PGT01 |
|
|
|
|
|
|
|
|
|
|
|
| PRIMAVERA ABS |
|
|
|
|
|
|
|
|
|
|
|
| S125 MIUG3 |
|
|
|
|
|
|
|
|
|
|
|
| S150 MIUG3 |
|
|
|
|
|
|
|
|
|
|
|
| S125 3V MIUG3 |
|
|
|
|
|
|
|
|
|
|
|
| S150 3V MIUG3 |
|
|
|
|
|
|
|
|
|
|
|
| SPRINT 125 3V PGN04 |
|
|
|
|
|
|
|
|
|
|
|
| SPRINT 150 3V PGN04 |
|
|
|
|
|
|
|
|
|
|
|
| SPRINT ABS |
|
|
|
|
|
|
|
|
|
|
|
| Other VESPA |
|
|
|
|
|
|
|
|
|
|
|
VESPA
mechanical carburetor |
|
|
|
|
|
|
|
|
|
|
|
 |
READ/
EARSE
CODE |
RESTORE
ECM |
VIEW
LIVE
DATA |
ACTIVE
RESET
TEST
ACTUA. |
CHECK
A/F |
ADJUST
A/F |
SET
TPS
ZERO
POINT |
REPROG.
MCU/
EEPROM |
PROG.
KEY
(IMMO/
SMARTKEY)
|
CORRECT
ODO
METTER |
ECM
INFO |
| ADDRESS 110 |
|
|
|
|
|
|
|
|
|
|
|
| HAYATE 125 SS |
|
|
|
|
|
|
|
|
|
|
|
| UA 125-T |
|
|
|
|
|
|
|
|
|
|
|
| VIVA 115 |
|
|
|
|
|
|
|
|
|
|
|
| GSX R150 |
|
|
|
|
|
|
|
|
|
|
|
| GZ150-A |
|
|
|
|
|
|
|
|
|
|
|
| EN150-A |
|
|
|
|
|
|
|
|
|
|
|
| THUNDER 150/150S |
|
|
|
|
|
|
|
|
|
|
|
| IMPLUSE |
|
|
|
|
|
|
|
|
|
|
|
| STAR RS 125 EFI |
|
|
|
|
|
|
|
|
|
|
|
| STAR SR 170 ABS |
|
|
|
|
|
|
|
|
|
|
|
| RAIDER 150 |
|
|
|
|
|
|
|
|
|
|
|
| Other ZUKI FI |
|
|
|
|
|
|
|
|
|
|
|
SUZUKI
mechanical carburetor |
|
|
|
|
|
|
|
|
|
|
|
 |
READ/
EARSE
CODE |
RESTORE
ECM |
VIEW
LIVE
DATA |
ACTIVE
RESET
TEST
ACTUA. |
CHECK
A/F |
ADJUST
A/F |
SET
TPS
ZERO
POINT |
REPROG.
MCU/
EEPROM |
PROG.
KEY
(IMMO/
SMARTKEY)
|
CORRECT
ODO
METTER |
ECM
INFO |
| ATTILA-V SMART IDLE |
|
|
|
|
|
|
|
|
|
|
|
| ELIZABETH SMART IDLE |
|
|
|
|
|
|
|
|
|
|
|
| ELIZABETH 110 |
|
|
|
|
|
|
|
|
|
|
|
|
ELIZABETH 2014 |
|
|
|
|
|
|
|
|
|
|
|
| ELIZABETH 20 năm |
|
|
|
|
|
|
|
|
|
|
|
| ELIZABETH SMART |
|
|
|
|
|
|
|
|
|
|
|
| JOYRIDE |
|
|
|
|
|
|
|
|
|
|
|
| SHARK 125 |
|
|
|
|
|
|
|
|
|
|
|
| SHARK 125 CBS |
|
|
|
|
|
|
|
|
|
|
|
| SHARK MINI 125 EFI |
|
|
|
|
|
|
|
|
|
|
|
| SHARK MINI 125 SPORT |
|
|
|
|
|
|
|
|
|
|
|
| PASSING EFI |
|
|
|
|
|
|
|
|
|
|
|
| POWER EFI |
|
|
|
|
|
|
|
|
|
|
|
| VENUS EFI |
|
|
|
|
|
|
|
|
|
|
|
| VENUS 125 EFI |
|
|
|
|
|
|
|
|
|
|
|
| VENUS 125 CBS |
|
|
|
|
|
|
|
|
|
|
|
| VENUS 125 SMART IDLE |
|
|
|
|
|
|
|
|
|
|
|
| Other SYM FI |
|
|
|
|
|
|
|
|
|
|
|
SYM
mechanical carburetor |
|
|
|
|
|
|
|
|
|
|
|
 |
READ/
EARSE
CODE |
RESTORE
ECM |
VIEW
LIVE
DATA |
ACTIVE
RESET
TEST
ACTUA. |
CHECK
A/F |
ADJUST
A/F |
SET
TPS
ZERO
POINT |
REPROG.
MCU/
EEPROM |
PROG.
KEY
(IMMO/
SMARTKEY)
|
CORRECT
ODO
METTER |
ECM
INFO |
| ACRUZO DELUXE |
|
|
|
|
|
|
|
|
|
|
|
| ACRUZO STANDARD |
|
|
|
|
|
|
|
|
|
|
|
| CUXI |
|
|
|
|
|
|
|
|
|
|
|
| GRANDE DELUXE |
|
|
|
|
|
|
|
|
|
|
|
| GRANDE STD |
|
|
|
|
|
|
|
|
|
|
|
| GRANDE DUL. 2019 |
|
|
|
|
|
|
|
|
|
|
|
| GRANDE STD. 2019 |
|
|
|
|
|
|
|
|
|
|
|
| EXCITER 150 GP |
|
|
|
|
|
|
|
updating |
|
|
|
| EXCITER 150 RC |
|
|
|
|
|
|
|
updating |
|
|
|
| EXCITER MOVISTAR |
|
|
|
|
|
|
|
updating |
|
|
|
| EXCITER CAMO |
|
|
|
|
|
|
|
updating |
|
|
|
| EXCITER GP 2019 |
|
|
|
|
|
|
|
|
|
|
|
| EXCITER RC 2019 |
|
|
|
|
|
|
|
|
|
|
|
| EXCITER DOX. 2019 |
|
|
|
|
|
|
|
|
|
|
|
| EXCITER MOV. 2019 |
|
|
|
|
|
|
|
|
|
|
|
| EXCITER 150i 2019 |
|
|
|
|
|
|
|
|
|
|
|
| FZ1 FAZER |
|
|
|
|
|
|
|
|
|
|
|
| FZ 150 |
|
|
|
|
|
|
|
|
|
|
|
| FZ 150I GP |
|
|
|
|
|
|
|
|
|
|
|
| FZ 150I MOVISTAR |
|
|
|
|
|
|
|
|
|
|
|
| FZ-S |
|
|
|
|
|
|
|
|
|
|
|
| FREE GO 2019 |
|
|
|
|
|
|
|
|
|
|
|
| FREE GO S 2019 |
|
|
|
|
|
|
|
|
|
|
|
| JANUS STANDARD |
|
|
|
|
|
|
|
|
|
|
|
| JANUS DELUXE |
|
|
|
|
|
|
|
|
Smartkey |
|
|
| JANUS PREMIUM |
|
|
|
|
|
|
|
|
Smartkey |
|
|
| JUPITER FI GRAVITA |
|
|
|
|
|
|
|
|
|
|
|
| JUPITER FI GREEN |
|
|
|
|
|
|
|
|
|
|
|
| JUPITER
FI GP |
|
|
|
|
|
|
|
|
|
|
|
| JUPITER
FI RC |
|
|
|
|
|
|
|
|
|
|
|
| LATTE
2019 |
|
|
|
|
|
|
|
|
|
|
|
| LUVIAS GTX FI |
|
|
|
|
|
|
|
|
|
|
|
| LUVIAS FI |
|
|
|
|
|
|
|
|
|
|
|
| NM-X |
|
|
|
|
|
|
|
|
|
|
|
| NOZZA |
|
|
|
|
|
|
|
|
|
|
|
| NOZZA LIMITED |
|
|
|
|
|
|
|
|
|
|
|
| NOUVO LX |
|
|
|
|
|
|
|
|
|
|
|
| NOUVO SX RC |
|
|
|
|
|
|
|
|
|
|
|
| NOUVO SX STD |
|
|
|
|
|
|
|
|
|
|
|
| NOUVO SX GP |
|
|
|
|
|
|
|
|
|
|
|
| NVX 125 DELUXE |
|
|
|
|
|
|
|
|
Smartkey |
|
|
| NVX 155 STANDARD |
|
|
|
|
|
|
|
|
|
|
|
| NVX 155 ABS |
|
|
|
|
|
|
|
|
Smartkey |
|
|
| R15 |
|
|
|
|
|
|
|
|
|
|
|
| SIRIUS RC FI |
|
|
|
|
|
|
|
|
|
|
|
| FZ-S |
|
|
|
|
|
|
|
|
|
|
|
| TFX |
|
|
|
|
|
|
|
|
|
|
|
| YBR |
|
|
|
|
|
|
|
|
|
|
|
| YZF-R3 |
|
|
|
|
|
|
|
|
|
|
|
| YZC |
|
|
|
|
|
|
|
|
|
|
|
| Other YAMAHA FI |
|
|
|
|
|
|
|
|
|
|
|
YAMAHA
mechanical carburetor |
|
|
|
|
|
|
|
|
|
|
|
 |
READ/
EARSE
CODE |
RESTORE
ECM |
VIEW
LIVE
DATA |
ACTIVE
RESET
TEST
ACTUA. |
CHECK
A/F |
ADJUST
A/F |
SET
TPS
ZERO
POINT |
REPROG.
MCU/
EEPROM |
PROG.
KEY
(IMMO/
SMARTKEY)
|
CORRECT
ODO
METTER |
ECM
INFO |
| PEOPLE S FI |
|
|
|
|
|
|
|
|
|
|
|
| PEOPLE 16 FI |
|
|
|
|
|
|
|
|
|
|
|
| MANY MACAROL FI |
|
|
|
|
|
|
|
|
|
|
|
| MANY FI |
|
|
|
|
|
|
|
|
|
|
|
| LIKE FI |
|
|
|
|
|
|
|
|
|
|
|
| JOCKEY FI |
|
|
|
|
|
|
|
|
|
|
|
| Other YMCO FI |
|
|
|
|
|
|
|
|
|
|
|
KYMCO
mechanical carburetor |
|
|
|
|
|
|
|
|
|
|
|
● ADDRESS & APPLICATION RANGE
- It is a diagnostic tool in motorcycle/ Scooter workshops and equipment for technical training.
- A semi-finished products connect to the trainer for the electronic injection & ignition system of PGM-FI motorcycles.
- A safety check equipment of the motorcycles before it is running on the road and in the motorcycle club.
● ADVANTAGE
- In-depth features, application range compatible most small motorbikes and scooters in Asia market
- A safe and convenient solution support CAN bus and K-Line protocol
- Simple operation with keypad direct on handhelds (without a computer)
- Equipment has integrated compact, designed beautiful, professional, high-strength mechanics
- Effective, fast, accurate, reliable, detailed
- Lookup more detailed information for repairs by the
MOTODATA
- Technical support consultant directly from the manufacturer by SMS through the Skype, Yahoo, WhatsApp, Zalo, Email, Teamviewer
- 12 months warranty and maintenance as required
- Low price
● EQUIPMENT COMPONENT
- 01 Handheld with LCD and function control buttons
- 01 Data cable used to determine faults (K-line communication protocol)
- 01 Data cable for YAMAHA (CAN Bus communication protocol)
- 02 Cables program HONDA smart key
- 01 Cable program YAMAHA/SUZUKI smart key
- 01 12V/DC Power cable
- 01 220V/AC to 12V/DC power converter
- 01 Extendable cable for Yamaha
- 01 ODO Adapter (option)
- A gift MOTODATA software for 01 year (you need pay renewal fee for the next years) that used to lookup motorbike repair data for PIAGGIO, HONDA, YAMAHA, SUZUKI, SYM, KYMCO. MOTODATA supports Android, iOS, and Windows devices as smartphone, Tablet, computers, laptop
- 01 Guidebook
- 01 Handcloth bag
● DLC LOCATION ON THE VEHICLES & WIRING CONNECTION DIAGRAM
1. CONNECTING DLC ON THE VEHICLES
(This connection is used for reading/clear fault code, reset ECM, and show live data and actuators)
K: K-line; E: Negative battery; B: Positive Battery
a. PIAGGIO
b. HONDA
- Type 1:
- Type 2:
c. SYM

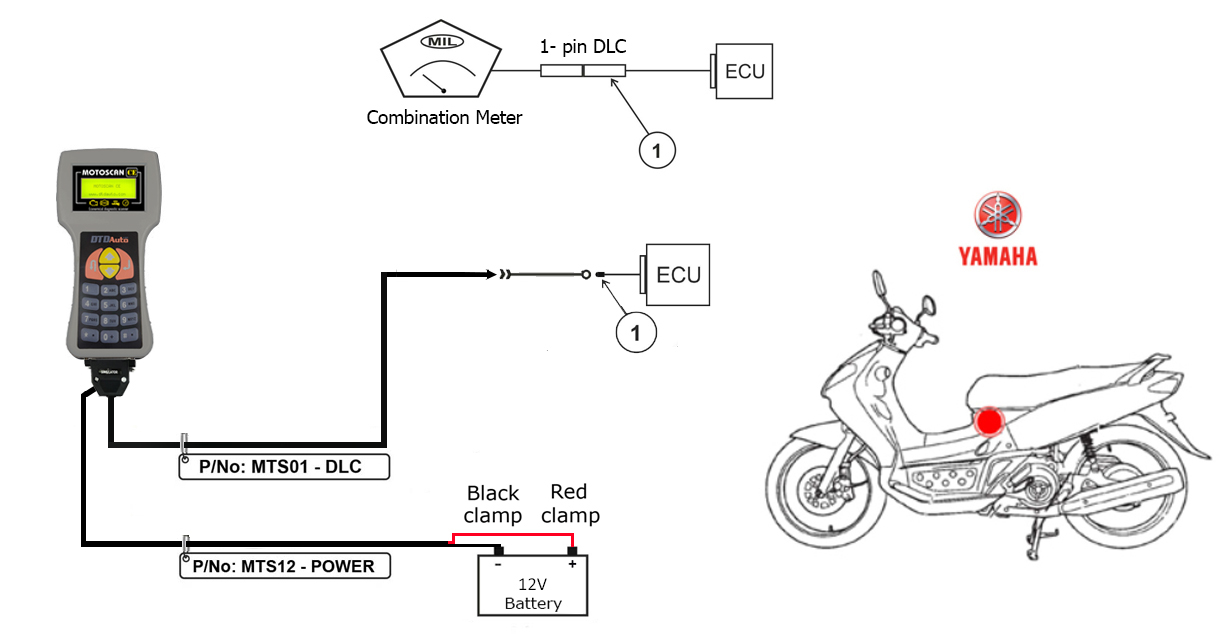

d. YAMAHA
- Type 1:
- Type 2:
Step 1: Disconnect the connector between the dashboard and ECU
Step 2: Connect the K wiring of cable to ECU diagnose connector
- Type 3:
e. KYMCO
f. SUZUKI
● PACKAGE
STANDARD MOTOSCAN CE PACKAGE
(included in the package) |
| PART NUMBER |
DESCRIPTION |
IMAGE |
| |
A hand tool with LCD and function button |
 |
| MTS01-DLC |
Data cable used to determine fault, view live data active actuators, and calibrate parameters for vehicles, kinds of diagnostic connectors:
- HONDA 4-pin DLC
- HONDA 6-pin DLC
- YAMAHA 1-pin DLC
- YAMAHA 3-pin DLC
- PIAGGIO, SYM, KYMCO, SUZUKI: K-line single-pin
|
|
| MTS09-ABS |
Data cable for YAMAHA (CAN BUS communication protocol) |
 |
| MTS09-SP01 |
The cable used to read KEYID for Smart key HONDA: SH, PCX, X-ADV… |
 |
| MTS09-LV01 |
The cable used to read KEYID for Smart key HONDA: AIR BLADE, LEAD, VISION, VARIO, CLICK
|
 |
| MTS09-YS01 |
The cable used to read KEYID for Smart key YAMAHA/SUZUKI
|
 |
| MTS09-POWER |
12V/ DC power cable |
 |
| |
220V/AC to 12V/ DC power converter |
 |
| |
Extendable cable for YAMAHA
|
 |
| |
MOTODATA software on PC or mobile
Free 01 using year, need to pay fee to renew for the next year |
 |
| |
Quick guide |
 |
| |
Handbag |
 |
● EXTRA PACKAGE
ODO CABLE OPTION
((not included in price of standard MOTOSCAN CE package)) |
| STT |
IMAGE |
| 1 |
ODO cable used to program, and adjust ODO meter for HONDA, YAMAHA, PIAGGIO, VESPA
|
 |
● RELATED DOCUMENTS
Smartkey tool เครื่องมือสมาร์ทคีย์ Outil clé intelligente alat kunci pintar 스마트키 도구 Herramienta Smartkey Ferramenta Smartkey Strumento Smartkey Инструмент Smartkey Smartkey-Tool スマートキーツール Lost all keys หายไปทั้งหมดของคีย์ Perdu toutes les clés Kehilangan semua kunci 모든 키를 분실함 Perdí todas las llaves Perdeu todas as chaves Ho perso tutte le chiavi Потерял все ключи Alle Schlüssel verloren すべてのキーを紛失しました Lost my yamaha motorcycle key กุญแจรถมอเตอร์ไซค์ยามาฮ่าหาย J'ai perdu ma clé de moto yamaha Kehilangan kunci motosikal yamaha saya 야마하 오토바이 키를 분실했습니다. Perdí la llave de mi motocicleta yamaha Perdi minha chave yamaha de motocicleta Ho perso la chiave della mia moto yamaha Я потерял ключ от мотоцикла yamaha Habe meinen Yamaha Motorradschlüssel verloren ヤマハのバイクの鍵をなくした Scan fault codes Piaggo vespa สแกนรหัสความผิดปกติ Piaggo vespa Scannez les codes d'erreur Piaggo vespa Imbas kesalahan kod Piaggio vespa 결함 코드 Piaggio vespa 스캔 Escanear códigos de avería Piaggio vespa Ler códigos de falha Piaggio vespa Scansione codici difetto Piaggio vespa Сканирование кодов неисправностей Piaggio vespa Fehlercodes scannen Piaggio Vespa 障害コードをスキャンするPiaggivespa Odometer correction tool เครื่องมือแก้ไขมาตรระยะทาง outil de correction d'odomètre Alat pembetulan Odometer 보정 도구 주행 거리계 Herramienta de corrección de odómetro Ferramenta de correção de odômetro Strumento di correzione del contachilometri Инструмент коррекции одометра Entfernungsmesser-Korrekturwerkzeug 走行距離計補正ツール Scangauge fault codes รหัสผิดเครื่องสแกนเนอร์ Codes d'erreur du scanner Kod kesalahan pengimbas 스캐너 오류 코드 Códigos de avería del escáner codici di errore dello scanner codici di errore dello scanner коды неисправностей сканера Fehlercodes des Scanners スキャナー障害コード How to read fault codes วิธีอ่านรหัสความผิดปกติ Comment lire les codes défaut Cara membaca kod kesalahan 오류 코드를 읽는 방법 Cómo leer códigos de avería Como ler códigos de falha Come leggere i codici di errore Как читать коды неисправностей So lesen Sie Fehlercodes 障害コードの読み方 Motorcycle abs kit ชุดเอบีเอสมอเตอร์ไซค์ kit ABS moto Kit abs para motocicleta Комплект для пресса мотоцикла Motorrad-Bauchmuskel-Kit オートバイのABSキット Honda ecu tuner จูน ECU HONDA Accordeur d'écu Honda 혼다 ecu 튜너 Sintonizador Honda ECU Sintonizador ecu Honda Sintonizzatore centralina Honda Тюнер honda ecu Honda Steuergerätetuner ホンダecuチューナー How to check ckp sensor วิธีการตรวจสอบเซ็นเซอร์ CKP Comment vérifier le capteur ckp Cara memeriksa sensor ckp ckp 센서 확인 방법 Cómo comprobar el sensor ckp Como verificar o sensor ckp Come controllare il sensore ckp Как проверить датчик ckp So überprüfen Sie den ckp-Sensor ckpセンサーの確認方法 Motocycle scanner เครื่องสแกนรถมอเตอร์ไซด์ Codes d'erreur du scanner Pengimbas motosikal 오토바이 스캐너 Escáner de motocicleta Scanner de motocicleta Scanner per moto Мотоциклетный сканер Motorradscanner オートバイスキャナー Scan scooter รถมอเตอร์ไซด์สแกน Scanner la moto Imbas motosikal 오토바이 스캔 Escanear motocicleta Motocicleta de varredura Scansione moto Сканирование мотоцикла Motorrad scannen オートバイをスキャンする Honda Yamaha Suzuki Vespa immobilizer ECU remap tuning files download ดาวน์โหลดไฟล์ปรับแต่ง ECU รีแมป fichiers de réglage remap ECU télécharger Muat turun fail penalaan pemetaan semula ECU ECU 리맵 튜닝 파일 다운로드 Descarga de archivos de ajuste de reasignación de ECU remap ECU arquivos de ajuste de download remap ECU lime di sintonia scaricare Скачать файлы настройки переназначения ЭБУ ECU-Remap-Tuning-Dateien herunterladen ECUリマップチューニングファイルのダウンロード Motorcycle obd2 scanner สแกนเนอร์รถจักรยานยนต์OBD2 Scanner obd2 de moto Pengimbas motosikal obd2 오토바이 obd2 스캐너 Escáner obd2 para motocicleta Scanner obd2 para motocicleta Scanner obd2 per moto Сканер obd2 для мотоциклов Motorrad obd2 Scanner オートバイobd2スキャナー Motorscan Motoscan HONDA pgm-fi problems ปัญหา HONDA pgm-fi problème pgm-fi HONDA Masalah pgm-fi HONDA 혼다 pgm-fi 문제 Problemas de HONDA pgm-fi Problemas HONDA pgm-fi Problemi HONDA pgm-fi HONDA pgm-fi проблемы HONDA pgm-fi Probleme ホンダpgm-fiの問題 Program ecu โปรแกรม ecu REPROGRAMMATION MOTO ECU Program ecu 프로그램 ecu Programa ecu Programa ecu Programma ECU Программа ecu Programmsteuergerät プログラムecuKey fob reader เครื่องอ่านรหัสคีย์ Lecteur de code clé
ECU simulator tester เครื่องจำลอง ECU simulateur ECU Simulador de ECU ECU 신호 시뮬레이터 Simulador de ECU Simulador ECU Simulatore ECU Симулятор ЭБУ ECU-Simulator ECUシミュレーター Motorcycle diagnostic tools เครื่องมือวิเคราะห์ยานยนต์ Outils de diagnostic moto Alat diagnostik motosikal 오토바이 진단 도구 Herramientas de diagnóstico de motocicletas Ferramentas de diagnóstico de motocicleta Strumenti diagnostici per moto Инструменты для диагностики мотоциклов Motorrad-Diagnosetools オートバイの診断ツール Honda diagnostic tester ฮอนด้าทดสอบวินิจฉัย Testeur de diagnostic Honda Penguji diagnostik Honda 혼다 진단 테스터 Probador de diagnóstico Honda Testador de diagnóstico Honda Tester diagnostico Honda Диагностический тестер Honda Honda Diagnosetester ホンダ診断テスター Electrical wiring diagram แผนผังการเดินสายไฟฟ้า Schéma de câblage électrique Gambar rajah pendawaian elektrik 전기 배선도 Diagrama de cableado eléctrico Diagrama de fiação elétrica Schema elettrico Схема электрических соединений Elektrischer Schaltplan 電気配線図 Motorcycle workshop software ซอฟต์แวร์การจัดการร้านซ่อมรถจักรยานยนต์ Logiciel atelier moto Perisian bengkel motosikal 오토바이 워크샵 소프트웨어 Software para talleres de motos Software de oficina de motocicleta Software per officina motociclistica Программное обеспечение для мотоциклов семинара Motorradwerkstatt-Software オートバイワークショップソフトウェア ECU signal simulator เครื่องจำลองสัญญาณ ECU Simulateur de signaux ECU Simulator isyarat ECU ECU 신호 시뮬레이터 Simulador de señal ECU Simulador de sinal ECU Simulatore di segnale ECU Имитатор сигналов ЭБУ ECU-Signalsimulator ECT温度センサー ECT temperature sensor เซ็นเซอร์ ECT Capteur de température ECT Sensor suhu ECT ECT 온도 센서 Sensor de temperatura ECT Sensor de temperatura ECT Sensore di temperatura ECT Датчик температуры ЕСТ ECT-Temperatursensor ECT温度センサー pgm-fi system ระบบ pgm-fi système pgm-fi sistem pgm-fi pgm-fi 시스템 sistema pgm-fi sistema pgm-fi sistema pgm-fi система pgm-fi pgm-fi-System pgm-fiシステム ckp sensor เซ็นเซอร์ CKP capteur ckp sensor ckp ckp 센서 sensor ckp sensor ckp sensore ckp датчик ckp ckp-sensor ckpセンサー how to reset fault codes วิธีรีเซ็ตรหัสความผิดปกติ comment réinitialiser les codes d'erreur cara menetapkan semula kod kesalahan 오류 코드를 재설정하는 방법 cómo restablecer los códigos de falla como redefinir códigos de falha come ripristinare i codici di errore как сбросить коды неисправностей So setzen Sie Fehlercodes zurück 故障コードをリセットする方法 smart key repair ซ่อมสมาร์ทคีย์ réparation clé intelligente pembaikan kunci pintar 스마트 키 수리 reparación de llave inteligente reparo de chave inteligente riparazione di chiavi intelligenti ремонт смарт-ключей Smart Key Reparatur スマートキーの修理 smart key fault ความผิดพลาดของสมาร์ทคีย์ défaut de clé intelligente kesalahan kunci pintar 스마트 키 오류 falla de llave inteligente falha de chave inteligente errore chiave intelligente неисправность смарт-ключа Smartkey-Fehler スマートキーの故障 lost the motorcycle key ทำกุญแจมอไซค์หาย perdu toutes les clés moto kehilangan kunci motosikal 오토바이 열쇠를 분실했다 perdió la llave de la motocicleta perdeu a chave da motocicleta perso la chiave della moto потерял ключ от мотоцикла Motorradschlüssel verloren バイクの鍵をなくした Smart key repair method วิธีการซ่อมสมาร์ทคีย์ Méthode de réparation de clé intelligente Kaedah pembaikan kunci pintar 스마트 키 수리 방법 Método de reparación de llave inteligente Método de reparo de chave inteligente Metodo di riparazione delle chiavi intelligenti Метод ремонта смарт-ключа Smart-Key-Reparaturmethode スマートキーの修復方法 repair motorcycle ซ่อมมอเตอร์ไซค์ réparer une moto membaiki motosikal 오토바이 수리 reparar motocicleta consertar motocicleta riparare la moto ремонт мотоцикла Motorrad reparieren バイクの修理 Motorcycle ECU Repair ซ่อม ECU รถจักรยานยนต์ Réparation d'ECU de moto Pembaikan ECU Motosikal 오토바이 ECU 수리 Reparación de la ECU de la motocicleta Conserto de ECU de motocicleta Riparazione ECU del motociclo Ремонт ЭБУ мотоцикла Motorrad ECU Reparatur オートバイのECU修理 read motorcycle code อ่านรหัสมอเตอร์ไซค์ lire le code de la moto ler o código da motocicleta leggi il codice della moto прочитать код мотоцикла Motorradcode lesen オートバイのコードを読む motorcycle repair tool เครื่องมือซ่อมมอเตอร์ไซค์ outil de réparation de moto alat pembaikan motosikal 오토바이 수리 도구 herramienta de reparación de motocicletas ferramenta de conserto de motocicleta strumento di riparazione moto инструмент для ремонта мотоциклов Motorradreparaturwerkzeug オートバイ修理ツール remap ECU remap ECU Tuning ECU Tuning ECU motorcycle repair trainning อบรมซ่อมมอเตอร์ไซค์ formation réparation moto latihan membaiki motosikal 오토바이 수리 훈련 formación en reparación de motocicletas treinamento de conserto de motocicleta corso di riparazione moto обучение ремонту мотоциклов Motorradreparaturtraining オートバイの修理のトレーニング Motorcycle repair manual คู่มือการซ่อมรถจักรยานยนต์ Manuel de réparation de moto Manual pembaikan motosikal 오토바이 수리 매뉴얼 Manual de reparación de motocicletas Manual de conserto de motocicleta Manuale di riparazione della moto Руководство по ремонту мотоциклов Reparaturanleitung für Motorräder オートバイ修理マニュアル PGM-FI repair manual เอกสารมอเตอร์ไซค์ Manuel de réparation PGM-FI Manual pembaikan PGM-FI PGM-FI 수리 매뉴얼 Manual de reparación de PGM-FI Manual de reparo PGM-FI Manuale di riparazione PGM-FI Руководство по ремонту PGM-FI PGM-FI-Reparaturhandbuch PGM-FI修理マニュアル motorcycle wiring diagram รถจักรยานยนต์แผนภาพการเดินสายไฟ schéma de câblage moto gambar rajah pendawaian motosikal 오토바이 배선도 diagrama de cableado de la motocicleta diagrama de fiação da motocicleta schema elettrico moto схема подключения мотоцикла Schaltplan des Motorrads オートバイの配線図
Answer & Question
Consultation selection
.jpg)
