AFO4 TRIP - Multi-function accessories to customize engine power, fault diagnosis, and anti-theft for motorbike users with mobile phones

  • Product code:
  • Made by:
  • Net Weight:
  • Weight:
Product description
INTRODUCTION

AFO4 TRIP - MULTI-FUNCTION ACCESSORIES TO CUSTOMIZE ENGINE POWER, FAULT DIAGNOSIS, AND ANTI-THEFT FOR MOTORBIKE USERS WITH MOBILE PHONES

- Active control online instant engine power right when the vehicle is running on the road by the user on the smartphone.
- There is no need to REMAP to fix the motorbike's weak engine because of the lean air /fuel ratio. Automatically intelligently optimize the lean (A/F) ratio from time to time, so it does not cause much fuel consumption, black spark plug like how to make remap ECU is old obsolete, unsafe, many risks of ECM death.
- Identify OBD fault codes, show live engine data, look up and support fast and convenient repairs (you also this accessories can be used as a basic fault reader for HONDA, YAMAHA motorbikes)
- Protect your vehicles, prevent theft safely with the key that is your phone
- Monitor the technical status and operation of the engine is online, adjust the throttle effectively, optimally in fuel-saving mode.
- Optimizing fuel in the most economical mode is still not be out of the weak engine, suitable in the city riders for women who need a motorbike that runs smoothly, and super fuel-efficient when fuel prices are rising like now.
- Integrated Google Map to track the journey and navigate on the same smartphone screen
- Warn and limit the maximum speed of the vehicle at will
- Contact technical support service, rescue when the vehicle has a problem

" PRODUCT IS REGISTERED COPYRIGHT OF DTDAUTO VIETNAM COMPANY AND PROTECTED BY LAW "



PRODUCT PACKAGE SELECTION

PACKAGE OPTION
DESCRIPTION
PRICE
(USD)
SELECTION 1
Product code: MT0010A
Used for PGM-FI HONDA motorcycles
65
SELECTION 2
Product code: MT0010B
Used for FI YAMAHA motorcycles
65

FUNCTION

1. AUTO REPAIR SLUMP POWER FAULT WHEN ACCELERATING FOR HONDA, YAMAHA
There is no need to REMAP to fix the motorbike's weak engine because of the lean air /fuel ratio.

2. AUTOMATICALLY INTELLIGENTLY OPTIMIZE THE A/F RATIO FROM TIME TO TIME
- Actively and optimally calibrate the air-to-air ratio to overcome errors related to Rich/Lean fuel caused by errors inside the ECU such as fuel consumption, engine weakness, needle wear, heavy fuel, inactivity Idling Stop... no need to replace new ECU
- It won't consume much fuel, black spark plug like how to make remap ECU is old obsolete, unsafe, many risks of ECM death.

3. CHANGE FUEL CONSUMPTION AND ENGINE POWER OF PGM-FI VEHICLE IN CASE OF YOU HAVE SPECIAL DEMANDS
- Active control online instant engine power right when the vehicle is running on the road by the user on the smartphone
- Optimizing fuel in the most economical mode is still not out of the weak engine, suitable in the city riders for women who need a motorbike that runs smoothly, and super fuel-efficient when fuel prices are rising like now.
- Proactively adjust rich fuel than the normal design of the vehicle in case of a user is young people that want quick acceleration engine, “strong engine”...

4. CRUISE CONTROL
Warn and limit the maximum speed of the vehicle at will.

5. SUPPORT ANTI-THEFT FUNCTION
Add an extra layer of safety and anti-theft security to your vehicle, you can lock the vehicle with your own phone or set the auto-lock mode when the phone is 10 meters away from the vehicle.

6. MONITORING VEHICLE ACTIVITIES AND DIAGNOSING FAULTS IN VEHICLE
- Monitor the technical status and operation of the engine online, and adjust the throttle effectively, and optimally in fuel-saving mode.
- Identify OBD fault codes, show live engine data, look up and support fast and convenient repairs (you also this accessories can be used as a basic fault reader for HONDA, YAMAHA motorbikes)

7. SUPPORT TO TRACKING THE JOURNEY WITH GOOGLE MAP
Integrated Google Map to track the journey and navigate on the same smartphone screen

INSTALLATION INSTRUCTION

1. DOWNLOAD AND INSTALL SOFTWARE

A. MOBILE PHONE USING ANDROID OS

Scan QR code or click on the below image to download and install software for your mobile phone:



MINIMUM CONFIGURATION REQUIREMENTS:
- Mobile phone of manufacturers: Samsung, Lenovo, Huawei, Xiaomi, Nokia, Coolpad, Masstel, Oppo, Vivo, Bphone vv...
- Operating system: Android 5.0 and up
- Screen size: 6.0 inch
- Screen resolution: 1280 x 800 Pixels (HD standard)

B. MOBILE PHONE USING iOS



Configuration requirements: use iOS 10.0 or higher operating system

2. INSTALL AFO4 TRIP

Click here to download the user guide for the AFO4 TRIP product:
https://dtdauto.com/Download/GUIDE_AFO4_TRIP_E.pdf

Note: Install the AFO4 TRIP on the side without the spark plugs

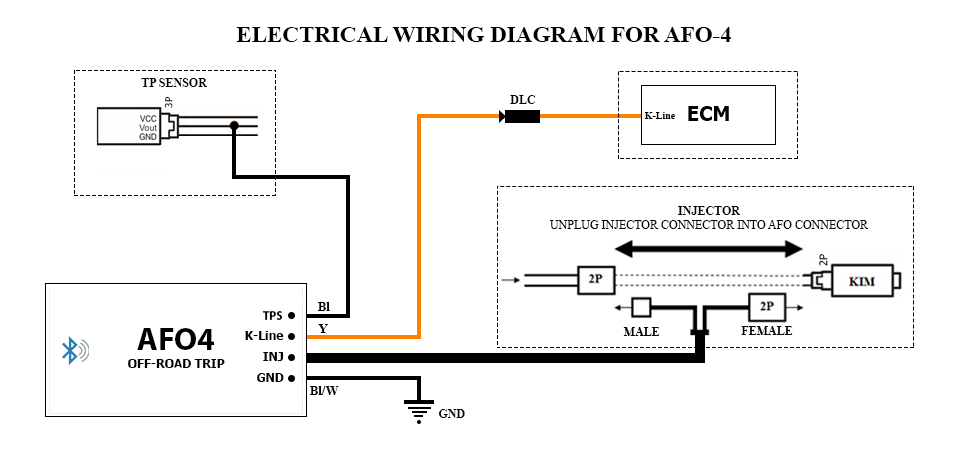

3. ELECTRICAL WIRING DIAGRAM FOR PGM-FI HONDA MOTORCYCLES

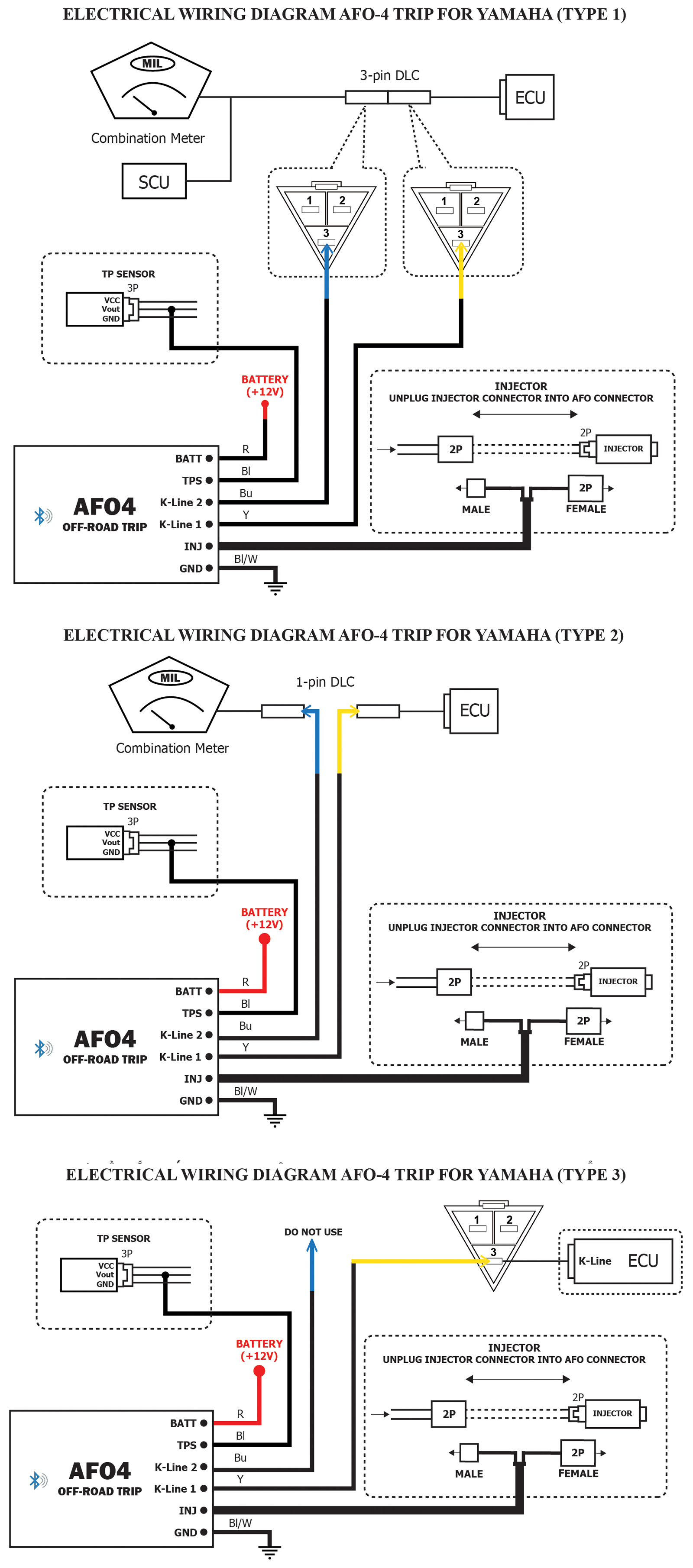

4. ELECTRICAL WIRING DIAGRAM FOR FI YAMAHA MOTORCYCLES



5. NOTES IN AFO INSTALLATION FOR PGM-FI HONDA

Connector of HONDA injectors have 02 types are common and special connector (reverse connector), about 90% are common type, only 10% are reverse type. To determine type for connector, you must plug-in AFO connector to vehicle connector same as the image below. Look at wiring color type:
- If wire color of connector are same side then that is common connector type.
 In this case, don’t need to change anything in the installation
- If the wire color of the connector is reversed then that is a special connector type (reverse connector). Look at the image below:
 In this case, you must invert the wires of the injector connector on the motorbike firstly

STEPS REVERT WIRES OF INJECTOR CONNECTOR ON MOTORBIKE
Injector connector on a motorbike before revert
Use a clamp to remove the metal latch (1) and wires of the injector connector (2) on a motorcycle
- Reverse Orange/black wire and Black/white wire then plug in them into the connector (3)
- Plug metal latch (4)
Injector connector on a motorbike after inverted wires


LIST OF SOME INJECTOR CONNECTOR TYPES FOR HONDA MOTORCYCLES
VEHICLE MODEL COMMON CONNECTOR TYPE OF INJECTOR SPECIAL/REVERSE CONNECTOR TYPE OF INJECTOR
AIRBLADE 2008-2010

AIRBLADE 2011-2012

AIRBLADE 2013- 2014

AIRBLADE 2015- 2017

AIRBLADE 2018- 2021

CB150R (2017-2019)

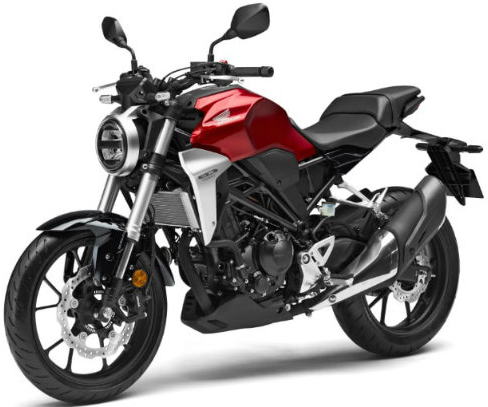

CB300R (2017-2019)

CB500F (2019-2021)

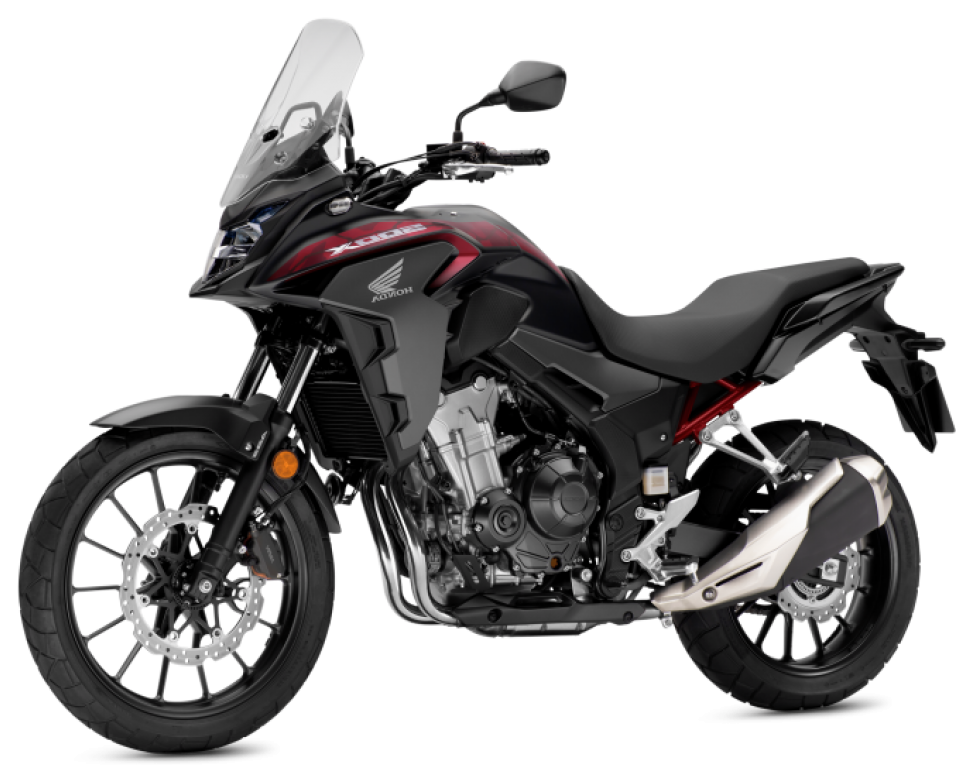

CB500X (2019-2021)
CB650R (2019-2021)
CBR250
CBR650R (2019-2021)
CB650F (2019-2021)
CBR650F (2019-2021)
CB500X (2019-2021)
CBR500R (2019-2021)
CB500F (2019-2021)
CBR50RR (2019-2021)

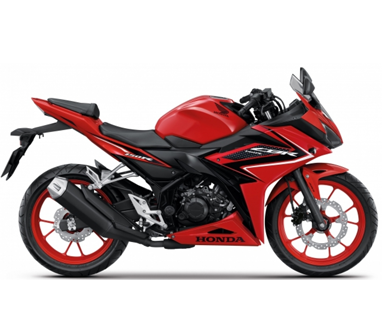

CBR150R (2019-2021)

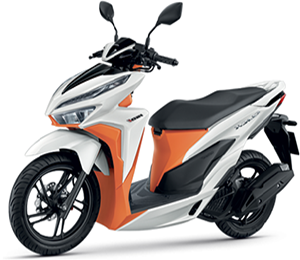

CLICK
CLICK-i
CLICK 125/150

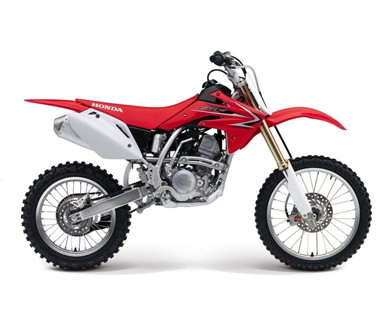

CRF (Thailand)
CZi (Thailand)
DYLAN
DREAM 110i
FORZA
FUTURE NEO FI
FUTURE X FI
FUTURE 125 FI
GENIO (2019-2021)
LEAD 110
LEAD 125
MONKEY 125i
MSX (2014-2016)
MSX (2017-2019)
PCX (2008-2015)
PCX (2016-2019)

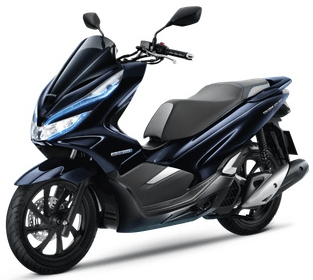

PCX HYBRID
PS
SH 125/150i (Italia)
SH 125/150 ESP (Trước 2015)
SH 125/150 ESP (2016)

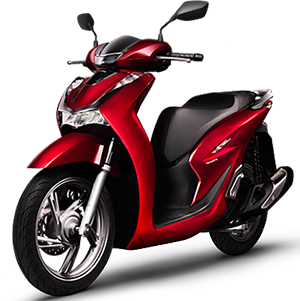

SH 125/150 ESP (2017-2021)
SH 300i
SH 300i ABS
SH MODE
SCR 110
SCOOPY
SCOOPY-i
SONIC
SUPER CUB C125
SUPRA
VARIO
VISION
VISION ESP
WAVE RSX FI
WAVE RSX FI AT
WINNER 150

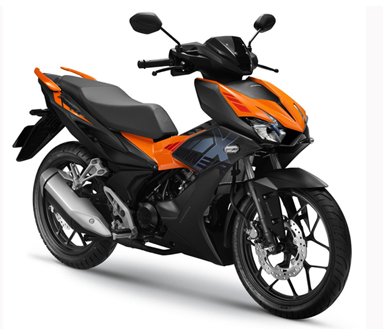

WINNER X
WAVE 110i
WAVE 125 (Thailand)
WAVE 125i
X-ADV

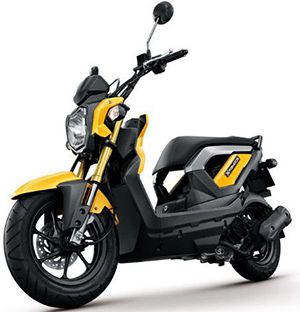

ZOOMER

APPLICATION RANGE

Used for all HONDA, YAMAHA motorcycles, very effective with motorcycles that do not use the MAP sensor.

LIST OF HONDA MOTORCYCLES:

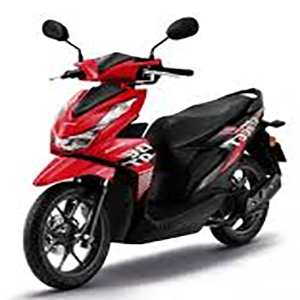

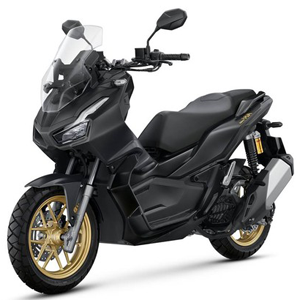

ADV AIR BLADE BEAT CB150R

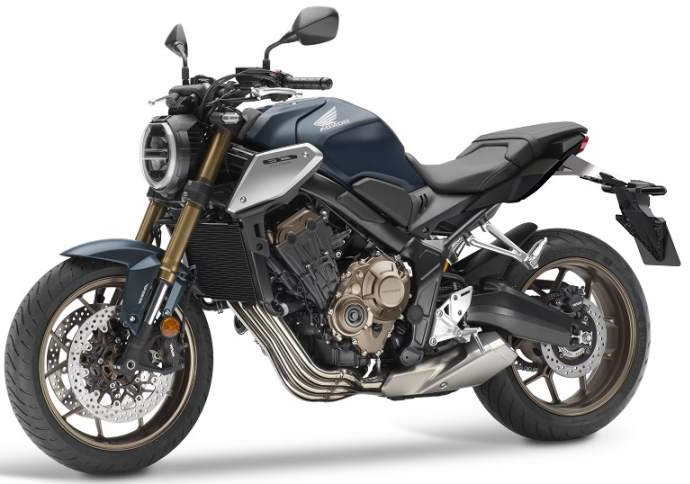

CB300R CB500F CB500X CB650F

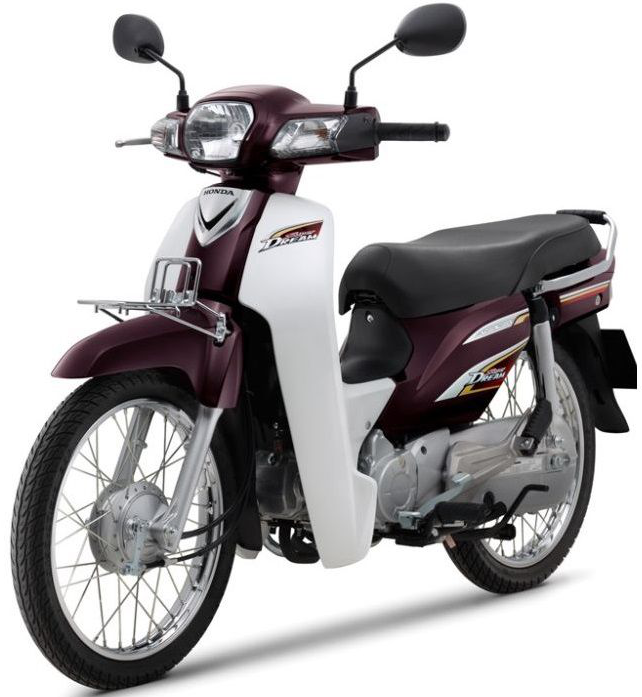

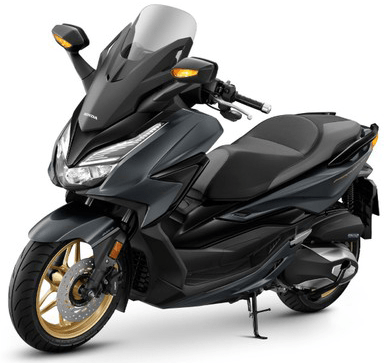

CBR650R CLICK DREAM 110i Fi FORZA

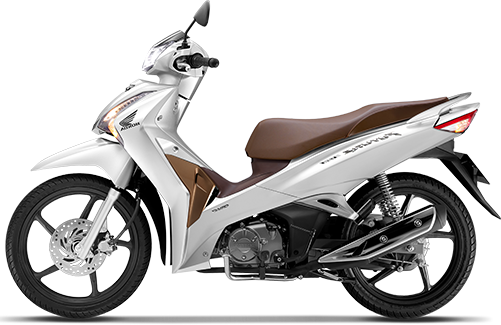

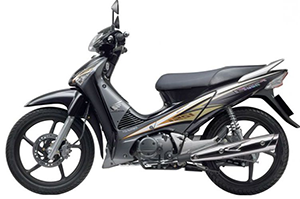

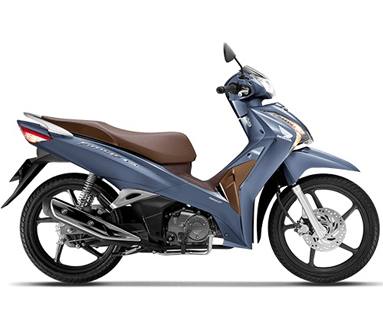

FUTURE FUTURE 125 FI FUTURE NEO FI FUTURE X FI

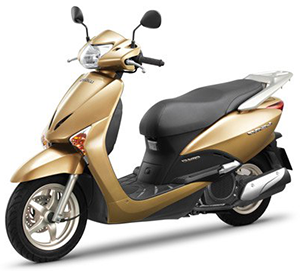

LEAD 110 LEAD 125 GENIO MONKEY

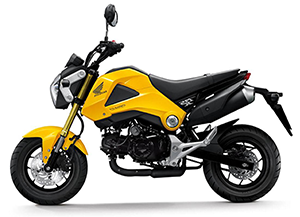

MSX 125 PCX PCX 150/ 160 PCX HYBRID

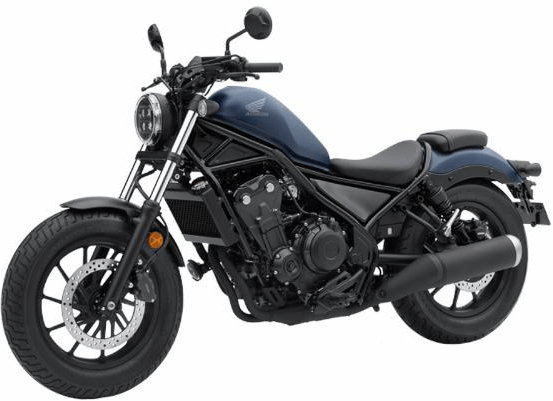

SCOOPY REBEL SCR 110 SH 125/150 ESP

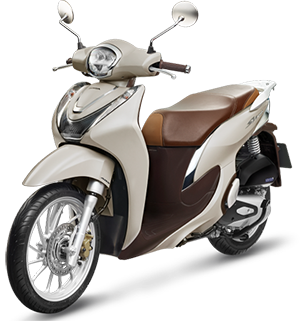

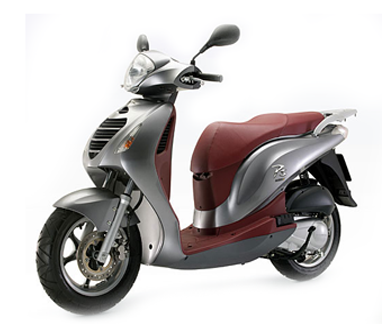

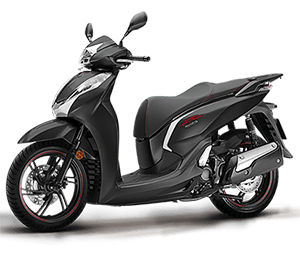

SH 125/ 150i /PS (ITALY) SH 300i SH MODE SONIC 150

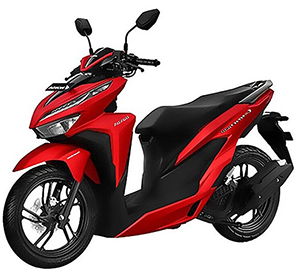

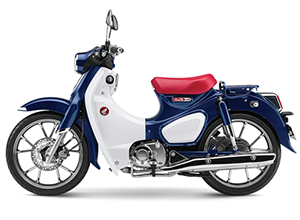

SUPER CUB 50 SUPER CUB C125 SUPRA VARIO 125/150
VISION ESP WAVE 110i WAVE 125 WAVE-i

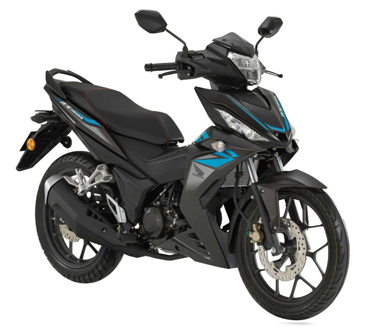

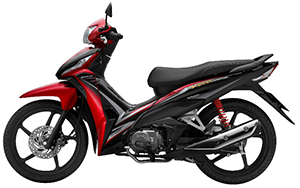

WAVE RSX FI WINNER WINNER X X-ADV
ZOOMER-X Other PGM-FI HONDA motorcycles

LIST OF YAMAHA MOTORCYCLES:

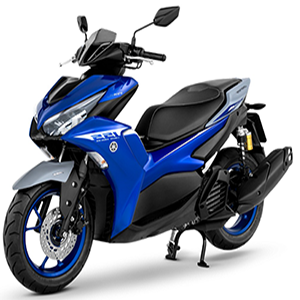

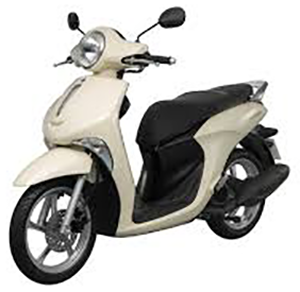

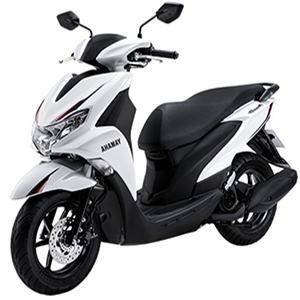

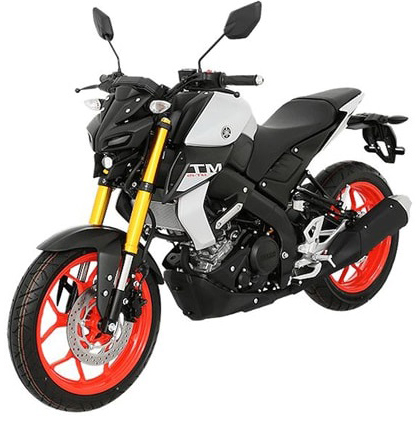

ACRUZO AEROX 125/155 CUXI EXCITER

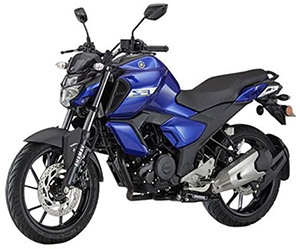

FREEGO FZ 150/150i FZ-S FZi FAZER
GRANDE JANUS JUPITER LATE 125

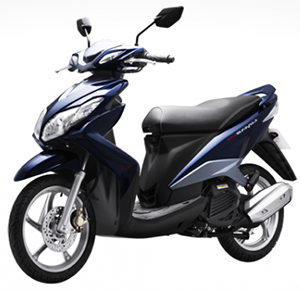

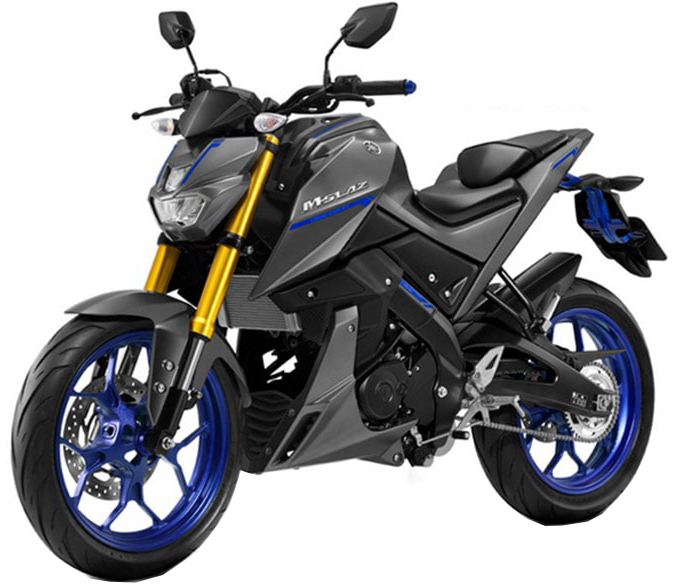

LEXI S LUVIAS FI M-SLAZ 150 MIO 125

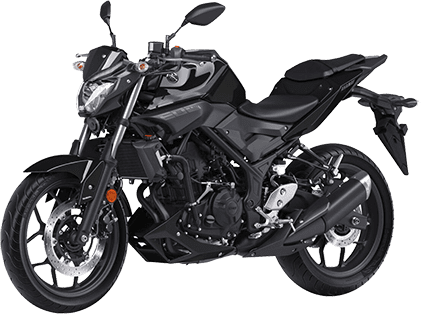

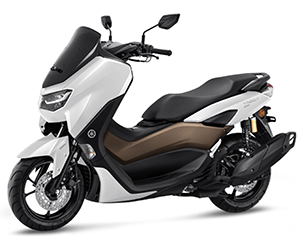

MT-03 MT-15 MT-25 NMAX

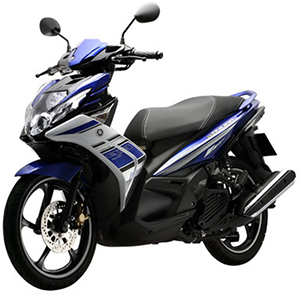

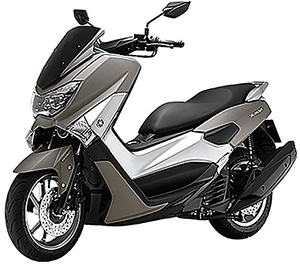

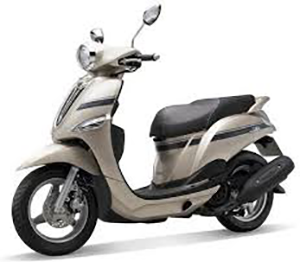

NMX NOUVO NOZZA NVX 125/155

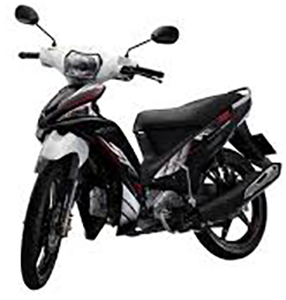

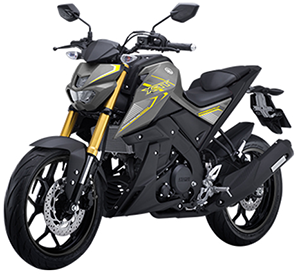

SIRIUS SMAX T-MAX TFX 150

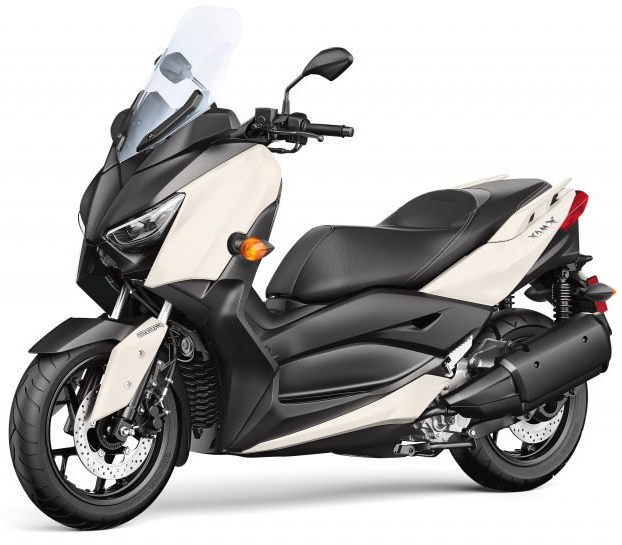

X-Max 300 YBR YZF-R15 YZF-R25
YZF-R3 Other FI YAMAHA motorcycles

FEATURES

- AFO4 TRIP software is installed on the user's mobile phone
- AFO4 TRIP hardware is designed with intelligent microcontroller technology, it is like a secondary ECU that optimizes the A/F ratio according to the actual load status of the engine
- Only optimize the A/F ratio to repair slum power when accelerating without changing fuel injection quantity at the other loading conditions, so do not rich fuel when operating in the normal load mode.
- Can adjust the A/F ratio depending on the user's demand
- Keep the original wiring harness, no need to cut wiring during installation
- Quick installation time and simple operation with dedicated wire clamp
- Update the latest versions via the internet
- Equipment is stable, watertight, and has a low energy consumption
- Support the anti-theft function
- Equipment can be installed for all types of FI motorcycles using the electronic fuel injection system

SPECIFICATIONS

- Install near the engine in the position as shown in the diagram
- Installation time: about 20 to 30 minutes for 1 vehicle
- Low cost, direct installation on the vehicle
- Reliability operating, stability, quality and durability
- Dimension: 10 x 6 x 3 cm
- Weight: 500g
- Current consumption: 30mA đến 70mA
- Operating voltage: 12V
- Water resist, light impact and temperature < 100 độ C
- Free update software via Internet
- Warranty 01 year

SOME PICTURES FOR REFERENCE

Main screen Main screen Mini show screen
Display live data Display live data Display live data
Display live data Display live data Display live data
Display live data Display live data Display live data
Mini show screen Mini show screen Mini show screen
Display fault code Display fault code content Delete fault code
Register customer information Display device information Display list of vehicle models
