MOTOBOX – AN ACCESSORY OF MOTOSCAN TO REPAIR, REINSTALL AND UPGRADE THE ECU FIRMWARE FOR MOTORCYCLE/ SCOOTER
LAST UPDATE: 05/07/2023
WHAT IS NEW IN MOTOBOX 3.0 ?
• ECU TUNER FUNCTION: Tuning A/F for ECU adds 15 new HONDA ECU codes for vehicles in the ASIA region
- ECM KEIHIN: WINNER X SMARTKEY 2022-2023 (38770-K2P-V61), SH 300i 2008-2010 (38770-KTW-901), CBR 150R 2014 (38770-KPP-N02), CBR 150R 2015-2016 (38770-K45-N01), CBR 150R 2019 (38770-K45-NA1)
- ECM ACG: LEAD 125 2022 (K2TA-V11-V11), LEAD 125 2019 (K12K-V01-V01), SH 2020 (K0SA-V01-V01), VARIO 125 2019 (K59A-A11-IN01), PCX 160 2021 (K1ZF-T01-TH01), PCX 150 2019 (K97F-T01-TH01), VARIO 160 2022 (K2SA-N02), ADV 150 2020 (K0WF-T01), ADV 202 (K0WG-B01-BR11), ADV 160 2022 (30400-K0WL-NB1), AIR BLADE 2022 (K2ZA-V01-V11), AIR BLADE 2023 (K3AA-V01-V11), VARIO 160 2022 (K2SA-N02)
• ODO FUNCTION: updated 08 new vehicles:
- HONDA: DUNK (2019-2023), BEAT (2021-2023),
- YAMAHA: GRAND FILANO (2019-2023), NMAX (2021-2022), NMAX (2021-2022)
- PIAGGIO, VESPA: LIBERTY 125/150 (PGU09/ PGT10), SPRINT 125/150 (PGU09/ PGT10), PRIMAVERA 125/150 (PGU09/ PGT10)
• GIFT: 06 months using copyright MOTODATA software
● INTRODUCTION
Today, most Motorcycles and Scooters are using engine control by electronic technology with microprocessors. To determine the trouble is very difficult and complex, can't see and diagnose by "clinical" method such as conventional mechanical repair before. The ECM firmware repair is easiest if you have a special tool for reinstallation or upgrade.
- The sensors, actuators, and electronic control unit will be information together by special electrical signals in an overall link and self-contained, so the repairs independent electronic is very difficult to do when you don't have tools.
- One other way, electronic repairmen for motorcycles and scooters very need to have a signal simulator and tested pulses to confirm that their diagnosis is completely accurate before ordering multiple days for the purchase of new replacement parts as sensors for ECT / EOT, MAF, MAP, TPS, O2S, CKP, IACV, Injectors and ECU...
-Moreover, an electronic repairman for motorcycle and scooters need to have a signal pulse generator dedicated to the motorcycle that is able to adjust in a large range to check, diagnose, and calibrate to repair hardware of electronic functional units such as the ECU, solenoid valve continuous strip, electronic injectors, step motors ...
- To solve the problems mentioned above. We are pleased to introduce a new product:
MOTOBOX - Product code: MT0006
MOTOBOX is the name of an electronic accessory is research, and manufacture success in 2015. This is one of the application product lines advanced science and technology to life by DTDAuto Vietnam and developed over the years are posted on the website:
www.dtdauto.com
MOTOBOX was designed as an accessory that hardware add-in and is compatible with
MOTOSCAN handheld (since version 5.7), and
MOTODATA software to support data and advanced functions for repairing of motorcycles and new generation scooters.
MOTOBOX is used for motorcycle repair workshops and professional training vocation to repair, and programmable electrical systems in Vietnam and other countries around the world.
The product is designed beautifully, strong, compact integrated, low cost, and suitable for all repair workshops.
● APPLICATION RANGE
- Used to repair hardware and firmware inside the ECU for motorcycles and scooters in the repair workshop.
- Used as training equipment in motorcycle technical training center.
MOTOBOX intensive fittings for electrical engineering and electronics in the repair workshop to repair ECU hardware, reprogram ECU firmware, and calibrate specifications.
- An advanced accessory add-in for MOTOSCAN since 2015
● MOTOBOX CABLE OPTIONS
| OPTIONS |
DESCRIPTION |
PRICE
(USD) |
STANDARD SELECTION
|
MOTOBOX 3.0Support many functions for MOTOSCAN 7:
- Test electronic components inside ECU of PGM-FI motorbikes independently, quickly, and accurately (called ECU tester function and you need to buy add-in cables)
- Test hall CKP sensors, IACV/ ISCV valve of HONDA, YAMAHA, PIAGGIO... independently, quickly, and accurately (you need to buy add-in cables)
- Reload & upgrade original and license software of HONDA, PIAGGIO/ VESPA manufacturers
- Adjust A/F ratio (tuning A/F ratio) for HONDA by method remapping coding inside ECM
- Load user-edited A/F software, reload the original software, and rescue ECM (ECM software has an error)
- Calibrate the odometer value for most motorbikes on the market
- Read current ODO value directly from EEPROM or MCU of motorbikes dashboard
- Simulate all signal types of ECU (IN/OUT, Digital, Analog, and Kline signals for Odometer of HONDA, YAMAHA) to diagnose, calibrate, and repair
- And add more functions when updating
|
$324
$260
|
MOTOBOX CABLE OPTION FOR ECU TEST FUNCTION
|
HONDA PACK 1 (for 02 motorcycles)
Used to check ECU for LEAD 2009–2011 (ECU code: 38770-GGE-901), SCR 110 (ECU code: 38770-GFM-902) |
$45 |
HONDA PACK 2 (for 03 motorcycles)
Used to check ECU for LEAD 2012 (ECU code: 38770-GGE-941), AIR BLADE 2008 – 2010 (ECU code: 38770-KVG-V21), WINNER 2015-2018 (ECU code: 38770-K56-V01) |
$45 |
HONDA PACK 3 (for 02 motorcycles)
Used to check ECU for AIR BLADE 2011 – 2012 (ECU code: 38770-KVG-V41), VISION 2011-2012 (ECU code: 38770-KZL-E71) |
$45 |
HONDA PACK 4 (for 04 motorcycles)
Used to check ECU for FUTURE 125 (ECU code: 38770-KYZ-V21), WAVE RSX, WAVE 110, WAVE 125 (ECU code: 38770-K03-M01) |
$45 |
HONDA PACK 5 (for 02 motorcycles)
Used to check ECU for WAVE 110 RSX AT, WAVE 110 AT
(ECU code: 38770-KWZ-841) |
$45 |
HONDA PACK 6 (for 02 motorcycles)
Used to check ECU for FUTURE NEO, FUTURE X
(ECU code: 38770-KVL-932) |
$45 |
HONDA PACK 12A (for 02 motorcycles)
Used to check ECU for SH 125i/150i (2008-2012), PS (2008-2012) |
$16 |
HONDA PACK 12B (for 02 motorcycles)
Used to check ECU for SH 125i/150i (2008-2012), PS (2008-2012) |
$45 |
PACK 13 - HONDA ACG ECM (for 17 motorcycles)
Used to check ACG ECU for AIR BLADE 2013-2014, AIR BLADE 2015-2017, AIR BLADE 2018-2019, SH MODE 2013-2014, LEAD 2013-2014, LEAD 2015-2017, LEAD 2018-2019, SH MODE 2015-2017, SH MODE 2018-2019, SH 2015-2016, SH 2017-2019, PCX 2015-2017, PCX 2018-2020, VARIO125/150 2014-2017, VISION 2013-2015, VISION 2016-2017, VISION 2018-2020
(will continue to update for another vehicle) |
$220 |
YAMAHA PACK 7 (for 02 motorcycles)
Used to check ECU for NOUVO SX (ECU code: 1DB-H591A-002XC-H591A-00), SIRIUS 2016 (ECU code: 1FC-H591A-11) |
$45 |
YAMAHA PACK 8 (for 01 motorcycles)
Used to check ECU for EXCITER 2018 (ECU code: 2ND-H591A-00) |
$45 |
YAMAHA PACK 9 (for 01 motorcycles)
Used to check ECU for JUPITER FI (ECU code: 2VP-H591A-00) |
$45 |
YAMAHA PACK 10 (for 01 motorcycles)
Used to check ECU for EXCITER 2019 (ECU code: 2ND-H591A-20) |
$45 |
MOTOBOX CABLE OPTION FOR CKP, IACV/ISCV TEST FUNCTION
 |
CKP & IACV PACK 11
Used to check Hall CKP sensor and IACV/ ISCV for all HONDA, YAMAHA, PIAGGIO/ VESPA |
$45 |
Notes: when buy the goods, customers can choice follow options and make total for payment.
Example 1: MOTOBOX = $324 = totals of payment
Example 2: MOTOBOX + 03 add-in cables = $324 + ($45 X 3) = totals of payment |
● FUNCTION
1. SIMULATE THE INPUT SIGNALS OF ECU
- Digital signals and Analog signals:
Generating the digital TTL signal to simulate the electromagnetic sensor signals and Hall effect sensors such as vehicle speed sensor (VSS), the wheel speed sensor (for ABS), crankshaft position sensor (CKP), camshaft sensor (CMP) etc ... the signals can simulate changes amplitude, frequency, amount of teeth and ring gear for most kinds of sensor rotors.
- Analog voltage signals change slowly, including wide range and narrow range
Simulation Analog signal voltage in the range (0V to 5V) to simulate the signals such as engine temperature sensor (ECT), intake air temperature sensor (IAT), throttle position (TPS), intake manifold absolute pressure sensor (MAP) and intake air flow sensor (MAF) and Oxygen sensor (O2S).
2. SIMULATE THE OUTPUT SIGNAL OF ECU
Simulate electromagnetic pulse to control the actuators such as relays, solenoids valve, Ignition coil, injectors ...
To correct voltage, amplitude, frequency, similar to the signal carried on the vehicle, effective in the diagnosis, segmentation, exclusion, and repairs.
3. PROGRAMING TO CORRECT VALUE OF DIGITAL SPEEDOMETER (ODO) FOR REMOVABLE EXTERNAL EEPROM
Used for HONDA, YAMAHA, PIAGGIO/VESPA, SUZUKI
- HONDA: AIR BLADE (2013-2019), AIR BLADE (2020-2022), CB150R (2017-2019), CB300R (2017-2019), CB650R, CBR250, CBR650R, CB650F, CBR650F, CB500X, CBR500R, CB500F, CBR 50RR (2019-2021), CBR150R (2019-2021), FUTURE NEO Fi, FUTURE X Fi, LEAD (2013-2019), LEAD 2020, PCX (2008-2013), PCX (2014-2017), PCX 2018, PCX HYBRID, SH 300i, SH MODE (2013-2019), SH 125/150/125D/150D/SM (2013-2017), SH 125/150/125D/150D/SM (2018-2019), SH 125/150/125D/150D/SM (2020), SCOOPY-I, SCOOPY 2021, SUPER CUP 125 (2021-2021), MSX, GENIO (2019-2021), VISION 2021, VARIO 150, WINNER, WINNER X, X-ADV, DYLAN, ZOOMER X (2013-2017), ZOOMER X (2018-2020), SONIC, WAVE 125 (Thailand), CLICK (2012-2014), CLICK (2014-2017) CLICK (2018-2020), VARIO (2014-2017), VARIO (2018-2020)
- YAMAHA: ACRUZO , AEROX, LEXI S, LATTE, FREGO, NVX, NMAX, NMX, M-SLAZ (2016-2019), MT-03 (2015-2019), MT-25 (2015-2019), JANUS, TFX, EXCITER (2014-2018), EXCITER (2019-2020), EXCITER 155 VVA, FZ 150, FZ 150i, GRANDE, NOUVO SX, NOUVO LX, YZF-R3 (2014-2018), YZF-R25 (2014-2018), R15, X-MAX 300 (2017-2018), TMAX
- PIAGGIO: MEDLEY 125, MEDLEY 150, MEDLEY 125 ABS, MEDLEY 150 ABS, LIBERTY ABS, LIBERTY 125 3V PGN04, LIBERTY 150 3V PGN04, LIBERTY 125 3V PGT01, LIBERTY 150 3V PGT01, LIBERTY 125 3V PGS02/PGR04/PGS05/PGS06, LIBERTY 150 3V PGS02/PGR04/PGS05/PGS06, LIBERTY ABS PGS06
- VESPA: PRIMAVE 125 PGN04, PRIMAVE 150 PGN04, SPRINT 125 3V PGN04, SPRINT 150 3V PGN04, SPRINT 125 3V PGT01, SPRINT 150 3V PGT01, SPRINT 125 3V PGS02/PGR04/PGS05/PGS06, SPRINT 150 3V PGS02/PGR04/PGS05/PGS06
- SUZUKI: RAIDER (2017-2021), SATRIA (2017-2021)
Edit, decode odometer data, and convert information automatically in EEPROM
4. RELOAD & UPGRADE ORIGINAL AND LICENSE SOFTWARE OF HONDA, PIAGGIO/ VESPA MANUFACTURERS
-
PIAGGIO/VESPA (it also supports GILERA, APRILIA, DERBI, PEUGEOT, which use similar ECMs): ECM types are AC19I/ AC20I/ AC24I/ AC25I/AC27I/ AC32I, MIU G3/RIU1, PGN04/PGS02/PGR04/PGS05/PGS06/PGT01 and ECM PGQ16*
-
HONDA: AIR BLADE 110, AIR BLADE 125/150, DREAM 110i, FUTURE X FI, FUTURE 125 FI, SH 125/150, SONIC 150, WINNER 150, WINNER X, FUTURE X 2019, FUTURE 2014 -2017, LEAD 110, LEAD 125, PCX (2015-2019), MSX, MONKEY 125i, PS, SCR 110, SCOOPY-I, SONIC 150, SH 125i/150i (nhập khẩu), SH 125/150 ESP, SH 300I, SH MODE, SUPER CUB 50 2019, SUPRA, WAVE 125, WAVE 125-i (Thailand), CLICK, VARIO, VISION 110, SCR 110, WAVE 100i, WAVE 125/ 125i, WAVE RSX FI, WINNER 150, WINNER X...
-
YAMAHA: NVX*
Notes: The advanced functions with an asterisk (*) may be researched & update in future
Upgrade firmware for PIAGGIO
Upgrade firmware for HONDA
5. ADJUST A/F RATIO (TUNING A/F RATIO) FOR HONDA BY METHOD REMAPPING CODING INSIDE ECM
6. TEST ELECTRONIC COMPONENTS INSIDE ECU OF PGM-FI MOTORBIKES INDEPENDENTLY, QUICKLY, AND ACCURATELY (called ECU Tester function and you need to buy an add-in cable for using)
Test quantity of ECMs for HONDA, YAMAHA, PIAGGIO/VESPA according to the order
-
HONDA: AIR BLADE 2008-2010, AIR BLADE 2011-2012, AIR BLADE (2013-2014), AIR BLADE (2015-2017), AIR BLADE (2018-2019), LEAD 110 (Trước 2012), LEAD 110 (2012), LEAD (2013-2014), LEAD (2015-2017), LEAD (2018-2019), SH 125/150 (2013-2014), SH 125/150 (2015-2016), SH 125/150 (2017-2019), PCX (2015-2017), PCX (2018-2019), VISION (2013-2017), VISION (2018-2020), VARIO (2014-2017), VISION 2011-2012, FUTURE X FI, FUTURE NEO FI, FUTURE 125 FI, WAVE 110i (Thailand), WAVE 125i (Thailand), WAVE RSX FI, WAVE RSX FI AT...
-
YAMAHA: NOUVO SX , SIRIUS 2016, EXCITER 2018, JUPITER FI, EXCITER 2019
Connection diagram for small ECU
Connection diagram for ACG ECU
7. LOAD USER-EDITED A/F SOFTWARE, RELOAD THE ORIGINAL SOFTWARE AND RESCUE ECM (ECM SOFTWARE HAVE AN ERROR)
8. CHECK HALL CKP SENSOR, IACV/ ISCV(you need to buy an add-in cable)
Used for all HONDA, YAMAHA, PIAGGIO/ VESPA.
FUNCTION TABLE FOR LIST OF MOTORCYCLES
Notes:
: functions appear on MOTOBOX 3.0
: functions may be researched & update in future
 |
SIMULATE
ECU INPUT SIGNAL
(O2, ECT, IAT, TPS, MAP, CKP, VSS) |
SIMULATE
ECU OUTPUT SIGNAL
(INJECTOR, IGNITION COIL, SOLENOID) |
PROGRAM/ ADJUST
ODOMETER |
PROGRAM/ UPGRADE
FIRMWARE ECM |
REMAP,
TUNING ECM |
TEST ECU |
TEST SENSOR,
ACTUATOR |
| ECM CODE |
A/F RATIO |
ON/OFF |
| AIR BLADE (2008-2010) |
 |
|
|
|
ECM code: 38770–KVG–V21
ECM code: 38770–KVG–A31
|
|
IACV |
|
IACV |
| AIR BLADE (2011-2012) |
|
|
|
|
ECM code: 38770–KVG–V42
ECM code: 38770–KVG–V41 |
|
|
|
IACV |
AIR BLADE (2013-2017) |
|
|
|
|
ECM code: K66A–V01–VN01
|
|
|
|
CKP, IACV |
AIR BLADE (2018-2020) |
|
|
|
|
ECM code: K66G–VG1–V01
ECM code: K66G–VE1–NO SMK
ECM code: K1FA–V01–V11
ECM code: K1GA–V01–V11
|
|
|
|
CKP, IACV |
CB150R (2017-2019) |
|
|
|
|
|
|
|
|
|
CB300R (2017-20190) |
|
|
|
|
|
|
|
|
IACV |
| CB650R (2019-2021) |
|
|
|
|
|
|
|
|
IACV |
| CBR250 |
|
|
|
|
|
|
|
|
IACV |
| CBR650R (2019-20210) |
|
|
|
|
|
|
|
|
IACV |
| CB650F (2019-2021) |
|
|
|
|
|
|
|
|
IACV |
| CBR650F (2019-2021) |
|
|
|
|
|
|
|
|
IACV |
| CB500X (2019-2021) |
|
|
|
|
|
|
|
|
IACV |
| CBR500R (2019-2021) |
|
|
|
|
|
|
|
|
IACV |
| CB500F (2019-2021) |
|
|
|
|
|
|
|
|
IACV |
| CBR50RR (2019-2021) |
|
|
|
|
|
|
|
|
IACV |
| CBR150R (2019-2021) |
|
|
|
|
|
|
|
|
IACV |
| CLICK |
|
|
|
|
ECM code: 38770–KVB–T03
|
|
|
|
IACV |
| CLICK-I |
|
|
|
|
|
|
|
|
IACV |
| CLICK 125/150 (2013-2019) |
|
|
|
|
ECM code: K60S–T71–TH01
ECM code: K59R–C01–CA01 |
|
SMK |
|
CKP,
IACV |
| DYLAN |
|
|
|
|
|
|
|
|
|
| DREAM 110i |
|
|
|
|
ECM code: 38770–K76–T62
ECM code: 38770–KZV–A61
|
|
|
|
IACV |
| FUTURE NEO FI
|
|
|
|
|
|
|
|
|
IACV |
| FUTURE X FI
|
|
|
|
|
ECM code: 38770–K03–M01
ECM code: 38770–G90–V02
ECM code: 38770–KYZ–G01
|
|
|
|
IACV |
| FUTURE 125 FI
|
|
|
|
|
ECM code: 38770–K03–M01
ECM code: 38770–G90–V02
ECM code: 38770–KYZ–G01
|
|
|
|
IACV |
| GENIO (2019-2021) |
|
|
|
|
|
|
|
|
IACV |
| LEAD 110 (2009-2012) |
|
|
|
|
ECM code: 38770–GGE–901
ECM code: 38770–GGE–941
|
|
IACV |
|
IACV |
| LEAD 125
(2013-2016) |
|
|
|
|
|
|
|
|
CKP, IACV |
| LEAD 125
(2017-2019) |
|
|
|
|
ECM code: K12H–931–V01
ECM code: K12M–V91–V01
ECM code: K12K–V11–V01
ECM code: K12K–V01–V01–SMK
|
|
| EVAPO |
|
CKP, IACV |
| MSX (14-16) |
|
|
|
|
ECM code: 38770–K26-901
ECM code: 3877–K26–911
|
|
|
|
|
| MSX (17-19) |
|
|
|
|
ECM code: 38770–K26–B13
ECM code: 38770–K26–C31 |
|
|
|
|
| MONKEY 125i |
|
|
|
|
ECM code: 38770–K0F–T01 |
|
|
|
|
| PCX (08-19) |
|
|
|
|
ECM code: K36S–T31–TH01 |
|
|
|
CKP, IACV |
| PCX HYBRID |
|
|
|
|
|
|
|
|
CKP, IACV |
| PCX 150 2021 |
|
|
|
|
|
|
|
|
CKP, IACV |
| PCX 160 2021 |
|
|
|
|
|
|
|
|
CKP, IACV |
| PS |
|
|
|
|
ECM code: 16400–KTF–982
ECM code: 16400–KTF–641
ECM code: 16400–KTG–641
ECM code: 16400–KTG–982
ECM code: 16400–KTG–921 |
|
IACV
O2 |
|
|
| SCR 110 |
|
|
|
|
ECM code: 38770–GFM–902 |
|
IACV |
|
IACV |
| SCOOPY-I |
|
|
|
|
ECM code: 38770–KYT–901 |
|
|
|
IACV |
| SCOOPY 2021 |
|
|
|
|
|
|
|
|
CKP,
IACV |
| SONIC
150 |
|
|
|
|
ECM code: 38770–K56–N01 |
|
|
|
| SH 125i/ 150i (Italia) |
|
|
|
|
ECM code: 16400–KTF–982
ECM code: 16400–KTF–641
ECM code: 16400–KTG–641
ECM code: 16400–KTG–982
ECM code: 16400–KTG–921 |
|
IACV
O2 |
|
|
| SH 125/ 150 ESP |
|
|
|
|
ECM code: K77A–V01–V01
ECM code: K77A–V11–V01
ECM code: K78A–V01–V01
ECM code: K78A–V11–V01
ECM code: K01J–611–V01
ECM code: K02K–701–V01
|
|
SMK |
|
CKP, IACV |
| SH 300I |
|
|
|
|
ECM code: 16400–KTW–B02 |
|
IACV
O2 |
|
IACV |
| SH MODE |
|
|
|
|
ECM code: K29M-V81-V01
ECM code: K29K-961-V01
|
|
EVAPO
SMK |
|
CKP, IACV |
| SUPRA |
|
|
|
|
ECM code: 38770–KYZ–713 |
|
|
|
IACV |
| SUPER CUB 50 2019 |
|
|
|
|
ECM code: 38770–GBJ–M53 |
|
|
|
IACV |
| SUPER CUP C125 (2020-2021) |
|
|
|
|
|
|
|
|
CKP, IACV |
| VARIO |
|
|
|
|
ECM code: K59F–A01–IN01
ECM code: K59K–T11–TH01
ECM code: K60K–B31–IN01
ECM code: K60R–B61–IN01
ECM code: K60R–B71–IN01
|
|
SMK |
|
CKP,
IACV |
| VISION 2011 – 2012 |
|
|
|
|
ECM code: 38770–KZL–E12
ECM code: 38770–KZL–E13
ECM code: 38770–KZL–E71 |
|
SMK |
|
|
| VISION 2013 – 2015 |
|
|
|
|
|
|
|
|
CKP, IACV |
| VISION 2016 – 2019 |
|
|
|
|
ECM code: K44P–V81–V01
ECM code: K44P–V91–V01
ECM code: K44F–V91–V01
|
|
|
|
CKP, IACV |
| VISION 2020-2021 |
|
|
|
|
|
|
|
|
CKP,
IACV |
| WAVE 100i |
|
|
|
|
ECM code: 38770–K03–A61
ECM code: 38770–K03–H01
ECM code: 38770–K58–T81
ECM code: 38770–K58–TC1 |
|
|
|
|
| WAVE 110-I |
|
|
|
|
|
|
|
|
IACV |
| WAVE 110
AT |
|
|
|
|
|
|
|
|
IACV |
| WAVE 110 (2021) |
|
|
|
|
|
|
|
|
IACV |
| WAVE 125/ 125i |
|
|
|
|
ECM code: 38770–KYZ–V71
ECM code: 38770–KYZ–T03
|
|
|
|
IACV |
| WAVE RSX FI |
|
|
|
|
ECM code: 38770–K90–V02
ECM code: 38770–G90–V02
ECM code: 38770–KYZ–G01
ECM code: 38770–KWZ–841
ECM code: 38770–K90–VC1
ECM code: 38770–K03–M01
|
|
|
|
IACV |
| WAVE RSX FI AT |
|
|
|
|
|
|
|
|
IACV |
| WINNER 150 |
|
|
|
|
ECM code: 38770–K56–V01 |
|
|
|
IACV |
| WINNER X |
|
|
|
|
ECM code: 38770–K56R–V51 |
|
|
|
IACV |
| Other HONDA FI |
|
|
|
|
|
|
|
|
CKP,
IACV |
HONDA
mechanical carburetor |
|
|
|
|
|
|
|
|
|
 |
SIMULATE
ECU INPUT SIGNAL
(O2, ECT, IAT, TPS, MAP, CKP, VSS) |
SIMULATE
ECU OUTPUT SIGNAL
(INJECTOR, IGNITION COIL, SOLENOID) |
PROGRAM/ ADJUST
ODOMETER |
PROGRAM/ UPGRADE
FIRMWARE ECM |
REMAP,
TUNING ECM |
TEST ECU |
TEST SENSOR,
ACTUATOR |
| ECM CODE |
A/F RATIO |
ON/OFF |
| ACRUZO DELUXE |
|
|
|
|
|
|
|
|
CKP,
ISCV |
| ACRUZO STANDARD |
|
|
|
|
|
|
|
|
CKP,
ISCV |
| CUXI |
|
|
|
|
|
|
|
|
ISCV |
| JANUS |
|
|
|
|
|
|
|
|
CKP,
ISCV |
| JUPITER FI GRAVITA |
|
|
|
|
|
|
|
|
ISCV |
| JUPITER FI GREEN |
|
|
|
|
|
|
|
|
ISCV |
| JUPITER
FI GP |
|
|
|
|
|
|
|
|
ISCV |
| JUPITER
FI RC |
|
|
|
|
|
|
|
|
ISCV |
| LATTE
2019 |
|
|
|
|
|
|
|
|
CKP,
ISCV |
| LUVIAS GTX FI |
|
|
|
|
|
|
|
|
CKP,
ISCV |
| LUVIAS FI |
|
|
|
|
|
|
|
|
CKP,
ISCV |
| NM-X |
|
|
|
|
|
|
|
|
CKP,
ISCV |
| NOZZA |
|
|
|
|
|
|
|
|
CKP,
ISCV |
| NOZZA LIMITED |
|
|
|
|
|
|
|
|
CKP,
ISCV |
| NOUVO LX |
|
|
|
|
|
|
|
|
ISCV |
| NOUVO SX RC |
|
|
|
|
|
|
|
|
ISCV |
| NOUVO SX STD |
|
|
|
|
|
|
|
|
ISCV |
| NOUVO SX GP |
|
|
|
|
|
|
|
|
ISCV |
| NVX 155 |
|
|
|
|
|
|
|
|
CKP,
ISCV |
| NVX 155 ABS |
|
|
|
|
|
|
|
|
|
| M-SLAZ (2016-2018) |
|
|
|
|
|
|
|
|
|
| MT-03 (2015-2019) |
|
|
|
|
|
|
|
|
|
| MT-15 (2016-2021) |
|
|
|
|
|
|
|
|
|
| MT-25 (2015-2019) |
|
|
|
|
|
|
|
|
|
| R15 |
|
|
|
|
|
|
|
|
ISCV |
| SIRIUS RC FI |
|
|
|
|
|
|
|
|
CKP,
ISCV |
| GRANDE DELUXE |
|
|
|
|
|
|
|
|
CKP,
ISCV |
| GRANDE STD |
|
|
|
|
|
|
|
|
CKP,
ISCV |
| GRANDE DUL. 2019 |
|
|
|
|
|
|
|
|
CKP,
ISCV |
| GRAND STD. 2019 |
|
|
|
|
|
|
|
|
CKP,
ISCV |
| FREEGO 2019 |
|
|
|
|
|
|
|
|
CKP,
ISCV |
| FREEGO S 2019 |
|
|
|
|
|
|
|
|
CKP,
ISCV |
| FZ1 FAZER |
|
|
|
|
|
|
|
|
ISCV |
| FZ 150 |
|
|
|
|
|
|
|
|
ISCV |
| FZ 150I |
|
|
|
|
|
|
|
|
ISCV |
| FZ 150I GP |
|
|
|
|
|
|
|
|
ISCV |
| FZ150I MOVISTAR |
|
|
|
|
|
|
|
|
ISCV |
| FZ-S |
|
|
|
|
|
|
|
|
ISCV |
| TFX |
|
|
|
|
|
|
|
|
ISCV |
| TMAX (2001-2003) |
|
|
|
|
|
|
|
|
|
| TMAX 500 (2008-2011) |
|
|
|
|
|
|
|
|
|
| YBR |
|
|
|
|
|
|
|
|
|
| YZC |
|
|
|
|
|
|
|
|
|
| YZF-R3 (2014-2018) |
|
|
|
|
|
|
|
|
|
| YZF-R25 (2014-2018) |
|
|
|
|
|
|
|
|
|
| EXCITER 150 GP
(2015-2018) |
|
|
|
 |
|
|
|
|
|
| EXCITER 150 RC
(2015-2018) |
|
|
|
|
|
|
|
|
|
| EXCITER MOV. 150
(2015-2018) |
|
|
|
|
|
|
|
|
|
| EXCITER CAMO 150
(2015-2018) |
|
|
|
|
|
|
|
|
|
| EXCITER GP (2019-2020) |
|
|
|
|
|
|
|
|
|
| EXCITER RC (2019-2020) |
|
|
|
|
|
|
|
|
|
| EXCITER MON. (2019-2020) |
|
|
|
|
|
|
|
|
|
| EXCITER DOX. (2019-2020) |
|
|
|
|
|
|
|
|
|
| EXCITER MOV. (2019-2020) |
|
|
|
|
|
|
|
|
|
| EXCITER 150i (2019-2020) |
|
|
|
|
|
|
|
|
|
| XMAX 300 (2017-2018) |
|
|
|
|
|
|
|
|
|
| Other YAMAHA FI |
|
|
|
|
|
|
|
|
|
YAMAHA
mechanical carburetor |
|
|
|
|
|
|
|
|
|
 |
SIMULATE
ECU INPUT SIGNAL
(O2, ECT, IAT, TPS, MAP, CKP, VSS) |
SIMULATE
ECU OUTPUT SIGNAL
(INJECTOR, IGNITION COIL, SOLENOID) |
PROGRAM/ ADJUST
ODOMETER |
PROGRAM/ UPGRADE
FIRMWARE ECM |
REMAP,
TUNING ECM |
TEST ECU |
TEST SENSOR,
ACTUATOR |
| ECM CODE |
A/F RATIO |
ON/OFF |
| BEVERLY 125
MIUG3 |
|
|
|
|
|
|
|
|
|
| BEVERLY 300 MIUG3 |
|
|
|
|
|
|
|
|
|
| BEVERLY 350 MIUG3 |
|
|
|
|
|
|
|
|
|
| FLY 125
MIUG3 |
|
|
|
|
|
|
|
|
|
| FLY 150
MIUG3 |
|
|
|
|
|
|
|
|
|
| FLY 125
3V MIUG3 |
|
|
|
|
|
|
|
|
|
| FLY 150
3V MIUG3 |
|
|
|
|
|
|
|
|
|
| LIBERTY |
|
|
|
|
|
|
|
|
|
| MEDLEY 125 ABS |
|
|
|
|
|
|
|
|
CKP |
| MEDLEY 150 ABS |
|
|
|
|
|
|
|
|
CKP |
| MEDLEY 125 PGQ16 |
|
|
|
|
|
|
|
|
CKP |
| MEDLEY 150 PGQ16 |
|
|
|
|
|
|
|
|
CKP |
| X10 125 MIUG3 |
|
|
|
|
|
|
|
|
|
| X10 350 MIUG3 |
|
|
|
|
|
|
|
|
|
| Other PIAGGIO FI |
|
|
|
|
|
|
|
|
|
PIAGGIO
mechanical carburetor (ECM AC19I/AC20I/AC191/AC201) |
|
|
|
|
|
|
|
|
|
PIAGGIO
Other mechanical carburetor |
|
|
|
|
|
|
|
|
|
 |
SIMULATE
ECU INPUT SIGNAL
(O2, ECT, IAT, TPS, MAP, CKP, VSS) |
SIMULATE
ECU OUTPUT SIGNAL
(INJECTOR, IGNITION COIL, SOLENOID) |
PROGRAM/ ADJUST
ODOMETER |
PROGRAM/ UPGRADE
FIRMWARE ECM |
REMAP,
TUNING ECM |
TEST ECU |
TEST SENSOR,
ACTUATOR |
| ECM CODE |
A/F RATIO |
ON/OFF |
| 946
125 3V MIUG3 |
|
|
|
|
|
|
|
|
|
| 946 150 3V MIUG3 |
|
|
|
|
|
|
|
|
|
| GTS125 MIUG3 |
|
|
|
|
|
|
|
|
|
| GTS150 MIUG3 |
|
|
|
|
|
|
|
|
|
| LXV125 3V MIUG3 |
|
|
|
|
|
|
|
|
|
| GTS125 ABS MIUG3 |
|
|
|
|
|
|
|
|
|
| GTS300 ABS MIUG3 |
|
|
|
|
|
|
|
|
|
| LT125 3V MIUG3 |
|
|
|
|
|
|
|
|
|
| LT150 3V MIUG3 |
|
|
|
|
|
|
|
|
|
| LX125 MIUG3 |
|
|
|
|
|
|
|
|
|
| LX150 MIUG3 |
|
|
|
|
|
|
|
|
|
| LX125 3V MIUG3 |
|
|
|
|
|
|
|
|
|
| LX150 3V MIUG3 |
|
|
|
|
|
|
|
|
|
| LX125 3V PGN04 |
|
|
|
|
|
|
|
|
|
| LX150 3V PGN04 |
|
|
|
|
|
|
|
|
|
| LXV125 2V MIUG3 |
|
|
|
|
|
|
|
|
|
| LXV125 3V MIUG3 |
|
|
|
|
|
|
|
|
|
| LXV150 3V MIUG3 |
|
|
|
|
|
|
|
|
|
| PRIMAVERA |
|
|
|
|
|
|
|
|
|
| PRIMAVERA ABS |
|
|
|
|
|
|
|
|
|
| S125 MIUG3 |
|
|
|
|
|
|
|
|
|
| S150 MIUG3 |
|
|
|
|
|
|
|
|
|
| S125 3V MIUG3 |
|
|
|
|
|
|
|
|
|
| S150 3V MIUG3 |
|
|
|
|
|
|
|
|
|
| SPRINT |
|
|
|
|
|
|
|
|
|
| SPRINT ABS |
|
|
|
|
|
|
|
|
|
| Other VESPA FI |
|
|
|
|
|
|
|
|
|
VESPA
mechanical carburetor (ECM AC19I/AC20I/AC191/AC201) |
|
|
|
|
|
|
|
|
|
VESPA
Other mechanical carburetor |
|
|
|
|
|
|
|
|
|
 |
SIMULATE
ECU INPUT SIGNAL
(O2, ECT, IAT, TPS, MAP, CKP, VSS) |
SIMULATE
ECU OUTPUT SIGNAL
(INJECTOR, IGNITION COIL, SOLENOID) |
PROGRAM/ ADJUST
ODOMETER |
PROGRAM/ UPGRADE
FIRMWARE ECM |
REMAP,
TUNING ECM |
TEST ECU |
TEST SENSOR,
ACTUATOR |
| ECM CODE |
A/F RATIO |
ON/OFF |
| ADDRESS 110 |
|
|
|
|
|
|
|
|
|
| HAYATE 125 SS |
|
|
|
|
|
|
|
|
|
| UA 125-T |
|
|
|
|
|
|
|
|
|
| VIVA 115 |
|
|
|
|
|
|
|
|
|
| GSX R150 |
|
|
|
|
|
|
|
|
|
| GZ150-A |
|
|
|
|
|
|
|
|
|
| EN150-A |
|
|
|
|
|
|
|
|
|
| THUNDER 150/150S |
|
|
|
|
|
|
|
|
|
| IMPLUSE |
|
|
|
|
|
|
|
|
|
| RAIDER (2017-2021) |
|
|
|
|
|
|
|
|
|
| SATRIA (2017-2021) |
|
|
|
|
|
|
|
|
|
| STAR RS 125 EFI |
|
|
|
|
|
|
|
|
|
| STAR SR 170 ABS |
|
|
|
|
|
|
|
|
|
| Other SUZUKI FI |
|
|
|
|
|
|
|
|
|
SUZUKI
mechanical carburetor |
|
|
|
|
|
|
|
|
|
 |
SIMULATE
ECU INPUT SIGNAL
(O2, ECT, IAT, TPS, MAP, CKP, VSS) |
SIMULATE
ECU OUTPUT SIGNAL
(INJECTOR, IGNITION COIL, SOLENOID) |
PROGRAM/ ADJUST
ODOMETER |
PROGRAM/ UPGRADE
FIRMWARE ECM |
AAREMAP,ATUNINGAECMAAA |
TEST ECU |
TEST SENSOR,
ACTUATOR |
| ECM CODE |
A/F RATIO |
ON/OFF |
| ATTILA-V SMART IDLE |
|
|
|
|
|
|
|
|
|
| ELIZABETH SMART IDLE |
|
|
|
|
|
|
|
|
|
| ELIZABETH 110 |
|
|
|
|
|
|
|
|
|
|
ELIZABETH 2014 |
|
|
|
|
|
|
|
|
|
| ELIZABETH 20 years |
|
|
|
|
|
|
|
|
|
| ELIZABETH SMART |
|
|
|
|
|
|
|
|
|
| JOYRIDE |
|
|
|
|
|
|
|
|
|
| SHARK 125 |
|
|
|
|
|
|
|
|
|
| SHARK 125 CBS |
|
|
|
|
|
|
|
|
|
| SHARK MINI 125 EFI |
|
|
|
|
|
|
|
|
|
| SHARK MINI 125 SPORT |
|
|
|
|
|
|
|
|
|
| PASSING EFI |
|
|
|
|
|
|
|
|
|
| POWER EFI |
|
|
|
|
|
|
|
|
|
| VENUS EFI |
|
|
|
|
|
|
|
|
|
| VENUS 125 EFI |
|
|
|
|
|
|
|
|
|
| VENUS 125 CBS |
|
|
|
|
|
|
|
|
|
| VENUS 125 SMART IDLE |
|
|
|
|
|
|
|
|
|
| Other SYM FI |
|
|
|
|
|
|
|
|
|
SYM
mechanical carburetor |
|
|
|
|
|
|
|
|
|
 |
SIMULATE
ECU INPUT SIGNAL
(O2, ECT, IAT, TPS, MAP, CKP, VSS) |
SIMULATE
ECU OUTPUT SIGNAL
(INJECTOR, IGNITION COIL, SOLENOID) |
PROGRAM/ ADJUST
ODOMETER |
PROGRAM/ UPGRADE
FIRMWARE ECM |
REMAP,
TUNING ECM |
TEST ECU |
TEST SENSOR,
ACTUATOR |
| ECM CODE |
A/F RATIO |
ON/OFF |
| PEOPLE S FI |
|
|
|
|
|
|
|
|
|
| PEOPLE 16 FI |
|
|
|
|
|
|
|
|
|
| MANY MACAROL FI |
|
|
|
|
|
|
|
|
|
| MANY FI |
|
|
|
|
|
|
|
|
|
| LIKE FI |
|
|
|
|
|
|
|
|
|
| JOCKEY FI |
|
|
|
|
|
|
|
|
|
| Other KYMCO FI |
|
|
|
|
|
|
|
|
|
KYMCO
mechanical carburetor |
|
|
|
|
|
|
|
|
|
●
SPECIFICATION
- Dimension (LxWxH): 21x14x7 cm
- Weight: 0.8 kg
● SOME REFERENCE INTERFACES ON MOTOSCAN
 |
 |
| Screen for function selection |
Screen for function selection |
 |
 |
| Request screen to connect MOTOBOX |
Screen to select pulse type |
 |
 |
| Screen for CKP 11 teeth setting |
Screen to confirm EEPRPOM type |
 |
 |
| Screen for ODO correction |
Screen to check and confirm firmware version |
 |
 |
| Screen inform firmware progress in reinstallation |
Screen inform firmware reinstallation is complete |
● PACKAGE
| NO. |
DESCRIPTION |
IMAGE |
| 01 |
Main accessory (accessory of MOTOSCAN)) |
|
| 02 |
Data cable used to connect MOTOSCAN with MOTOBOX |
 |
| 03 |
Update adapter used to update MOTOBOX |
 |
| 04 |
Link adapter used to check ECU, sensors and actuators |
 |
| 05 |

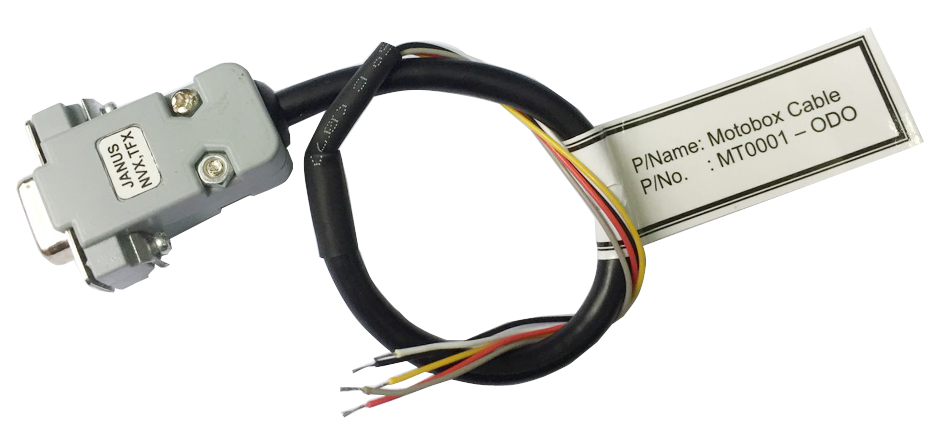

ODO cable for odometers of YAMAHA: JANUS, NVX, TFX, S-MLAZ |
 |
| 06 |
ODO cable for odometers of PIAGGIO/ VESPA that use internal (MCU) |
 |
| 07 |
ODO cable used for odometers that have IC type is 93CXX, 24CXX of HONDA, YAMAHA, PIAGGIO/ VESPA, SUZUKI
|
 |
| 08 |
Simulation cable used to simulate signal |
 |
| 09 |
Quick guide |
 |
| 10 |
Case |
 |
● RELATED DOCUMENTS
Smartkey tool เครื่องมือสมาร์ทคีย์ Outil clé intelligente alat kunci pintar 스마트키 도구 Herramienta Smartkey Ferramenta Smartkey Strumento Smartkey Инструмент Smartkey Smartkey-Tool スマートキーツール Lost all keys หายไปทั้งหมดของคีย์ Perdu toutes les clés Kehilangan semua kunci 모든 키를 분실함 Perdí todas las llaves Perdeu todas as chaves Ho perso tutte le chiavi Потерял все ключи Alle Schlüssel verloren すべてのキーを紛失しました Lost my yamaha motorcycle key กุญแจรถมอเตอร์ไซค์ยามาฮ่าหาย J'ai perdu ma clé de moto yamaha Kehilangan kunci motosikal yamaha saya 야마하 오토바이 키를 분실했습니다. Perdí la llave de mi motocicleta yamaha Perdi minha chave yamaha de motocicleta Ho perso la chiave della mia moto yamaha Я потерял ключ от мотоцикла yamaha Habe meinen Yamaha Motorradschlüssel verloren ヤマハのバイクの鍵をなくした Scan fault codes Piaggo vespa สแกนรหัสความผิดปกติ Piaggo vespa Scannez les codes d'erreur Piaggo vespa Imbas kesalahan kod Piaggio vespa 결함 코드 Piaggio vespa 스캔 Escanear códigos de avería Piaggio vespa Ler códigos de falha Piaggio vespa Scansione codici difetto Piaggio vespa Сканирование кодов неисправностей Piaggio vespa Fehlercodes scannen Piaggio Vespa 障害コードをスキャンするPiaggivespa Odometer correction tool เครื่องมือแก้ไขมาตรระยะทาง outil de correction d'odomètre Alat pembetulan Odometer 보정 도구 주행 거리계 Herramienta de corrección de odómetro Ferramenta de correção de odômetro Strumento di correzione del contachilometri Инструмент коррекции одометра Entfernungsmesser-Korrekturwerkzeug 走行距離計補正ツール Scangauge fault codes รหัสผิดเครื่องสแกนเนอร์ Codes d'erreur du scanner Kod kesalahan pengimbas 스캐너 오류 코드 Códigos de avería del escáner codici di errore dello scanner codici di errore dello scanner коды неисправностей сканера Fehlercodes des Scanners スキャナー障害コード How to read fault codes วิธีอ่านรหัสความผิดปกติ Comment lire les codes défaut Cara membaca kod kesalahan 오류 코드를 읽는 방법 Cómo leer códigos de avería Como ler códigos de falha Come leggere i codici di errore Как читать коды неисправностей So lesen Sie Fehlercodes 障害コードの読み方 Motorcycle abs kit ชุดเอบีเอสมอเตอร์ไซค์ kit ABS moto Kit abs para motocicleta Комплект для пресса мотоцикла Motorrad-Bauchmuskel-Kit オートバイのABSキット Honda ecu tuner จูน ECU HONDA Accordeur d'écu Honda 혼다 ecu 튜너 Sintonizador Honda ECU Sintonizador ecu Honda Sintonizzatore centralina Honda Тюнер honda ecu Honda Steuergerätetuner ホンダecuチューナー How to check ckp sensor วิธีการตรวจสอบเซ็นเซอร์ CKP Comment vérifier le capteur ckp Cara memeriksa sensor ckp ckp 센서 확인 방법 Cómo comprobar el sensor ckp Como verificar o sensor ckp Come controllare il sensore ckp Как проверить датчик ckp So überprüfen Sie den ckp-Sensor ckpセンサーの確認方法 Motocycle scanner เครื่องสแกนรถมอเตอร์ไซด์ Codes d'erreur du scanner Pengimbas motosikal 오토바이 스캐너 Escáner de motocicleta Scanner de motocicleta Scanner per moto Мотоциклетный сканер Motorradscanner オートバイスキャナー Scan scooter รถมอเตอร์ไซด์สแกน Scanner la moto Imbas motosikal 오토바이 스캔 Escanear motocicleta Motocicleta de varredura Scansione moto Сканирование мотоцикла Motorrad scannen オートバイをスキャンする Honda Yamaha Suzuki Vespa immobilizer ECU remap tuning files download ดาวน์โหลดไฟล์ปรับแต่ง ECU รีแมป fichiers de réglage remap ECU télécharger Muat turun fail penalaan pemetaan semula ECU ECU 리맵 튜닝 파일 다운로드 Descarga de archivos de ajuste de reasignación de ECU remap ECU arquivos de ajuste de download remap ECU lime di sintonia scaricare Скачать файлы настройки переназначения ЭБУ ECU-Remap-Tuning-Dateien herunterladen ECUリマップチューニングファイルのダウンロード Motorcycle obd2 scanner สแกนเนอร์รถจักรยานยนต์OBD2 Scanner obd2 de moto Pengimbas motosikal obd2 오토바이 obd2 스캐너 Escáner obd2 para motocicleta Scanner obd2 para motocicleta Scanner obd2 per moto Сканер obd2 для мотоциклов Motorrad obd2 Scanner オートバイobd2スキャナー Motorscan Motoscan HONDA pgm-fi problems ปัญหา HONDA pgm-fi problème pgm-fi HONDA Masalah pgm-fi HONDA 혼다 pgm-fi 문제 Problemas de HONDA pgm-fi Problemas HONDA pgm-fi Problemi HONDA pgm-fi HONDA pgm-fi проблемы HONDA pgm-fi Probleme ホンダpgm-fiの問題 Program ecu โปรแกรม ecu REPROGRAMMATION MOTO ECU Program ecu 프로그램 ecu Programa ecu Programa ecu Programma ECU Программа ecu Programmsteuergerät プログラムecuKey fob reader เครื่องอ่านรหัสคีย์ Lecteur de code clé
ECU simulator tester เครื่องจำลอง ECU simulateur ECU Simulador de ECU ECU 신호 시뮬레이터 Simulador de ECU Simulador ECU Simulatore ECU Симулятор ЭБУ ECU-Simulator ECUシミュレーター Motorcycle diagnostic tools เครื่องมือวิเคราะห์ยานยนต์ Outils de diagnostic moto Alat diagnostik motosikal 오토바이 진단 도구 Herramientas de diagnóstico de motocicletas Ferramentas de diagnóstico de motocicleta Strumenti diagnostici per moto Инструменты для диагностики мотоциклов Motorrad-Diagnosetools オートバイの診断ツール Honda diagnostic tester ฮอนด้าทดสอบวินิจฉัย Testeur de diagnostic Honda Penguji diagnostik Honda 혼다 진단 테스터 Probador de diagnóstico Honda Testador de diagnóstico Honda Tester diagnostico Honda Диагностический тестер Honda Honda Diagnosetester ホンダ診断テスター Electrical wiring diagram แผนผังการเดินสายไฟฟ้า Schéma de câblage électrique Gambar rajah pendawaian elektrik 전기 배선도 Diagrama de cableado eléctrico Diagrama de fiação elétrica Schema elettrico Схема электрических соединений Elektrischer Schaltplan 電気配線図 Motorcycle workshop software ซอฟต์แวร์การจัดการร้านซ่อมรถจักรยานยนต์ Logiciel atelier moto Perisian bengkel motosikal 오토바이 워크샵 소프트웨어 Software para talleres de motos Software de oficina de motocicleta Software per officina motociclistica Программное обеспечение для мотоциклов семинара Motorradwerkstatt-Software オートバイワークショップソフトウェア ECU signal simulator เครื่องจำลองสัญญาณ ECU Simulateur de signaux ECU Simulator isyarat ECU ECU 신호 시뮬레이터 Simulador de señal ECU Simulador de sinal ECU Simulatore di segnale ECU Имитатор сигналов ЭБУ ECU-Signalsimulator ECT温度センサー ECT temperature sensor เซ็นเซอร์ ECT Capteur de température ECT Sensor suhu ECT ECT 온도 센서 Sensor de temperatura ECT Sensor de temperatura ECT Sensore di temperatura ECT Датчик температуры ЕСТ ECT-Temperatursensor ECT温度センサー pgm-fi system ระบบ pgm-fi système pgm-fi sistem pgm-fi pgm-fi 시스템 sistema pgm-fi sistema pgm-fi sistema pgm-fi система pgm-fi pgm-fi-System pgm-fiシステム ckp sensor เซ็นเซอร์ CKP capteur ckp sensor ckp ckp 센서 sensor ckp sensor ckp sensore ckp датчик ckp ckp-sensor ckpセンサー how to reset fault codes วิธีรีเซ็ตรหัสความผิดปกติ comment réinitialiser les codes d'erreur cara menetapkan semula kod kesalahan 오류 코드를 재설정하는 방법 cómo restablecer los códigos de falla como redefinir códigos de falha come ripristinare i codici di errore как сбросить коды неисправностей So setzen Sie Fehlercodes zurück 故障コードをリセットする方法 smart key repair ซ่อมสมาร์ทคีย์ réparation clé intelligente pembaikan kunci pintar 스마트 키 수리 reparación de llave inteligente reparo de chave inteligente riparazione di chiavi intelligenti ремонт смарт-ключей Smart Key Reparatur スマートキーの修理 smart key fault ความผิดพลาดของสมาร์ทคีย์ défaut de clé intelligente kesalahan kunci pintar 스마트 키 오류 falla de llave inteligente falha de chave inteligente errore chiave intelligente неисправность смарт-ключа Smartkey-Fehler スマートキーの故障 lost the motorcycle key ทำกุญแจมอไซค์หาย perdu toutes les clés moto kehilangan kunci motosikal 오토바이 열쇠를 분실했다 perdió la llave de la motocicleta perdeu a chave da motocicleta perso la chiave della moto потерял ключ от мотоцикла Motorradschlüssel verloren バイクの鍵をなくした Smart key repair method วิธีการซ่อมสมาร์ทคีย์ Méthode de réparation de clé intelligente Kaedah pembaikan kunci pintar 스마트 키 수리 방법 Método de reparación de llave inteligente Método de reparo de chave inteligente Metodo di riparazione delle chiavi intelligenti Метод ремонта смарт-ключа Smart-Key-Reparaturmethode スマートキーの修復方法 repair motorcycle ซ่อมมอเตอร์ไซค์ réparer une moto membaiki motosikal 오토바이 수리 reparar motocicleta consertar motocicleta riparare la moto ремонт мотоцикла Motorrad reparieren バイクの修理 Motorcycle ECU Repair ซ่อม ECU รถจักรยานยนต์ Réparation d'ECU de moto Pembaikan ECU Motosikal 오토바이 ECU 수리 Reparación de la ECU de la motocicleta Conserto de ECU de motocicleta Riparazione ECU del motociclo Ремонт ЭБУ мотоцикла Motorrad ECU Reparatur オートバイのECU修理 read motorcycle code อ่านรหัสมอเตอร์ไซค์ lire le code de la moto ler o código da motocicleta leggi il codice della moto прочитать код мотоцикла Motorradcode lesen オートバイのコードを読む motorcycle repair tool เครื่องมือซ่อมมอเตอร์ไซค์ outil de réparation de moto alat pembaikan motosikal 오토바이 수리 도구 herramienta de reparación de motocicletas ferramenta de conserto de motocicleta strumento di riparazione moto инструмент для ремонта мотоциклов Motorradreparaturwerkzeug オートバイ修理ツール remap ECU remap ECU Tuning ECU Tuning ECU motorcycle repair trainning อบรมซ่อมมอเตอร์ไซค์ formation réparation moto latihan membaiki motosikal 오토바이 수리 훈련 formación en reparación de motocicletas treinamento de conserto de motocicleta corso di riparazione moto обучение ремонту мотоциклов Motorradreparaturtraining オートバイの修理のトレーニング Motorcycle repair manual คู่มือการซ่อมรถจักรยานยนต์ Manuel de réparation de moto Manual pembaikan motosikal 오토바이 수리 매뉴얼 Manual de reparación de motocicletas Manual de conserto de motocicleta Manuale di riparazione della moto Руководство по ремонту мотоциклов Reparaturanleitung für Motorräder オートバイ修理マニュアル PGM-FI repair manual เอกสารมอเตอร์ไซค์ Manuel de réparation PGM-FI Manual pembaikan PGM-FI PGM-FI 수리 매뉴얼 Manual de reparación de PGM-FI Manual de reparo PGM-FI Manuale di riparazione PGM-FI Руководство по ремонту PGM-FI PGM-FI-Reparaturhandbuch PGM-FI修理マニュアル motorcycle wiring diagram รถจักรยานยนต์แผนภาพการเดินสายไฟ schéma de câblage moto gambar rajah pendawaian motosikal 오토바이 배선도 diagrama de cableado de la motocicleta diagrama de fiação da motocicleta schema elettrico moto схема подключения мотоцикла Schaltplan des Motorrads オートバイの配線図
Answer & Question
Consultation selection
