MOTOSCAN - SCANNER FOR PGM-FI/FI MOTORCYCLES & SCOOTERS

MOTOSCAN - SCANNER FOR PGM-FI/FI MOTORCYCLES & SCOOTERS

Price: 16.00 $ - 710.00 $

NOTICE OF UPDATE TO THE NEW VERSION RELEASED ON 15/07/2023 FOR MOTOSCAN 7 PRO & MOTOBOX 3.0 - HOT PROMOTION: BUY MOTOSCAN 7 PRO GET MOTOBOX FREE
MOTOSCAN is a professional tool for motorbike repair workshop to identify fault, repair fault for Engine & ABS system, auto program smart key, auto test ECM, auto analyze engine technical, intelligent diagnose without OBD fault code, adjust ODO, simulate ECU signal, program ECM firmware...
Click here to view ordering instruction >>>

  • Product code:
  • Made by:
  • Net Weight:
  • Weight:
News
WHAT IS NEWER IN MOTOSCAN 7 PRO UPDATE 12/12/2023?icon

ENGINE/ ABS FUNCTION
Update more vehicles for HONDA, VESPA/ PIAGGIO:
- HONDA: SH 125/150 (20-23), AIR BLADE (20-23), LEAD 125 2020-2023, SH MODE (21-23), VISION (2021-2023), CLICK 2018-2023, VARIO 2018-2023, PCX 150(2021-2023), PCX 160(2021-2023)
- PIAGGIO/ VESPA: S 125/150 PGU09, S 125/150 PGT10

ECU TUNER FUNCTION (RELOAD SOFTWARE, TUNING A/F, OFF SMART KEY FOR ECM)
Added 5 new HONDA ECU codes for vehicles:
VISION 2021-2023 (K2CA-V11-V01, K2CA-V31-V01, K2CF-VA1-V01), LEAD 2018 (K12M-V81-V01), PCX 2015-2017 (K36S-TH01-T01)

IMMO/ SMART KEY FUNCTION
- Added quick key registration function using KEYID and PN codes
- Optimize the function of reading KEYID, ECMID, and writing ECMID for YAMAHA and SUZUKI
- Optimize menu, select by SCU code to help customers operate more easily

OPTIMIZED SYSTEM MORE STABLE, FASTER
GIFT A MOTOBOX ACCESSORY

NOTE: MOTOSCAN 7, 7 PRO and MOTOSCAN CE use an old hardware platform, so they do not support connecting to the engine of some new vehicles that have the CAN BUS protocol standard. You can change to MOTOSCAN TAB with the new hardware platform to diagnose CAN BUS vehicles as below:
- HONDA: SH 350i (2021-2023), X-ADV (2021-2023), FORZA (2021-2023), CBR1000 (2021-2023)...
- YAMAHA: NVX (2021-2023), AEROX (2021-2023), GRANDE (2021-2023), NMAX (2021-2023), TMAX(2021-2023)...

Price list
MOTOSCAN 7 STANDARD SELECTION
PRODUCT CODE DESCRIPTION PRICE
(USD)
SINGLE MODE
(Product code:
MT007H
MT007Y
MT007S
MT007PG)
MOTOSCAN 7H/ 7Y/ 7S
Support for only 01 manufacturer:
HONDA (MOTOSCAN 7H)
YAMAHA (MOTOSCAN 7Y)
SYM (MOTOSCAN 7S)
$395
MOTOSCAN 7PG
Support for only 01 manufacturer: PIAGGIO/ VESPA
$495
DOUBLE MODE
(Product code:
MT007HY
MT007HS)
MOTOSCAN 7HY/ 7HS
Support for 02 manufacturers
HONDA +YAMAHA (MOTOSCAN 7HY)
HONDA + SYM (MOTOSCAN 7HS)
$495
MULTI MODE
(Product code:
MT007M)
MOTOSCAN 7M
Support full function for 04 manufacturers:
HONDA + YAMAHA + SYM + SUZUKI
$635
PRO MODE
(Product code:
MT007F)
MOTOSCAN 7 PRO
Support full function for 06 manufacturers: HONDA + YAMAHA + SYM + SUZUKI + PIAGGIO + KYMCO
$710


MOTOSCAN 7 ADVANCED OPTION
(All more options here depend on the customer's option without the standard price list above)
PRODUCT CODE DESCRIPTION PRICE
(USD)
CABLE OPTION FOR ECU TEST FUNCTION
PACK 1 - HONDA (LD09-SCR) (for 02 motorcycles)
Used to check ECU for LEAD 2009–2011 (ECU code: 38770-GGE-901), SCR 110 (ECU code: 38770-GFM-902)
$45.00
PACK 2 - HONDA (LD12-AB08) (for 03 motorcycles)
Used to check ECU for LEAD 2012 (ECU code: 38770-GGE-941), AIR BLADE 2008 – 2010 (ECU code: 38770-KVG-V21), WINNER 2015-2018 (ECU code: 38770-K56-V01)
$45.00
PACK 3 - HONDA (AB11-VS11) (for 02 motorcycles)
Used to check ECU for AIR BLADE 2011 – 2012 (ECU code: 38770-KVG-V41), VISION 2011-2012 (ECU code: 38770-KZL-E71)
$45.00
PACK 4 - HONDA (F125-WA10) (for 04 motorcycles)
Used to check ECU for FUTURE 125 (ECU code: 38770-KYZ-V21), WAVE RSX, WAVE 110, WAVE 125 (ECU code: 38770-K03-M01)
$45.00
PACK 5 - HONDA (WAVE-AT) (for 02 motorcycles)
Used to check ECU for WAVE 110 RSX AT, WAVE 110 AT
(ECU code: 38770-KWZ-841)
$45.00
PACK 6 - HONDA (FUX-NEO) (for 02 motorcycles)
Used to check ECU for FUTURE NEO, FUTURE X
(ECU code: 38770-KVL-932)
$45.00
PACK 12A - HONDA (SH150i-PS) (for 02 motorcycles)
Used to check ECU for SH 125i/150i (2008-2012), PS (2008-2012)
$16.00
PACK 12B - HONDA (SH150i-PS) (for 02 motorcycles)
Used to check ECU for SH 125i/150i (2008-2012), PS (2008-2012)
$45.00
PACK 13 - HONDA ACG ECM TESTER (for 17 motorcycles)
Used to check ACG ECU for AIR BLADE 2013-2014, AIR BLADE 2015-2017, AIR BLADE 2018-2019, SH MODE 2013-2014, LEAD 2013-2014, LEAD 2015-2017, LEAD 2018-2019, SH MODE 2015-2017, SH MODE 2018-2019, SH 2015-2016, SH 2017-2019, PCX 2015-2017, PCX 2018-2020, VARIO125/150 2014-2017, VISION 2013-2015, VISION 2016-2017, VISION 2018-2020
(will continue to update for another vehicle)
$220.00
PACK 7 - YAMAHA (NOV-SI16) (for 02 motorcycles)
Used to check ECU for NOUVO SX (ECU code: 1DB-H591A-002XC-H591A-00), SIRIUS 2016 (ECU code: 1FC-H591A-11)
$45.00
PACK 8 - YAMAHA (EXCITER 2018) (for 01 motorcycle)
Used to check ECU for EXCITER 2018 (ECU code: 2ND-H591A-00)
$45.00
PACK 9 - YAMAHA (JUPITER-16) (for 01 motorcycle)
Used to check ECU for JUPITER FI (ECU code: 2VP-H591A-00)
$45.00
PACK 10 - YAMAHA (EXCITER-19) (for 01 motorcycle)
Used to check ECU for EXCITER 2019 (ECU code: 2ND-H591A-20)
$45.00
CABLE OPTION FOR CKP, IACV/ISCV TEST FUNCTION
PACK 11- CKP & IACV
Used to check Hall CKP sensor and IACV/ ISCV for all HONDA, YAMAHA, PIAGGIO/ VESPA
$45.00
Notes: when buying the goods, customers can choose to follow the options and make the total payment.
Example 1: MOTOSCAN 7 PRO = $825 = totals of payment
Example 2: MOTOSCAN 7 PRO + 03 add-in cables = $710 + ($45 X 3) = totals of payment


UPDATE FROM MOTOSCAN 7 OR 7 PRO TO MOTOSCAN 7 PRO 12/12/2023
VERSION DESCRIPTION PRICE
(USD)
7 PRO
Update from MOTOSCAN 7 PRO to MOTOSCAN 7 PRO 12/12/2023
$25.00
7
Update from MOTOSCAN 7 to MOTOSCAN 7 PRO 12/12/2023
Gift for 1 year using MOTODATA software
$75.00


UPGRADE TO MOTOSCAN 7
(Upgrade from the old MOTOSCAN version to MOTOSCAN 7, price does not include shipping)
VERSION DESCRIPTION PRICE
(USD)
6.2
6.3

Upgrade from MOTOSCAN 6.2 and 6.3 to MOTOSCAN 7 (including additional cable)
Gift for 1 year using MOTODATA software
$145.00
6.0
6.1

Upgrade from MOTOSCAN 6.0 and 6.1 to MOTOSCAN 7 (including additional cable)
Gift for 1 year using MOTODATA software
$175.00
5.8
Upgrade from MOTOSCAN 5.8 to MOTOSCAN 7 (including additional cable)
Gift for 1 year using MOTODATA software
$270.00
Functions


MOTOSCAN 7 FUNCTION LIST
ENGINE/ ABS SYSTEM
NO. DESCRIPTION COMMON FUNCTIONS
(basic diagnostic tools on the market have)
IN-DEPTH FUNCTIONS
(some normal diagnostic tools on the market may have)
SPECIAL FUNCTIONS DEVELOPED BY DTDAUTO
(normal diagnostic tools on the market do not have)
1
Read fault codes stored in ECM

2
Advanced display of fault code information (on MOTODATA software) including fault code content, component location, fault code principle electrical diagram, the overall principle diagram

3
Delete fault codes stored in ECM

4
Reset ECM

5
Display live data

6
Activate the actuators: Injector, Ignition coil, Fuel Pump, Solenoid valve, Stepper motor, Indicator and Headlight...

7
Setting: TPS, Reset IACV, Altitude

8
ECM information

9
Check depth A/F ratio

10
Adjust A/F ratio

11
A/F ratio tuning by remap for ECM

12
Upgrade original ECM & Up load tuning ECM firmware by sample remap files

13
Upload user-edited remap files for ECM based on the machine

14
Upload free user remap files for ECM from another source out of the machine (various selection of modes)

15
Rescue ECM

16
Advanced diagnostics with fault codes (analyze to find exact details, fault location) out of range faults

17
Advanced diagnostics without showing OBD fault codes (analyze by AI technology, find the exact cause, fault location) in of-range faults

18
Check CKP HALL sensor for HONDA, YAMAHA, PIAGGIO/ VESPA

19
Check the operation, and quality of the actuator (IACV, ISC…)

20
Check the operation, and quality components of hardware and software (specify show the position of components, the position of the cut holes) of Engine ECUs for some HONDA, YAMAHA…

21
Simulate Input signal types and communication signals to check and diagnose engine system faults (CKP, MAP, TP, IAT, ECT, O2, VSS)

22
Simulate Output signal types to check and diagnose engine system faults (INJ, IGPLS, RELAY, SOLENOID…)

ODO SYSTEM
23
Read the current ODO value
24
Correct and edit ODO value for ODO repair or replacement

25
Reload the original ODO software to repair or replace ODO

26
Look up location, connection diagram, and function pins to check on the same screen, convenient for manipulation, correction, and repair (on MOTODATA software)

27
Simulate normal Vss, K-line Vss signals to check and repair ODO

SMART KEY SYSTEM
28
SCU programming - register more keys (FOB)

29
SCU programming - register a new key (FOB) when all keys are lost

30
SCU programming – inactive use FOB when lost

31
SCU programming – reactivate use of FOB (after canceling use)

32
SCU programming – ECMID synchronization between SCU and ECM

33
Check results of synch FOB and SCU

34
Check the declared value of KEYID

35
Read KEYID directly from SCU

36
Delete KEYID inside SCU

37
Copy SCU data (from SCU A to SCU B) when repairing

38
Reload SCU sample data when repairing

IMMOBILISER SYSTEM
39
Register more keys

40
Register a new key when all keys are lost

41
Read KEYID directly from ECM/IC

42
Check the key, and read the current KEYID through the antenna (for Medley with ECM code: PGQ16)

43
Reset Immobiliser

44
Replace ECM

OTHER MEASURE FUNCTIONS
45

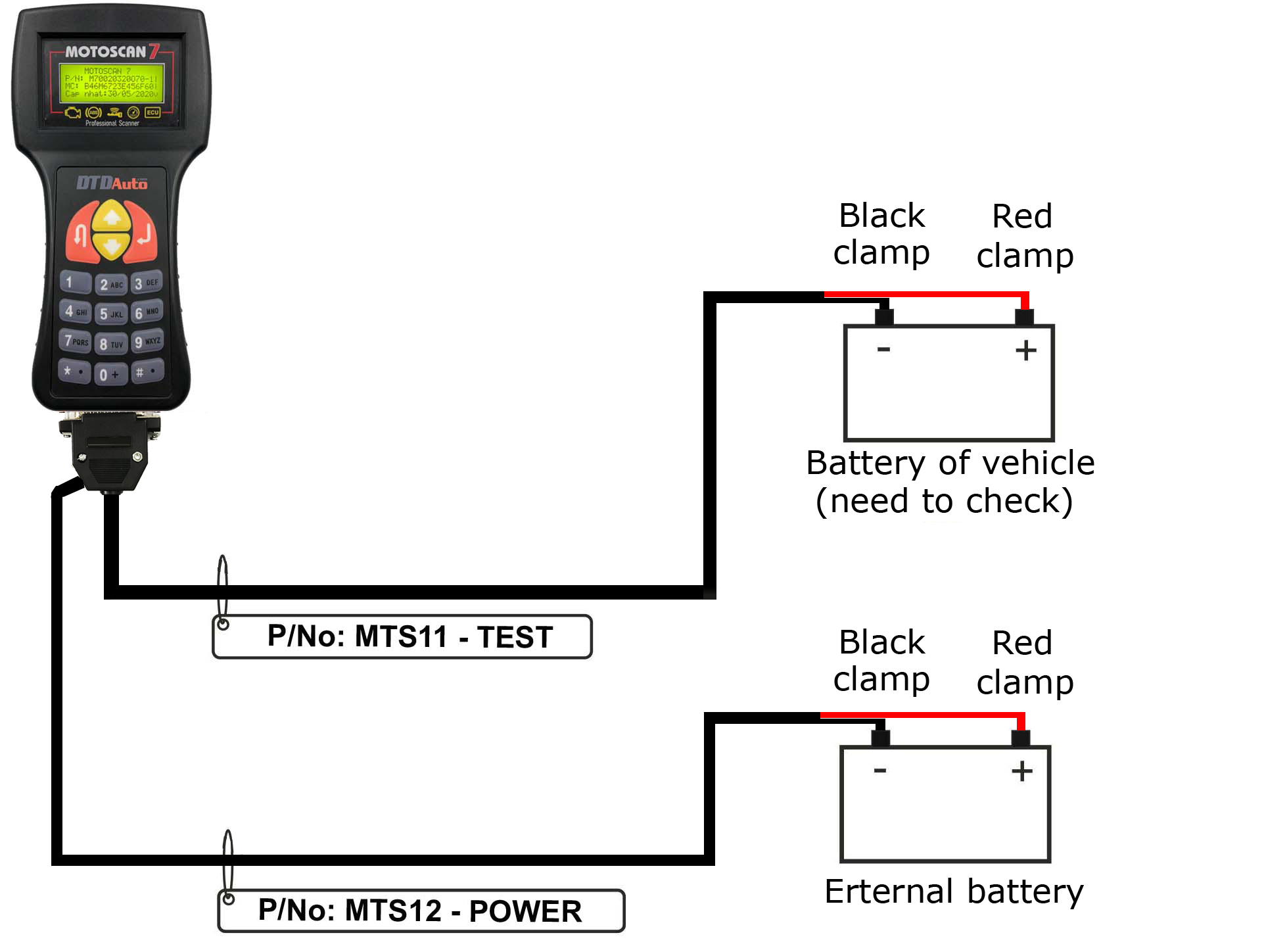

Check the quality and capacity of the battery

46
Check the charging status, operation, and quality of the charging system

LOOK UP TECHNICAL DOCUMENTS
(on MOTODATA SOFTWARE)
47
Support automatic calculation feature for motorcycle electronics repairmen: calculate the resistance value according to the color rim and according to the symbol on the SMD resistor; calculate the resistance for the LED circuit; calculate the correction resistance of the regulator, and rectifier; calculate sensor calibration auxiliary resistance…

48
Integrate lookup data and documents, repair data, electrical diagrams of all kinds, and electrical and mechanical specifications in one application

49
Look up principle diagrams and assembled circuit diagrams for vehicle systems

50
Look up electrical specifications

51
Look up engine mechanical specifications and disassembly instructions

53
Look up the function pin position of ECU, ABS, SCU...

54
Look up acronyms, wire colors, fault code information, SCU, FOB...

55
Repair workshop management function: warehouse management, service, personnel, customers, maintenance...


DETAILED FUNCTION TABLE

READ/DELETE
FAULT CODE
RESTORE ECU VIEW LIVE DATA ACTIVE, RESET
TEST ACTUATOR
ADVANCED DIAGNOSTIC A
REMAP, TUNING ECM
A
A
CHECK A/F CHECK SENSOR & ACTUATOR     CHECK
ECU
CHECK BATTERY
LIFE/CAPACITY
CHECK GENERATOR PROGRAM KEY
SMARTKEY
CORRECT ODO VALUE SIMULATE ECU SIGNALS ECM INFORMATION
                ECM CODE
A
         ON/OFF
A
A/F RATIO
A
AIR BLADE (08-10) ECM code: 38770–KVG–V21
ECM code: 38770–KVG–A31
IACV
IACV
ECU
AIR BLADE (11-12) ECM code: 38770–KVG–V42
ECM code: 38770–KVG–V41

AIR BLADE (13-17) ECM code: K66A–V01–VN01
ECM code: K27A-V01-V01
ECM code: K27G-V51-V01
  ECU
AIR BLADE (18-22) ECM code: K66G–VG1–V01
ECM code: K66G–VE1–NO SMK
ECM code: K1FA–V01–V11
ECM code: K1GA–V01–V11
ECM code: K2ZA-V01-V11
ECM code: K3AA-V01-V11
EVAPO
EVAPO
EVAPO
EVAPO
SMARTKEY
SMARTKEY
ECU
BEAT (2021-2023)
CB150R (2017-2019)

CB300R (2017-2019)

CB650R (2019-2021)
CBR250
CBR650R (2019-2021)
CB650F (2019-2021)
CBR650F (2019-2021)
CB500X (2019-2021)
CBR500R (2019-2021)
CB500F (2019-2021)
CBR50RR (2019-2021)
CBR150R (2019-2021)
CLICK           ECM code: 38770–KVB–T03
CLICK-i
CLICK 125/150 ECM code: K60S–T71–TH01
ECM code: K59R–C01–CA01
SMARTKEY
SMARTKEY

DYLAN
DREAM 110i   ECM code: 38770–K76–T62
ECM code: 38770– KZV–A61

DUNK (2019-2023)
FORZA
FUTURE NEO FI         ECU
FUTURE X FI ECM code: 38770–K03–M01
ECM code: 38770–G90–V02
ECM code: 38770–KYZ–G01
  ECU
FUTURE 125 FI ECM code: 38770–K03–M01
ECM code: 38770–G90–V02
ECM code: 38770–KYZ–G01
  ECU
GENIO (2019-2021)
LEAD 110 ECM code: 38770–GGE–901
ECM code: 38770–GGE–941
IACV
IACV
ECU
LEAD 125 ECM code: K12A-901-V01
ECM code: K12H–931–V01
ECM code: K12K–V11–V01
ECM code: K12M-V81-V01
ECM code: K12M–V91–V01
ECM code: K12K–V01–V01–SMK
ECM code: K2TA-V11-V11
EVAPO
EVAPO
EVAPO
SMARTKEY
EVAPO

MSX (14-16) ECM code: 38770–K26–901
ECM code: 3877–K26–911

MONKEY 125i         ECM code: 38770–K0F–T01
MSX (17-19)   ECM code: 38770–K26–B13
ECM code: 38770–K26–C31

PCX (08-15)       ECU
PCX (16-19) ECM code: K36S–T31–TH01
ECM code: K36S–TH01–TH1
ECM code: K96A-T01-TU01

PCX 150/160 ECM code: K96A-V01-V01
ECM code: K97A-V01-V01
ECM code: K96A-T01-TU01
SMARTKEY
SMARTKEY

PCX HYBRID
PS ECM code: 16400–KTF–982
ECM code: 16400–KTF–641
ECM code: 16400–KTG–641
ECM code: 16400–KTG–982
ECM code: 16400–KTG–921
IACV, O2
IACV, O2
IACV, O2
IACV, O2
IACV, O2
ECU
SH 125/150i (Italia) ECM code: 16400–KTF–982
ECM code: 16400–KTF–641
ECM code: 16400–KTG–641
ECM code: 16400–KTG–982
ECM code: 16400–KTG–921
IACV, O2
IACV, O2
IACV, O2
IACV, O2
IACV, O2
ECU
SH 125/150 ESP ECM code: K77A–V01–V11
ECM code: K77A–V11–V01
ECM code: K78A–V01–V01
ECM code: K78A–V11–V01
ECM code: K01J–611–V01
ECM code: K02K–701–V01
ECM code: K0SA-V01-V01
ECM code: K0SA-V12-V01
ECM code: K0RA-V12-V01
SMARTKEY
SMARTKEY
SMARTKEY
SMARTKEY
SMARTKEY
SMARTKEY
SMARTKEY
SMARTKEY
SMARTKEY
ECU
SH 300i ECM code: 16400–KTW–B02 IACV, O2
SH 300i ABS ECM code: 16400–KTW–B02 IACV, O2
SH MODE ECM code: K29K–961–V01
ECM code: K29M–V81–V01
ECM code: K1NA-V01-V11
EVAPO, SMARTKEY
EVAPO, SMARTKEY
SMARTKEY
ECU
SCR 110 ECM code: 38770–GFM–902 IACV ECU
SCOOPY
SCOOPY-i ECM code: 38770–KYT–901
SONIC ECM code: 38770–K56–N01
SUPER CUB C125 ECM code: 38770–GBJ–M53
SUPRA   ECM code: 38770–KYZ–713
VARIO ECM code: K59K-T11-TH01
ECM code: K59F-A01-IN01
ECM code: K59J-A71-IN01
ECM code: K60K-B31-IN01
ECM code: K60R-B61-IN01
ECM code: K60R-B71-IN01
ECM code: K2SA-N02-IN01
ECM code: K60K-B21-IN01
ECM code: K59A-A11-IN01
ECM code: K60F-T01-TH01
SMARTKEY
SMARTKEY
SMARTKEY
SMARTKEY
SMARTKEY
SMARTKEY
SMARTKEY

VISION ECM code: 38770–KZL–E12
ECM code: 38770–KZL–E13
ECM code: 38770–KZL–E71
ECM code: K44P–V81–V01
SMARTKEY
SMARTKEY
SMARTKEY
SMARTKEY
ECU
VISION ESP ECM code: K2CA-V11-V01
ECM code: K2CA-V31-V01
ECM code: K2CF-VA1-V01
ECM code: K44F–V01–VN01
ECM code: K44P–V91–V01
SMARTKEY
SMARTKEY

WAVE RSX FI ECM code: 38770–K90–V02
ECM code: 38770–G90–V02
ECM code: 38770–KYZ–G01
  ECU
WAVE RSX FI AT       ECU
WINNER 150 ECM code: 38770–K56–V01   ECU
WINNER X ECM code: 38770–K56R–V51
WAVE 110i ECM code: 38770–K03–A61
ECM code: 38770–K03–H01
ECM code: 38770–K58–T81
ECM code: 38770–K58–TC1
  ECU
WAVE 125
(Thailand)
ECM code: 38770–KYZ–V71
ECM code: 38770–KYZ–T03
    ECU
WAVE 125i ECM code: 38770–KYZ–V71
ECM code: 38770–KYZ–T03
  ECU
X-ADV
ZOOMER
Other HONDA FI
HONDA
mechanical carburetor



READ FAULT CODE DELETE FAULT CODE/
RESTORE ECU
VIEW LIVE DATA ACTIVE, RESET
ACTUATOR
ADVANCED DIAGNOSTIC ADJUST A/F CHECK A/F CHECK SENSOR & ACTUATOR CHECK ECU CHECK BATTERY
LIFE/CAPACITY
CHECK GENERATOR PROGRAM KEY
SMARTKEY
CORRECT ODO VALUE SIMULATE ECU SIGNALS ECM INFORMATION
ACRUZO DELUXE
ACRUZO STANDARD
AEROX
Smartkey
CUXI
GRANDE DELUXE
GRANDE STD
GRANDE STD. 2019
GRANDE DUL. 2019
GRAND FILANO (2019-2023)
EXCITER 150 GP ECU
EXCITER 150 RC ECU
EXCITER MOVISTAR ECU
EXCITER CAMO ECU
EXCITER GP (2019-2020)   ECU
EXCITER RC (2019-2020)   ECU
EXCITER MON. (2019-2020)   ECU
EXCITER DOX. (2019-2020)   ECU
EXCITER MOV. (2019-2020)   ECU
EXCITER 150i (2019-2020)   ECU
EXCITER 155 VVA
Smartkey
FREEGO 2019
FREEGO S 2019
FZ1 FAZER
FZ 150
FZ 150I GP
FZ 150I MOVISTAR
FZ-S
JANUS STANDARD
JANUS DELUXE
Smartkey
JANUS PREMIUM
Smartkey
JUPITER FI GRAVITA ECU
JUPITER FI GREEN ECU
JUPITER FI GP ECU
JUPITER FI RC ECU
JUPITER FINN
LATTE 2019
LEXI
Smartkey
LUVIAS GTX FI
LUVIAS FI
NM-X
Smartkey
NMAX
Smartkey
NOZZA
NOZZA LIMITED
NOUVO LX
NOUVO SX RC ECU
NOUVO SX STD ECU
NOUVO SX GP ECU
NVX 125 DELUXE
Smartkey
NVX 155 STANDARD
NVX 155 ABS
Smartkey
M-SLAZ (2016-2018)
MT-03 (2015-2019)
MT-15 (2016-2021)
MT-25 (2015-2019)
YZF R15
SIRIUS FI ECU
SMAX
Smartkey

FZ-S
TMAX
Smartkey
TFX
QBIX
Smartkey
YBR
YZF-R3
YZC
Other YAMAHA FI
YAMAHA
mechanical carburetor



READ/DELETE
FAULT CODE
RESTORE ECU VIEW LIVE DATA ACTIVE, RESET
TEST ACTUATOR
CHECK A/F SET TPS ZERO POINT ADVANCED DIAGNOSTIC CHECK BATTERY
LIFE/CAPACITY
CHECK GENERATOR PROGRAM
MCU/EEPROM
PROGRAM KEY
IMMOBILISER
CORRECT ODO VALUE SIMULATE ECU SIGNALS ECM INFORMATION
BEVERLY125 MIUG1/ MIUG2/ MIUG3
BEVERLY 300 MIUG1/ MIUG2/ MIUG3
BEVERLY 350 MIUG1/ MIUG2/ MIUG3
FLY 125 MIUG1/ MIUG2/ MIUG3
FLY 150 MIUG1/ MIUG2/ MIUG3
FLY 125 3V MIUG1/ MIUG2/ MIUG3
FLY 150 3V MIUG1/ MIUG2/ MIUG3
FLY 125 AC19I/20I
FLY 150 AC 19I/20I
FLY 125 AC 191/201
FLY 150 AC 191/201
FLY AC II/AC2I/
AC5I/AC8I
LIBERTY 125 3V PGN04/ PGS02/ PGR04/ PGS05/ PGS06/ PGT01
LIBERTY 150 3V MIUG1/ MIUG2/ MIUG3
LIBERTY 150 3V PGN04/ PGS02/ PGR04/ PGS05/ PGS06/ PGT01
LIBERTY 125/150 AC19I/20I
LIBERTY 125/150 AC191/201
LIBERTYAC II/
AC2I/AC5I/AC8I
LIBERTY 125/150 PGU09/PGT10
LIBERTY ABS PGS06
MEDLEY 125 ABS
MEDLEY 150 ABS
MEDLEY 125 PGQ16 đang cập nhật...
MEDLEY 150 PGQ16 đang cập nhật...
X10 125 MIUG1/ MIUG2/ MIUG3
X10 350 MIUG1/ MIUG2/ MIUG3
Other PIAGGIO FI
PIAGGIO
mechanical carburetor


READ/DELETE
FAULT CODE
RESTORE ECU VIEW LIVE DATA ACTIVE, RESET
ACTUATOR
CHECK A/F SET TPS ZERO POINT CHECK BATTERY
LIFE/CAPACITY
CHECK GENERATOR REPROGRAM
MCU/ EEPROM
PROGRAM KEY
SMARTKEY
CORRECT ODO VALUE SIMULATE ECU SIGNALS ECM INFORMATION
VESPA 946 125
3V MIUG1/ MIUG2/ MIUG3
VESPA 946 150 3V MIUG1/ MIUG2/ MIUG3
GTS 125 MIUG1/ MIUG2/ MIUG3
GTS 150 MIUG1/ MIUG2/ MIUG3
LXV 125 3V MIUG1/MIUG2/ MIUG3
GTS 125 ABS MIUG1/MIUG2/ MIUG3
GTS 300 ABS MIUG1/ MIUG2/ MIUG3
LT125 3V MIUG1/ MIUG2/ MIUG3
LT150 3V MIUG1/ MIUG2/ MIUG3
LX125 MIUG1/ MIUG2/ MIUG3
LX 125 AC19I/AC20I
LX 125 AC191/AC201
LX 125 ACII/AC2I/
AC5I/AC8I
LX 150 MIUG1/ MIUG2/ MIUG3
LX 125 3V MIUG1/ MIUG2/ MIUG3
LX 150 3V MIUG1/ MIUG2/ MIUG3
LX 150 AC19I/AC20I
LX 150 AC191/AC201
LX 150 ACII/AC2I/
AC5I/AC8I
LX 125 3V PGN04/ PGS02/ PGR04/ PGS05/ PGS06/ PGT01
LX 150 3V PGN04/ PGS02/ PGR04/ PGS05/ PGS06/ PGT01
LXV 125 2V MIUG1/ MIUG2/ MIUG3
LXV 125 3V MIUG1/ MIUG2/ MIUG3
LXV 150 3V MIUG1/ MIUG2/ MIUG3
PRIMAVE 125 MIUG1/ MIUG2/ MIUG3
PRIMAVE 150 MIUG1/ MIUG2/ MIUG3
PRIMAVE 125 PGN04/ PGS02/ PGR04/ PGS05/ PGS06/ PGT01
PRIMAVE 150 PGN04/ PGS02/ PGR04/ PGS05/ PGS06/ PGT01
PRIMAVERA 125/50 (PGU09/PGT10)
PRIMAVERA ABS
S125 MIUG1/ MIUG2 MIUG3
S150 MIUG1/ MIUG2/ MIUG3
S125 3V MIUG1/ MIUG2/ MIUG3
S150 3V MIUG1/ MIUG2/ MIUG3
S 125/150 PGU09
S 125/150 PGT10
SPRINT 125/150 3V PGN04
SPRINT 125/150 (PGU09/PGT10)
SPRINT ABS
Other VESPA FI
VESPA
mechanical carburetor


READ FAULT CODE DELETE FAULT CODE/
RESTORE ECU
VIEW LIVE DATA ACTIVE, RESET
ACTUATOR
ADJUST A/F CHECK A/F ADVANCED DIAGNOSTIC CHECK BATTERY
LIFE/CAPACITY
CHECK GENERATOR PROGRAM
MCU/EEPROM
PROGRAM KEY
SMARTKEY
CORRECT ODO VALUE SIMULATE ECU SIGNALS ECM INFORMATION
ATTILA-V SMART IDLE
ELIZABETH SMART IDLE
ELIZABETH 110
ELIZABETH 2014
ELIZABETH 20 năm
ELIZABETH SMART
FANCY
JOYRIDE
SHARK 125
SHARK 125 CBS
SHARK MINI 125 EFI
SHARK MINI 125 SPORT
STAR
PASSING EFI
POWER EFI
VENUS EFI
VENUS 125 EFI
VENUS 125 CBS
VENUS 125 SMART IDLE
Other SYM FI
SYM
mechanical carburetor



READ FAULT CODE DELETE FAULT CODE
RESTORE ECU
VIEW LIVE DATA ACTIVE, RESET
ACTUATOR
CHECK A/F ADVANCED DIAGNOSTIC CHECK BATTERY
LIFE/CAPACITY
CHECK GENERATOR PROGRAM
MCU/EEPROM
PROGRAM KEY
SMARTKEY
CORRECT ODO VALUE SIMULATE ECU SIGNALS ECM INFORMATION
ADDRESS 110cc
HAYATE 125 SS
UA 125-T
VIVA 115
GSX R150
GZ150-A
EN150-A
THUNDER 150/150S
IMPLUSE
RAIDER 150
SATRIA (2017-2021)
STAR RS 125 EFI
STAR SR 170 ABS
Other SUZUKI FI
SUZUKI
mechanical carburetor


READ FAULT CODE DELETE FAULT CODE/
RESTORE ECU
VIEW LIVE DATA ACTIVE, RESET
ACTUATOR
ADJUST A/F CHECK A/F ADVANCED DIAGNOSTIC CHECK BATTERY
LIFE/CAPACITY
CHECK GENERATOR PROGRAM
MCU/EEPROM
PROGRAM KEY
SMARTKEY
CORRECT ODO VALUE SIMULATE ECU SIGNALS ECM INFORMATION
PEOPLE S FI
PEOPLE 16 FI
MANY MACAROL FI
MANY FI
LIKE FI
JOCKEY FI
Other KYMCO FI
KYMCO
mechanical carburetor

Image & Video
DLC LOCATION ON THE VEHICLES & WIRING CONNECTION DIAGRAM

1. CONNECTING DLC ON THE VEHICLES
(This connection is used for reading/clearing fault code, resetting ECM, and showing live data and actuators)

K: K-line; E: Negative battery; B: Positive Battery

a. PIAGGIO:

b. HONDA:
- Type 1:

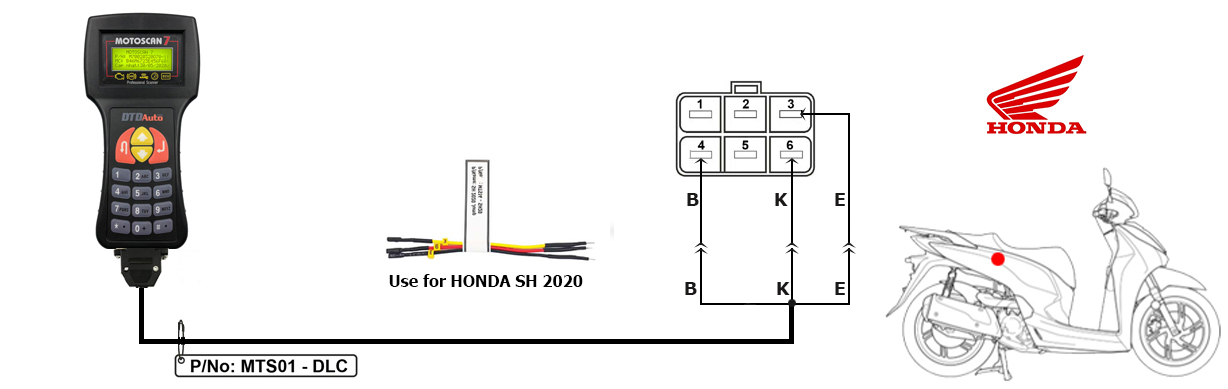

- Type 2:

c. SYM:

d. YAMAHA:
- Type 1:

- Type 2:


Step 1: Disconnect the connector between the dashboard and ECU
Step 2: Connect the K wiring of cable to ECU diagnose connector

- Type 3:


e. KYMCO


f. SUZUKI


2. CONNECTING WIRE ON SPECIAL FUNCTIONS
(Check battery, and generator)


3. CONNECTION DIAGRAM WITH MOTOBOX

SOME MOTOSCAN INTERFACES
MOTOSCAN information
List of vehicle
List of vehicle
Function table List of system List of system
Function table Function table Function table
Test ECU Test battery Program smart key
Program smart key Program smart key Program smart key
Read fault code Active actuator ECM information
Live data A/F ratio Adjust ODO

LIST OF TUTORIAL VIDEOS
- Click here to view the clip for adjusting the A/F ratio, repairing excessive fuel consumption fault by ECM icon
- Click here to view the clip for loading user data for ECM (user self-modifies the data file) icon
- Click here to view the clip for programming the Smart key of HONDA VISION 2021 when lost all of the keys icon

- Click here to view clip for adjusting A/F, Tuning, and reprogramming ECU

- Click here to view the clip for testing IACV/ ISCV valve

- Click here to view the clip for testing the Hall sensor

- Click here to view the clip for testing components fault in ECM (ECU tester)

- Click here to view the clip for the ECU tester function

- Program Smart key and connect YAMAHA, SUZUKI

- Click here to view the clip for new functions on MOTOSCAN 6.3

- Click here to view the clip for connecting MOTOSCAN 6.3 to YAMAHA EXCITER 2019

- Click here to view the clip for smart key programming of the HONDA motorbike on MOTOSCAN 6.2

- Click here to view the clip for MOTOSCAN 6 on VTV2, Vietnam Television

- Click here to view the clip for smart key programming of YAMAHA (lost all keys)

- Click here to view the clip for odometer correction of HONDA Vario

- Click here to view the clip for direct RPM measurement from high-tension lead

- Click here to view the clip for determining fault by the camera on smartphone (Android operating system)

- Click here to view the clip for determining the ABS system fault of the HONDA motorbike

- Click here to view the clip for smart key programming of the HONDA motorbike

- Click here to view the clip for odometer correction of the motorbike

- Click here to view clip for drop-down power when sudden acceleration

- Click here to view the clip for connecting MOTOSCAN to PIAGGIO Medley

- Click here to view the clip for connecting MOTOSCAN to YAMAHA NVX 155cc

- Click here to view the clip for the programming key of PIAGGIO/VESPA (ECM types are PGN04, PGS02/PGR04/PGS05/PGS06, MIUG3)

- Click here to view clip for programming key of PIAGGIO/VESPA (ECM types arre AC19I, AC20I)

- Click here to view the clip for upgrading the firmware of HONDA VISION

- Click here to view the clip for upgrade firmware in IC, ECM of PIAGGIO/VESPA

- Click here to view the clip for signal simulating (Part 3)

- Click here to view the clip for signal simulating (Part 2)

- Click here to view the clip for signal simulating (Part 1)

- Click here to view the clip for advanced fault diagnosing of the YAMAHA motorbike

- Click here to view the clip for checking injector mechanical

- Click here to view the clip for activating headlamp of YAMAHA

- Click here to view the clip for diagnosing the fault position on the electronic wiring diagram

- Click here to view the clip for diagnosing complex faults that MIL lamp does not indicate

- Click here to view the clip for adjusting the odometer

- Click here to view the clip for functions & application range of MOTOSCAN

- Click here to view the clip for checking fuel pressure & compression pressure of cylinders

- Click here to view the clip for checking the Air/Fuel ratio

- Click here to view the clip for reading fault codes

- Click here to view the clip for checking the intake air temperature sensor

- Click here to view the clip for checking the engine coolant temperature sensor

- Click here to view the clip for checking the throttle position sensor

- Click here to view a clip for studying live data

- Click here to view the clip for actuator activation

- Click here to view the clip for adjusting the Air/Fuel ratio

- Click here to view the clip for checking the battery, generator, charger

- Click here to view the clip connect MOTOSCAN to YAMAHA motorbike

- Click here to view the clip erasing fault code & reset ECU/ECM

- Click here to view the clip lookup fault code

- Click here to view the clip for reading fault code by MIL
Package List
STANDARD MOTOSCAN 7 PACKAGE
(included in the package)
NO. PART NUMBER DESCRIPTION IMAGE
1
A hand tool with LCD and function button
2 MT0006
MOTOBOX accessory (included in the MOTOSCAN 7 PRO package)
Support many functions for MOTOSCAN 7:
- Reprogram and upgrade firmware for ECM HONDA & PIAGGIO, VESPA
- ODO value correction for HONDA, YAMAHA, SYM, PIAGGIO, VESPA...
- Signal INPUT/ OUT ECU Simulator for diagnosis, test, and repair ECU
- Test fault inside ECU (this function needs to buy more compatible cables)
- Test Hall CKP sensors & IACV/ ISCV for HONDA, YAMAHA, PIAGGIO, and VESPA (this function need to buy more compatible cables)
- And more when updated...
3 MTS01-DLC
Data cable used to determine fault, view live data active actuators and calibrate parameters for vehicles, kinds of diagnostic connectors:
- HONDA 4-pin DLC

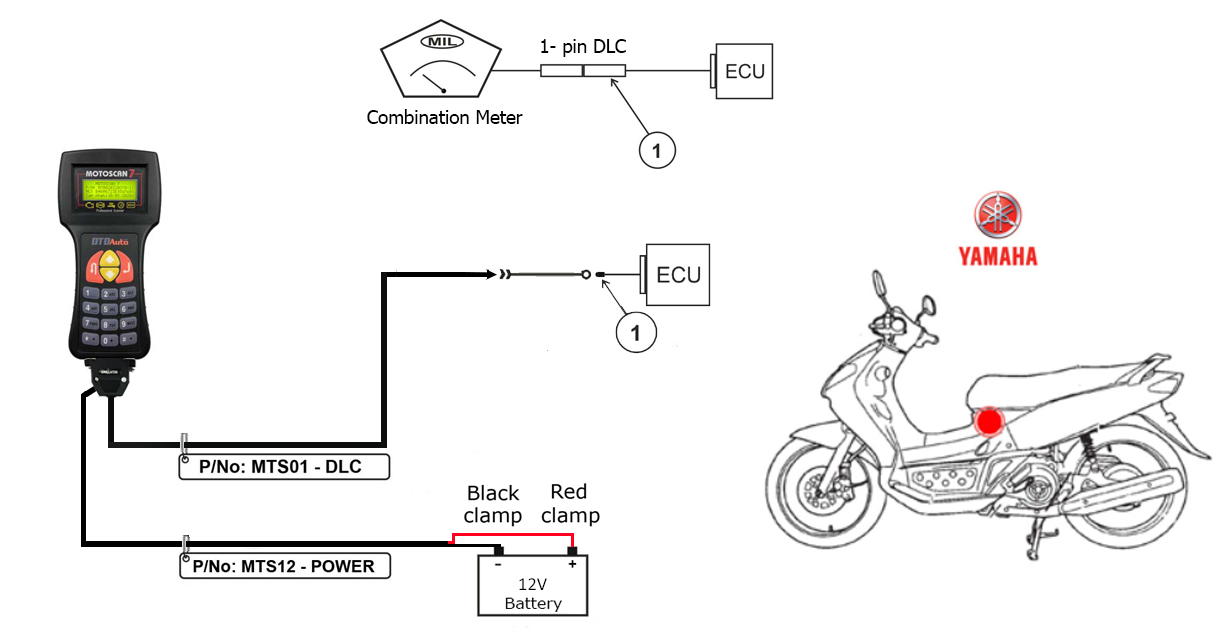

- HONDA 6-pin DLC

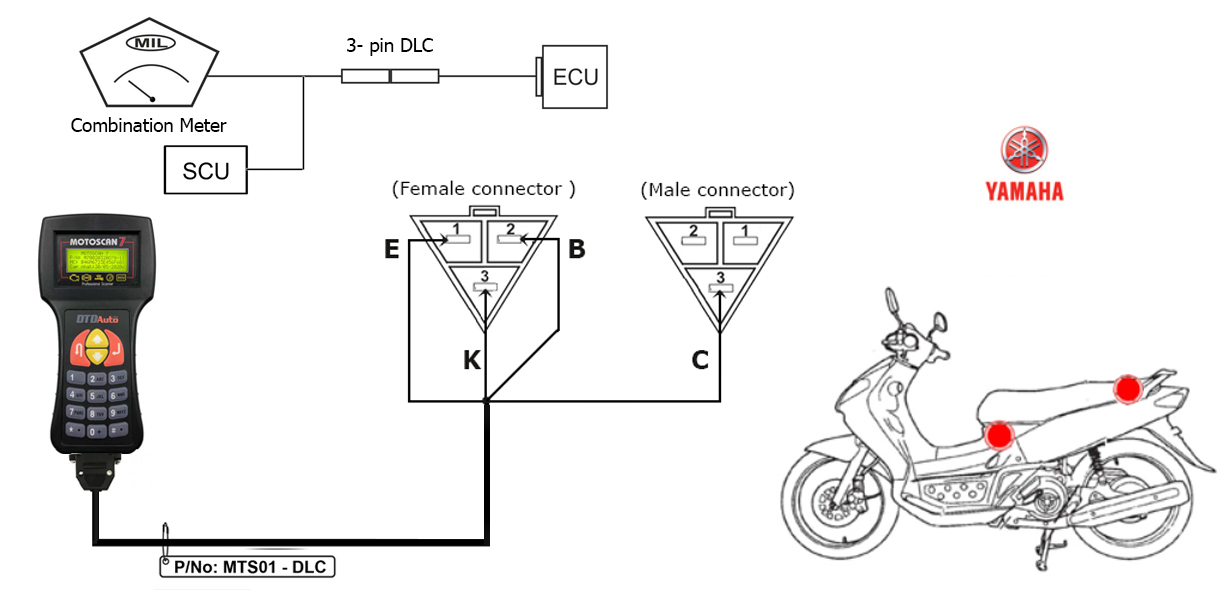

- YAMAHA 1-pin DLC
- YAMAHA 3-pin DLC

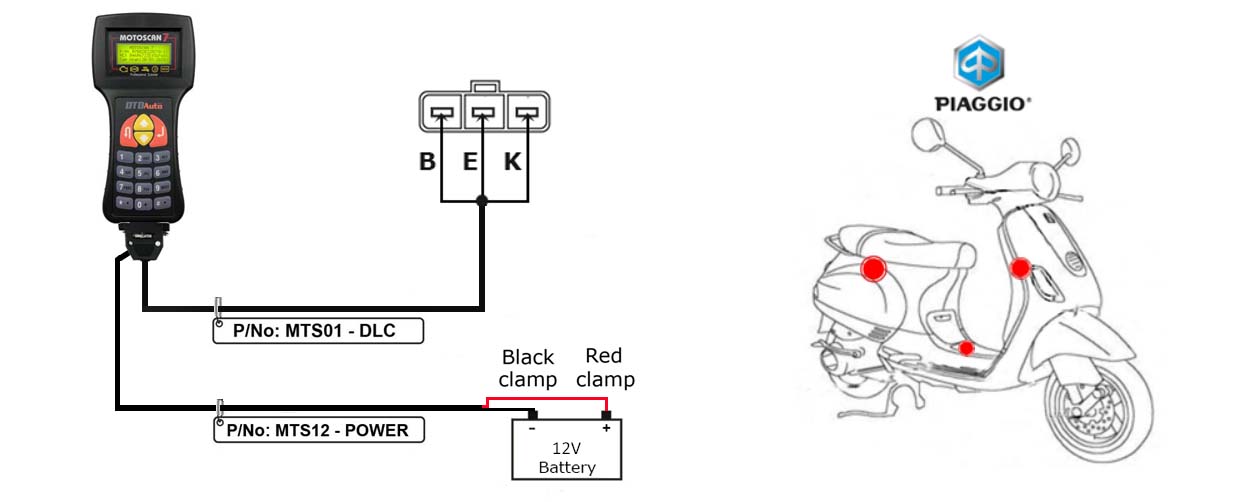

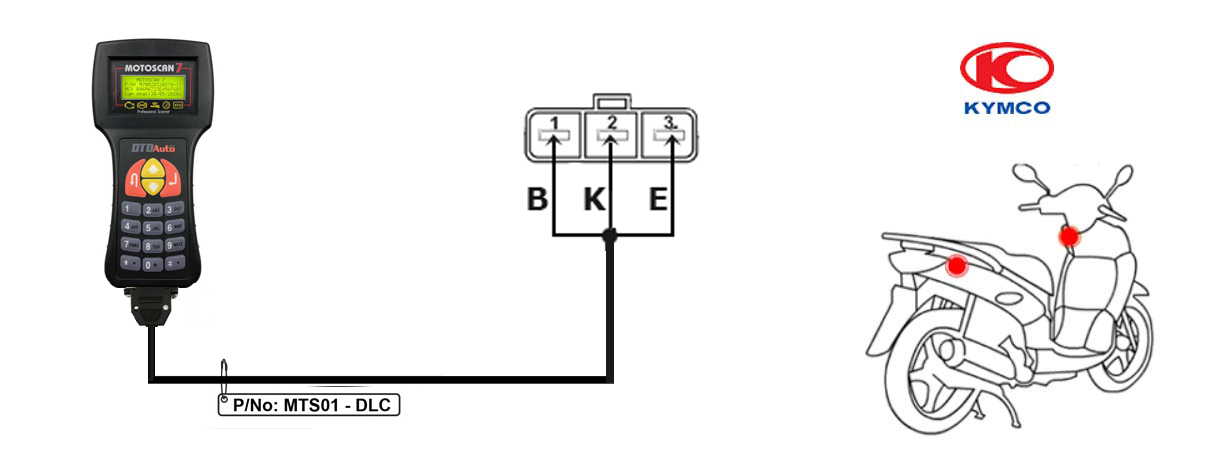

- PIAGGIO, SYM, KYMCO, SUZUKI: K-line single-pin
4 MTS12-ABS
Data cable for YAMAHA
(CAN BUS communication protocol)
5 MTS06-SP01
HONDA Smart key cable
Used for HONDA: SH, PCX, X-ADV…
6 MTS06-VS01
HONDA Smart key cable
Used for HONDA VISION 2021
7 MTS06-LV01
HONDA Smart key cable
Used for HONDA: AIR BLADE, LEAD, VISION, VARIO, CLICK
8 MTS06-YS01
YAMAHA/SUZUKI Smart key cable
9 TB08-TMAX
YAMAHA TMAX Smart key cable
10 MTS11-TEST
Data cable used for checking battery and generator
11 MTS02-UPD
Update cable
Use for software updates of versions and models upgrade
12 MTS12-POWER
12V/ DC power cable
13
220V/AC to 12V/ DC power converter
14
Jump cable:
- K-line cable
- Power cable
- YAMAHA cable
- SH2020 cable
15
Spare fuse
16
MOTODATA software on PC or mobile
Free 01 using year, need pay fee to renew for the next year
17
Quick guide
18
Handbag


EXTRA PACKAGE

ADVANCED FUNCTION OPTIONAL FOR MOTOSCAN 7
(not included in the price of standard MOTOSCAN TAB package)
PRODUCT DESCRIPTION IMAGE
OPTION CABLE FOR ECU TEST FUNCTION
PACK 1 - HONDA (LD09-SCR)
(for 02 motorcycles)
Used to check ECU for HONDA LEAD 2009–2011 (ECU code: 38770-GGE-901), HONDA SCR 110 (ECU code: 38770-GFM-902)
PACK 2 - HONDA (LD12-AB08)
(for 03 motorcycles)

Used to check ECU for LEAD 2012 (ECU code: 38770-GGE-941), AIR BLADE 2008 – 2010 (ECU code: 38770-KVG-V21), WINNER 2015-2018 (ECU code: 38770-K56-V01)
PACK 3 - HONDA (AB11-VS11)
(for 02 motorcycles)
Used to check ECU for HONDA AIR BLADE 2011 – 2012 (ECU code: 38770-KVG-V41), HONDA VISION 2011-2012 (ECU code: 38770-KZL-E71)
PACK 4 - HONDA (F125-WA10)
(for 04 motorcycles)
Used to check ECU for FUTURE 125 (ECU code: 38770-KYZ-V21), WAVE RSX, WAVE 110, WAVE 125 (ECU code: 38770-K03-M01)
PACK 5 - HONDA (WAVE-AT)
(for 02 motorcycles)
Used to check ECU for WAVE 110 RSX AT, WAVE 110 AT
(ECU code: 38770-KWZ-841)
PACK 6 - HONDA (FUX-NEO)
(for 02 motorcycles)
Used to check ECU for FUTURE NEO, FUTURE X
(ECU code: 38770-KVL-932)
PACK 12A - HONDA (SH150i-PS)
(for 02 motorcycles)
Used to check ECU for SH 125i/150i (2008-2012), PS (2008-2012)
PACK 12B - HONDA (SH150i-PS)
(for 02 motorcycles)
Used to check ECU for SH 125i/150i (2008-2012), PS (2008-2012)
PACK 13 - HONDA ACG ECM TESTER
(currently, support for 17 vehicles, will continue to update for other vehicles)
Signal converter
Used to simulate signal of HALL CKP sensor
(cable number: HALL CKP SIM)
Used to check ACG ECU for HONDA AIR BLADE 2015-2017
(cable number: AB15-17)
Used to check ACG ECU for HONDA SH MODE 2013-2014
(cable number: SM13-14)
Used to check ACG ECU for HONDA: LEAD 2013-2014, LEAD 2015-2017
(cable number LD13-14)
Used to check ACG ECU for HONDA: LEAD 2018-2019, SH MODE 2015-2017, SH MODE 2018-2019, AIR BLADE 2013-2014, AIR BLADE 2018-2019, VARIO125/150 2014-2017
(cable number: AB13-LD19)
Used to check ACG ECU for HONDA: VISION 2013-2015, VISION 2016-2017, VISION 2018-2020
(cable number: VS13-19)
Used to check ACG ECU for HONDA SH 2015-2016
(cable number: SH15-16)
Used to check ACG ECU for HONDA: SH 2017-2019, PCX 2015-2017, PCX 2018-2020
(cable number: SH17-PX18)
Cap to suppress noise from the ignition coil for the CKP Hall sensor (used when simulating the CKP HALL signal)
PACK 7 - YAMAHA (NOV-SI16)
(for 02 motorcycles)
Used to check ECU for NOUVO SX (ECU code: 1DB-H591A-002XC-H591A-00), SIRIUS 2016 (ECU code: 1FC-H591A-11)
PACK 8 - YAMAHA (EXCITER 2018)
(for 01 motorcycle)
Used to check ECU for EXCITER 2018 (ECU code: 2ND-H591A-00)
PACK 9 - YAMAHA (JUPITER-16)
(for 01 motorcycle)
Used to check ECU for JUPITER FI (ECU code: 2VP-H591A-00)
YAMAHA PACK 10 - YAMAHA (EXCITER-19)
(for 01 motorcycle)
Used to check ECU for EXCITER 2019 (ECU code: 2ND-H591A-20)
CABLE OPTION FOR CKP, IACV/ISCV TEST FUNCTION
PACK 11 - CKP & IACV
Used to check Hall CKP sensor and IACV/ ISCV for all HONDA, YAMAHA, PIAGGIO/ VESPA
Download
Product introduction
Download
Download guide book
Download
Description
INTRODUCTION

- MOTOSCAN is a small motorcycle & Scooter scanner. It was researched and manufactured by DTDAuto Vietnam in 2013.
- MOTOSCAN is used for motorbike repair workshops and motorbike technical vocational training to determine faults and repair electronic & electrical systems for most motorbikes and scooters in the Asia market and some other markets with electronic control systems for starting, fuel injection, ignition, ABS, Smart key, ODO, ECU…
- MOTOSCAN is used for diagnosing faults, repairing faults for Engine & ABS systems; automatic programming smart key system; automatic testing ECU inside, automatic engine technical analyzing, intelligent diagnosing without OBD fault code, ODO value correction, ECU signal simulating, programming, and upgrading standard software of manufacturer inside ECM, SCU… and many special measurement functions, full-featured for professional motorbike repair workshop.
Since 2020, MOTOSCAN has supported advanced functions that communicate with the SCU system (Smart key Control Unit) to solve requirements of automatic smart key programming in case of registration of a new key, loss of the keys, replacing SCU, replacing ECM, copy, restoring and editing SCU data.
- In particular, with the MOTOBOX advance accessory, MOTOSCAN can correct true odometer value, reprogram ECM, simulate ECU signals, and test faults inside ECU (ECU tester) ... to repair advanced problems in electronic systems of new generation motorbikes/scooters.
- MOTOSCAN has supported professional functions that used diagnosis solutions by analyzing auto data. It can find hard faults that the MIL lamp does not indicate such as Idling Stop mode trouble, down power when accelerating, over idle speed, more fuel consumption, weak engine, hard start, and mechanical faults that common diagnostic tools cannot execute.
- Support programming, adjusting and setting parameters in ECU as electronic key programming, zero point programming of TPS, air/fuel ratio programming, idle speed, and pulse bandwidth adjustment to control fuel injection...
- A gift MOTODATA software for 01 year (you need to pay the renewal fee for the next years) that is used to lookup motorbike repair data for PIAGGIO, HONDA, YAMAHA, SUZUKI, SYM, KYMCO. MOTODATA supports Android, iOS, and Windows devices such as smartphones, tablets, computers, and laptops. In particular, it integrated workshop management function that helps you manage orders, customers, inventory, financial…
- Equipment designed as handheld, good quality, low cost, and suitable for small and medium repair workshops.




ADDRESS & APPLICATION RANGE


- Diagnostic scanner in motorbike repairing workshop and equipment and trainers for technical vocation training
- A semi-finished products connect to the trainer for the electronic injection & ignition system of PGM-FI motorbikes

SPECIFICATION

- Dimension (LxWxH): 25x23x13 cm
- Weight: 2.5 kg

ADVANTAGE


- In-depth features, application range compatible with most small motorbikes and scooters in the Asia market
- A safe and convenient solution support CAN bus and K-Line protocol
- Simple operation with keypad direct on handhelds (without a computer)
- Equipment has integrated compact, design beautiful, professional, high-strength mechanics
- Effective, fast, accurate, reliable, detailed
- Lookup more detailed information for repairs by the MOTODATA
- Technical support consultant directly from the manufacturer by SMS through Skype, Yahoo, WhatsApp, Zalo, Email, Teamviewer
- Update via the Internet
- 12 months warranty and maintenance as required
- Low price
