● INTRODUCTION

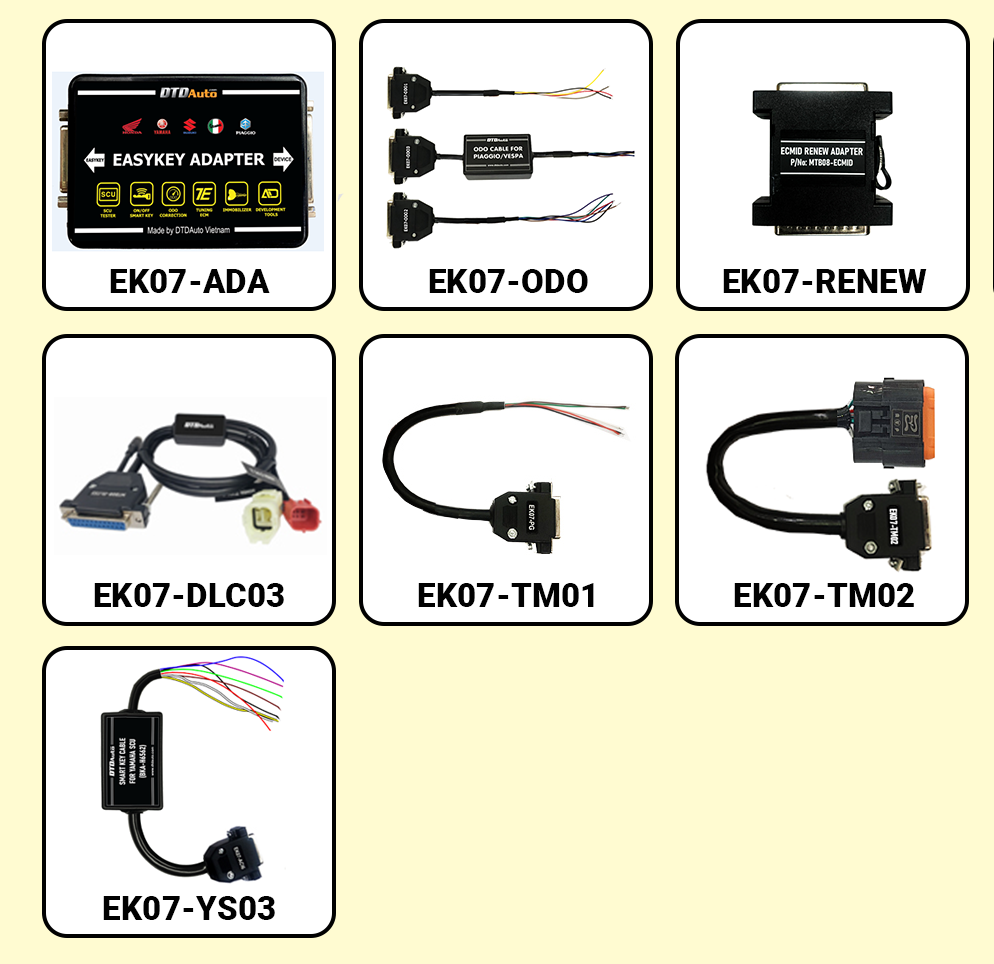

Advanced accessory package for EASYKEY used for customers who have purchased the EASYKEY standard package and want to upgrade functions to the full package.
1. ODOMETER CORRECTION FUNCTION
ODO value correction, restore original ODO data, read ODO value to repair ODO system for HONDA, YAMAHA, PIAGGIO, VESPA
Compatible vehicle ODO list:
-
HONDA: AIR BLADE (2013-2019), AIR BLADE (2020-2021), AIR BLADE (2022-2024), CB150R (2017-2019), CB300R (2017-2019), CB650R (2019-2021), CBR250, CBR650R (2019-2021), CB650F (2019-2021), CBR650F (2019-2021), CB500X (2019-2021), CBR500R (2019-2021), CB500F (2019-2021), CBR 50RR (2019-2021), CBR 150R (2019-2021), FUTURE NEO Fi, FUTURE X Fi, GENIO (2019-2021), LEAD (2013-2019), LEAD (2020-2021), LEAD (2022-2024), PCX (2008-2013), PCX (2014-2017), PCX 2018, PCX HYBRID, PCX 150 (2021-2024), PCX 160 (2021-2024), SH 300i, SH MODE (2013-2019), SH MODE (2021-2024), SH 125/150/125D/150D/SM (2013-2017), SH 125/150/125D/150D/SM (2018-2019), SH 125/150/125D/150D/SM (2020-2024), SCOOPY-I (2017-2020), SCOOPY 2021, SUPER CUP 125 (2021-2021), MSX, GENIO (2019-2021), VISION 2021-2024, VARIO 150, WINNER, WINNER X, X-ADV, DYLAN, ZOOMER X (2013-2017), ZOOMER X (2018-2020), SONIC, WAVE 110 2021, WAVE 125 (2003-2005), WAVE 125i (2021-2024), CLICK (2012-2014), CLICK (2014-2017) CLICK (2018-2020), VARIO (2014-2017), VARIO (2018-2020), BEAT (2020-2023), DUNK (2017-2023), SUPRA GTR 150 (2014-2018), FORZA, MSX 125 (2019-2020), SUPRA GTR 150 (2019-2023), CLICK (2021-2023), VARIO (2021-2023), X-ADV 2018
-
YAMAHA: QBIX, ACRUZO , AEROX (2017-2019), AEROX (2020-2023), LEXI S, LATTE, FREGO, NVX (2017-2019), NVX (2020-2023), NMAX (2017-2020), NMAX (2021-2023), NMX (2017-2020), NMX (2021-2023), M-SLAZ (2016-2019), MT-03 (2015-2019), MT-15 (2016-2021), MT-25 (2015-2019), JANUS, TFX, EXCITER (2014-2018), EXCITER (2019-2020), FZ 150, FZ 150i, GRANDE, NOUVO SX, NOUVO LX, YZF-R3 (2014-2018), YZF-R25 (2014-2018), R15, XMAX 300 (2017-2018), TMAX (2001-2003), TMAX (2004-2007), TMAX (2008-2011), TMAX 500 (2008-2011), TMAX 2013, TMAX 2015, Grand Filano, QBIX, XMAX(2017-2019)
-
PIAGGIO: MEDLY 125, MEDLY 150, MEDLY 125 ABS, MEDLY 150 ABS, LIBERTY ABS, LIBERTY 125 3V PGN04, LIBERTY 150 3V PGN04, LIBERTY 125 3V PGT01, LIBERTY 150 3V PGT01, LIBERTY 125 3V PGS02, LIBERTY 150 3V PGS02, LIBERTY ABS PGS06
-
VESPA: PRIMAVE 125 PGN04, PRIMAVE 150 PGN04, SPRINT 125 3V PGN04, SPRINT 150 3V PGN04, SPRINT 125 3V PGT01, SPRINT 150 3V PGT01, SPRINT 125 3V PGS02, SPRINT 150 3V PGS02
-
SUZUKI: RAIDER (2017-2021), SATRIA (2017-2023), GSX 150R (2017-2023)
Connection diagram using EK07-ODO01 cable
Connection diagram using EK07-ODO02 cable
Connection diagram using EK07-ODO03 cable
2. RENEW AND ECMID READING FUNCTION FOR HONDA ECMs (Keihin and Shindengen types)
- Renew ECMID inside the ECM for Shindengen ECMs
- Read ECMID inside the ECM for Shindengen ECMs
- Read ECMID inside the ECM for Keihin ECMs
Connection diagram to ECM
Connection diagram to vehicle
3. SMART KEY ON/OFF FUNCTION FOR HONDA, YAMAHA
Click here to see list of vehicle for ON/OFF Smart key function
Smart key is a security system for anti-theft by electronic system with 02 layers combined:
- First security layer between FOB & SCU
- Second security layer between SCU & ECM
When the Engine can start need to bypass 02 layers.
However, some case ECM lost ECMID, can not found then can not bypass second security layer and can not start Engine. Normally, the technician must buy a new ECM for replace and lost many money.
But, when EASYKEY support this OFF Smart key function to ECM by Remap method inside ECM then it will do not check second security layer and automatic bypass second security layer.
So, now smart key will only use first security layer also can start engine with old ECM as normal that do not need to buy a new ECM.
However, the level of security of the anti-theft will be reduced 50% but can accept it.
Connection diagram
4. KEY PROGRAMMING FUNCTION FOR YAMAHA TMAX (2017-2024)
- Register more FOB
- Register FOB# when lost all of the FOB#
- Inactivate/Activate FOB# in SCU
- Read KEYID# in SCU
- Delete KEYID# in SCU memory
- Copy SCU data
- Check KEYID
- Check FOB & SCU

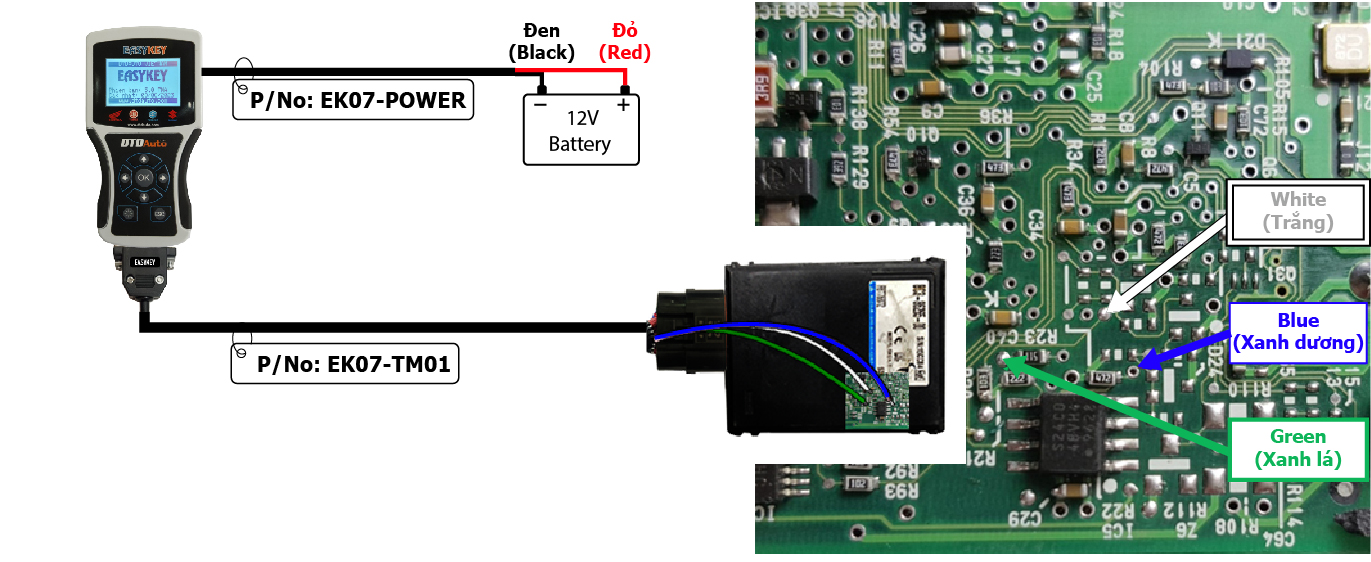

Connection diagram using EK07-TM01 cable
Connection diagram using EK07-TM01 cable
Connection diagram using EK07-ODO01 cable
5. KEY PROGRAMMING FUNCTION FOR PIAGGIO (2017-2019) (for MEDLEY, GTS that have ECM codes: PGQ16 / PGV18 (RISS), PGU09 / PGT10 / PGV01)
Connection diagram
