● INTRODUCTION

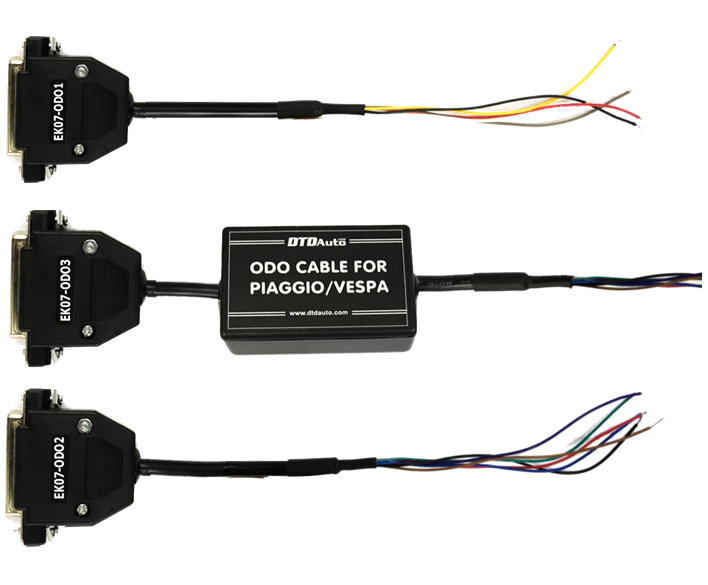

EK07-ODO is an accessory cable for EASYKEY. Used to adjust ODO value, restore original ODO data, read ODO value to repair ODO system for HONDA, YAMAHA, SUZUKI, PIAGGIO, VESPA, and read KEY ID for YAMAHA TMAX 2020-2024.
1. ODOMETER PROGRAMMING FUNCTION FOR HONDA, YAMAHA, PIAGGIO, VESPA
Used to adjust ODO value, restore original ODO data, read ODO value to repair ODO system for HONDA, YAMAHA, PIAGGIO, VESPA
Compatible vehicle ODO list:
-
HONDA: AIR BLADE (2013-2019), AIR BLADE (2020-2021), AIR BLADE (2022-2024), CB150R (2017-2019), CB300R (2017-2019), CB650R (2019-2021), CBR250, CBR650R (2019-2021), CB650F (2019-2021), CBR650F (2019-2021), CB500X (2019-2021), CBR500R (2019-2021), CB500F (2019-2021), CBR 50RR (2019-2021), CBR 150R (2019-2021), FUTURE NEO Fi, FUTURE X Fi, GENIO (2019-2021), LEAD (2013-2019), LEAD (2020-2021), LEAD (2022-2024), PCX (2008-2013), PCX (2014-2017), PCX 2018, PCX HYBRID, PCX 150 (2021-2024), PCX 160 (2021-2024), SH 300i, SH MODE (2013-2019), SH MODE (2021-2024), SH 125/150/125D/150D/SM (2013-2017), SH 125/150/125D/150D/SM (2018-2019), SH 125/150/125D/150D/SM (2020-2024), SCOOPY-I (2017-2020), SCOOPY 2021, SUPER CUP 125 (2021-2021), MSX, GENIO (2019-2021), VISION 2021-2024, VARIO 150, WINNER, WINNER X, X-ADV, DYLAN, ZOOMER X (2013-2017), ZOOMER X (2018-2020), SONIC, WAVE 110 2021, WAVE 125 (2003-2005), WAVE 125i (2021-2024), CLICK (2012-2014), CLICK (2014-2017) CLICK (2018-2020), VARIO (2014-2017), VARIO (2018-2020), BEAT (2020-2023), DUNK (2017-2023), SUPRA GTR 150 (2014-2018), FORZA, MSX 125 (2019-2020), SUPRA GTR 150 (2019-2023), CLICK (2021-2023), VARIO (2021-2023), X-ADV 2018
-
YAMAHA: QBIX, ACRUZO , AEROX (2017-2019), AEROX (2020-2023), LEXI S, LATTE, FREGO, NVX (2017-2019), NVX (2020-2023), NMAX (2017-2020), NMAX (2021-2023), NMX (2017-2020), NMX (2021-2023), M-SLAZ (2016-2019), MT-03 (2015-2019), MT-15 (2016-2021), MT-25 (2015-2019), JANUS, TFX, EXCITER (2014-2018), EXCITER (2019-2020), FZ 150, FZ 150i, GRANDE, NOUVO SX, NOUVO LX, YZF-R3 (2014-2018), YZF-R25 (2014-2018), R15, XMAX 300 (2017-2018), TMAX (2001-2003), TMAX (2004-2007), TMAX (2008-2011), TMAX 500 (2008-2011), TMAX 2013, TMAX 2015, Grand Filano, QBIX, XMAX(2017-2019)
-
PIAGGIO: MEDLY 125, MEDLY 150, MEDLY 125 ABS, MEDLY 150 ABS, LIBERTY ABS, LIBERTY 125 3V PGN04, LIBERTY 150 3V PGN04, LIBERTY 125 3V PGT01, LIBERTY 150 3V PGT01, LIBERTY 125 3V PGS02, LIBERTY 150 3V PGS02, LIBERTY ABS PGS06
-
VESPA: PRIMAVE 125 PGN04, PRIMAVE 150 PGN04, SPRINT 125 3V PGN04, SPRINT 150 3V PGN04, SPRINT 125 3V PGT01, SPRINT 150 3V PGT01, SPRINT 125 3V PGS02, SPRINT 150 3V PGS02
-
SUZUKI: RAIDER (2017-2021), SATRIA (2017-2023), GSX 150R (2017-2023)

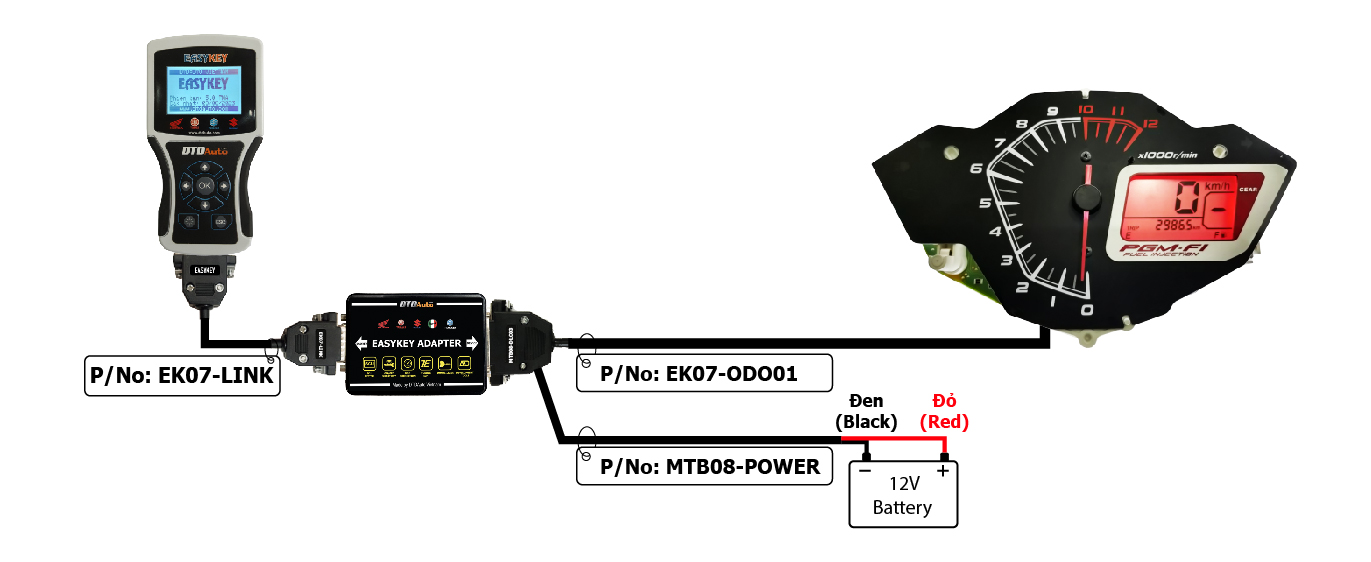

Connection diagram using EK07-ODO1 cable

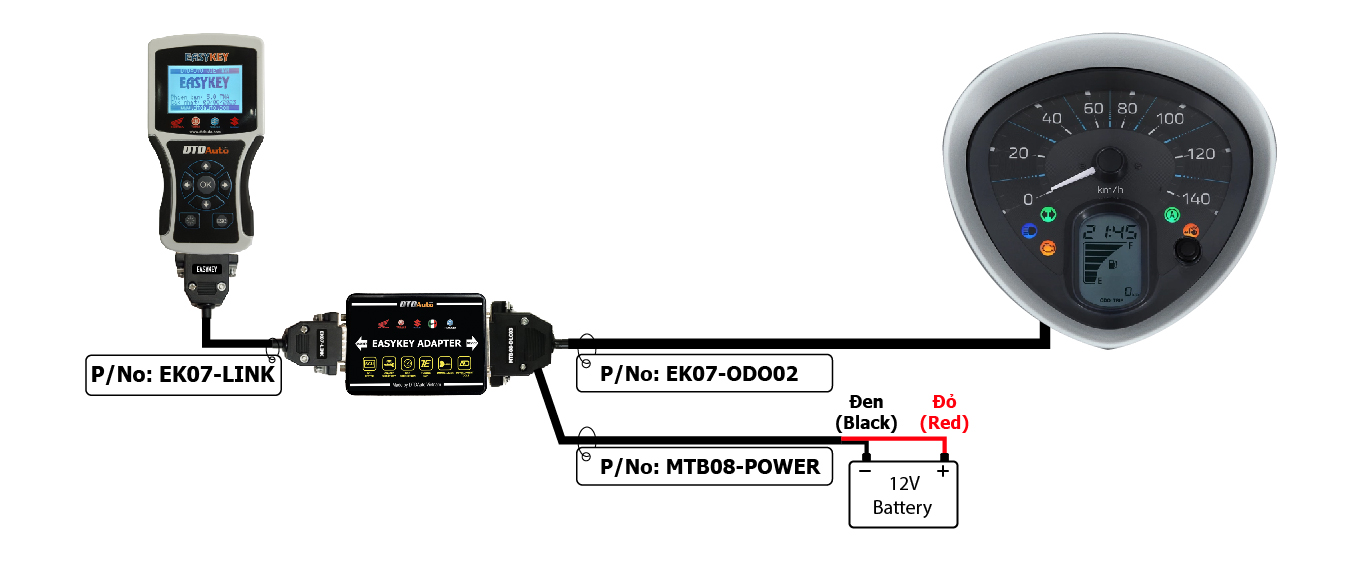

Connection diagram using EK07-ODO2 cable

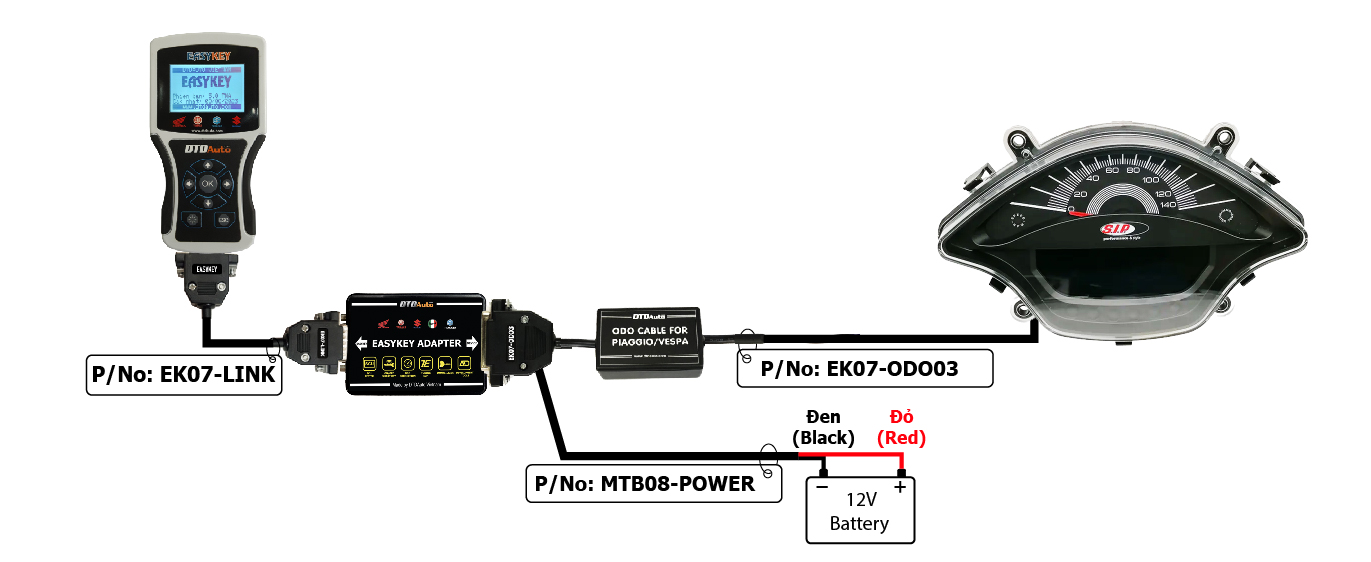

Connection diagram using EK07-ODO3 cable

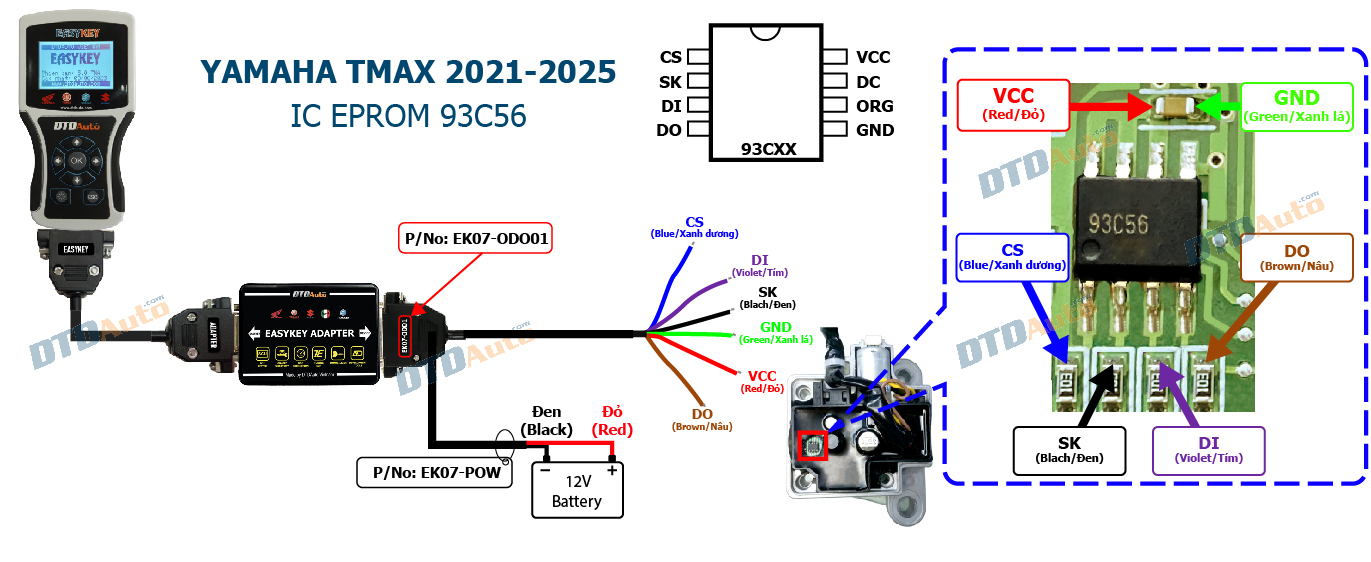

2. KEYID READING FUNCTION FOR YAMAHA TMAX 2020-2024
Connection diagram using EK07-ODO1 cable
