MOTOSCAN EV - ELECTRIC MOTORBIKE FAULT DIAGNOSTIC SCANNER

Price: 410.00 $

Main functions:
- Read / delete fault codes of electronic systems on the vehicle, send repair instructions in text, images, diagrams, voice, and especially analyze the repair support situation using AI artificial intelligence technology (training AI and updating the library)
- Reset Lithium-Ion battery system
- Configure MCU system: configuration of motor speed (RPM), phase shift angle & phase advance angle of Hall sensor, voltage used by electric motor, setting EBS mode etc.
- The circuit diagram system is redesigned according to the standards of automation and electronic science and technology.
Click here to view ordering instruction >>>

Product code:
Made by:
Net Weight:
Weight:

Buy Now

Functions

MOTOSCAN TAB FUNCTION LIST FOR VINFAST ELECTRIC MOTORBIKE (Other vehicles will be updated in the next versions)
NO.	DESCRIPTION	FUNCTIONS ON MOTOSCAN EV	NOTE
BMS SYSTEM
1	Read fault codes stored in BMS		Basic function
2	Advanced display of fault code information (on 1 screen) including: fault code content, component location, detailed electrical schematic diagram of fault code, overall schematic diagram		Special function developed by DTDAuto
3	Reset BMS		Basic function
4	Show current parameters (full list of all parameters)		Basic function
5	View multi-mode parameters: List \| Analog		Special function developed by DTDAuto
MCU SYSTEM
6	Read fault codes stored in MCU		Basic function
7	Advanced display of fault code information (on 1 screen) including: fault code content, component location, detailed electrical schematic diagram of fault code, overall schematic diagram		Special function developed by DTDAuto
8	Show current parameters (full list of all parameters)		Basic function
9	View multi-mode parameters: List \| Analog		Special function developed by DTDAuto
10	MCU configuration settings (For example: configuring motor speed (RPM), phase shift & phase advance angle of Hall sensor, electric motor voltage, etc.)		Special function developed by DTDAuto

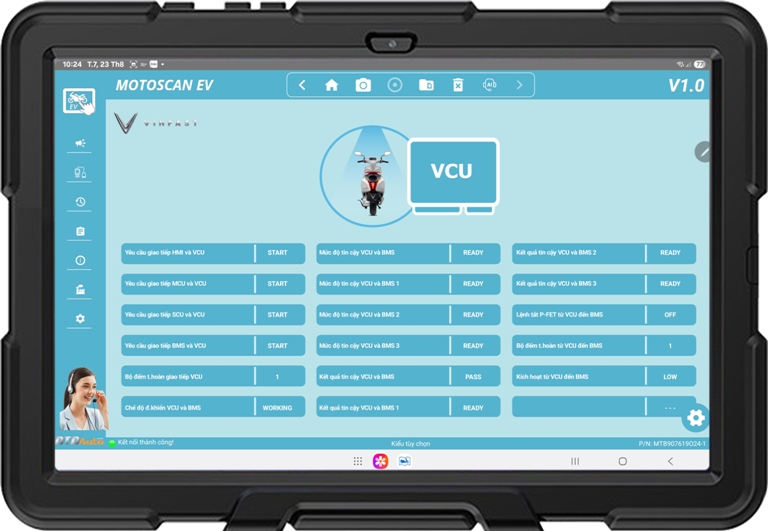

VCU \| C-BOX SYSTEM
11	Read fault codes stored in VCU \| C-BOX		Basic function
12	Advanced display of fault code information (on 1 screen) including: fault code content, component location, detailed electrical schematic diagram of fault code, overall schematic diagram		Special function developed by DTDAuto
13	Show current parameters (full list of all parameters)		Basic function
14	View multi-mode parameters: List \| Analog		Special function developed by DTDAuto
HMI SYSTEM
15	Read fault codes stored in HMI		Basic function
LOOK UP TECHNICAL DOCUMENTS
16	Support automatic calculation feature for motorcycle electronics repairmen: calculate the resistance value according to the color rim and according to the symbol on the SMD resistor; calculate the resistance for the LED circuit...		Special function developed by DTDAuto
17	Integrate lookup data and documents, repair data, electrical diagrams of all kinds, and electrical and mechanical specifications in one application		Special function developed by DTDAuto
18	Look up principle diagrams and assembled circuit diagrams for vehicle systems		Special function developed by DTDAuto
19	Look up electrical specifications		Special function developed by DTDAuto
20	Look up engine mechanical specifications and disassembly instructions		Special function developed by DTDAuto
21	Look up the function pin position of BMS, MCU, VCU, HMI…		Special function developed by DTDAuto
22	Supports DATALINK function on electrical diagrams		Special function developed by DTDAuto
23	Look up acronyms, wire colors, fault code information...		Special function developed by DTDAuto
24	Repair workshop management function: warehouse management, service, personnel, customers, maintenance...		Special function developed by DTDAuto

DETAILED FUNCTIONAL TABLE

VEHICLE TYPE	READ FAULT CODE	CLEAR FAULT CODE/ RESET BMS	VIEW LIVE DATA	MCU CONFIGURATION SETTING	SUPPORT SYSTEM	LOOKUP ELECTRICAL WIRING DIAGRAM
EVO 200					BMS, MCU, HMI
EVO 200 LITLE					BMS, MCU, HMI
EVO GRAND					BMS, MCU, HMI
EVO NEO					BMS, MCU, HMI
FELIZ (2021)					BMS, MCU, HMI
FELIZ (2025)					BMS, MCU, HMI
FELIZ NEO					BMS, MCU, HMI
FELIZ S (2022)					BMS, MCU, HMI
FELIZ S (2023-2024)					BMS, MCU, HMI
IMPES					BMS, MCU, HMI
KLARA A1 (2018)					MCU
KLARA A2					BMS, MCU, HMI
KLARA NEO					BMS, MCU, HMI
KLARA S1 (2019-2021)					BMS, MCU, HMI
KLARA S2 (2022-2024)					BMS, MCU, HMI
LUDO					BMS, MCU, HMI
THEON					BMS, MCU, HMI, VCU
THEON S					BMS, MCU, HMI, VCU
VENTO					BMS, MCU, HMI, VCU
VENTO NEO					BMS, MCU, HMI
VENTO S					BMS, MCU, HMI, VCU

Image & Video

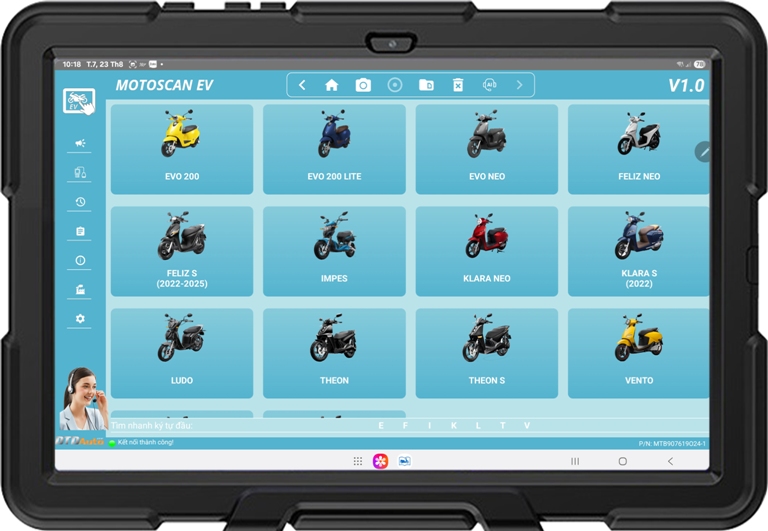

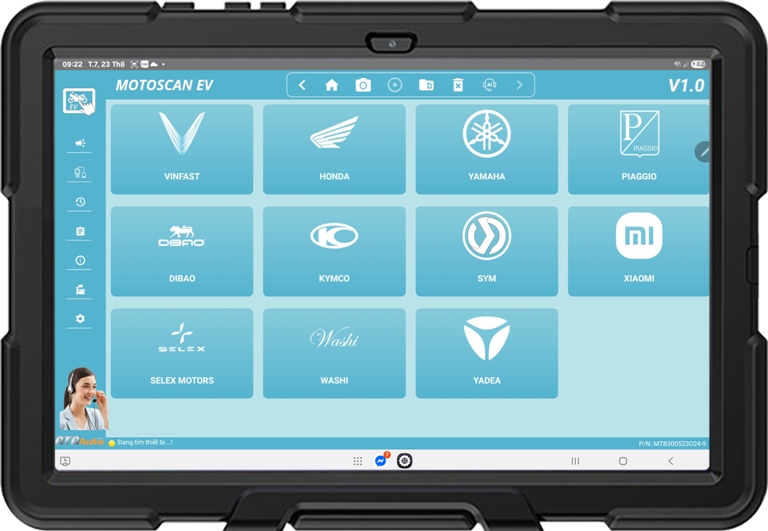

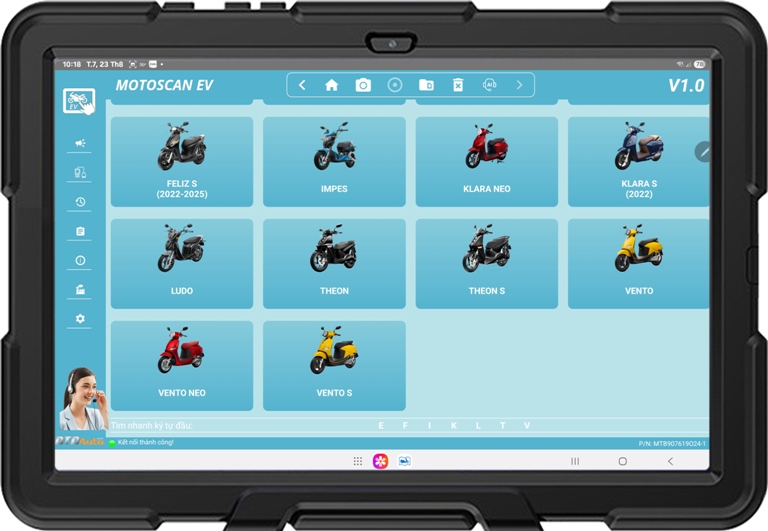

List of manufacturers	List of vevicle

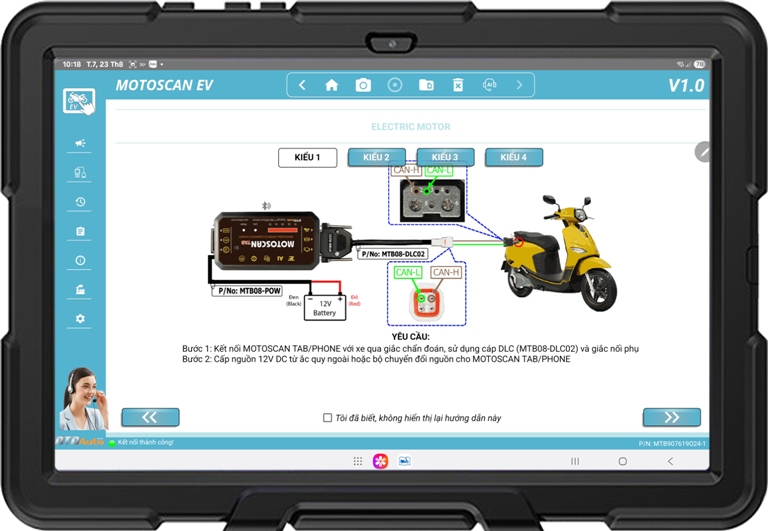

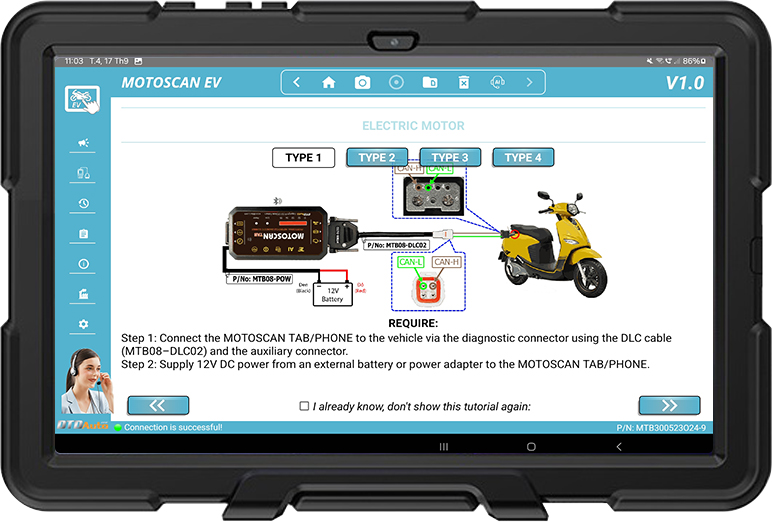

List of vevicle	Connect to the vehicle

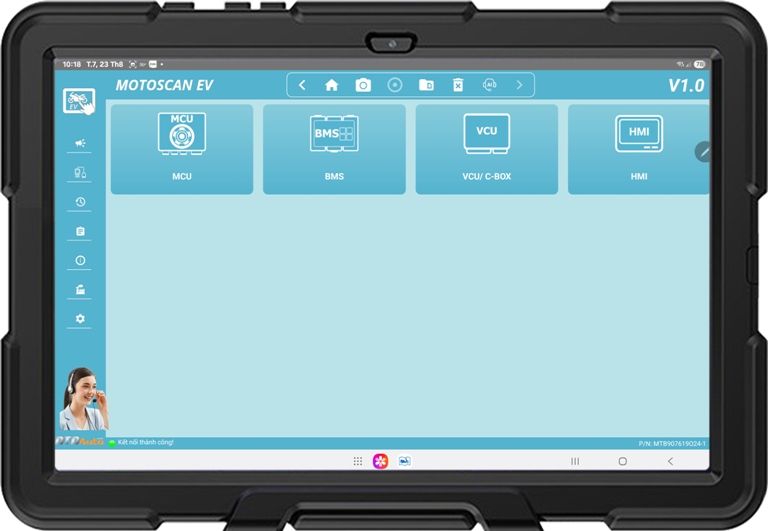

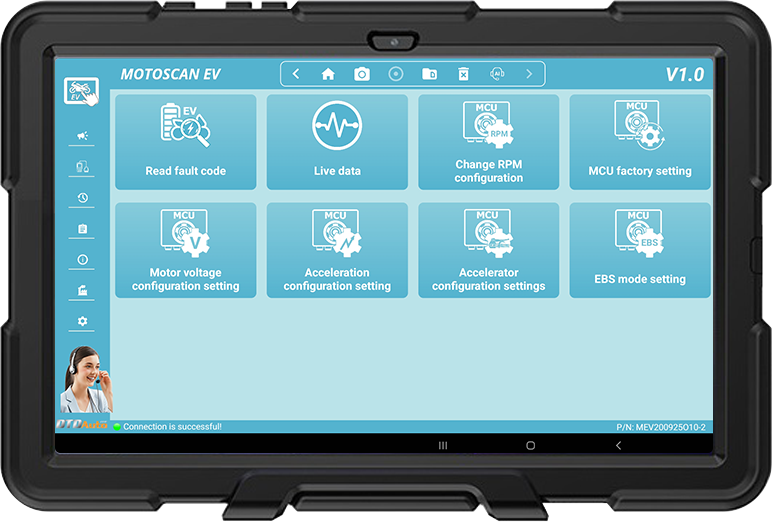

List of systems	List of functions

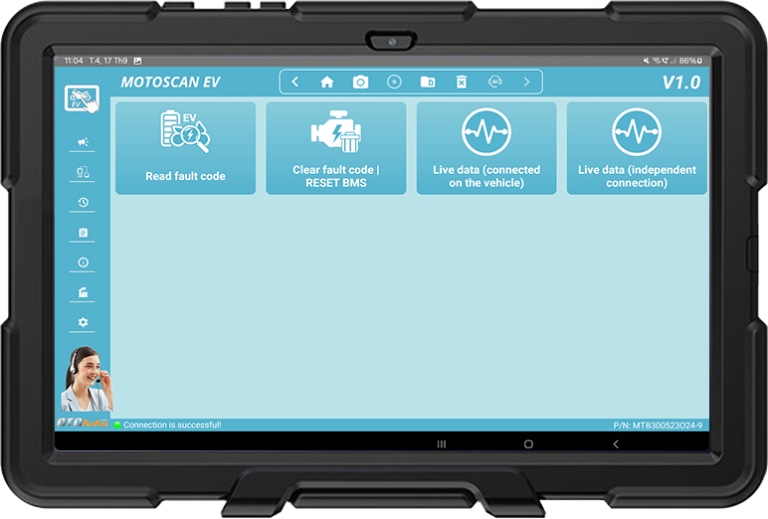

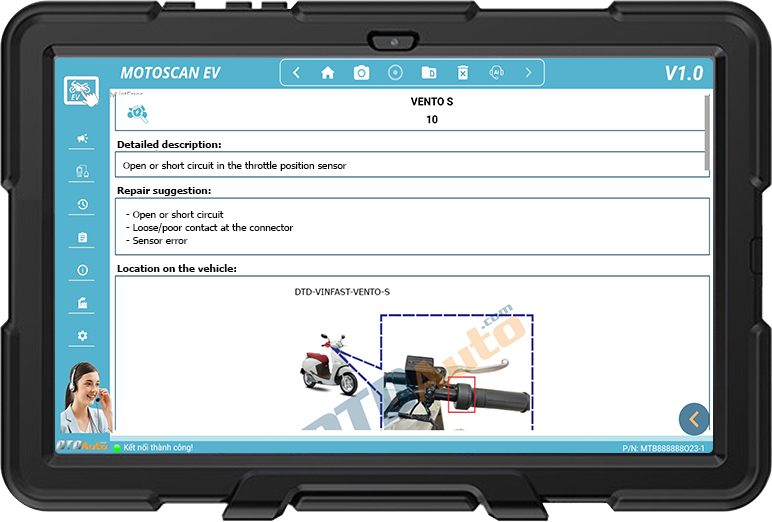

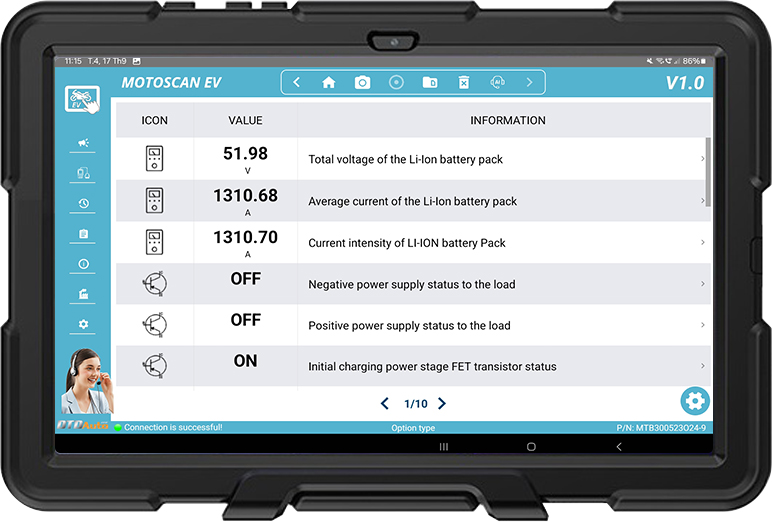

Read fault codes	Live data of systems

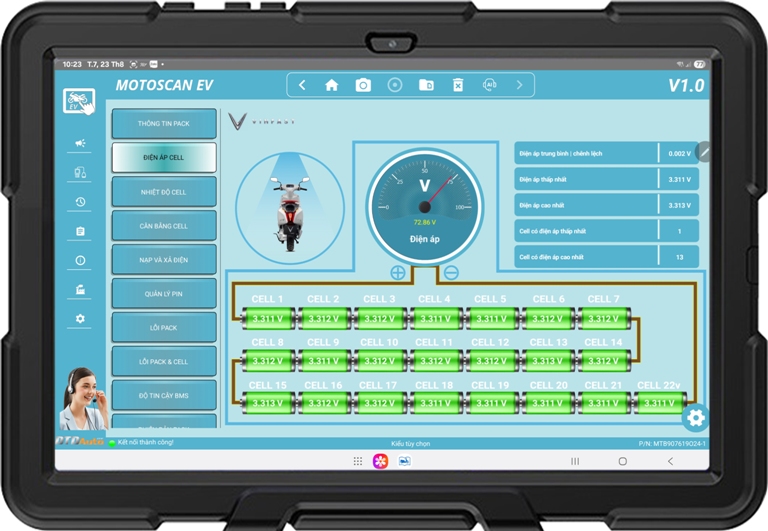

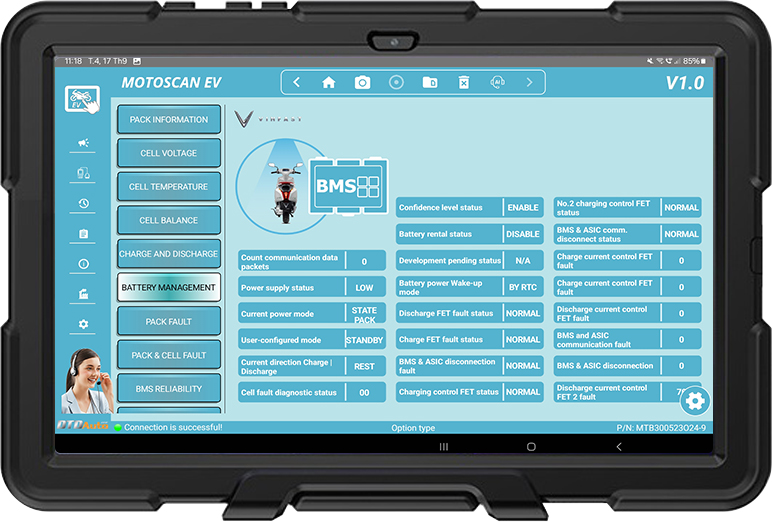

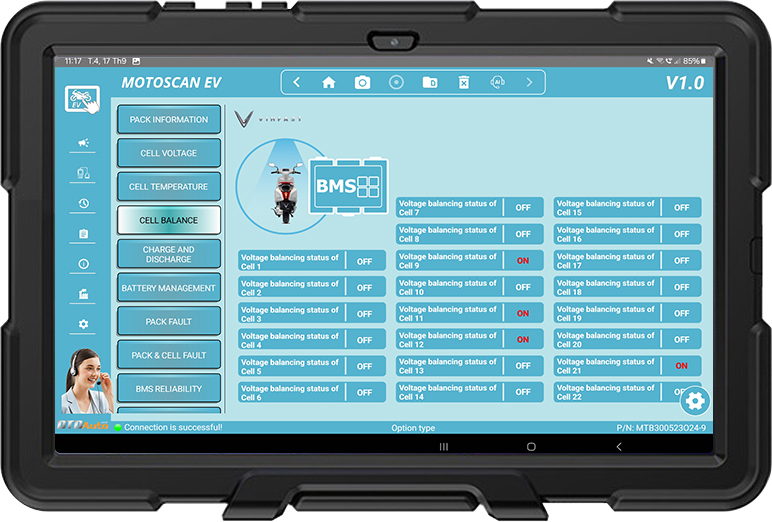

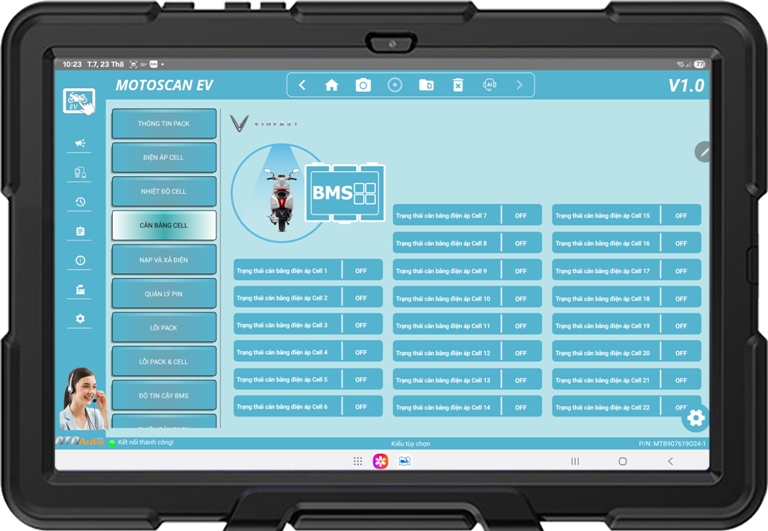

Cell balancing parameters	Battery management parameters

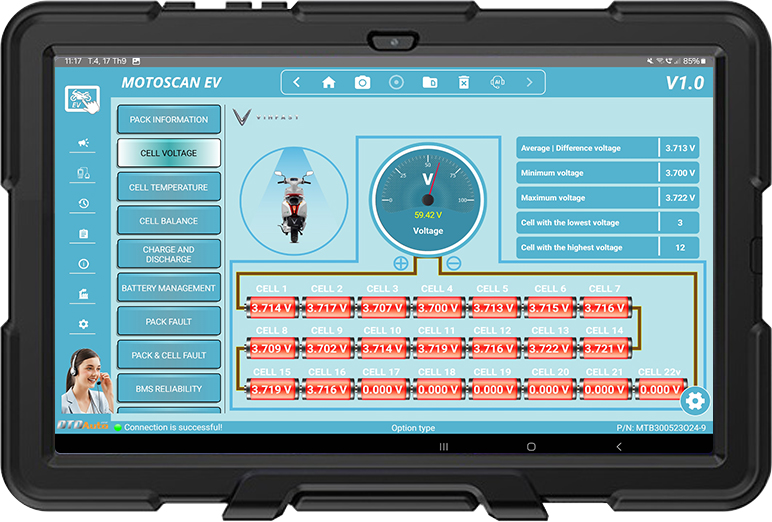

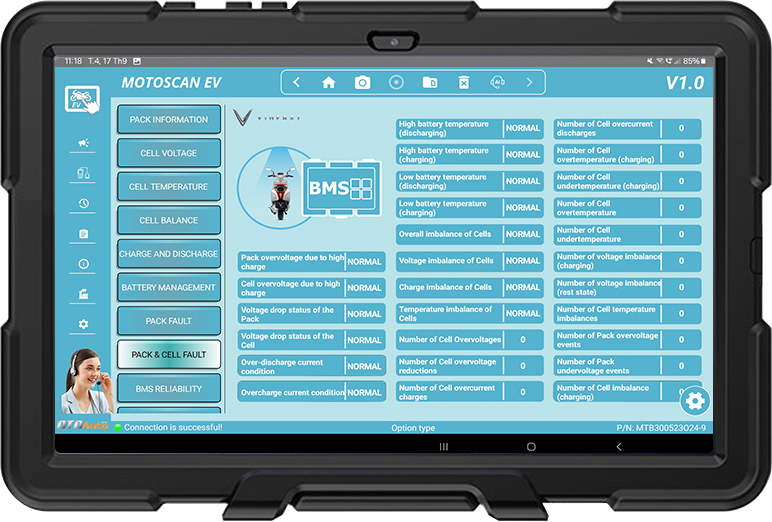

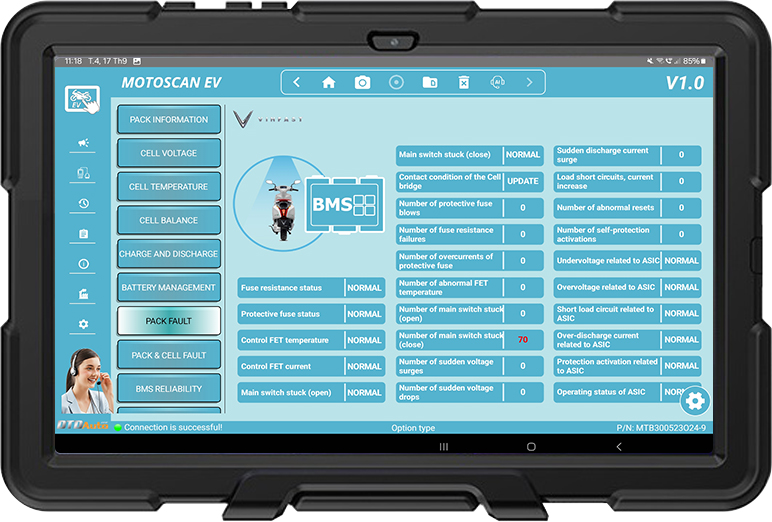

Pack parameters	Pack & Cell parameters

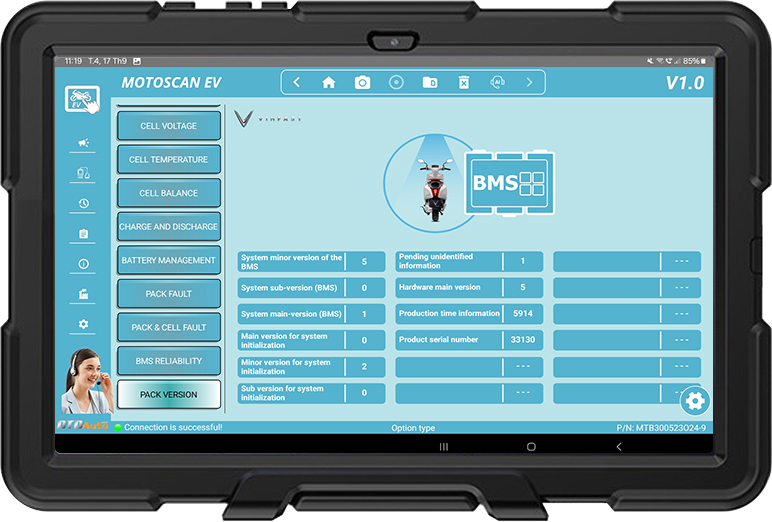

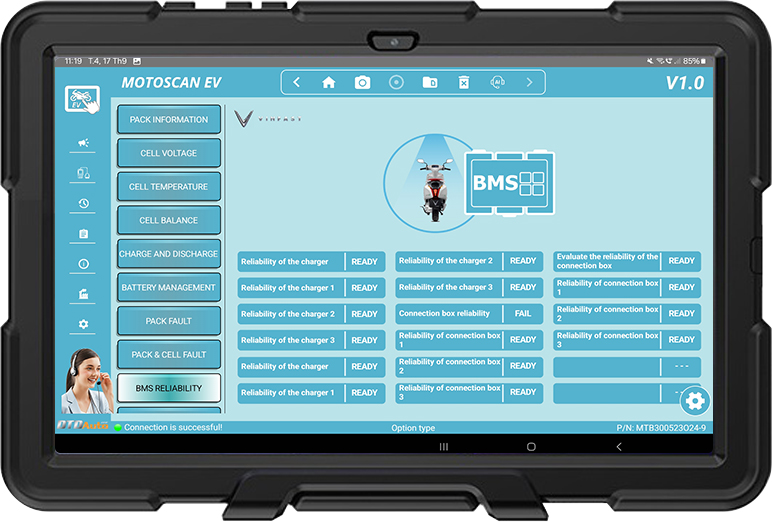

BMS reliability parameters	Battery Pack Version

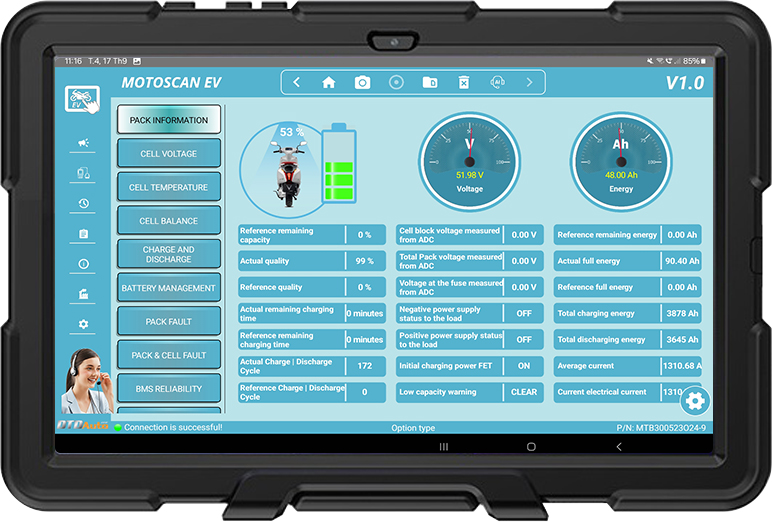

Pack information	Cell information

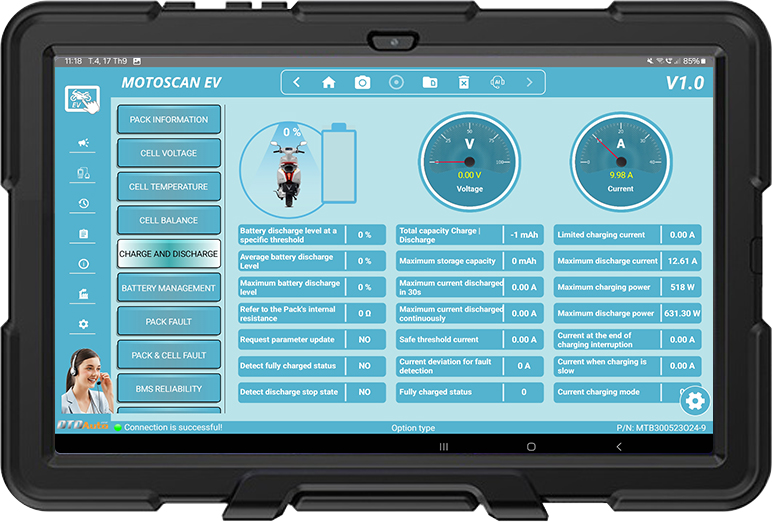

Charging and discharging parameters	MCU system parameters

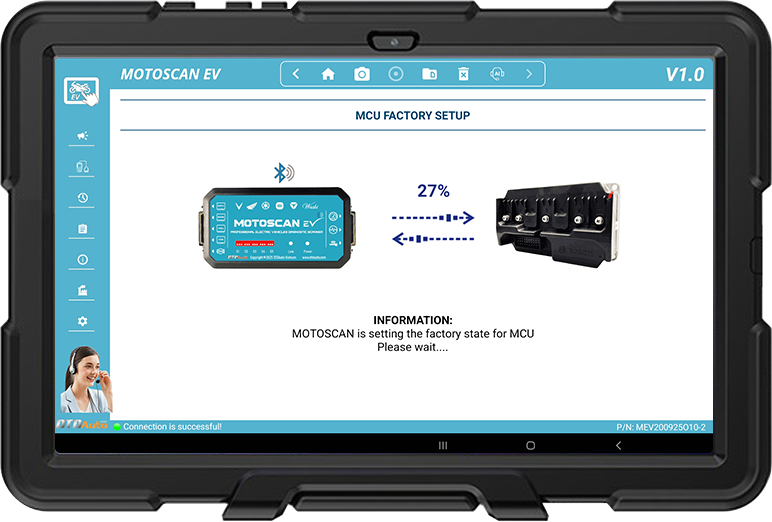

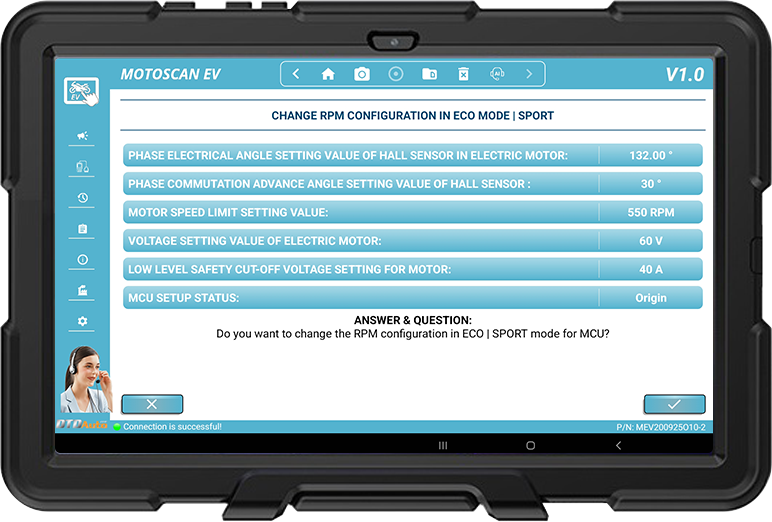

MCU configuration setting	MCU factory setting

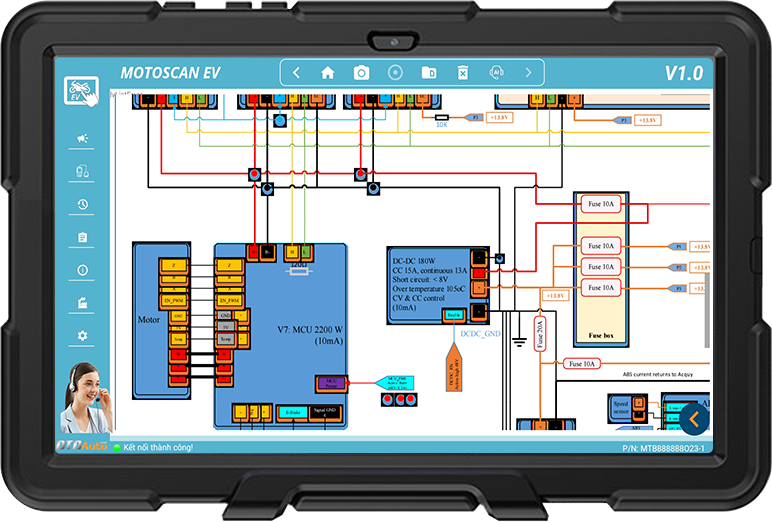

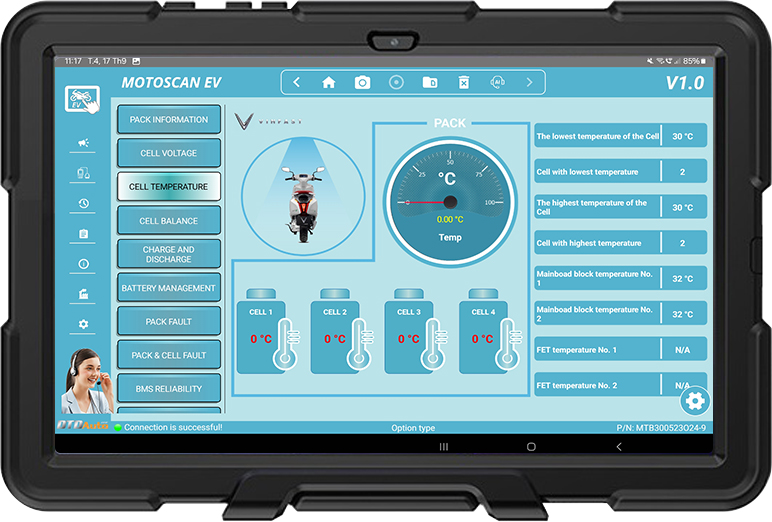

Cell temperature parameters	Look up circuit diagram

Introduction video

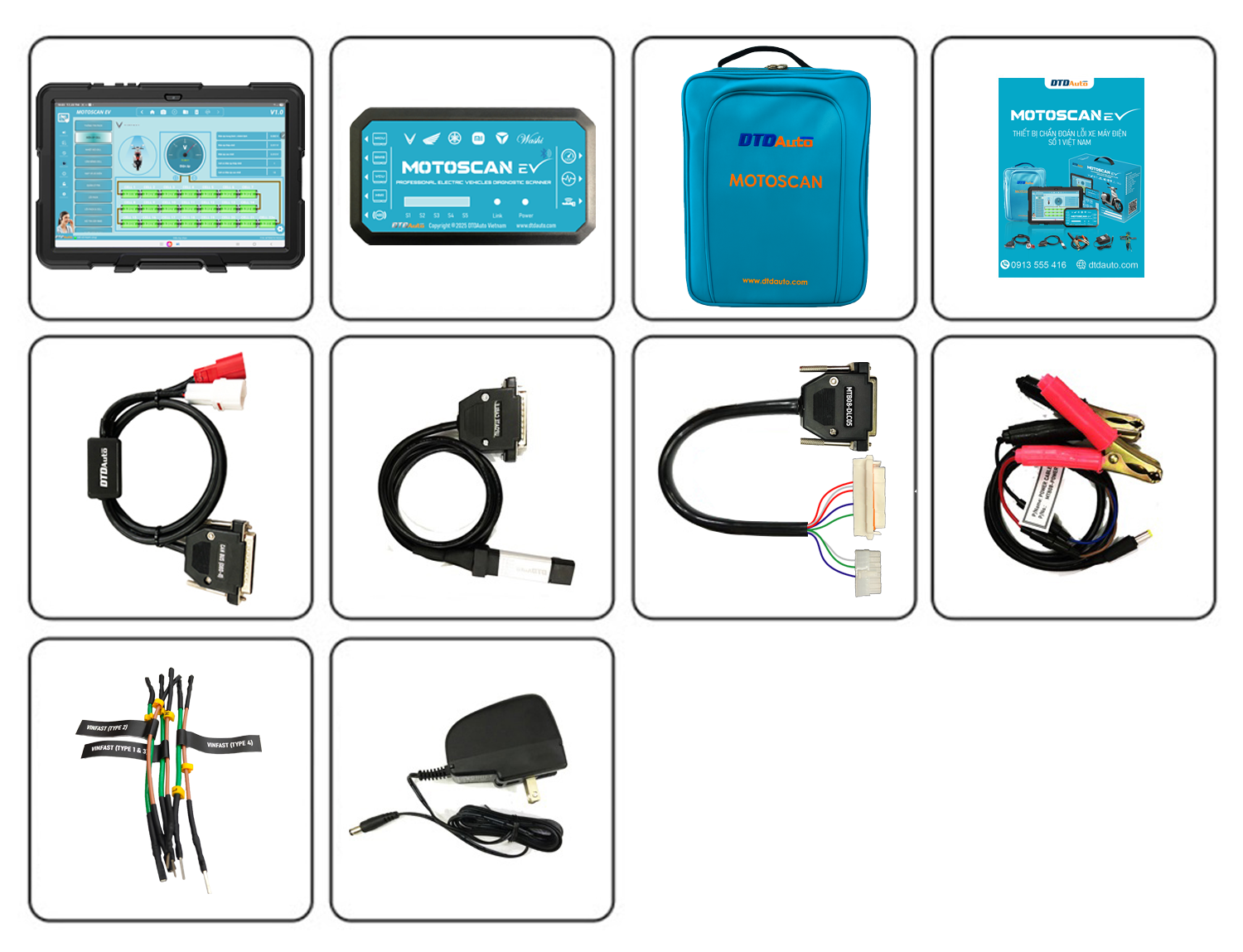

Package List

GÓI MOTOSCAN EV
NO.	PART NUMBER	DESCRIPTION	IMAGE
1		MOTOSCAN EV electronic converter
2		MOTOSCAN EV application software that is installed on the tablet (tablet of customers or provided by DTDAuto depending on ordered option)
3	MTB08-DLC02	Data cable used to determine fault, view live data, reset and calibrate parameters for vehicles
4	MTB08-DLC05	MCU configuration setup cable
5	MTB08-UPD	Update cable
6	MTB08-POWER	12V/ DC power cable
7		220V/AC to 12V/ DC power converter
8		Multi-purpose extension cable for connecting different vehicles
9		Spare fuse
10		MOTODATA software on PC or mobile (Free 01 using year, need to pay a fee to renew for the next year)
11		Quick guide
12		Handbag
13		Box

Download

	Product introduction	Download
	Quick user guide	Download

Description

Nowadays, electric motorcycles are becoming increasingly popular, leading to a rising demand for professional diagnostics and repair—especially for complex electrical and electronic systems such as BMS, MCU, VCU, C-BOX, and HMI.
MOTOSCAN EV is the comprehensive solution. This is a specialized diagnostic device researched and manufactured by DTDAuto Vietnam, designed to identify faults, display parameters, and reset electronic systems on new-generation electric motorcycles in Vietnam—particularly VINFAST—along with many other brands that will be continuously updated.

Highlights of MOTOSCAN EV:
- Convenient, optimized design, "all in one" with a modern, intuitive, friendly touch interface.
- Accurate, reliable, complete information and parameters, multi-interface display, intuitive, trendy
- Wireless Bluetooth connection, multimedia support, and vivid graphic display.
- Integrated multi-language: Vietnamese, English, French, Thai, Khmer, Korean, Portuguese, Indonesian, and Malaysian.
- Supports global database, smart search, fast updat,e and synchronization.
- Suitable for repairmen who love technology and want to improve their professional service.
- A gift MOTODATA software used to look up motorbike repair data on a computer or mobile for 01 year when buying MOTOSCAN EV.

With MOTOSCAN EV, diagnosing and repairing electric motorbikes has never been easier and more efficient. This is a high-end product, reasonably priced, and a trusted companion of electric motorbike repairmen.
