OBD-II SENSOR KIT FOR TRAINNING

OBD-II SENSOR KIT FOR TRAINNING

Price: 0.00 $

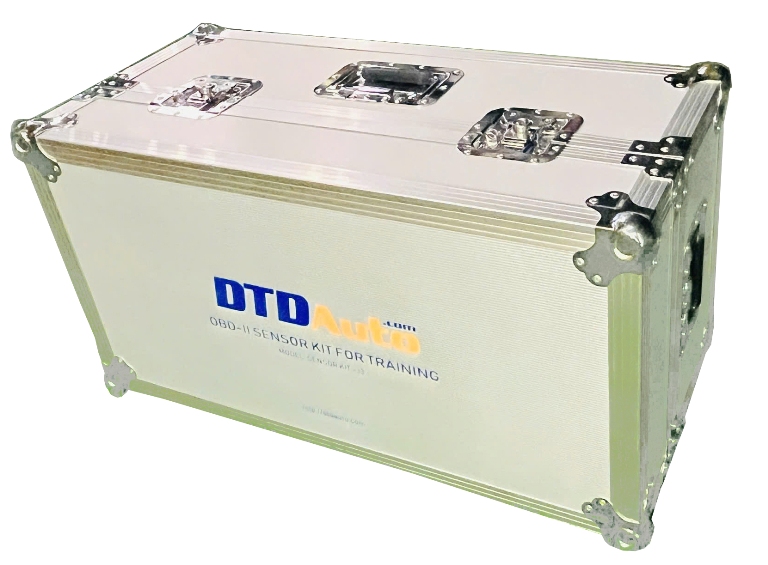

SENSOR KIT-13 is a compact teaching trainer, flexible, efficient, appropriate research, training course on electricity and fuel. Very convenient for teaching in many places moved by personal motorcycle or cars. Equipment building on real parts of the Toyota electronic fuel injection system with full function as 'Input, ECU, Output'
(Please contact dtdauto@gmail.com to receive a detailed quote)

  • Product code:
  • Made by:
  • Net Weight:
  • Weight:
Description
INTRODUCTION

- SENSOR KIT-13 is a product of DTDAUTO Vietnam since 2013
- SENSOR KIT-13 designed used for vocational training of vehicle electronic fuel injection system
- SENSOR KIT-13 is a compact teaching trainer, flexible, efficient, appropriate research, training course on electricity and fuel. Very convenient for teaching in many places moved by personal motorcycle or cars
- Equipment building on real parts of the Toyota electronic fuel injection system with full function as "Input, ECU, Output".
- SENSOR KIT-13 manufactured in Vietnam, according to the standard equipment of the Vietnam vocational training.

PURPOSE

Being teaching aids and educational tools teaching for teachers and automobile vocational training:
- Understand all of components basic sensors on new OBD-II standard of Cars
- Understand principles and principles working of the sensors with electronic fuel injection system & ignition
- Understand, analysis the dependence between the INPUT (signal input sensors) and OUTPUT (signal control actuators) through ECU (electrical controller)
- Understand electrical wiring diagram of system, installation position structure actual event on the car (according to accompanying documentation)
- Understand ways trouble diagnosis and repair by the different methods:
     + Replacing and excluding
    + Find fault position via analyzing on electrical wiring diagram
    + Find fault by intelligent diagnostic tools and other measurement equipment

SPECIFICATION

A. THE EQUIPMENT
- Includes full sensor system used on OBD-II engine of Japan TOYOTA manufacturer.

SENSORS ECM ACTUATORS
+ 01 Intake air sensor unit (THA, MAF)
+ 01 Engine temperature sensor (THW)
+ 01 Oxy sensor (HO2S)
+ 01 Throttle position sensor (TPS)
+ 01 Knock sensor (KNK)
+ 01 Engine speed sensor (RPM)
+ 01 Camshaft position sensor (G)
+ 04 Switches as AC, STA, STP, Power Steel Switch (PSS)
01 Engine Control Module (ECM)
+ 01 Injector
+ 01 Ignition coil, igniter, spark
+ 01 ISC valve
+ 01 Check Engine Light

- Installation KIT practices style for transported by hands. Sensor can work as Car with 12VDC power adaptor integrated inside
- The connectors with electrical diagram principle allow learners and teachers test, check actual parameters (Live data) convenient
- "PAN MAKER" able to create basic faults for learning and teaching: there are 02 options create fault by normal switchs or setting on computer
- The connector used exchange data with a computer or scanner
- Use measuring by Multi-meter and AutoScope (pulse measuring device)
- Use PC Diagnostic scanner (high serial data)

B. DOCUMENT AND SOFTWARE FOR TRAINNING
- Electronically pdf file support training with text, images, animation, animations for new ignition and electronic fuel injection systems. It is suitable for teaching with projector and multimedia training.
- OBD-II software for read/ clear fault codes, show Engine Live data
- AutoScope software, PAN Maker software…

COMPONENTS

- 01 OBD-II KIT sensors
- 01 full set of equipment for OBD-II Diagnosis
- 01 Multi-meter
- 01 full set of PC Auto Scope equipment for check automotive signal pulses
- 01 CD of DTD CODE software license used for: lookup fault codes, vocational training
- 01 English guidebook
- Some cable accessories

REFERENCE IMAGES


Software interface

Software interface

Software interface

Software interface

Software interface
