● INTRODUCTION
AFO5 SCAN – SMART DEVICE FOR THE 2026 MOTORCYCLE
(Compact – Multi-functional – Technically Compliant – Highly Affordable – Fault Diagnostics – Performance Optimization – Anti-theft – Monitoring & Navigation – Renew Smart key in ECM - All-in-One Solution)1. COMPACT DEVICE – MULTIPLE APPLICATIONS
- Integrated diagnostics for HONDA & YAMAHA motorcycles
- Advanced AI-assisted diagnostic capability
- Ideal for small workshops and entry-level technicians – minimal investment with professional results
- Compact – user-friendly – instantly effective
2. PERFORMANCE OPTIMIZATION ACCESSORY – NO ECM SOFTWARE INTERFERENCE
- Intelligent real-time adjustment to optimize engine performance and fuel efficiency, directly controlled via the rider’s smartphone
- Automatically improves throttle response and eliminates hesitation without ECM remapping
- Preserves OEM software integrity – ensuring full compliance with emission standards
- Maintains manufacturer specifications – maximum safety for the vehicle
- This is the key differentiation between standard-compliant technology and non-technical ECM modification solutions in the market
3. INTELLIGENT ANTI-THEFT SYSTEM – ZERO BATTERY DRAIN
- Smartphone functions as a digital key
- Automatically shuts down the engine and locks the vehicle when moved approximately 15 meters away from the owner
- No standby battery drain when the vehicle is off
4. MODERN RIDING CONTROL & USER EXPERIENCE
- Customizable speed limiter
- Real-time monitoring of engine parameters and ECO status
- Integrated Google Maps navigation on the same mobile interface – perfect for long-distance riders
5. TECHNICAL CONTROL – READY FOR 2026 STANDARDS
- Quick emission pre-check via OBD before official inspection
- Automatic maintenance reminder system (Auto Reminder)
6. BUILT FOR REAL USERS & LONG-DISTANCE RIDERS
- Quick installation – ready in 20 minutes
- Suitable for daily use, service operation, emission inspection, and off-road riding
- Enables additional value-added service offerings for customers
7. A TRUE TECHNOLOGY GIFT
- For technology enthusiasts
- For touring riders
- For those who want full control over their motorcycle
8. SMART KEY RENEWAL FUNCTION IN ECM

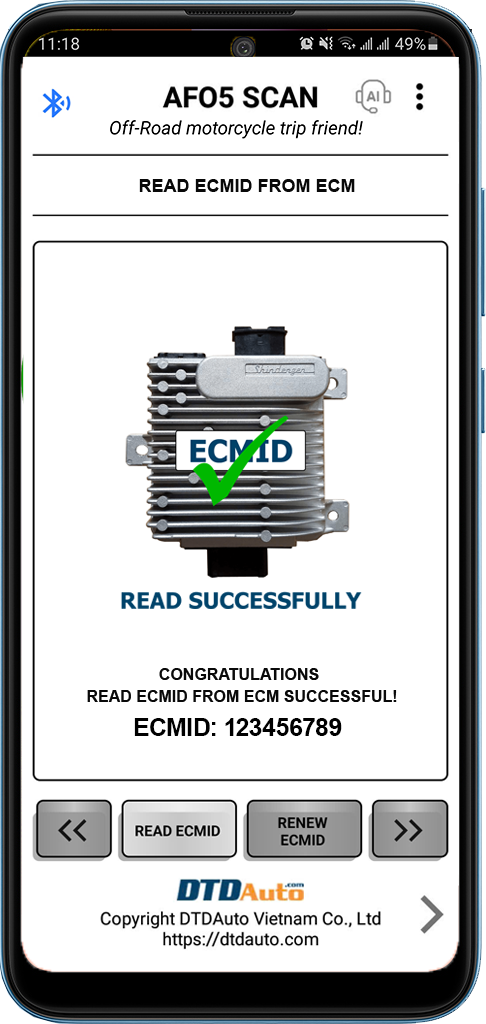

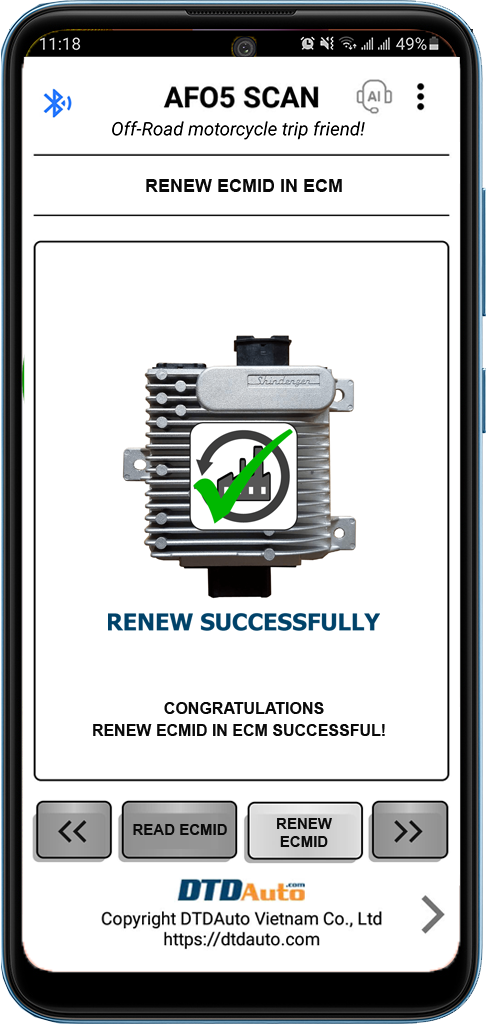

Supports Smart Key ID renewal and synchronization within ECM system
PRODUCT IS REGISTERED COPYRIGHT OF DTDAUTO VIETNAM COMPANY AND PROTECTED BY LAW
● INSTALLATION INSTRUCTION
1. INSTALL AFO5 SCAN
Click here to download the user guide for the AFO5 SCAN product:
https://dtdauto.com/Download/GUIDE_AFO4_TRIP_E.pdf
Note: Install the AFO5 SCAN on the side without the spark plugs
2. NOTES IN AFO INSTALLATION FOR PGM-FI HONDA
Connector of HONDA injectors have 02 types are common and special connector (reverse connector), about 90% are common type, only 10% are reverse type. To determine type for connector, you must plug-in AFO connector to vehicle connector same as the image below. Look at wiring color type:
- If wire color of connector are same side then that is common connector type.
In this case, don’t need to change anything in the installation
- If the wire color of the connector is reversed then that is a special connector type (reverse connector). Look at the image below:
In this case, you must invert the wires of the injector connector on the motorbike firstly
| STEPS REVERT WIRES OF INJECTOR CONNECTOR ON MOTORBIKE |
Injector connector on a motorbike before revert |
 |
Use a clamp to remove the metal latch (1) and wires of the injector connector (2) on a motorcycle |
 |
- Reverse Orange/black wire and Black/white wire then plug in them into the connector (3)
- Plug metal latch (4)
|
 |
Injector connector on a motorbike after inverted wires |
 |
● APPLICATION RANGE
Applicable for all HONDA and YAMAHA motorcycles using electronic fuel injection technology (at the present time), highly effective for motorcycles that often experience acceleration hesitation after a period of use without using a MAP sensor.
LIST OF HONDA MOTORCYCLES:
 |
 |
 |
 |
| ADV 150/160 (2019-2022) |
AIR BLADE (2008-2024) |
BEAT (2017-2024) |
BENLY 50cc |
 |
 |
 |
 |
| BLADE (2014-2015) |
CB 150 VERZA (2021-2024) |
CB 150X (2022-2024) |
CB150R (2013-2019) |
 |
 |
 |
 |
| CB300R (2017-2019) |
CB500F (2019-2021) |
CB500X (2019-2021) |
CB650F (2019-2021) |
 |
 |
 |
 |
| CBR650R (2019-2021) |
CBR 1000 (2021-2024) |
CBR 150 (2021-2024) |
CBR 250 (2021-2024) |
|
 |
 |
 |
| CBR150R (2014-2021) |
CBR500R (2019-2021) |
CLICK (2008-2024) |
CRF 150L (2021-2024) |
 |
 |
 |
 |
| CRF 250/300 (2021-2024) |
CT125 (2021-2024) |
DREAM 110i Fi |
FORZA (2017-2022) |
 |
 |
 |
 |
| FUTURE (2019-2020) |
FUTURE 125 FI |
FUTURE NEO FI |
FUTURE X FI (2019) |
 |
 |
 |
 |
| LEAD 110 |
LEAD 125 (2013-2024) |
GENIO (2019-2024) |
MONKEY (2021-2024) |
 |
 |
 |
 |
| MEGAPRO 150 (2009-2015) |
MSX (2014-2024) |
PCX (2008-2020) |
PCX 150/ 160 (2021-2024) |
 |
 |
 |
 |
| PCX HYBRID (2019-2020) |
PS (2008-2010) |
REBEL (2018-2021) |
REVO (2017-2024) |
 |
 |
 |
 |
| RS 150R (2017-2019) |
SCOOPY (2010-2024) |
SCR 110 |
SH 125/150 (2013-2024)) |
 |
 |
 |
 |
| SH 125/ 150i /PS (ITALY) |
SH 300i (2008-2020) |
SH MODE (2023-2024) |
SONIC 150 (2015-2024) |
 |
 |
 |
 |
| SPACY 110 (2011-2016) |
ST125 DAX (2021-2024) |
SUPER CUB 50 (2019) |
SUPER CUB C125 (2016-2024) |
 |
 |
 |
 |
| SUPRA (2014-2024) |
VARIO 125/150 (2014-2024) |
VISION (2011-2024) |
WAVE 110i (2010-2021) |
 |
 |
 |
 |
| WAVE 125 (2003-2024) |
WAVE-i (2008-2024) |
WAVE RSX FI |
WINNER (2015-2018) |
 |
 |
 |
 |
| WINNER X (2019-2024) |
X-ADV (2017-2020) |
ZOOMER-X (2017-2020) |
Other PGM-FI HONDA motorcycles |
LIST OF YAMAHA MOTORCYCLES:
 |
 |
 |
 |
| ACRUZO |
AEROX (2017-2020) |
CUXI |
EXCITER (2015-2024) |
 |
 |
 |
 |
| FAZZIO (2022-2024) |
FINN |
FREEGO |
FZ 150 |
 |
 |
 |
 |
| FZ-S |
FZi FAZER |
GEAR 125 (2022-2024) |
GT125 |
 |
 |
 |
 |
| GRANDE (2015-2020) |
JANUS |
JUPITER |
LATE 125 |
 |
 |
 |
 |
| LEXI |
LUVIAS FI |
M-SLAZ 150 (2016-2019) |
MIO 125 |
 |
 |
 |
 |
| MT-03 (2015-2019) |
MT-15 (2015-2021) |
MT-25 (2015-2024) |
NMAX (2015-2020) |
 |
 |
 |
 |
| MX King 150 (2022-2024) |
NMX (2015-2022) |
NOUVO |
NOZZA |
 |
 |
 |
 |
| NVX (2018-2020) |
QBIX |
R15 (2022-2024) |
R25 (2022-2024) |
 |
 |
 |
 |
| SIRIUS (2015-2024) |
SMAX (2015-2020) |
T-MAX (2001-2022) |
TFX 150 (2016-2019) |
 |
 |
 |
 |
| VEGA FORCE (2022-2024) |
XSR 155 (2022-2024) |
X-MAX (2017-2024) |
YBR |
|
|
 |
|
| YZF-R15 (2016-2020) |
YZF-R25 (2014-2018) |
YZF-R3 (2014-2018) |
Other FI YAMAHA motorcycles |
● FEATURES

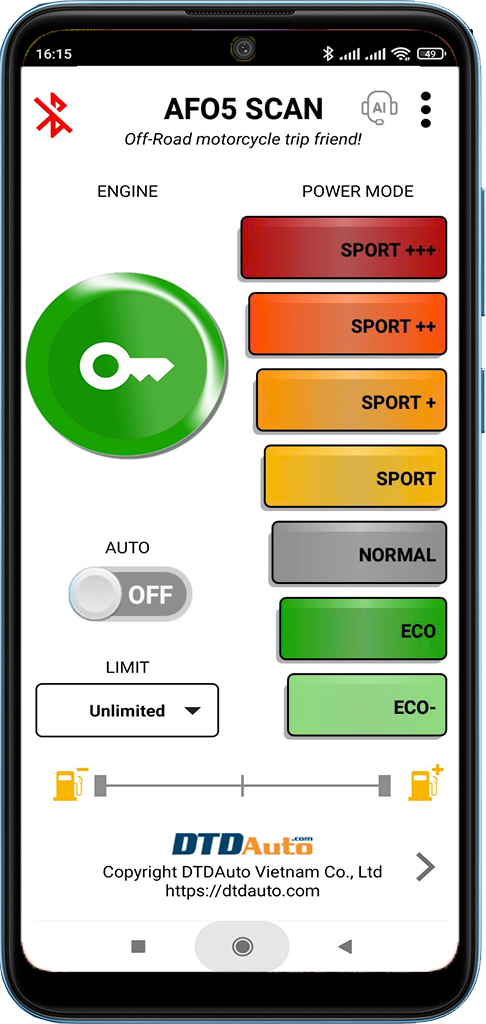

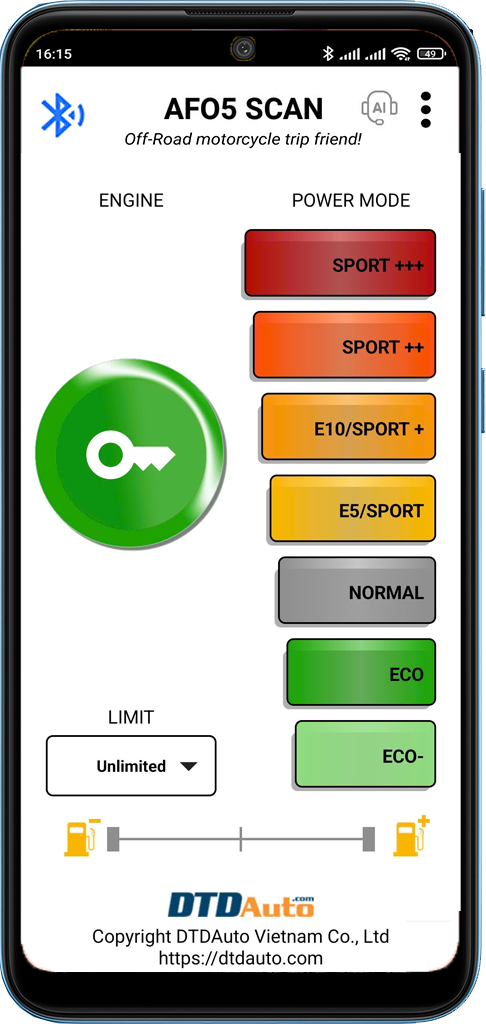

- AFO5 SCAN software is installed on the user's mobile phone

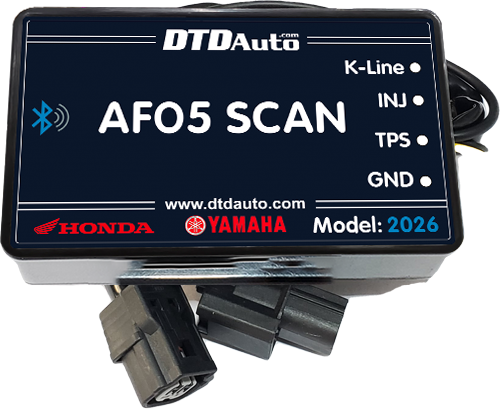

- AFO5 SCAN hardware is designed with intelligent microcontroller technology, it is like a secondary ECU that optimizes the A/F ratio according to the actual load status of the engine

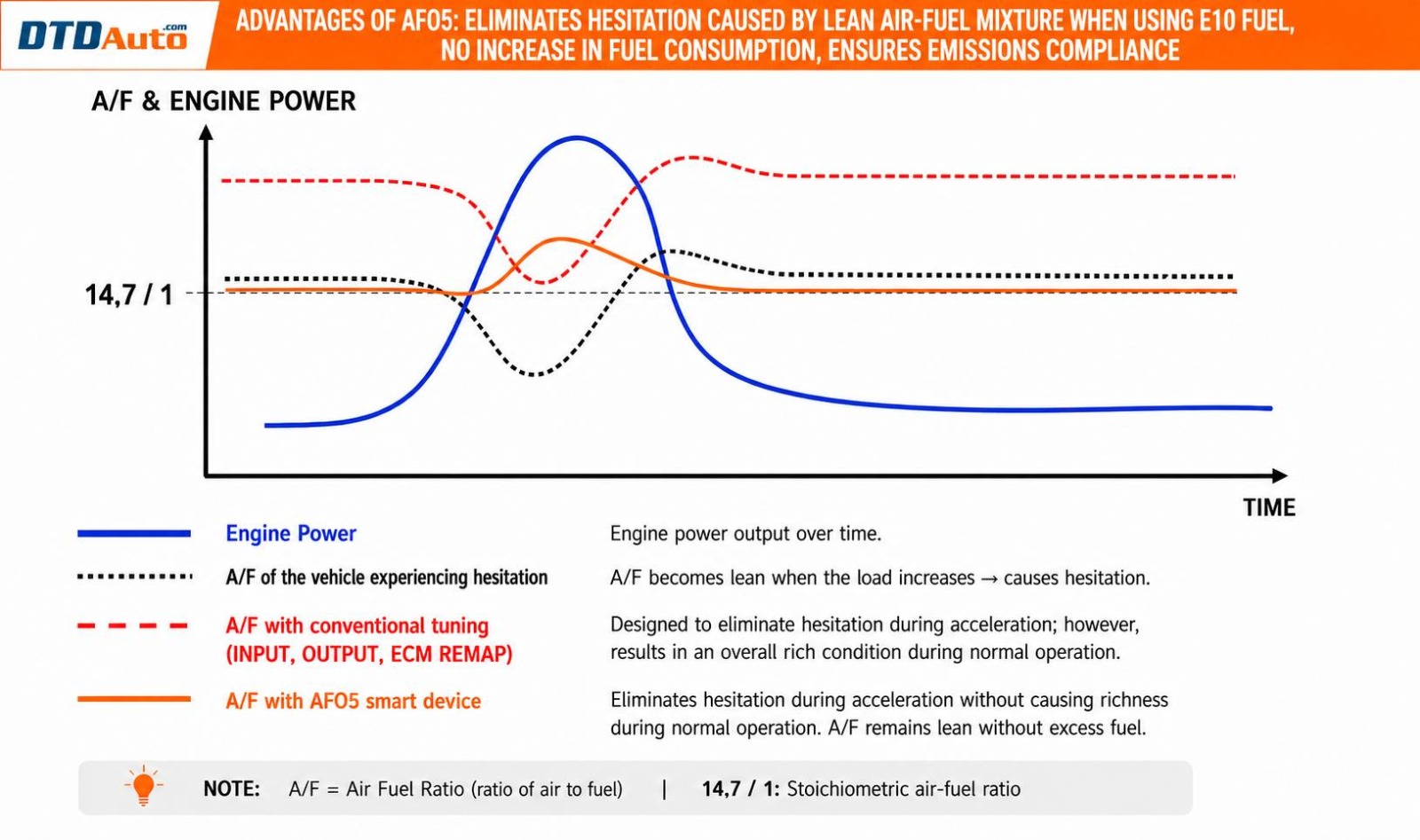

- Only optimize the A/F ratio to repair slum power when accelerating without changing fuel injection quantity at the other loading conditions, so do not rich fuel when operating in the normal load mode.
- Can adjust the A/F ratio depending on the user's demand
- Keep the original wiring harness, no need to cut wiring during installation
- Quick installation time and simple operation with dedicated wire clamp
- Update the latest versions via the internet
- Equipment is stable, watertight, and has a low energy consumption
- Support the anti-theft function
- Equipment can be installed for all types of FI motorcycles using the electronic fuel injection system
● SPECIFICATIONS
- Install near the engine in the position as shown in the diagram
- Installation time: about 20 to 30 minutes for 1 vehicle
- Low cost, direct installation on the vehicle
- Reliability operating, stability, quality and durability
- Dimension: 10 x 6 x 3 cm
- Weight: 500g
- Current consumption: 30mA đến 70mA
- Operating voltage: 12V
- Water resist, light impact and temperature < 100 độ C
- Free update software via Internet
- Warranty 01 year
