MOTOBOX – AN ACCESSORY OF MOTOSCAN TO REPAIR, REINSTALL AND UPGRADE THE ECU FIRMWARE FOR MOTORCYCLE/ SCOOTER

MOTOBOX – AN ACCESSORY OF MOTOSCAN TO REPAIR, REINSTALL AND UPGRADE THE ECU FIRMWARE FOR MOTORCYCLE/ SCOOTER

Price: 16.00 $ - 260.00 $

NOTICE OF UPDATE TO THE NEW VERSION RELEASED ON 12/12/2023 FOR MOTOBOX 3.0
MOTOBOX designed as a accessory that hardware add-in and compatible with MOTOSCAN, EASYKEY to correct true odometer value, reprogram ECM, simulate ECU signals, test fault inside ECU (ECU tester) ... to repair advanced problems in electronic systems of a new generation motorbikes/scooters.
Click here to view ordering instruction >>>

  • Product code:
  • Made by:
  • Net Weight:
  • Weight:
Description

MOTOBOX – AN ACCESSORY OF MOTOSCAN TO REPAIR, REINSTALL AND UPGRADE THE ECU FIRMWARE FOR MOTORCYCLE/ SCOOTER

LAST UPDATE: 12/12/2023icon
WHAT IS NEW IN MOTOBOX 3.0 ?

• ECU TUNER FUNCTION (RELOAD SOFTWARE, TUNING A/F, OFF SMART KEY FOR ECM):
Added 5 new HONDA ECU codes for vehicles:
VISION 2021-2023 (K2CA-V11-V01, K2CA-V31-V01, K2CF-VA1-V01), LEAD 2018 (K12M-V81-V01), PCX 2015-2017 (K36S-TH01-T01)
GIFT: 06 months using copyright MOTODATA software


INTRODUCTION

Today, most Motorcycles and Scooters are using engine control by electronic technology with microprocessors. To determine the trouble is very difficult and complex, can't see and diagnose by "clinical" method such as conventional mechanical repair before. The ECM firmware repair is easiest if you have a special tool for reinstallation or upgrade.
- The sensors, actuators, and electronic control unit will be information together by special electrical signals in an overall link and self-contained, so the repairs independent electronic is very difficult to do when you don't have tools.
- One other way, electronic repairmen for motorcycles and scooters very need to have a signal simulator and tested pulses to confirm that their diagnosis is completely accurate before ordering multiple days for the purchase of new replacement parts as sensors for ECT / EOT, MAF, MAP, TPS, O2S, CKP, IACV, Injectors and ECU...
-Moreover, an electronic repairman for motorcycle and scooters need to have a signal pulse generator dedicated to the motorcycle that is able to adjust in a large range to check, diagnose, and calibrate to repair hardware of electronic functional units such as the ECU, solenoid valve continuous strip, electronic injectors, step motors ...
- To solve the problems mentioned above. We are pleased to introduce a new product: MOTOBOX - Product code: MT0006

MOTOBOX is the name of an electronic accessory is research, and manufacture success in 2015. This is one of the application product lines advanced science and technology to life by DTDAuto Vietnam and developed over the years are posted on the website: www.dtdauto.com

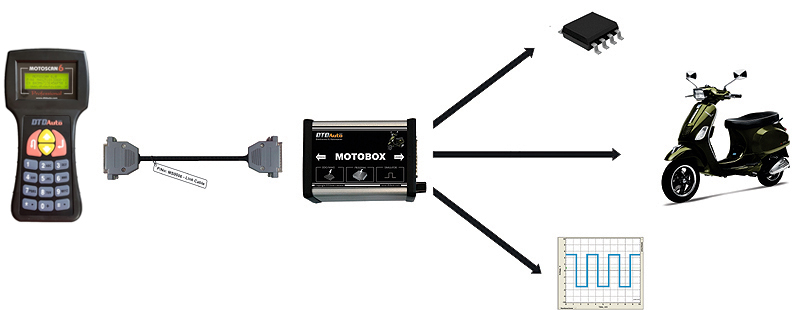

MOTOBOX was designed as an accessory that hardware add-in and is compatible with MOTOSCAN handheld (since version 5.7), and MOTODATA software to support data and advanced functions for repairing of motorcycles and new generation scooters.

MOTOBOX is used for motorcycle repair workshops and professional training vocation to repair, and programmable electrical systems in Vietnam and other countries around the world.

The product is designed beautifully, strong, compact integrated, low cost, and suitable for all repair workshops.





APPLICATION RANGE

- Used to repair hardware and firmware inside the ECU for motorcycles and scooters in the repair workshop.
- Used as training equipment in motorcycle technical training center. MOTOBOX intensive fittings for electrical engineering and electronics in the repair workshop to repair ECU hardware, reprogram ECU firmware, and calibrate specifications.
- An advanced accessory add-in for MOTOSCAN since 2015

● MOTOBOX CABLE OPTIONS

OPTIONS DESCRIPTION PRICE
(USD)
STANDARD SELECTION

MOTOBOX 3.0
Support many functions for MOTOSCAN 7:
- Test electronic components inside ECU of PGM-FI motorbikes independently, quickly, and accurately (called ECU tester function and you need to buy add-in cables)
- Test hall CKP sensors, IACV/ ISCV valve of HONDA, YAMAHA, PIAGGIO... independently, quickly, and accurately (you need to buy add-in cables)
- Reload & upgrade original and license software of HONDA, PIAGGIO/ VESPA manufacturers
- Adjust A/F ratio (tuning A/F ratio) for HONDA by method remapping coding inside ECM
- Load user-edited A/F software, reload the original software, and rescue ECM (ECM software has an error)
- Calibrate the odometer value for most motorbikes on the market
- Read current ODO value directly from EEPROM or MCU of motorbikes dashboard
- Simulate all signal types of ECU (IN/OUT, Digital, Analog, and Kline signals for Odometer of HONDA, YAMAHA) to diagnose, calibrate, and repair
- And add more functions when updating
$324
$260
MOTOBOX CABLE OPTION FOR ECU TEST FUNCTION

HONDA PACK 1 (for 02 motorcycles)
Used to check ECU for LEAD 2009–2011 (ECU code: 38770-GGE-901), SCR 110 (ECU code: 38770-GFM-902)
$45
HONDA PACK 2 (for 03 motorcycles)
Used to check ECU for LEAD 2012 (ECU code: 38770-GGE-941), AIR BLADE 2008 – 2010 (ECU code: 38770-KVG-V21), WINNER 2015-2018 (ECU code: 38770-K56-V01)
$45
HONDA PACK 3 (for 02 motorcycles)
Used to check ECU for AIR BLADE 2011 – 2012 (ECU code: 38770-KVG-V41), VISION 2011-2012 (ECU code: 38770-KZL-E71)
$45
HONDA PACK 4 (for 04 motorcycles)
Used to check ECU for FUTURE 125 (ECU code: 38770-KYZ-V21), WAVE RSX, WAVE 110, WAVE 125 (ECU code: 38770-K03-M01)
$45
HONDA PACK 5 (for 02 motorcycles)
Used to check ECU for WAVE 110 RSX AT, WAVE 110 AT
(ECU code: 38770-KWZ-841)
$45
HONDA PACK 6 (for 02 motorcycles)
Used to check ECU for FUTURE NEO, FUTURE X
(ECU code: 38770-KVL-932)
$45
HONDA PACK 12A (for 02 motorcycles)
Used to check ECU for SH 125i/150i (2008-2012), PS (2008-2012)
$16
HONDA PACK 12B (for 02 motorcycles)
Used to check ECU for SH 125i/150i (2008-2012), PS (2008-2012)
$45
PACK 13 - HONDA ACG ECM (for 17 motorcycles)
Used to check ACG ECU for AIR BLADE 2013-2014, AIR BLADE 2015-2017, AIR BLADE 2018-2019, SH MODE 2013-2014, LEAD 2013-2014, LEAD 2015-2017, LEAD 2018-2019, SH MODE 2015-2017, SH MODE 2018-2019, SH 2015-2016, SH 2017-2019, PCX 2015-2017, PCX 2018-2020, VARIO125/150 2014-2017, VISION 2013-2015, VISION 2016-2017, VISION 2018-2020
(will continue to update for another vehicle)
$220
YAMAHA PACK 7 (for 02 motorcycles)
Used to check ECU for NOUVO SX (ECU code: 1DB-H591A-002XC-H591A-00), SIRIUS 2016 (ECU code: 1FC-H591A-11)
$45
YAMAHA PACK 8 (for 01 motorcycles)
Used to check ECU for EXCITER 2018 (ECU code: 2ND-H591A-00)
$45
YAMAHA PACK 9 (for 01 motorcycles)
Used to check ECU for JUPITER FI (ECU code: 2VP-H591A-00)
$45
YAMAHA PACK 10 (for 01 motorcycles)
Used to check ECU for EXCITER 2019 (ECU code: 2ND-H591A-20)
$45
MOTOBOX CABLE OPTION FOR CKP, IACV/ISCV TEST FUNCTION


CKP & IACV PACK 11
Used to check Hall CKP sensor and IACV/ ISCV for all HONDA, YAMAHA, PIAGGIO/ VESPA
$45
Notes: when buy the goods, customers can choice follow options and make total for payment.
Example 1: MOTOBOX = $324 = totals of payment
Example 2: MOTOBOX + 03 add-in cables = $324 + ($45 X 3) = totals of payment

FUNCTION

1. SIMULATE THE INPUT SIGNALS OF ECU
- Digital signals and Analog signals: Generating the digital TTL signal to simulate the electromagnetic sensor signals and Hall effect sensors such as vehicle speed sensor (VSS), the wheel speed sensor (for ABS), crankshaft position sensor (CKP), camshaft sensor (CMP) etc ... the signals can simulate changes amplitude, frequency, amount of teeth and ring gear for most kinds of sensor rotors.
- Analog voltage signals change slowly, including wide range and narrow range Simulation Analog signal voltage in the range (0V to 5V) to simulate the signals such as engine temperature sensor (ECT), intake air temperature sensor (IAT), throttle position (TPS), intake manifold absolute pressure sensor (MAP) and intake air flow sensor (MAF) and Oxygen sensor (O2S).

2. SIMULATE THE OUTPUT SIGNAL OF ECU
Simulate electromagnetic pulse to control the actuators such as relays, solenoids valve, Ignition coil, injectors ... To correct voltage, amplitude, frequency, similar to the signal carried on the vehicle, effective in the diagnosis, segmentation, exclusion, and repairs.

3. PROGRAMING TO CORRECT VALUE OF DIGITAL SPEEDOMETER (ODO) FOR REMOVABLE EXTERNAL EEPROM
Used for HONDA, YAMAHA, PIAGGIO/VESPA, SUZUKI
- HONDA:
AIR BLADE (2013-2019), AIR BLADE (2020-2022), CB150R (2017-2019), CB300R (2017-2019), CB650R, CBR250, CBR650R, CB650F, CBR650F, CB500X, CBR500R, CB500F, CBR 50RR (2019-2021), CBR150R (2019-2021), FUTURE NEO Fi, FUTURE X Fi, LEAD (2013-2019), LEAD 2020, PCX (2008-2013), PCX (2014-2017), PCX 2018, PCX HYBRID, SH 300i, SH MODE (2013-2019), SH 125/150/125D/150D/SM (2013-2017), SH 125/150/125D/150D/SM (2018-2019), SH 125/150/125D/150D/SM (2020), SCOOPY-I, SCOOPY 2021, SUPER CUP 125 (2021-2021), MSX, GENIO (2019-2021), VISION 2021, VARIO 150, WINNER, WINNER X, X-ADV, DYLAN, ZOOMER X (2013-2017), ZOOMER X (2018-2020), SONIC, WAVE 125 (Thailand), CLICK (2012-2014), CLICK (2014-2017) CLICK (2018-2020), VARIO (2014-2017), VARIO (2018-2020)
- YAMAHA:
ACRUZO , AEROX, LEXI S, LATTE, FREGO, NVX, NMAX, NMX, M-SLAZ (2016-2019), MT-03 (2015-2019), MT-25 (2015-2019), JANUS, TFX, EXCITER (2014-2018), EXCITER (2019-2020), EXCITER 155 VVA, FZ 150, FZ 150i, GRANDE, NOUVO SX, NOUVO LX, YZF-R3 (2014-2018), YZF-R25 (2014-2018), R15, X-MAX 300 (2017-2018), TMAX
- PIAGGIO:
MEDLEY 125, MEDLEY 150, MEDLEY 125 ABS, MEDLEY 150 ABS, LIBERTY ABS, LIBERTY 125 3V PGN04, LIBERTY 150 3V PGN04, LIBERTY 125 3V PGT01, LIBERTY 150 3V PGT01, LIBERTY 125 3V PGS02/PGR04/PGS05/PGS06, LIBERTY 150 3V PGS02/PGR04/PGS05/PGS06, LIBERTY ABS PGS06
- VESPA:
PRIMAVE 125 PGN04, PRIMAVE 150 PGN04, SPRINT 125 3V PGN04, SPRINT 150 3V PGN04, SPRINT 125 3V PGT01, SPRINT 150 3V PGT01, SPRINT 125 3V PGS02/PGR04/PGS05/PGS06, SPRINT 150 3V PGS02/PGR04/PGS05/PGS06
- SUZUKI:
RAIDER (2017-2021), SATRIA (2017-2021)
Edit, decode odometer data, and convert information automatically in EEPROM

4. RELOAD & UPGRADE ORIGINAL AND LICENSE SOFTWARE OF HONDA, PIAGGIO/ VESPA MANUFACTURERS
- PIAGGIO/VESPA (it also supports GILERA, APRILIA, DERBI, PEUGEOT, which use similar ECMs): ECM types are AC19I/ AC20I/ AC24I/ AC25I/AC27I/ AC32I, MIU G3/RIU1, PGN04/PGS02/PGR04/PGS05/PGS06/PGT01 and ECM PGQ16*
- HONDA: AIR BLADE 110, AIR BLADE 125/150, DREAM 110i, FUTURE X FI, FUTURE 125 FI, SH 125/150, SONIC 150, WINNER 150, WINNER X, FUTURE X 2019, FUTURE 2014 -2017, LEAD 110, LEAD 125, PCX (2015-2019), MSX, MONKEY 125i, PS, SCR 110, SCOOPY-I, SONIC 150, SH 125i/150i (nhập khẩu), SH 125/150 ESP, SH 300I, SH MODE, SUPER CUB 50 2019, SUPRA, WAVE 125, WAVE 125-i (Thailand), CLICK, VARIO, VISION 110, SCR 110, WAVE 100i, WAVE 125/ 125i, WAVE RSX FI, WINNER 150, WINNER X...
- YAMAHA: NVX*
Notes: The advanced functions with an asterisk (*) may be researched & update in future

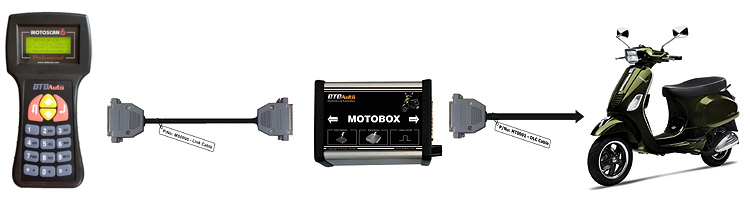

Upgrade firmware for PIAGGIO

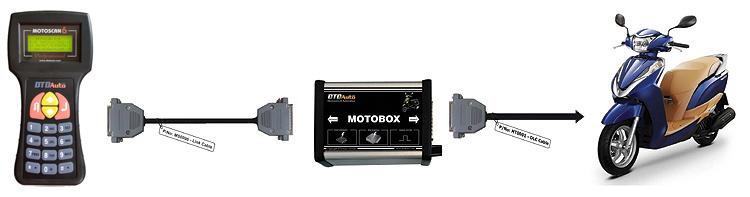

Upgrade firmware for HONDA


5. ADJUST A/F RATIO (TUNING A/F RATIO) FOR HONDA BY METHOD REMAPPING CODING INSIDE ECM

6. TEST ELECTRONIC COMPONENTS INSIDE ECU OF PGM-FI MOTORBIKES INDEPENDENTLY, QUICKLY, AND ACCURATELY (called ECU Tester function and you need to buy an add-in cable for using)
Test quantity of ECMs for HONDA, YAMAHA, PIAGGIO/VESPA according to the order
- HONDA: AIR BLADE 2008-2010, AIR BLADE 2011-2012, AIR BLADE (2013-2014), AIR BLADE (2015-2017), AIR BLADE (2018-2019), LEAD 110 (Trước 2012), LEAD 110 (2012), LEAD (2013-2014), LEAD (2015-2017), LEAD (2018-2019), SH 125/150 (2013-2014), SH 125/150 (2015-2016), SH 125/150 (2017-2019), PCX (2015-2017), PCX (2018-2019), VISION (2013-2017), VISION (2018-2020), VARIO (2014-2017), VISION 2011-2012, FUTURE X FI, FUTURE NEO FI, FUTURE 125 FI, WAVE 110i (Thailand), WAVE 125i (Thailand), WAVE RSX FI, WAVE RSX FI AT...
- YAMAHA: NOUVO SX , SIRIUS 2016, EXCITER 2018, JUPITER FI, EXCITER 2019


Connection diagram for small ECU



Connection diagram for ACG ECU


7. LOAD USER-EDITED A/F SOFTWARE, RELOAD THE ORIGINAL SOFTWARE AND RESCUE ECM (ECM SOFTWARE HAVE AN ERROR)

8. CHECK HALL CKP SENSOR, IACV/ ISCV(you need to buy an add-in cable)
Used for all HONDA, YAMAHA, PIAGGIO/ VESPA.

FUNCTION TABLE FOR LIST OF MOTORCYCLES

Notes:
: functions appear on MOTOBOX 3.0
: functions may be researched & update in future

SIMULATE
ECU INPUT SIGNAL
(O2, ECT, IAT, TPS, MAP, CKP, VSS)
SIMULATE
ECU OUTPUT SIGNAL
(INJECTOR, IGNITION COIL, SOLENOID)
PROGRAM/ ADJUST
ODOMETER
PROGRAM/ UPGRADE
FIRMWARE ECM
REMAP,
TUNING ECM
TEST ECU TEST SENSOR,
ACTUATOR
                 ECM  CODE                  A/F RATIO ON/OFF
AIR BLADE (2008-2010) ECM code: 38770–KVG–V21
ECM code: 38770–KVG–A31
IACV IACV
AIR BLADE (2011-2012) ECM code: 38770–KVG–V42
ECM code: 38770–KVG–V41
  IACV
AIR BLADE (2013-2017)
ECM code: K66A–V01–VN01   CKP, IACV
AIR BLADE (2018-2020)
ECM code: K66G–VG1–V01
ECM code: K66G–VE1–NO SMK
ECM code: K1FA–V01–V11
ECM code: K1GA–V01–V11
  CKP, IACV
CB150R (2017-2019)

CB300R (2017-20190)
          IACV
CB650R (2019-2021)       IACV
CBR250       IACV
CBR650R (2019-20210)       IACV
CB650F (2019-2021)           IACV
CBR650F (2019-2021)           IACV
CB500X (2019-2021)           IACV
CBR500R (2019-2021)           IACV
CB500F (2019-2021)           IACV
CBR50RR (2019-2021)           IACV
CBR150R (2019-2021)           IACV
CLICK     ECM code: 38770–KVB–T03     IACV
CLICK-I         IACV
CLICK 125/150 (2013-2019)   ECM code: K60S–T71–TH01
ECM code: K59R–C01–CA01
SMK   CKP, IACV
DYLAN
DREAM 110i     ECM code: 38770–K76–T62
ECM code: 38770–KZV–A61
    IACV
FUTURE NEO FI       IACV
FUTURE X FI ECM code: 38770–K03–M01
ECM code: 38770–G90–V02
ECM code: 38770–KYZ–G01
  IACV
FUTURE 125 FI ECM code: 38770–K03–M01
ECM code: 38770–G90–V02
ECM code: 38770–KYZ–G01
  IACV
GENIO (2019-2021)           IACV
LEAD 110 (2009-2012) ECM code: 38770–GGE–901
ECM code: 38770–GGE–941
IACV IACV
LEAD 125 (2013-2016)       CKP, IACV
LEAD 125 (2017-2019) ECM code: K12H–931–V01
ECM code: K12M–V91–V01
ECM code: K12K–V11–V01
ECM code: K12K–V01–V01–SMK
EVAPO CKP, IACV
MSX (14-16)   ECM code: 38770–K26-901
ECM code: 3877–K26–911

MSX (17-19)     ECM code: 38770–K26–B13
ECM code: 38770–K26–C31

MONKEY 125i         ECM code: 38770–K0F–T01
PCX (08-19) ECM code: K36S–T31–TH01   CKP, IACV
PCX HYBRID       CKP, IACV
PCX 150 2021           CKP, IACV
PCX 160 2021           CKP, IACV
PS ECM code: 16400–KTF–982
ECM code: 16400–KTF–641
ECM code: 16400–KTG–641
ECM code: 16400–KTG–982
ECM code: 16400–KTG–921
IACV
O2

SCR 110 ECM code: 38770–GFM–902 IACV IACV
SCOOPY-I ECM code: 38770–KYT–901   IACV
SCOOPY 2021           CKP, IACV
SONIC 150 ECM code: 38770–K56–N01
SH 125i/ 150i (Italia) ECM code: 16400–KTF–982
ECM code: 16400–KTF–641
ECM code: 16400–KTG–641
ECM code: 16400–KTG–982
ECM code: 16400–KTG–921
IACV
O2
SH 125/ 150 ESP   ECM code: K77A–V01–V01
ECM code: K77A–V11–V01
ECM code: K78A–V01–V01
ECM code: K78A–V11–V01
ECM code: K01J–611–V01
ECM code: K02K–701–V01
SMK CKP, IACV
SH 300I   ECM code: 16400–KTW–B02 IACV
O2
  IACV
SH MODE ECM code: K29M-V81-V01
ECM code: K29K-961-V01
EVAPO
SMK
CKP, IACV
SUPRA     ECM code: 38770–KYZ–713     IACV
SUPER CUB 50 2019     ECM code: 38770–GBJ–M53     IACV
SUPER CUP C125 (2020-2021)       CKP, IACV
VARIO   ECM code: K59F–A01–IN01
ECM code: K59K–T11–TH01
ECM code: K60K–B31–IN01
ECM code: K60R–B61–IN01
ECM code: K60R–B71–IN01
SMK   CKP, IACV
VISION 2011 – 2012     ECM code: 38770–KZL–E12
ECM code: 38770–KZL–E13
ECM code: 38770–KZL–E71
SMK
VISION 2013 – 2015             CKP, IACV
VISION 2016 – 2019     ECM code: K44P–V81–V01
ECM code: K44P–V91–V01
ECM code: K44F–V91–V01
    CKP, IACV
VISION 2020-2021
      CKP, IACV
WAVE 100i         ECM code: 38770–K03–A61
ECM code: 38770–K03–H01
ECM code: 38770–K58–T81
ECM code: 38770–K58–TC1

WAVE 110-I       IACV
WAVE 110 AT               IACV
WAVE 110 (2021)           IACV
WAVE 125/ 125i ECM code: 38770–KYZ–V71
ECM code: 38770–KYZ–T03
    IACV
WAVE RSX FI ECM code: 38770–K90–V02
ECM code: 38770–G90–V02
ECM code: 38770–KYZ–G01
ECM code: 38770–KWZ–841
ECM code: 38770–K90–VC1
ECM code: 38770–K03–M01
  IACV
WAVE RSX FI AT       IACV
WINNER 150 ECM code: 38770–K56–V01   IACV
WINNER X     ECM code: 38770–K56R–V51     IACV
Other HONDA FI             CKP, IACV
HONDA
mechanical carburetor

SIMULATE
ECU INPUT SIGNAL
(O2, ECT, IAT, TPS, MAP, CKP, VSS)
SIMULATE
ECU OUTPUT SIGNAL
(INJECTOR, IGNITION COIL, SOLENOID)
PROGRAM/ ADJUST
ODOMETER
PROGRAM/ UPGRADE
FIRMWARE ECM
REMAP,
TUNING ECM
TEST ECU TEST SENSOR,
ACTUATOR
ECM CODE A/F RATIO ON/OFF
ACRUZO DELUXE         CKP, ISCV
ACRUZO STANDARD         CKP, ISCV
CUXI           ISCV
JANUS           CKP, ISCV
JUPITER FI GRAVITA         ISCV
JUPITER FI GREEN         ISCV
JUPITER FI GP         ISCV
JUPITER FI RC       ISCV
LATTE 2019           CKP, ISCV
LUVIAS GTX FI           CKP, ISCV
LUVIAS FI             CKP, ISCV
NM-X           CKP, ISCV
NOZZA           CKP, ISCV
NOZZA LIMITED   CKP, ISCV
NOUVO LX         ISCV
NOUVO SX RC       ISCV
NOUVO SX STD       ISCV
NOUVO SX GP     ISCV
NVX 155         CKP, ISCV
NVX 155 ABS
M-SLAZ (2016-2018)
MT-03 (2015-2019)
MT-15 (2016-2021)
MT-25 (2015-2019)
R15               ISCV
SIRIUS RC FI     CKP, ISCV
GRANDE DELUXE         CKP, ISCV
GRANDE STD         CKP, ISCV
GRANDE DUL. 2019             CKP, ISCV
GRAND STD. 2019             CKP, ISCV
FREEGO 2019             CKP, ISCV
FREEGO S 2019             CKP, ISCV
FZ1 FAZER       ISCV
FZ 150         ISCV
FZ 150I         ISCV
FZ 150I GP         ISCV
FZ150I MOVISTAR         ISCV
FZ-S           ISCV
TFX           ISCV
TMAX (2001-2003)
TMAX 500 (2008-2011)
YBR
YZC
YZF-R3 (2014-2018)
YZF-R25 (2014-2018)
EXCITER 150 GP (2015-2018)
EXCITER 150 RC (2015-2018)
EXCITER MOV. 150 (2015-2018)
EXCITER CAMO 150 (2015-2018)
EXCITER GP (2019-2020)
EXCITER RC (2019-2020)
EXCITER MON. (2019-2020)
EXCITER DOX. (2019-2020)
EXCITER MOV. (2019-2020)
EXCITER 150i (2019-2020)
XMAX 300 (2017-2018)
Other YAMAHA FI
YAMAHA
mechanical carburetor

SIMULATE
ECU INPUT SIGNAL
(O2, ECT, IAT, TPS, MAP, CKP, VSS)
SIMULATE
ECU OUTPUT SIGNAL
(INJECTOR, IGNITION COIL, SOLENOID)
PROGRAM/ ADJUST
ODOMETER
PROGRAM/ UPGRADE
FIRMWARE ECM
REMAP,
TUNING ECM
TEST ECU TEST SENSOR,
ACTUATOR
ECM CODE A/F RATIO ON/OFF
BEVERLY 125 MIUG3
BEVERLY 300 MIUG3
BEVERLY 350 MIUG3
FLY 125 MIUG3
FLY 150 MIUG3
FLY 125 3V MIUG3
FLY 150 3V MIUG3
LIBERTY
MEDLEY 125 ABS       CKP
MEDLEY 150 ABS       CKP
MEDLEY 125 PGQ16         CKP
MEDLEY 150 PGQ16         CKP
X10 125 MIUG3
X10 350 MIUG3
Other PIAGGIO FI
PIAGGIO
mechanical carburetor (ECM AC19I/AC20I/AC191/AC201)

PIAGGIO
Other mechanical carburetor

SIMULATE
ECU INPUT SIGNAL
(O2, ECT, IAT, TPS, MAP, CKP, VSS)
SIMULATE
ECU OUTPUT SIGNAL
(INJECTOR, IGNITION COIL, SOLENOID)
PROGRAM/ ADJUST
ODOMETER
PROGRAM/ UPGRADE
FIRMWARE ECM
REMAP,
TUNING ECM
TEST ECU TEST SENSOR,
ACTUATOR
ECM CODE A/F RATIO ON/OFF
946 125 3V MIUG3
946 150 3V MIUG3
GTS125 MIUG3
GTS150 MIUG3
LXV125 3V MIUG3
GTS125 ABS MIUG3
GTS300 ABS MIUG3
LT125 3V MIUG3
LT150 3V MIUG3
LX125 MIUG3
LX150 MIUG3
LX125 3V MIUG3
LX150 3V MIUG3
LX125 3V PGN04
LX150 3V PGN04
LXV125 2V MIUG3
LXV125 3V MIUG3
LXV150 3V MIUG3
PRIMAVERA
PRIMAVERA ABS
S125 MIUG3
S150 MIUG3
S125 3V MIUG3
S150 3V MIUG3
SPRINT
SPRINT ABS
Other VESPA FI
VESPA
mechanical carburetor (ECM AC19I/AC20I/AC191/AC201)

VESPA
Other mechanical carburetor

SIMULATE
ECU INPUT SIGNAL
(O2, ECT, IAT, TPS, MAP, CKP, VSS)
SIMULATE
ECU OUTPUT SIGNAL
(INJECTOR, IGNITION COIL, SOLENOID)
PROGRAM/ ADJUST
ODOMETER
PROGRAM/ UPGRADE
FIRMWARE ECM
REMAP,
TUNING ECM
TEST ECU TEST SENSOR,
ACTUATOR
ECM CODE A/F RATIO ON/OFF
ADDRESS 110
HAYATE 125 SS
UA 125-T
VIVA 115
GSX R150
GZ150-A
EN150-A
THUNDER 150/150S
IMPLUSE
RAIDER (2017-2021)
SATRIA (2017-2021)
STAR RS 125 EFI
STAR SR 170 ABS
Other SUZUKI FI
SUZUKI
mechanical carburetor

SIMULATE
ECU INPUT SIGNAL
(O2, ECT, IAT, TPS, MAP, CKP, VSS)
SIMULATE
ECU OUTPUT SIGNAL
(INJECTOR, IGNITION COIL, SOLENOID)
PROGRAM/ ADJUST
ODOMETER
PROGRAM/ UPGRADE
FIRMWARE ECM
AAREMAP,ATUNINGAECMAAA TEST ECU TEST SENSOR,
ACTUATOR
ECM CODE A/F RATIO ON/OFF
ATTILA-V SMART IDLE
ELIZABETH SMART IDLE
ELIZABETH 110
ELIZABETH 2014
ELIZABETH 20 years
ELIZABETH SMART
JOYRIDE
SHARK 125
SHARK 125 CBS
SHARK MINI 125 EFI
SHARK MINI 125 SPORT
PASSING EFI
POWER EFI
VENUS EFI
VENUS 125 EFI
VENUS 125 CBS
VENUS 125 SMART IDLE
Other SYM FI
SYM
mechanical carburetor

SIMULATE
ECU INPUT SIGNAL
(O2, ECT, IAT, TPS, MAP, CKP, VSS)
SIMULATE
ECU OUTPUT SIGNAL
(INJECTOR, IGNITION COIL, SOLENOID)
PROGRAM/ ADJUST
ODOMETER
PROGRAM/ UPGRADE
FIRMWARE ECM
REMAP,
TUNING ECM
TEST ECU TEST SENSOR,
ACTUATOR
ECM CODE A/F RATIO ON/OFF
PEOPLE S FI
PEOPLE 16 FI
MANY MACAROL FI
MANY FI
LIKE FI
JOCKEY FI
Other KYMCO FI
KYMCO
mechanical carburetor


SPECIFICATION

- Dimension (LxWxH): 21x14x7 cm
- Weight: 0.8 kg

SOME REFERENCE INTERFACES ON MOTOSCAN

Screen for function selection Screen for function selection
Request screen to connect MOTOBOX Screen to select pulse type
Screen for CKP 11 teeth setting Screen to confirm EEPRPOM type
Screen for ODO correction Screen to check and confirm firmware version
Screen inform firmware progress in reinstallation Screen inform firmware reinstallation is complete
PACKAGE

NO. DESCRIPTION IMAGE
01
Main accessory (accessory of MOTOSCAN))
02
Data cable used to connect MOTOSCAN with MOTOBOX
03
Update adapter used to update MOTOBOX
04
Link adapter used to check ECU, sensors and actuators
05
ODO cable for odometers of YAMAHA: JANUS, NVX, TFX, S-MLAZ
06
ODO cable for odometers of PIAGGIO/ VESPA that use internal (MCU)
07
ODO cable used for odometers that have IC type is 93CXX, 24CXX of HONDA, YAMAHA, PIAGGIO/ VESPA, SUZUKI
08
Simulation cable used to simulate signal
09
Quick guide
10
Case

RELATED DOCUMENTS

Smartkey tool เครื่องมือสมาร์ทคีย์ Outil clé intelligente alat kunci pintar 스마트키 도구 Herramienta Smartkey Ferramenta Smartkey Strumento Smartkey Инструмент Smartkey Smartkey-Tool スマートキーツール Lost all keys หายไปทั้งหมดของคีย์ Perdu toutes les clés Kehilangan semua kunci 모든 키를 분실함 Perdí todas las llaves Perdeu todas as chaves Ho perso tutte le chiavi Потерял все ключи Alle Schlüssel verloren すべてのキーを紛失しました Lost my yamaha motorcycle key กุญแจรถมอเตอร์ไซค์ยามาฮ่าหาย J'ai perdu ma clé de moto yamaha Kehilangan kunci motosikal yamaha saya 야마하 오토바이 키를 분실했습니다. Perdí la llave de mi motocicleta yamaha Perdi minha chave yamaha de motocicleta Ho perso la chiave della mia moto yamaha Я потерял ключ от мотоцикла yamaha Habe meinen Yamaha Motorradschlüssel verloren ヤマハのバイクの鍵をなくした Scan fault codes Piaggo vespa สแกนรหัสความผิดปกติ Piaggo vespa Scannez les codes d'erreur Piaggo vespa Imbas kesalahan kod Piaggio vespa 결함 코드 Piaggio vespa 스캔 Escanear códigos de avería Piaggio vespa Ler códigos de falha Piaggio vespa Scansione codici difetto Piaggio vespa Сканирование кодов неисправностей Piaggio vespa Fehlercodes scannen Piaggio Vespa 障害コードをスキャンするPiaggivespa Odometer correction tool เครื่องมือแก้ไขมาตรระยะทาง outil de correction d'odomètre Alat pembetulan Odometer 보정 도구 주행 거리계 Herramienta de corrección de odómetro Ferramenta de correção de odômetro Strumento di correzione del contachilometri Инструмент коррекции одометра Entfernungsmesser-Korrekturwerkzeug 走行距離計補正ツール Scangauge fault codes รหัสผิดเครื่องสแกนเนอร์ Codes d'erreur du scanner Kod kesalahan pengimbas 스캐너 오류 코드 Códigos de avería del escáner codici di errore dello scanner codici di errore dello scanner коды неисправностей сканера Fehlercodes des Scanners スキャナー障害コード How to read fault codes วิธีอ่านรหัสความผิดปกติ Comment lire les codes défaut Cara membaca kod kesalahan 오류 코드를 읽는 방법 Cómo leer códigos de avería Como ler códigos de falha Come leggere i codici di errore Как читать коды неисправностей So lesen Sie Fehlercodes 障害コードの読み方 Motorcycle abs kit ชุดเอบีเอสมอเตอร์ไซค์ kit ABS moto Kit abs para motocicleta Комплект для пресса мотоцикла Motorrad-Bauchmuskel-Kit オートバイのABSキット Honda ecu tuner จูน ECU HONDA Accordeur d'écu Honda 혼다 ecu 튜너 Sintonizador Honda ECU Sintonizador ecu Honda Sintonizzatore centralina Honda Тюнер honda ecu Honda Steuergerätetuner ホンダecuチューナー How to check ckp sensor วิธีการตรวจสอบเซ็นเซอร์ CKP Comment vérifier le capteur ckp Cara memeriksa sensor ckp ckp 센서 확인 방법 Cómo comprobar el sensor ckp Como verificar o sensor ckp Come controllare il sensore ckp Как проверить датчик ckp So überprüfen Sie den ckp-Sensor ckpセンサーの確認方法 Motocycle scanner เครื่องสแกนรถมอเตอร์ไซด์ Codes d'erreur du scanner Pengimbas motosikal 오토바이 스캐너 Escáner de motocicleta Scanner de motocicleta Scanner per moto Мотоциклетный сканер Motorradscanner オートバイスキャナー Scan scooter รถมอเตอร์ไซด์สแกน Scanner la moto Imbas motosikal 오토바이 스캔 Escanear motocicleta Motocicleta de varredura Scansione moto Сканирование мотоцикла Motorrad scannen オートバイをスキャンする Honda Yamaha Suzuki Vespa immobilizer ECU remap tuning files download ดาวน์โหลดไฟล์ปรับแต่ง ECU รีแมป fichiers de réglage remap ECU télécharger Muat turun fail penalaan pemetaan semula ECU ECU 리맵 튜닝 파일 다운로드 Descarga de archivos de ajuste de reasignación de ECU remap ECU arquivos de ajuste de download remap ECU lime di sintonia scaricare Скачать файлы настройки переназначения ЭБУ ECU-Remap-Tuning-Dateien herunterladen ECUリマップチューニングファイルのダウンロード Motorcycle obd2 scanner สแกนเนอร์รถจักรยานยนต์OBD2 Scanner obd2 de moto Pengimbas motosikal obd2 오토바이 obd2 스캐너 Escáner obd2 para motocicleta Scanner obd2 para motocicleta Scanner obd2 per moto Сканер obd2 для мотоциклов Motorrad obd2 Scanner オートバイobd2スキャナー Motorscan Motoscan HONDA pgm-fi problems ปัญหา HONDA pgm-fi problème pgm-fi HONDA Masalah pgm-fi HONDA 혼다 pgm-fi 문제 Problemas de HONDA pgm-fi Problemas HONDA pgm-fi Problemi HONDA pgm-fi HONDA pgm-fi проблемы HONDA pgm-fi Probleme ホンダpgm-fiの問題 Program ecu โปรแกรม ecu REPROGRAMMATION MOTO ECU Program ecu 프로그램 ecu Programa ecu Programa ecu Programma ECU Программа ecu Programmsteuergerät プログラムecuKey fob reader เครื่องอ่านรหัสคีย์ Lecteur de code clé ECU simulator tester เครื่องจำลอง ECU simulateur ECU Simulador de ECU ECU 신호 시뮬레이터 Simulador de ECU Simulador ECU Simulatore ECU Симулятор ЭБУ ECU-Simulator ECUシミュレーター Motorcycle diagnostic tools เครื่องมือวิเคราะห์ยานยนต์ Outils de diagnostic moto Alat diagnostik motosikal 오토바이 진단 도구 Herramientas de diagnóstico de motocicletas Ferramentas de diagnóstico de motocicleta Strumenti diagnostici per moto Инструменты для диагностики мотоциклов Motorrad-Diagnosetools オートバイの診断ツール Honda diagnostic tester ฮอนด้าทดสอบวินิจฉัย Testeur de diagnostic Honda Penguji diagnostik Honda 혼다 진단 테스터 Probador de diagnóstico Honda Testador de diagnóstico Honda Tester diagnostico Honda Диагностический тестер Honda Honda Diagnosetester ホンダ診断テスター Electrical wiring diagram แผนผังการเดินสายไฟฟ้า Schéma de câblage électrique Gambar rajah pendawaian elektrik 전기 배선도 Diagrama de cableado eléctrico Diagrama de fiação elétrica Schema elettrico Схема электрических соединений Elektrischer Schaltplan 電気配線図 Motorcycle workshop software ซอฟต์แวร์การจัดการร้านซ่อมรถจักรยานยนต์ Logiciel atelier moto Perisian bengkel motosikal 오토바이 워크샵 소프트웨어 Software para talleres de motos Software de oficina de motocicleta Software per officina motociclistica Программное обеспечение для мотоциклов семинара Motorradwerkstatt-Software オートバイワークショップソフトウェア ECU signal simulator เครื่องจำลองสัญญาณ ECU Simulateur de signaux ECU Simulator isyarat ECU ECU 신호 시뮬레이터 Simulador de señal ECU Simulador de sinal ECU Simulatore di segnale ECU Имитатор сигналов ЭБУ ECU-Signalsimulator ECT温度センサー ECT temperature sensor เซ็นเซอร์ ECT Capteur de température ECT Sensor suhu ECT ECT 온도 센서 Sensor de temperatura ECT Sensor de temperatura ECT Sensore di temperatura ECT Датчик температуры ЕСТ ECT-Temperatursensor ECT温度センサー pgm-fi system ระบบ pgm-fi système pgm-fi sistem pgm-fi pgm-fi 시스템 sistema pgm-fi sistema pgm-fi sistema pgm-fi система pgm-fi pgm-fi-System pgm-fiシステム ckp sensor เซ็นเซอร์ CKP capteur ckp sensor ckp ckp 센서 sensor ckp sensor ckp sensore ckp датчик ckp ckp-sensor ckpセンサー how to reset fault codes วิธีรีเซ็ตรหัสความผิดปกติ comment réinitialiser les codes d'erreur cara menetapkan semula kod kesalahan 오류 코드를 재설정하는 방법 cómo restablecer los códigos de falla como redefinir códigos de falha come ripristinare i codici di errore как сбросить коды неисправностей So setzen Sie Fehlercodes zurück 故障コードをリセットする方法 smart key repair ซ่อมสมาร์ทคีย์ réparation clé intelligente pembaikan kunci pintar 스마트 키 수리 reparación de llave inteligente reparo de chave inteligente riparazione di chiavi intelligenti ремонт смарт-ключей Smart Key Reparatur スマートキーの修理 smart key fault ความผิดพลาดของสมาร์ทคีย์ défaut de clé intelligente kesalahan kunci pintar 스마트 키 오류 falla de llave inteligente falha de chave inteligente errore chiave intelligente неисправность смарт-ключа Smartkey-Fehler スマートキーの故障 lost the motorcycle key ทำกุญแจมอไซค์หาย perdu toutes les clés moto kehilangan kunci motosikal 오토바이 열쇠를 분실했다 perdió la llave de la motocicleta perdeu a chave da motocicleta perso la chiave della moto потерял ключ от мотоцикла Motorradschlüssel verloren バイクの鍵をなくした Smart key repair method วิธีการซ่อมสมาร์ทคีย์ Méthode de réparation de clé intelligente Kaedah pembaikan kunci pintar 스마트 키 수리 방법 Método de reparación de llave inteligente Método de reparo de chave inteligente Metodo di riparazione delle chiavi intelligenti Метод ремонта смарт-ключа Smart-Key-Reparaturmethode スマートキーの修復方法 repair motorcycle ซ่อมมอเตอร์ไซค์ réparer une moto membaiki motosikal 오토바이 수리 reparar motocicleta consertar motocicleta riparare la moto ремонт мотоцикла Motorrad reparieren バイクの修理 Motorcycle ECU Repair ซ่อม ECU รถจักรยานยนต์ Réparation d'ECU de moto Pembaikan ECU Motosikal 오토바이 ECU 수리 Reparación de la ECU de la motocicleta Conserto de ECU de motocicleta Riparazione ECU del motociclo Ремонт ЭБУ мотоцикла Motorrad ECU Reparatur オートバイのECU修理 read motorcycle code อ่านรหัสมอเตอร์ไซค์ lire le code de la moto ler o código da motocicleta leggi il codice della moto прочитать код мотоцикла Motorradcode lesen オートバイのコードを読む motorcycle repair tool เครื่องมือซ่อมมอเตอร์ไซค์ outil de réparation de moto alat pembaikan motosikal 오토바이 수리 도구 herramienta de reparación de motocicletas ferramenta de conserto de motocicleta strumento di riparazione moto инструмент для ремонта мотоциклов Motorradreparaturwerkzeug オートバイ修理ツール remap ECU remap ECU Tuning ECU Tuning ECU motorcycle repair trainning อบรมซ่อมมอเตอร์ไซค์ formation réparation moto latihan membaiki motosikal 오토바이 수리 훈련 formación en reparación de motocicletas treinamento de conserto de motocicleta corso di riparazione moto обучение ремонту мотоциклов Motorradreparaturtraining オートバイの修理のトレーニング Motorcycle repair manual คู่มือการซ่อมรถจักรยานยนต์ Manuel de réparation de moto Manual pembaikan motosikal 오토바이 수리 매뉴얼 Manual de reparación de motocicletas Manual de conserto de motocicleta Manuale di riparazione della moto Руководство по ремонту мотоциклов Reparaturanleitung für Motorräder オートバイ修理マニュアル PGM-FI repair manual เอกสารมอเตอร์ไซค์ Manuel de réparation PGM-FI Manual pembaikan PGM-FI PGM-FI 수리 매뉴얼 Manual de reparación de PGM-FI Manual de reparo PGM-FI Manuale di riparazione PGM-FI Руководство по ремонту PGM-FI PGM-FI-Reparaturhandbuch PGM-FI修理マニュアル motorcycle wiring diagram รถจักรยานยนต์แผนภาพการเดินสายไฟ schéma de câblage moto gambar rajah pendawaian motosikal 오토바이 배선도 diagrama de cableado de la motocicleta diagrama de fiação da motocicleta schema elettrico moto схема подключения мотоцикла Schaltplan des Motorrads オートバイの配線図
